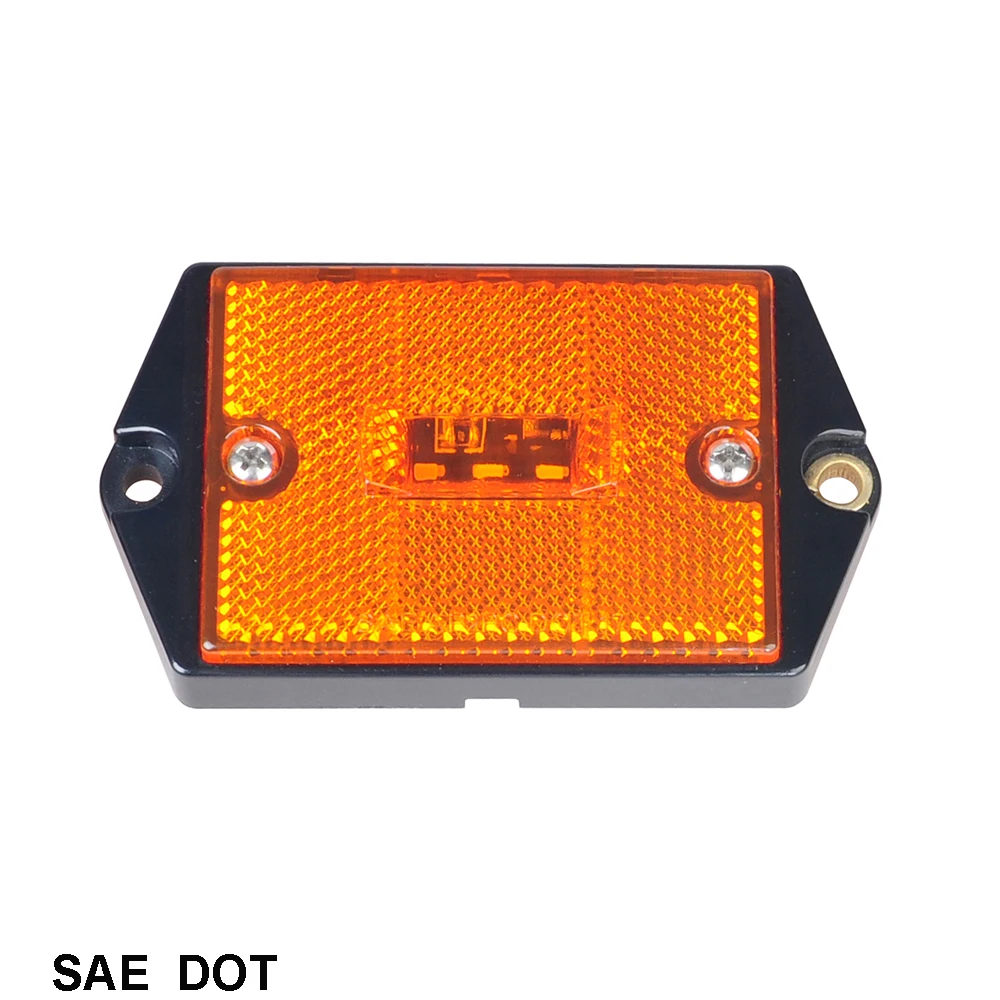

Rectangular Surface Mount LED Marker Clearance Light with Reflex side marker light

Product Overview

Description

Rectangular Surface Mount LED Marker Clearance Light with Reflex side marker light



FEATURES:

•   (3) SMD LEDs of super bright and long life span up to 50,000 hours

•   Lens screwed on, replaceable. Lens with built-in reflex reflector

•   Surface mount black plastic base

•   Functions as side marker, clearance or identification light

•   Epoxy potted LED board to ensure a permanent and weather proof seal;

•   Self grounding and a separate 6” (150mm) lead wire (optional .180 male bullet connector available)

•   In compliance with DOT FMVSS 108/SAE, P2PC rated; lens marking: AP2PC

•   Rated for 12V, designed for 13.8V

•   Also available in multi-voltage 10~30V operating range, or 24V by special order only



SPECIFICATION:

Part No.	Description	Input Voltage	Lighting Color	LED Count	Current Draw at 13.8V

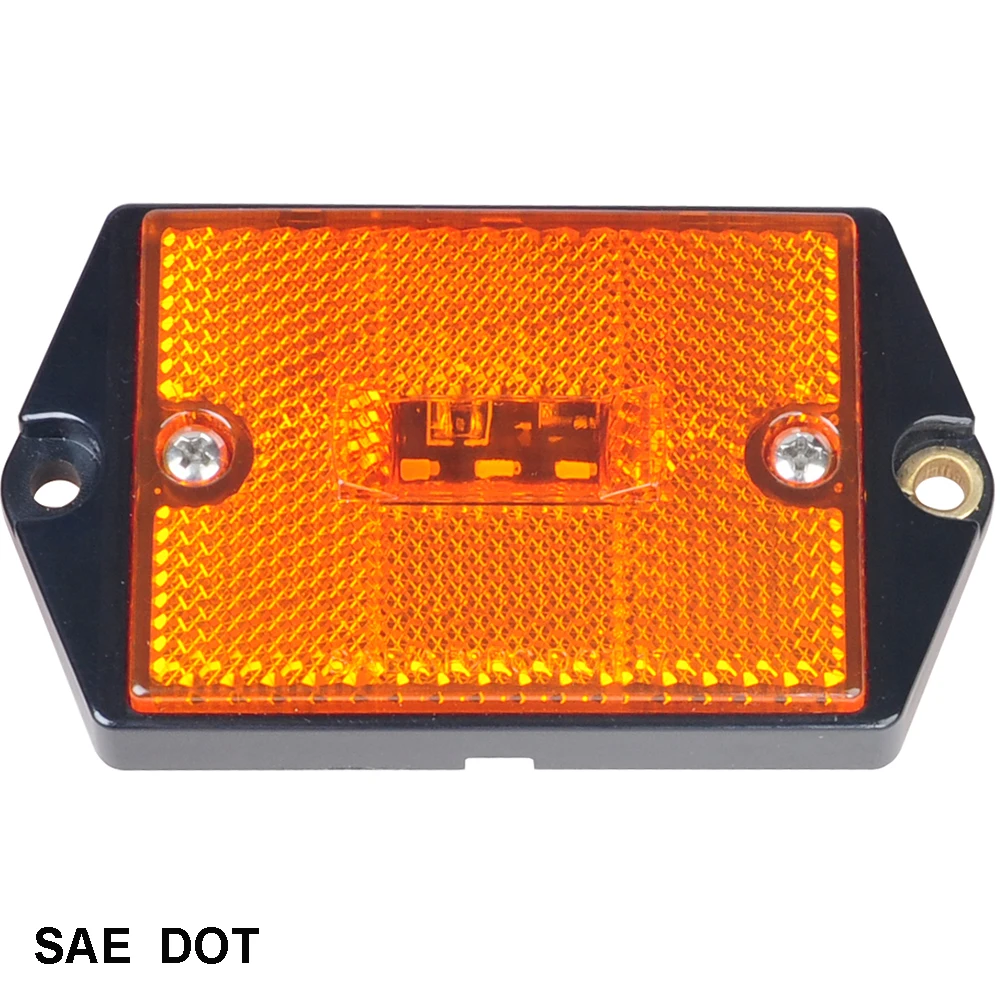

114803A	Light Kit Red	12V	Amber	3	0.02 A

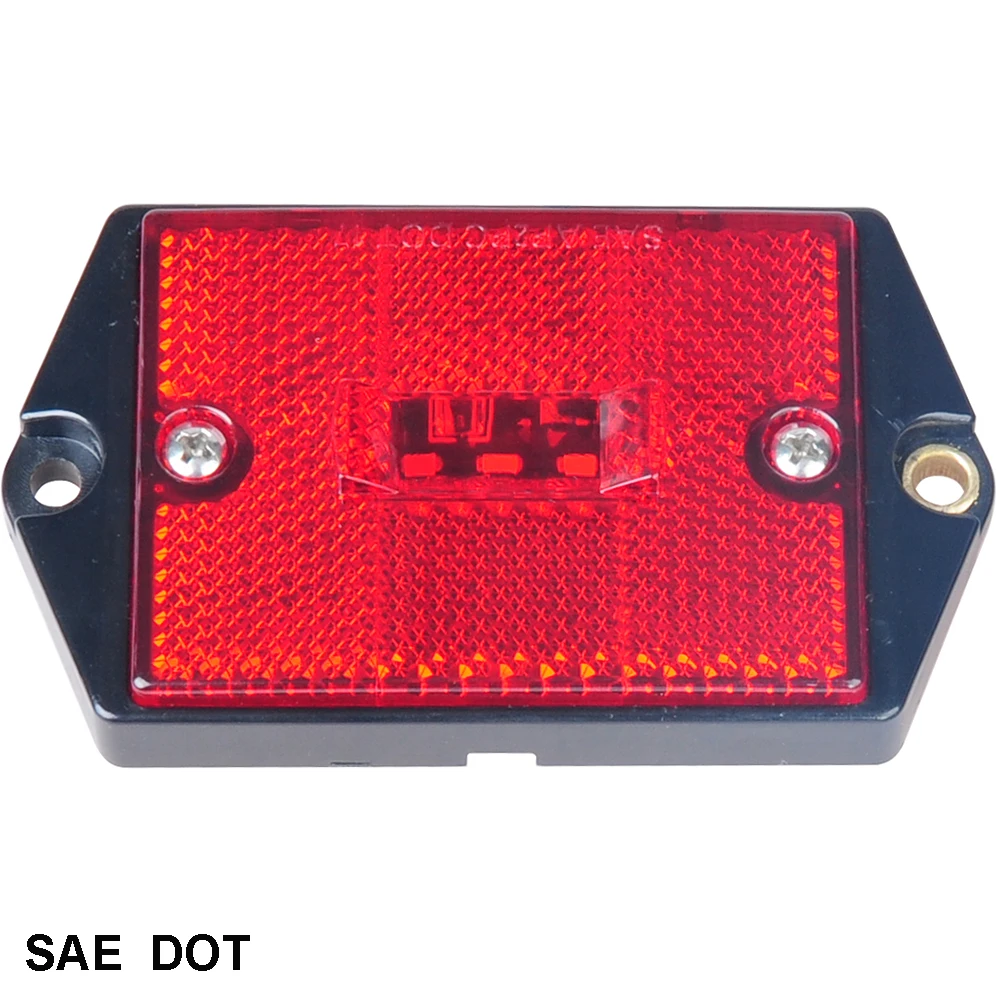

114803R	Light Kit Amber	12V	Red	3	0.04 A
114803AM	Light Kit Red, Multi-volt	12~24 V	Amber	3	0.02 A
114803RM	Light Kit Amber, Multi-volt	12~24 V	Red	3	0.04 A



























PRODUCT DIMENSION:
