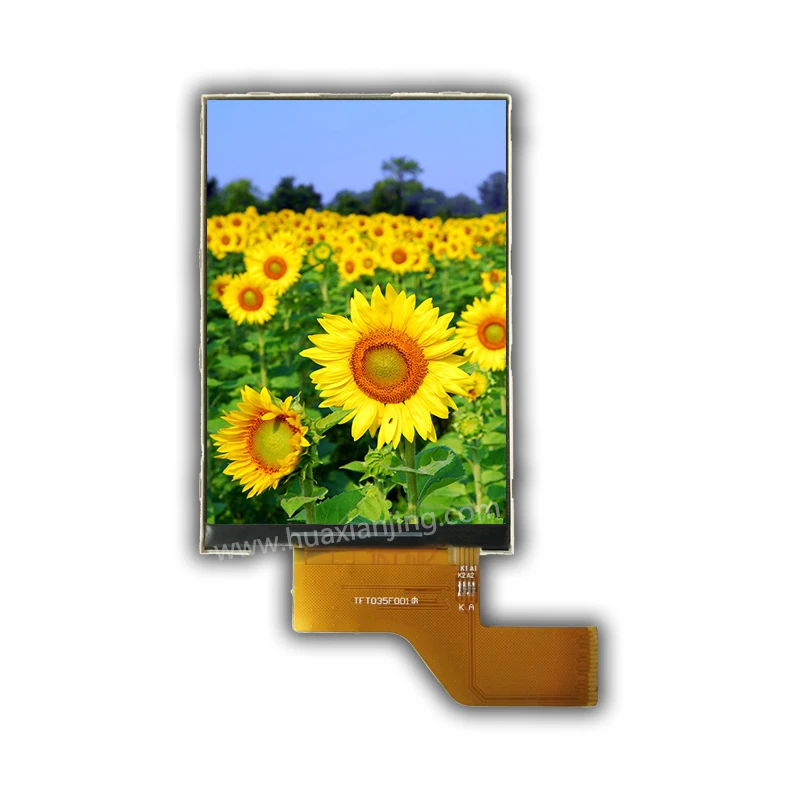

3.5' TFT LCD Display 16 Pin 320x480 MIPI Interface TFT LCD Display Module
- Category: >>>
- Supplier: Hua Xian Jing Display Limited
Share on (1600385154155):
Product Overview
Description

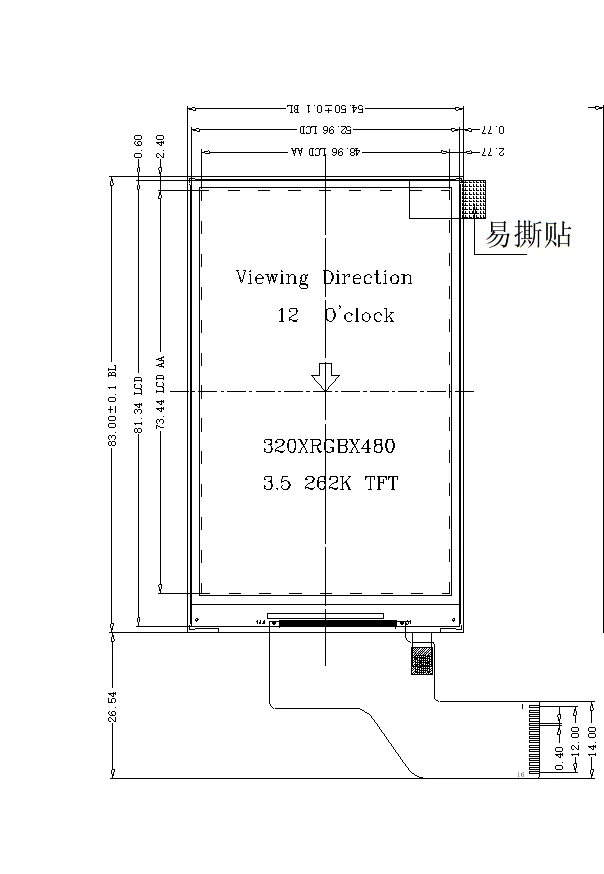

No. | Item | Specification | Unit |
1 | LCD Size | 3.5 | inch |
2 | Panel Type | TN | - |
3 | Resolution | 320RGBx480 | Pixel |
4 | Display Mode | Normally White | - |
5 | Number of Colors | 262K | - |
6 | Viewing Direction | 12 O clock | - |
7 | NTSC | 60% | - |
8 | Contrast Ratio | 500 | - |
9 | Luminance | 350 | cd/m2 |
10 | Module Size | 54.5(H)x83(V)x2.15(D) | mm |
11 | Panel Active Area | 48.96x73.44 | mm |
12 | Pixel Pitch | 0.153x0.153 | mm |
13 | Pixel Arrangement | RGB-stripe | - |
14 | Weight | g | |
15 | Driver IC | ST7796S | - |
16 | Driver IC RAM Size | 2764800 | bit |
17 | Light Source | - | |
18 | Interface | MIPI-DSI | - |
19 | Operating Temperature | -20~+70 | ℃ |
20 | Storage Temperature | -30~+80 | ℃ |
PIN ASSIGNMENTS
Pin No. | Symbol | Function |
1 | GND | Ground |
2 | ID | Ground |
3 | RST | Chip reset signal |
4 | TE | Tearing effect output |
5 | GND | Ground |
6 | VDDIO | I/O Circuit Power Supply |
7 | VCC | Analog Power Supply for LCM（2.8V） |
8 | GND | Ground |
9 | MIPI_DATAN0 | Negative polarity of low voltage differential data signal |
10 | MIPI_DATAP0 | Positive polarity of low voltage differential data signal |
11 | LED+ | Ground |
12 | MIPI_CLKN | Negative polarity of low voltage differential clock signal |
13 | MIPI_CLKP | Positive polarity of low voltage differential clock signal |
14 | GND | Ground |
15 | LED_A | Backlight anode |
16 | LED_K | Backlight cathode |
