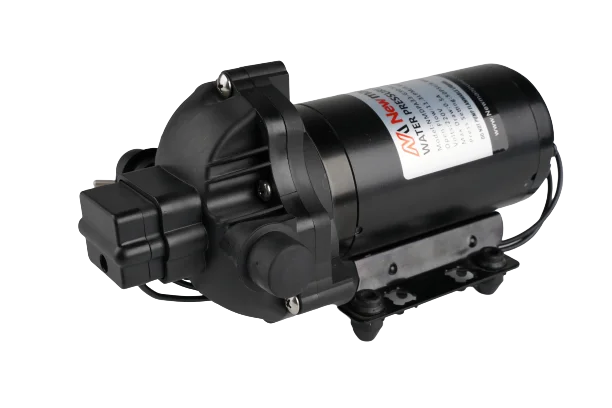

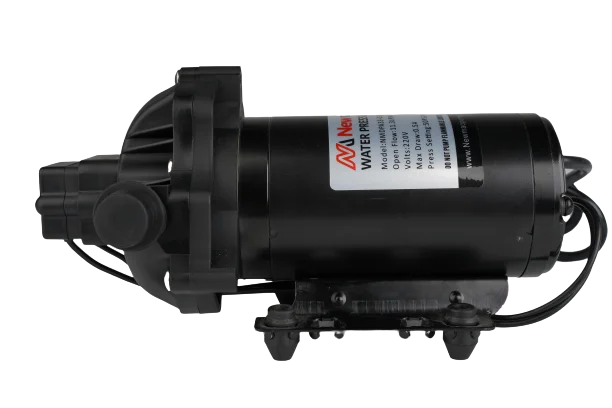

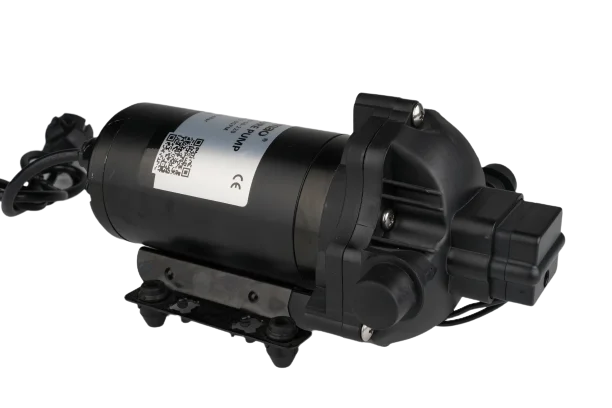

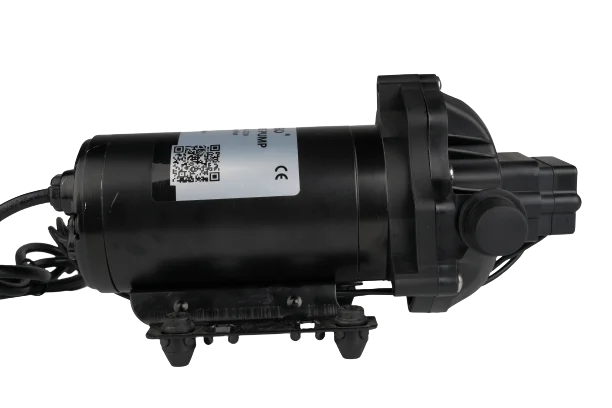

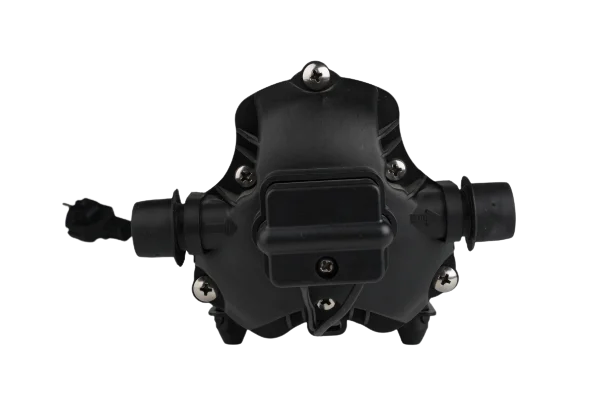

Newmao 33 series ac diaphragm electric high pressure fresh water pump 11.3lpm 45psi 110V 115V 220V 230V
- Category: >>>
- Supplier: Xiamen Newmao Pump Industry Co. Ltd.
Share on (1600385797638):
Product Overview
Description
RV water treatment
Yacht and boat water treatment
Agriculture irrigation
Housing water supply boost
High level building water boost
Liquid transfer

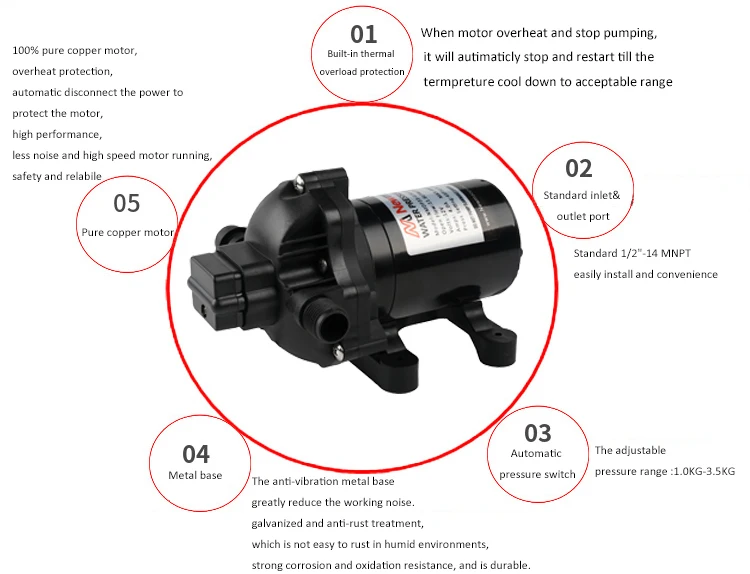

1.Flow rate up to 3.0 GPM [11.6 LPM]
3.Automatically turn on and off
5.Quiet operation
7.On-demand use
3.Automatically turn on and off
5.Quiet operation
7.On-demand use
2.Can run dry without damage
4.Self priming & built-in check valve
6.Chemically resistant materials
8.Designed for spraying and fluid transfer
4.Self priming & built-in check valve
6.Chemically resistant materials
8.Designed for spraying and fluid transfer
Product Name | Newmao 33 series water pump 33cm AC 115V / 220V |

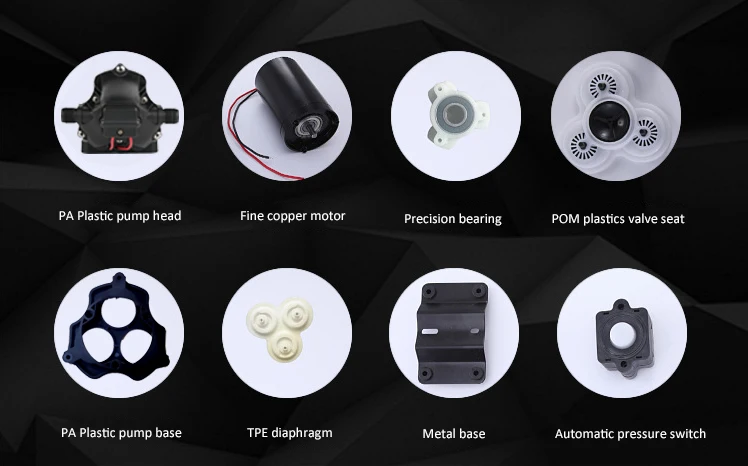

Pump Type | 3 Chambers Positive Displacement Diaphragm Pump |

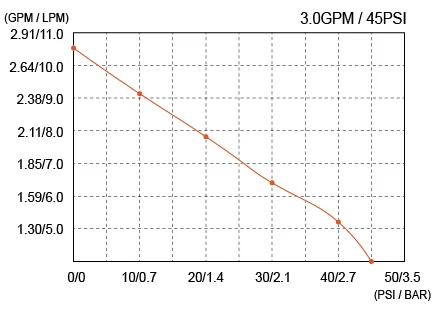

Max Flow Rate | 3.0 GPM [11.6 LPM] |
Max Pressure | 45 PSI / 3.1 Bar Max shut-off pressure |
Voltage | AC 115V / 220V |
Max Amp | 1.6 A |
Fuse | 2.0 A |
Switch Type | Built-in bypass and on-demand pressure switch |
Diaphragm Material | Santoprene |
Valve Material | Viton, and EPDM is available |
Duty Cycle | Continuous |
Self Priming | 6' [1.8 m] suction |

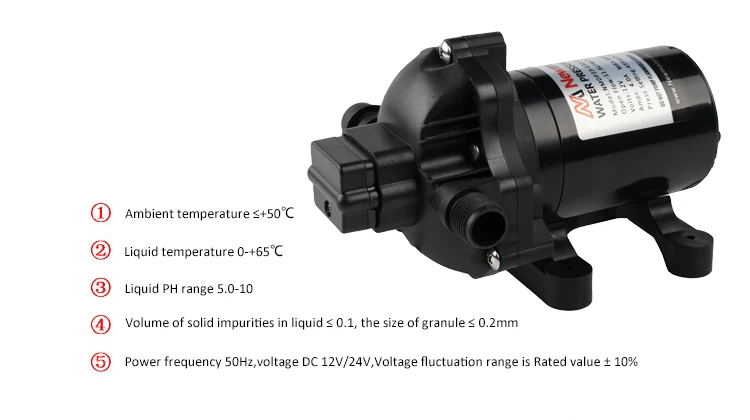

Max Fluid Temp | 140 °F [60 °C] |
Inlet & Outlet Port | 1/2"-14 MNPT |
The 33 Series is our general-duty on-demand positive displacement pump. It provides reliable performance in high water flow, moderate pressure applications. This 3 chamber diaphragm pump provides up to 3.0 gallons per minute and is capable of self-priming, up to 6 vertical feet, and can run dry without damage. Serves 3 or more 1/2"-14 MNPT. This automatic demand water system. pump has a built-in pressure switch, which automatically starts and stops when the faucet is opened and closed. They're easy to install, service and winterize..
Model | Voltage | Open flow (GPM/LPM) | Max draw | Shut-off pressure (PSI / BAR) | Ports | Wire connections |
NMDP33-G30-45-115 | 115V | 3.0 / 11.6 | 1.6A | 45 / 3.1 | 1/2"-14 MNPT | plug |
NMDP33-G30-45-220 | 220V | 3.0 / 11.6 | 0.8A | 45 / 3.1 | 1/2"-14 MNPT | plug |
Packing&Delivery
Unit N.W | 1.92 KG |

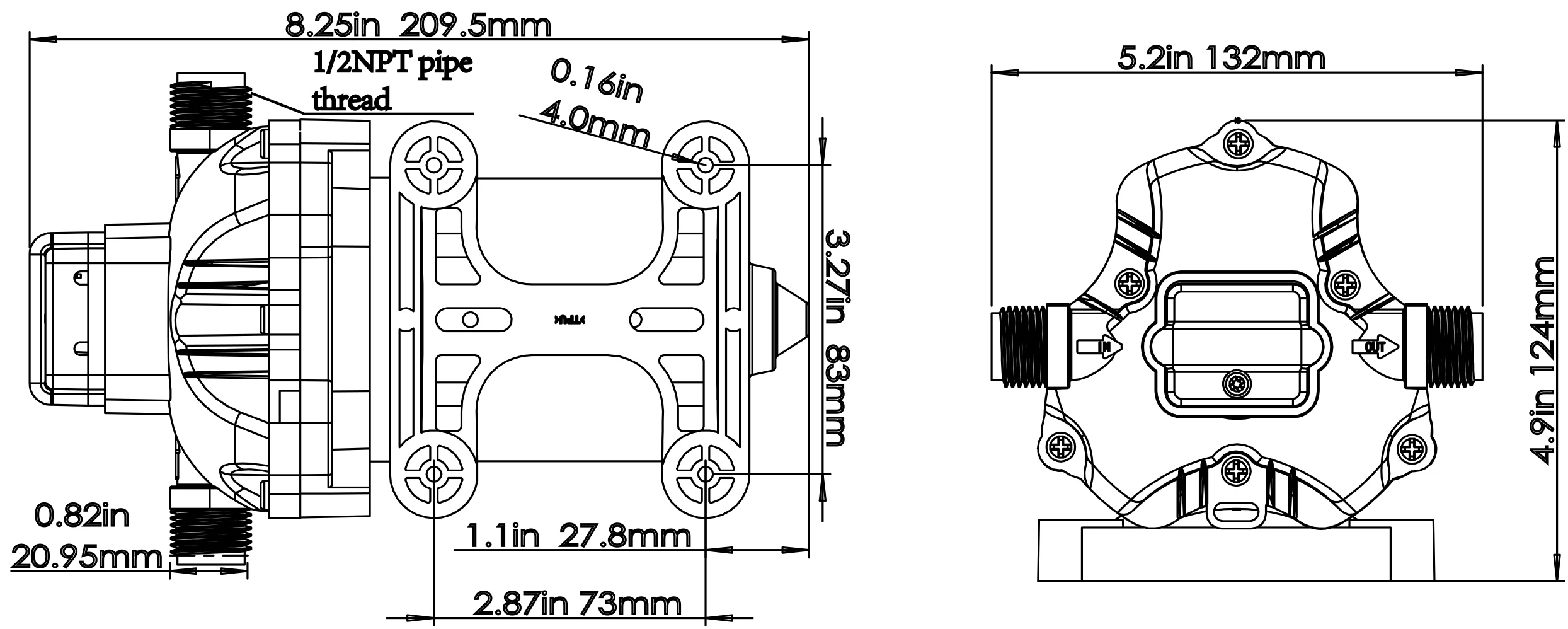

Unit Size (L x W x H) | 26cm x 15 cm x 13 cm |
Unit G.W | 2.16 KG |
Master Carton Qty | 8 pcs / carton |
Master Carton Size (L x W x H) | 53.5cm *31.5 cm *28.5 cm |
Master Carton Weight | 16 KG |
