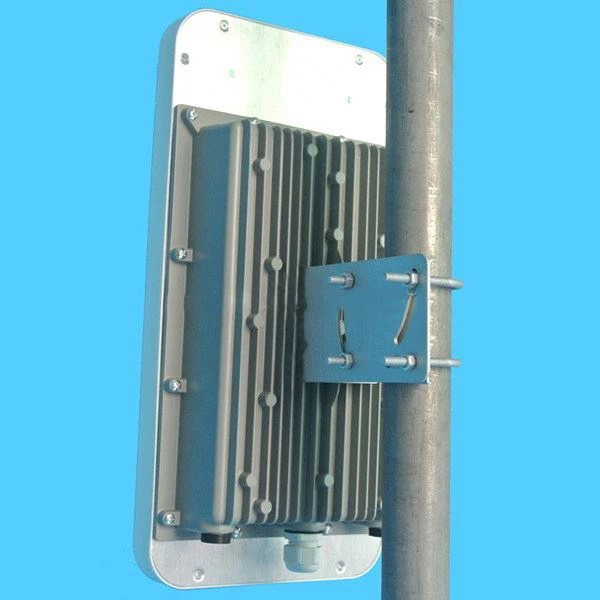

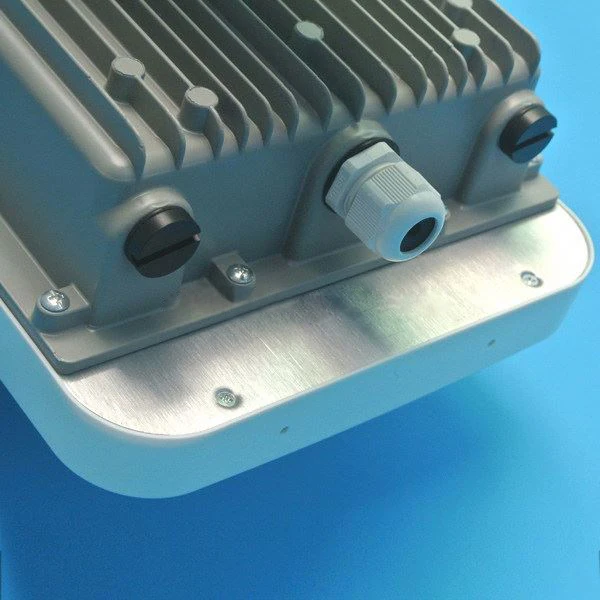

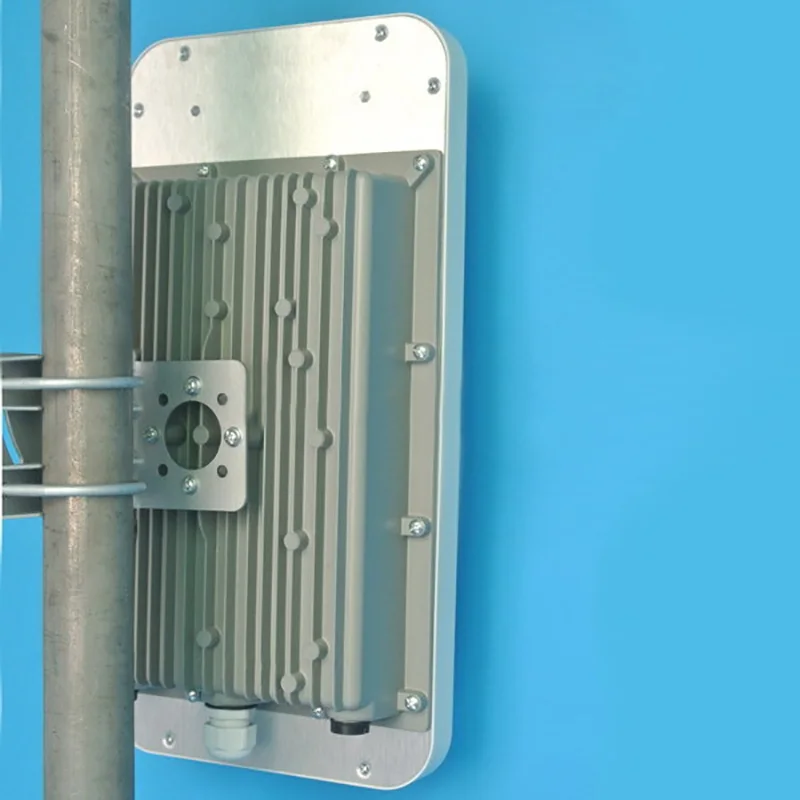

Antenna 5.8 GHz WiFi 18 dBi Directional Wall Mount Flat Patch Panel MIMO Antenna enclosure for mikrotik router
- Category: >>>
- Supplier: Shenzhen Tianjukeli Communication Cable Co. Ltd.
Share on (1600385889463):
Product Overview
Description
Antenna 5.8 GHz WiFi 18 dBi Directional Wall Mount Flat Patch Panel MIMO Antenna enclosure for mikrotik router
Feature:
High gain
Full day working
Optimized dimension
Vertical or horizontal

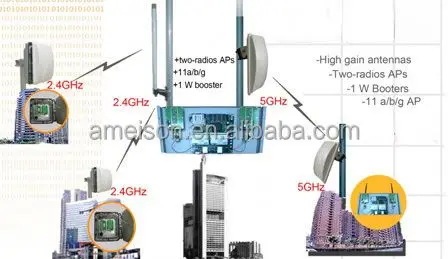

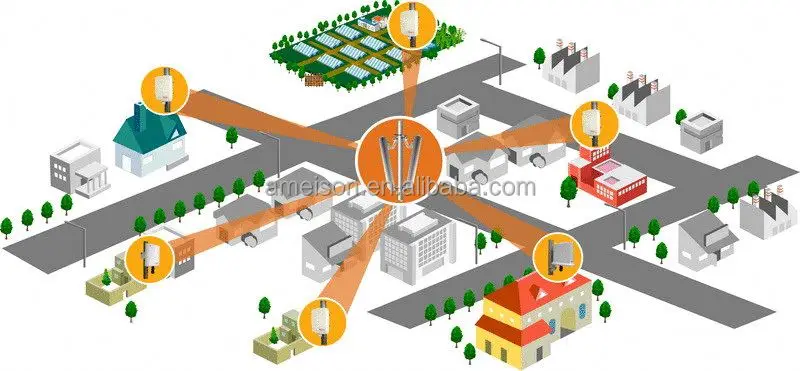

Application:
5.8GHz WLAN system
5.8GHz ISM frequency band
Public wireless hot spot coverage
Feature:
High gain
Full day working
Optimized dimension
Vertical or horizontal
Application:
5.8GHz WLAN system
5.8GHz ISM frequency band
Public wireless hot spot coverage
TJKL-5800VH-D18L60Q-A Electrical Specifications | ||
Frequency range(MHz) | 5725~5850 | |
Polarization | Vertical and Horizontal | |
Gain(dBi) | 2×18 | |
Half-power beam width(°) | H:60 V:7 | |
Front-to-back ratio(dB) | ≥25 | |
Input Impedance(Ω) | 50 | |
VSWR | ≤1.5 | |
Isolation between ports(dB) | ≥28 | |
Cross-polar ratio(dB) | ≥15@0º ≥10@+/-60º | |
Sidelobe suppression for first sidelobe above horizon(dB) | 15 | |
Maximum input power(W) | 100 | |
Lightning protection | DC Ground | |
Mechanical Specifications | ||
Cavity internal dimension(mm) | 271*171*47 | |
Dimensions-mm (Height/Width/Depth) | 450*253*35 | |
Antenna weight (kg) | 0.52 | |
Radome material | ABS | |
Radome color | White | |
Mechanical tilt(°) | 0~10 | |
Operating temperature(°c) | -40~60 | |
Rated Wind Velocity(m/s) | 60 | |
Waterproof Standard | IP54/ IP65/ IP67 | |
Mounting way | wall-hanging or pole-holding | |
Mounting hardware(mm) | 30 ~ 50 | |
Packaging&Shipping
bubble PP bag or EPE/inner box/master carton(safe export packaging) or others
Our Services
Do 100% inspection and follow AQL standard before shipment.
Tianju keli has a strong team of Engineering and QA expertise to assure and control high quality standard.
To comply with RoHs, REACH and FCC, etc., Tianju keli orders raw materials from certified suppliers.
First business is a trial order, opportunity and luck, permanent commercial intercourse depends on price, quality and prestige.
Long-term business cooperation is our ultimate goal, making high quality products and considerate service is our top priority.
Tianju keli has a strong team of Engineering and QA expertise to assure and control high quality standard.
To comply with RoHs, REACH and FCC, etc., Tianju keli orders raw materials from certified suppliers.
First business is a trial order, opportunity and luck, permanent commercial intercourse depends on price, quality and prestige.
Long-term business cooperation is our ultimate goal, making high quality products and considerate service is our top priority.
Per our factory always tell our customers all along: you win, Tianju keli factory will win, we do win-win long-term business, NOT
one-shot deal.
We welcome you to schedule a visit our factory anytime and consult with us for more business when you feel free.
Tianju keli Antennas Factory is one of leading professional antenna manufacturers and only one has our own Antennas Far Field
Automatic Measurement System in Shenzhen, China.
Our Main Customers: CMCC, China Unicom, China Telecom, HUAIWEI, ZTE, Globe Telecom etc.
your choice + our products > win-win situation
We are Top 2 antennas industry manufacturer in Shenzhen, NOT trading company.
Good Reputation and Credibility of Good Guarantee
one-shot deal.
We welcome you to schedule a visit our factory anytime and consult with us for more business when you feel free.
Tianju keli Antennas Factory is one of leading professional antenna manufacturers and only one has our own Antennas Far Field
Automatic Measurement System in Shenzhen, China.
Our Main Customers: CMCC, China Unicom, China Telecom, HUAIWEI, ZTE, Globe Telecom etc.
your choice + our products > win-win situation
We are Top 2 antennas industry manufacturer in Shenzhen, NOT trading company.
Good Reputation and Credibility of Good Guarantee

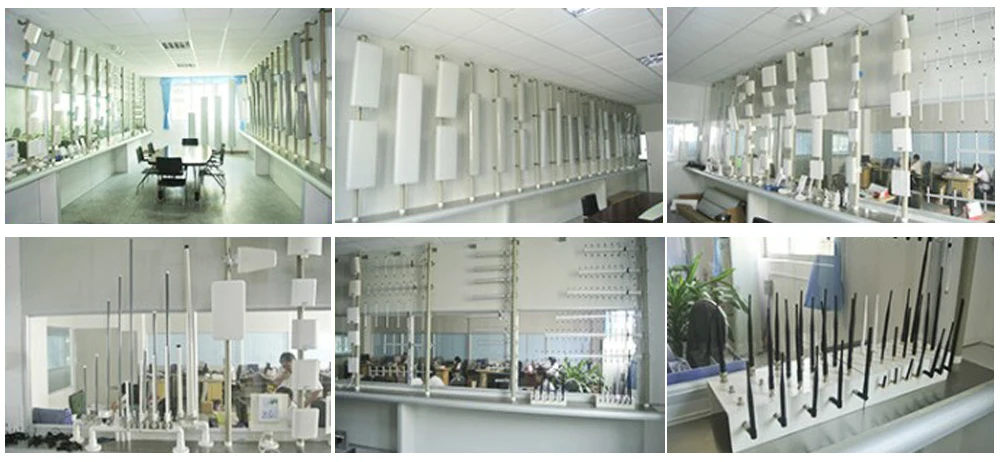

Our sample room
Our Advantages
Shenzhen tianjukeli communication cable co., LTD. Established in 2012, Is mainly engaged in OEM and ODM antennas And high-end rfcoaxial cable Production, processing and sales。 The main products are:antennas，LTE, WIMAX, Wi-Fi, 3G, DECT, WLAN, CDMA,GPRS,CMMB,DMB, GSM and DVB-T types etc.(our products arrange cover the frequency from 88 MHz to 5.85 GHz）RF coaxial cablesinclude: (LMR low loss cable, RG American military standard series cable, d-fb and c-fb material foam series, SYV and SYWVnational standard series, semi-rigid and semi flexible series, RF cable assembly cable, high temperature cable, military cable,optical cable, cable connector, etc.
Product Compliance: Regulatory Compliance/Certifications: RoHS and REACH Compliant by Exemption

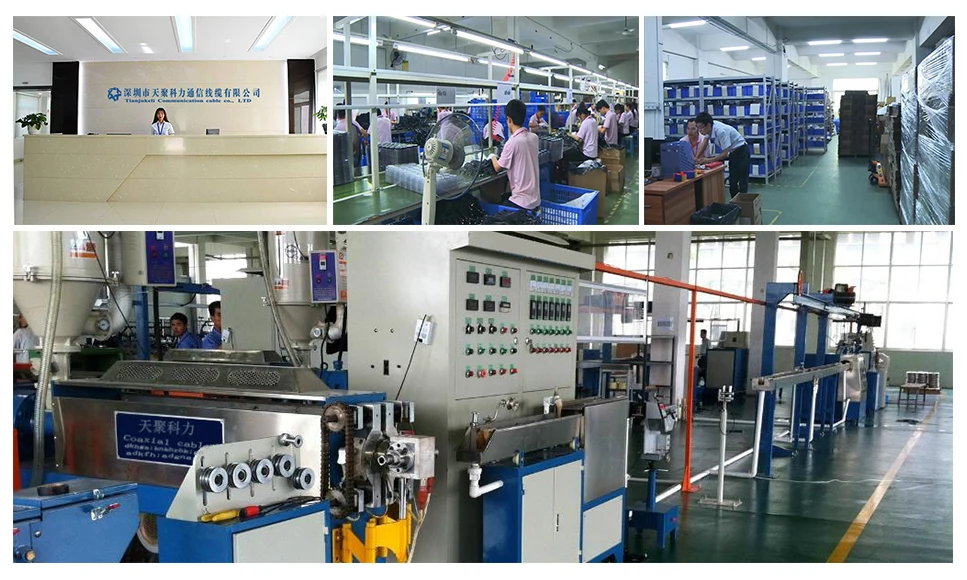

We have a 5,000 square meter factory, 60 employees and a complete supply chain. In order to ensure the quality of our products, we have introduced high-end production technology and testing equipment, and about 12% of our sales revenue is used for research and development every year. To prove to our customers that we have stable technical support and continuous innovation.
We have a strong sales team and are willing to help you. We will help you from product selection to shipping.
Product packaging and transportation
Product packaging and transportation
PackingWe have 10 years of experience packing and shipping abroad. We would make sure the goods arrive safely.Shipping
We would help you choose the shipping option that makes the most sense for you. Provide the destination of your shipment, sort
your results by time or cost to find the most cost-effective shipping service.
Certifications and Licenses
Contact Us
FAQ
Q: What type of antenna your have ?
A: We have all kinds of frequencies and gains according to different types of antenna. Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi,
12dBi, 16dBi, 25dBi, ...Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G,5.8G,RFID, WIFI, GPS, GSM, 3G, 4G, ...Outlook: Wall mount, Ceiling mount,Yagi, LPDA, Rubber, Patch, Panel, Magnetic...
Q: We want the 1m cable, can you do that?
A:It is no problem for us, the cable length can be customized, they can be 1M, 2M,3M or even longer.
Q:Can the connector make with another type connector?
A: Of course, we can , SMA serial ,MCX, Fakra, TS9, CRC9 and so on.
Q: We want to have samples for test first,could you offer?
A:Yes, if the antenna is not high valued, we could provide you free samples,but some expensive antennas, such as Yagi, wall mount antenna, we would charge you
Q:How is the cost?
A: Usually we quote the EXW price , and use your courier account, such as DHL, of course ,we can ship to you but charge your shipping cost.
Our Service
1) Manufacturer we are.
2) Strong and steady supplying ability
3) Delivery time: 5-7 working days after payment confirmed
4) Do as your requirements on package, brand or other designs
5) Competitive price
6) We would try our best to support you
A: We have all kinds of frequencies and gains according to different types of antenna. Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi,
12dBi, 16dBi, 25dBi, ...Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G,5.8G,RFID, WIFI, GPS, GSM, 3G, 4G, ...Outlook: Wall mount, Ceiling mount,Yagi, LPDA, Rubber, Patch, Panel, Magnetic...
Q: We want the 1m cable, can you do that?
A:It is no problem for us, the cable length can be customized, they can be 1M, 2M,3M or even longer.
Q:Can the connector make with another type connector?
A: Of course, we can , SMA serial ,MCX, Fakra, TS9, CRC9 and so on.
Q: We want to have samples for test first,could you offer?
A:Yes, if the antenna is not high valued, we could provide you free samples,but some expensive antennas, such as Yagi, wall mount antenna, we would charge you
Q:How is the cost?
A: Usually we quote the EXW price , and use your courier account, such as DHL, of course ,we can ship to you but charge your shipping cost.
Our Service
1) Manufacturer we are.
2) Strong and steady supplying ability
3) Delivery time: 5-7 working days after payment confirmed
4) Do as your requirements on package, brand or other designs
5) Competitive price
6) We would try our best to support you
