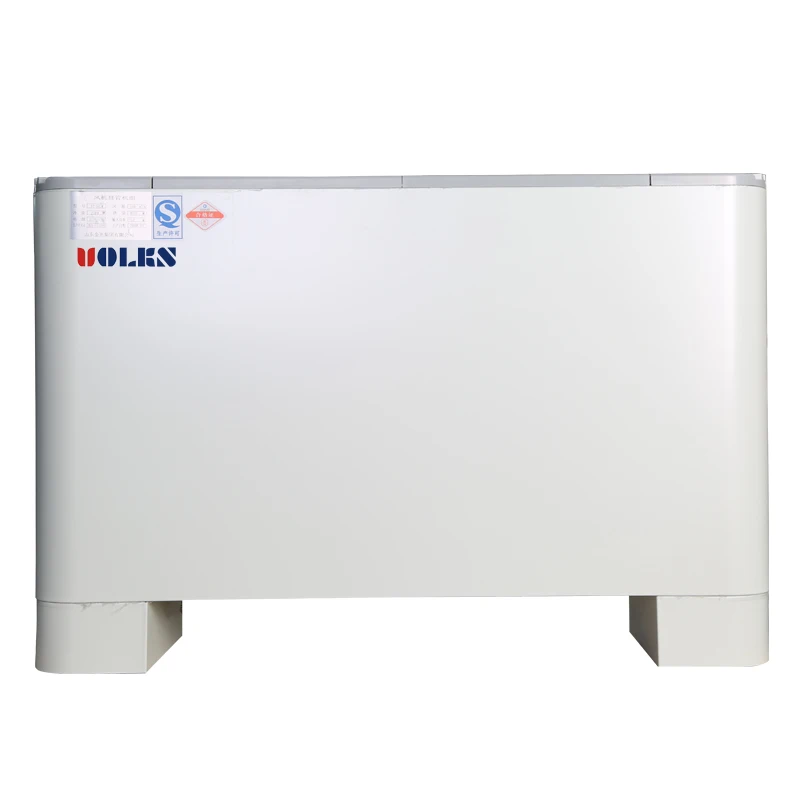

Low price FCU 36000btu FP 204 Fan coil unit Indoor unit
- Category: >>>
- Supplier: Shandong Volks Air Conditioner Group Co. Ltd.
Share on (1600385990747):
Product Overview
Description
Product Description
Features of fan coil unit
More security, more reliable, and more service life
Each fan-coil heat exchanger will be undergone pressure leak detection.
The inlet and outlet are of forged brass structure, which is reliable and durable.
All materials are well fireproof. The motors are with overheating and power failure protection devices.
With free- maintenance Ultra-low noise rolling bearings, the service life can reach up to 35,000 hours. The shaft of the motor is specially treated without rust.
The casing is made of high-quality cold-rolled steel plate, sprayed plastic or hot-dip galvanized steel plate, which is mechanically bitten into the shape, which is strong and anti-corrosive.
More security, more reliable, and more service life
Each fan-coil heat exchanger will be undergone pressure leak detection.
The inlet and outlet are of forged brass structure, which is reliable and durable.
All materials are well fireproof. The motors are with overheating and power failure protection devices.
With free- maintenance Ultra-low noise rolling bearings, the service life can reach up to 35,000 hours. The shaft of the motor is specially treated without rust.
The casing is made of high-quality cold-rolled steel plate, sprayed plastic or hot-dip galvanized steel plate, which is mechanically bitten into the shape, which is strong and anti-corrosive.
High performance, high efficiency

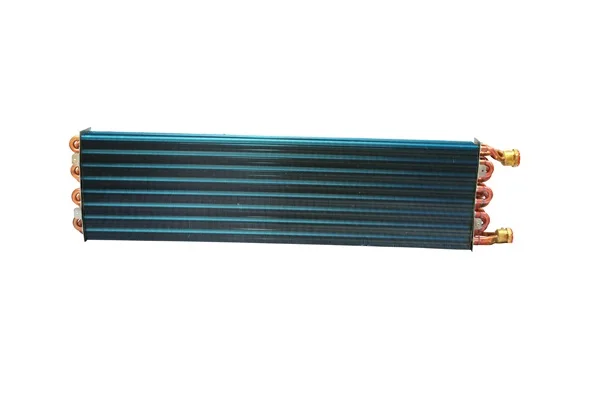

The coil are equipped with seamless red copper tube string with high-efficiency corrugated aluminum fin structure, which is integrated by mechanical expansion. The combination is tight enough to make sure a higher heat transfer efficiency , a more sufficient heating efficiency , and a dust free surface .
Advanced technology with lower noise

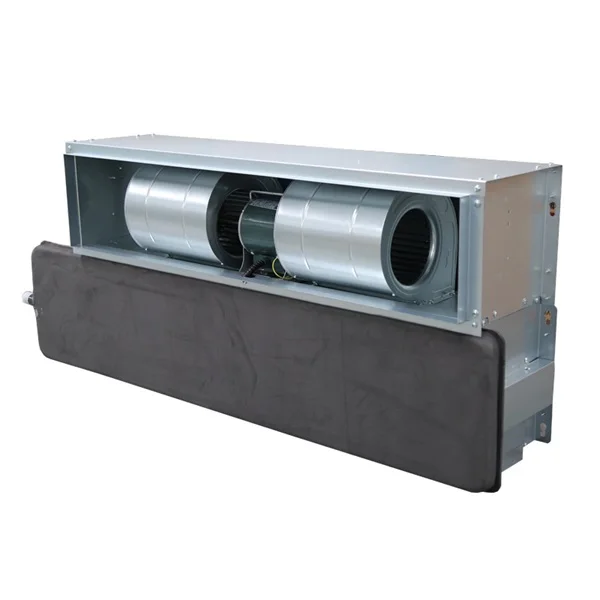

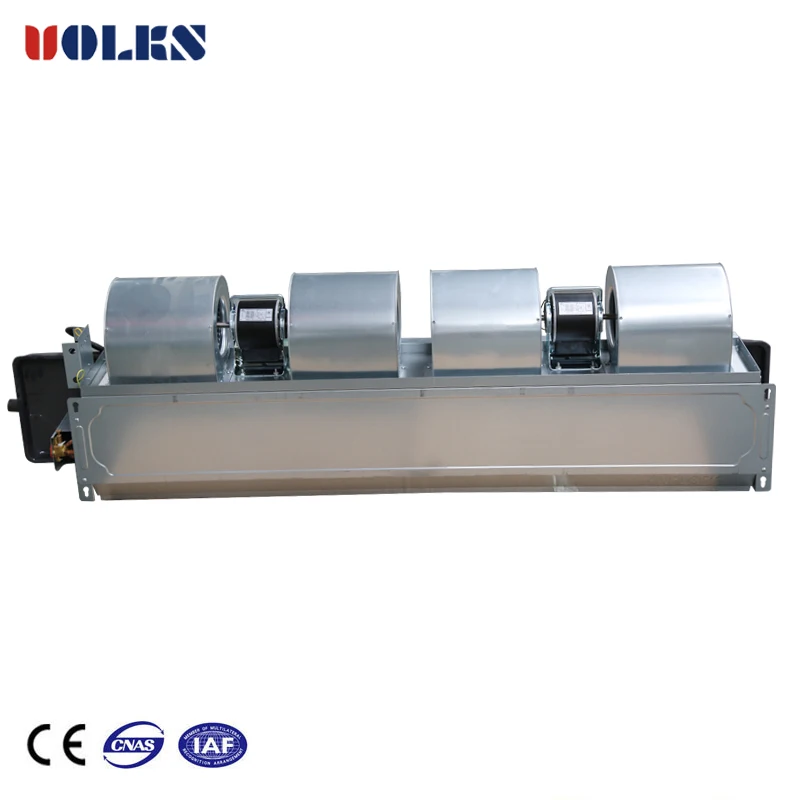

The fan impeller has no welding points as a whole, and the wheel frame ring is tightly integrated and never deformed. The double-inlet forward-leaning airfoil centrifugal galvanized steel wind wheel has undergone strict dynamic and static balance tests. The air is transmitted in a streamlined manner to reduce vortexes. The generation of swirling air reduces the noise generated during air friction, and the unit runs more smoothly and quietly.
Beautiful appearance, easy maintenance
The unit is with humanized design for easily maintain and repair. The unit filter can also be cleaned at any time.
The coil are equipped with seamless red copper tube string with high-efficiency corrugated aluminum fin structure, which is integrated by mechanical expansion. The combination is tight enough to make sure a higher heat transfer efficiency , a more sufficient heating efficiency , and a dust free surface .
Advanced technology with lower noise
The fan impeller has no welding points as a whole, and the wheel frame ring is tightly integrated and never deformed. The double-inlet forward-leaning airfoil centrifugal galvanized steel wind wheel has undergone strict dynamic and static balance tests. The air is transmitted in a streamlined manner to reduce vortexes. The generation of swirling air reduces the noise generated during air friction, and the unit runs more smoothly and quietly.
Beautiful appearance, easy maintenance
The unit is with humanized design for easily maintain and repair. The unit filter can also be cleaned at any time.
Model Name | FP-34 | FP-51 | FP-68 | FP-85 | FP-102 | FP-136 | FP-170 | FP-204 | ||||||||
Power Supply | 1 phase, 220-240V, 50 | |||||||||||||||
Air Flow(M3/H) | H | 340 | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 | |||||||
M | 255 | 383 | 510 | 638 | 765 | 1020 | 1275 | 1530 | ||||||||
L | 170 | 255 | 340 | 425 | 510 | 680 | 850 | 1020 | ||||||||
Cooling(W) | H | 1800 | 2700 | 3600 | 4500 | 5400 | 7200 | 9000 | 10800 | |||||||
M | 1440 | 2160 | 2880 | 3600 | 4320 | 5760 | 7200 | 8640 | ||||||||
L | 1170 | 1755 | 2340 | 2925 | 3510 | 4680 | 5850 | 7020 | ||||||||
Heating(W) | H | 2700 | 4050 | 5400 | 6750 | 8100 | 10800 | 13500 | 16200 | |||||||
M | 2160 | 3240 | 4320 | 5400 | 6480 | 8640 | 10800 | 12960 | ||||||||
L | 1755 | 2633 | 3510 | 4388 | 5265 | 7020 | 8775 | 10530 | ||||||||
Power Input(W) | 12Pa | 37 | 52 | 62 | 76 | 96 | 134 | 152 | 189 | |||||||
30Pa | 44 | 59 | 72 | 87 | 108 | 156 | 174 | 212 | ||||||||
50Pa | 49 | 66 | 84 | 100 | 118 | 174 | 212 | 189 | ||||||||
Noise dB(A) | 12Pa | 37 | 39 | 41 | 43 | 45 | 46 | 48 | 50 | |||||||
30Pa | 40 | 42 | 44 | 46 | 47 | 48 | 50 | 52 | ||||||||
50Pa | 42 | 44 | 46 | 47 | 49 | 50 | 52 | 54 | ||||||||
Fan | Type | Forward multi - wing centrifugal double suction fan | ||||||||||||||
Qty | 1 | 2 | 2 | 2 | 2 | 3 | 4 | 4 | ||||||||

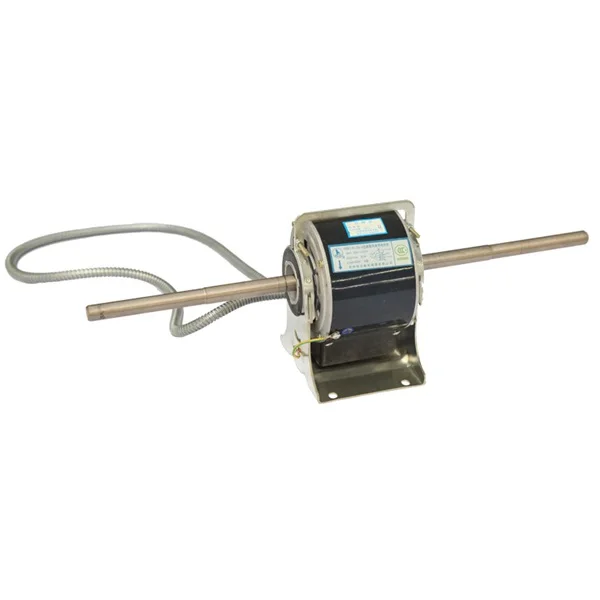

Motor | Type | Permanent capacitive three-speed motor | ||||||||||||||
Qty | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | ||||||||
Heat Exchanger | Copper tube and aluminum fin | |||||||||||||||
Water Flow() | m3/h | 0.39 | 0.55 | 0.7 | 0.82 | 0.91 | 1.34 | 1.59 | 1.8 | |||||||
Pressure Drop | kPa | 12 | 16 | 20 | 23 | 26 | 28 | 32 | 38 | |||||||
Pipe Size | DN20 Internal thread | |||||||||||||||
Drain pipe | 3/4’’ External thread | |||||||||||||||
Net Weight | ||||||||||||||||
without plemun | 14 | 15 | 17 | 19 | 20 | 27 | 32 | 35 | ||||||||
with plemun | 17 | 19 | 20 | 22 | 25 | 31 | 37 | 42 | ||||||||
Details Images
Company Profile

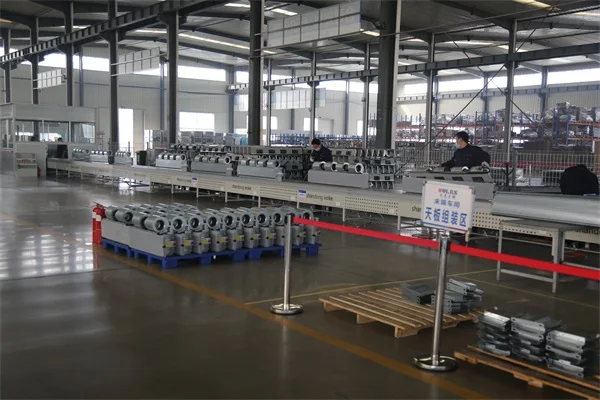

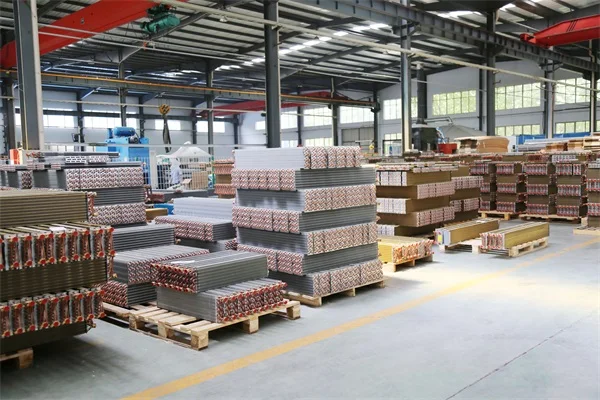

Shandong Volks Air Conditioning Group co.,ltd., established in 2011, as a professional central air conditioning manufacturer in China, we are engaged in the research, development, sale and after sale service of modular chiller and heat pump, water/air cooled screw chiller, water source heat pump, packaged rooftop unit, duct split unit, fan coil unit, air handling unit, etc. All kinds of products have passed the inspection of the National Air Conditioning Testing Center; We also established our owner major labs: national standard central air conditioning laboratory, and heat pump dryer laboratory. Our factory is located in Dezhou city, Shandong province, it is more near Beijing with about 75 minutes by high speed train. We have more than 100,000m3 workshop, and total more than 260 employees till now. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In addition, we have obtained CRAA, ISO9001, ISO14001 and ISO45001 system, AAA credit rating certificates. Selling well in all cities and provinces around China, and also exported to oversea market with many countries. We also welcome OEM and ODM orders.
