Product Overview
Description
Product Description
One machine, Nine functions, Simple operation.

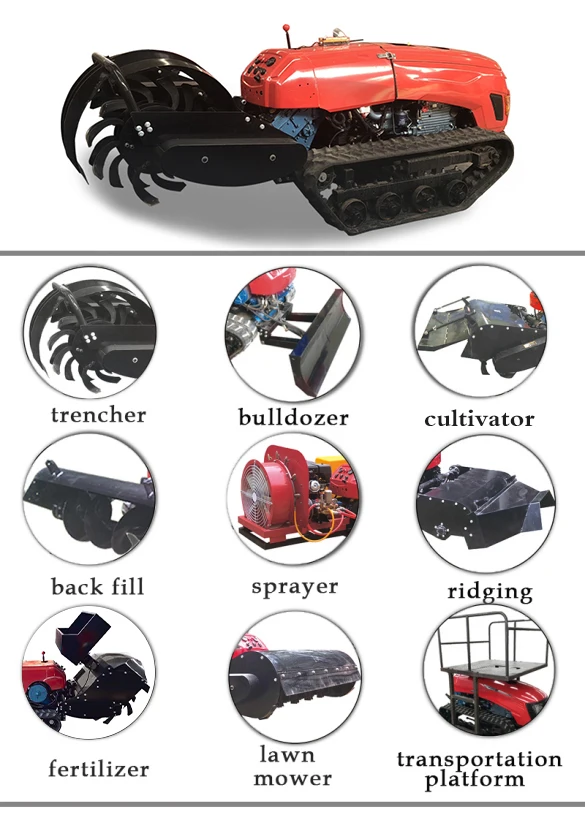

Multifunction agriculture machinery remote control sprayer lawn mower cultivators is a kind of easy-to-use and widely-used agricultural machinery. The remote control is used to control the whole machine. 3 + 1 walking gearbox, 230mm international engineering rubber track, one machine with nine functions. Only one host is needed to realize the functions of rotary ploughing, furrowing, weeding, fertilizing, pesticide application, backfilling, ridge, bulldozer and transportation platform by changing different attachments, greatly improving the use of the field management machine Rate, if farmers want to complete a variety of operations, they do not need to buy new machines, so their cost input has been reduced.
Host parameters | ||
Engine | Changchai | |
Power | 32HP/36HP | |
Gear position | F:3/R:1 | |
Working speed | 1-10km/h | |
Walking speed | 10.2km/h | |
Crawler track specs | 230*72*43 | |
Start method | Electric | |
Remote control distance | ≤500m | |
Climbing | 35° | |
Lights | 2 | |
Weight | 730kgs | |
Size | 2000*1100*1080mm | |
Cultivator attachment parameters
Rotary tillaging depth: 20cm
Rotary tillaging width: 120cm
Knife shaft speed: 350r/min
Knife shaft width: 130cm
Working efficiency: 1400m²/h
Blade quanity: 24pcs
Overall Size: 2900*1100*1000mm
Weight: 160kgs

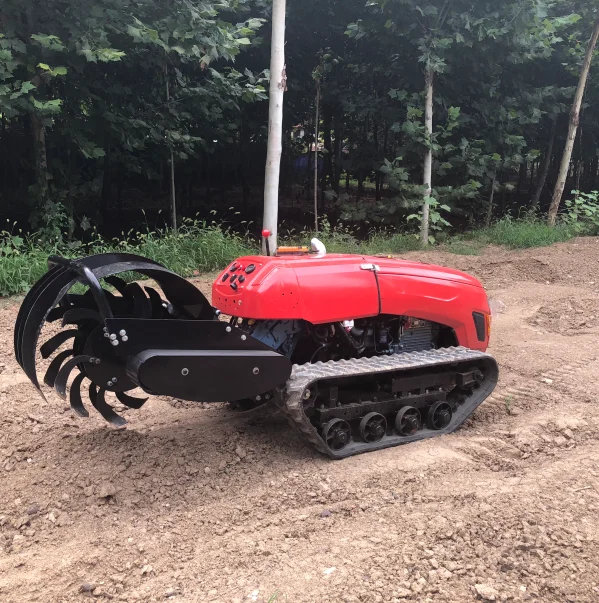

Trencher attachment parameters
Trench depth: 30cm
Trench width: 25cm
Work efficiency: 800-1000m/h
Knife shaft speed: 550r/min
Blade quanity: 18pcs
Overall Size: 2700*1100*950mm
Weight :132kg

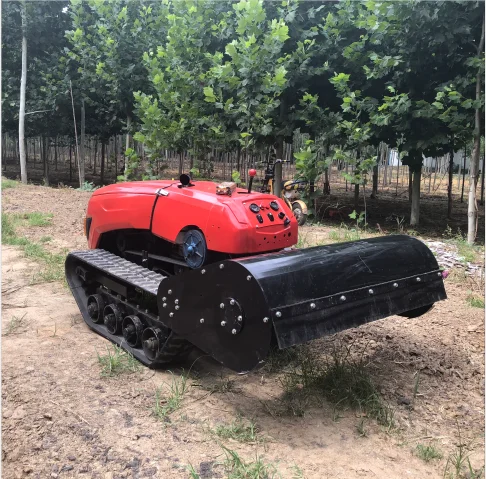

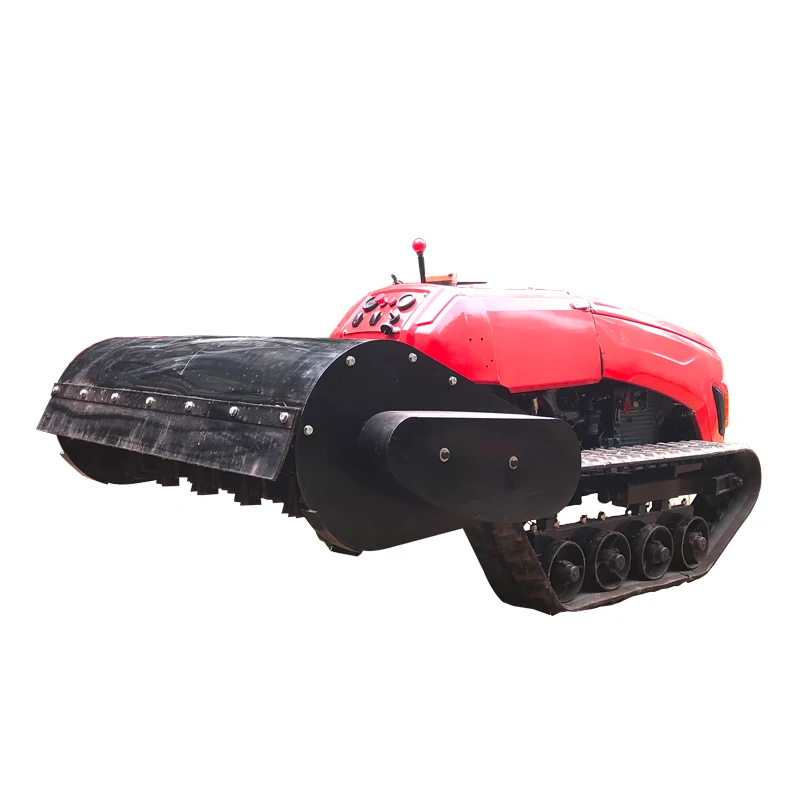

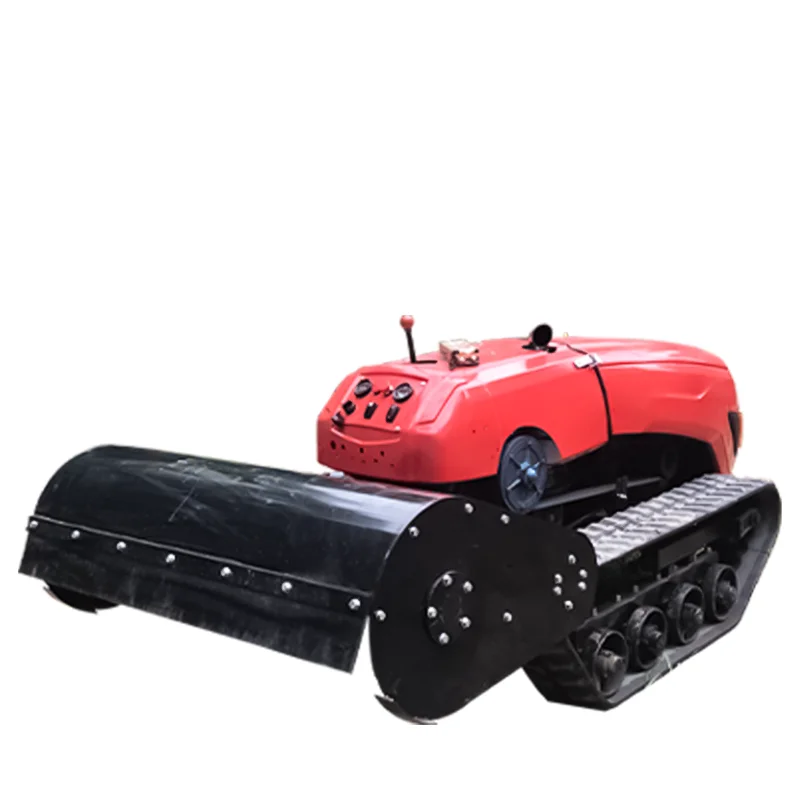

Lawn mower attachment parameters
Cutter grass width: 120cm
Stubble height: 3-5cm
Knife shaft speed: 950r/min
Blade quanity: 96pcs
Work efficiency: 1500m²/h
Knife shaft speed: 1000rpm/min
Type: flail mower
Overall Size: 2500*1100*1100mm
Weight: 150kgs
Stubble height: 3-5cm
Knife shaft speed: 950r/min
Blade quanity: 96pcs
Work efficiency: 1500m²/h
Knife shaft speed: 1000rpm/min
Type: flail mower
Overall Size: 2500*1100*1100mm
Weight: 150kgs

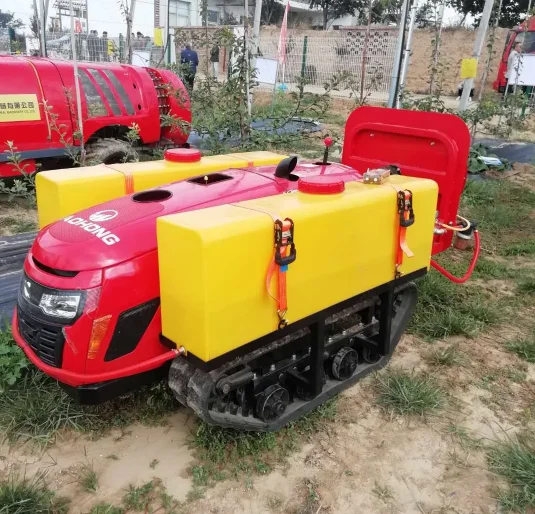

Sprayer attachment parameters
Tank capacity: 160L*2（320L）
Working width: 10-12m
Spraying height: 8-10m
Fans diameter: 60cm
Nozzles water output: 0.79L/min
Tank capacity: 160L*2
Overall Size: 2700*1230*1100mm
Weight: 110kgs
Working width: 10-12m
Spraying height: 8-10m
Fans diameter: 60cm
Nozzles water output: 0.79L/min
Tank capacity: 160L*2
Overall Size: 2700*1230*1100mm
Weight: 110kgs
Fertilizer attachment parameters
Fertilization depth: 30cm
Width: 25cm
Tank volume: 130L
Backward speed: 1.7km/h
Weight: 196kgs
Width: 25cm
Tank volume: 130L
Backward speed: 1.7km/h
Weight: 196kgs
Ridging attachment parameters
Ridging height: 20cm
Ridging bottom width: 70cm
Ridge width: 40cm
Ditch width: 30cm
Unilateral width: 25cm
Size: 2700*1300*950mm
Weight: 18kgs
Weight: 18kgs
Back fill attachment parameters
Backfill width: 110cm
Spindle speed: 550rpm/min
Type: Spiral type
Weight: 24kgs
Spindle speed: 550rpm/min
Type: Spiral type
Weight: 24kgs

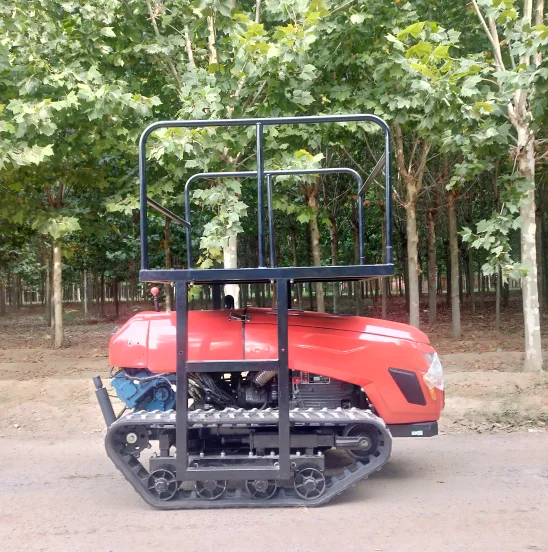

Tansportation Platform attachment
Loading capactity: 500kg
Platform size: 120*120cm
Platform height from the ground: 110cm
Fence height: 180cm
Weight: 86kg
Platform height from the ground: 110cm
Fence height: 180cm
Weight: 86kg

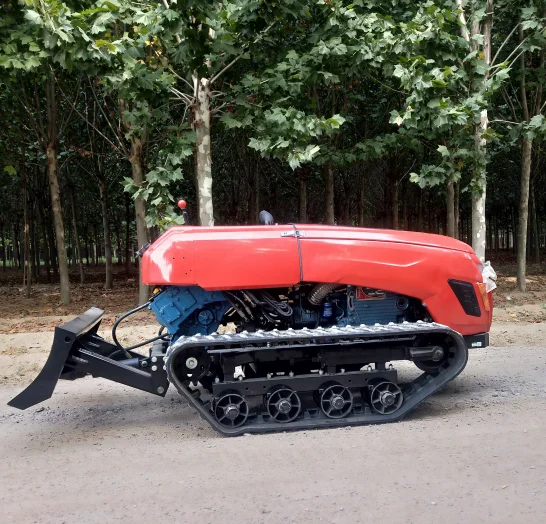

Bulldozer attachment parameters
Height:\t 36cm
Width: 112cm
Weight: 44kg
Width: 112cm
Weight: 44kg

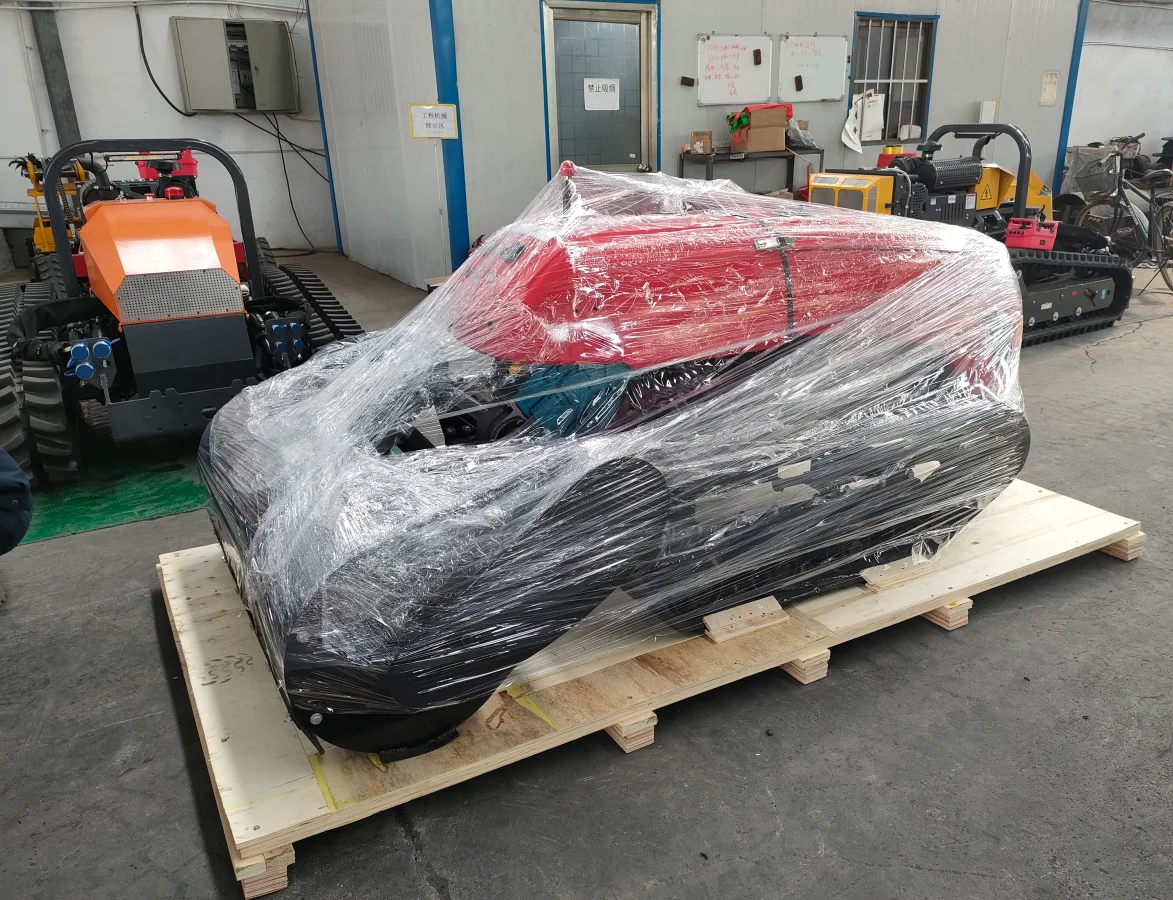

Packing&Shipping

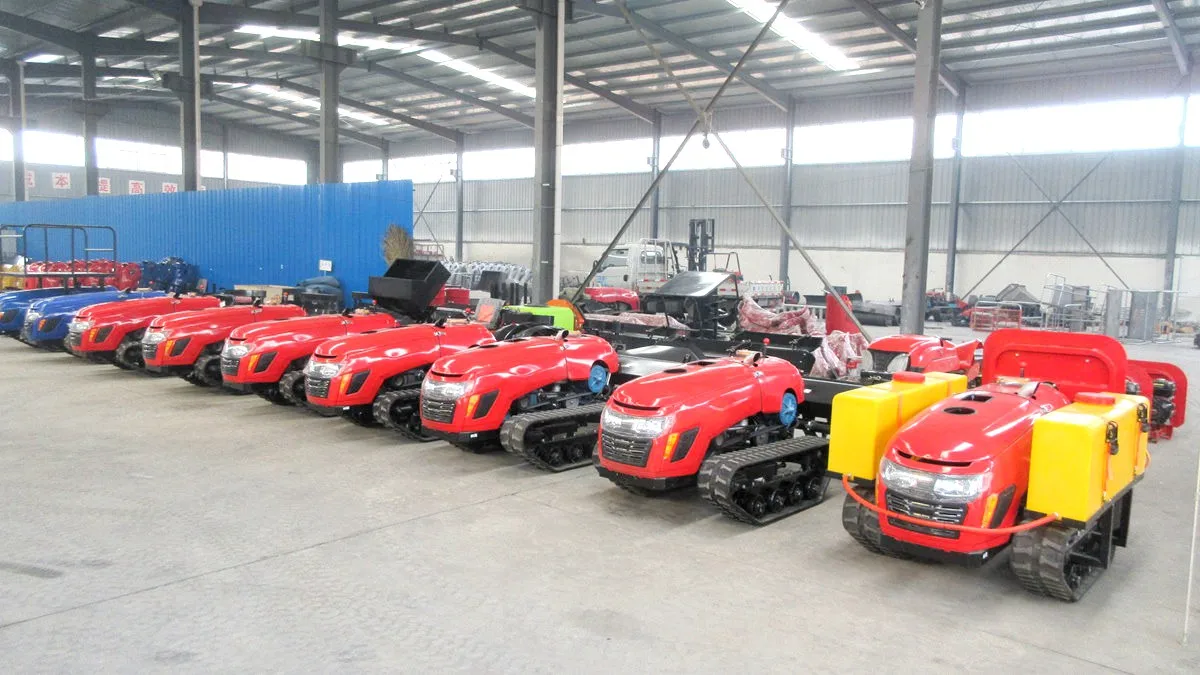

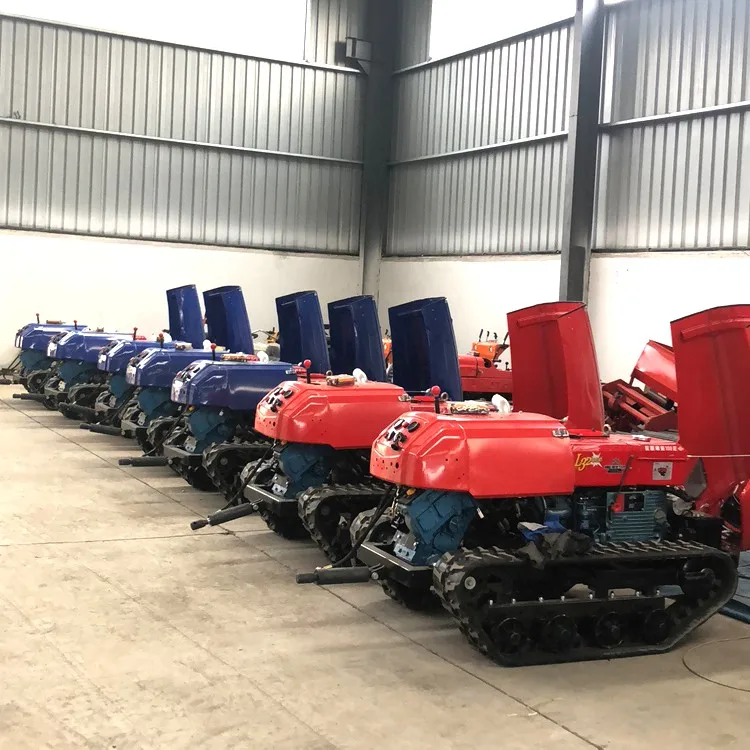

Company Introduction
Shandong HaoHong machinery manufacturing Co., Ltd. is located in Jining, Shandong, which is known as hometown of Confucius and Mencius ,the city of the Grand Canal.It is also a small construction machinery production base ,which is relying on national high-precision production technology and scientific research personnel.
Advanced management experience, superb production technology and professional and efficient production lines,trained technicians and assembly workers in the workshop,keep producing machines in an orderly way.
We never stop moving forward ,constantly design and produce new products and improve the production system of products,so that Shandong HaoHong maintains a high-speed and sustainable development.
Advanced management experience, superb production technology and professional and efficient production lines,trained technicians and assembly workers in the workshop,keep producing machines in an orderly way.
We never stop moving forward ,constantly design and produce new products and improve the production system of products,so that Shandong HaoHong maintains a high-speed and sustainable development.
FAQ
1. who are we?
We are based in Shandong, China, start from 2017,sell to Domestic Market(30.00%),Western Europe(20.00%),North America(15.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Africa(5.00%),South America(5.00%),Oceania(5.00%),Mid East(3.00%),Central America(2.00%),Southern Europe(3.00%),Eastern Asia(2.00%),
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3.what can you buy from us?
Road Roller,Excavator,Loader,Dumper Truck,Remote Control Multifunction Agriculture Machine.
4. why should you buy from us not from other suppliers?
Advanced management experience, superb production technology and professional and efficient production lines,trained technicians and assembly workers in the workshop,keep producing machines in an orderly way.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card;
Language Spoken:English,Chinese,Japanese.
We are based in Shandong, China, start from 2017,sell to Domestic Market(30.00%),Western Europe(20.00%),North America(15.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Africa(5.00%),South America(5.00%),Oceania(5.00%),Mid East(3.00%),Central America(2.00%),Southern Europe(3.00%),Eastern Asia(2.00%),
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3.what can you buy from us?
Road Roller,Excavator,Loader,Dumper Truck,Remote Control Multifunction Agriculture Machine.
4. why should you buy from us not from other suppliers?
Advanced management experience, superb production technology and professional and efficient production lines,trained technicians and assembly workers in the workshop,keep producing machines in an orderly way.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card;
Language Spoken:English,Chinese,Japanese.
