Product Overview
Description

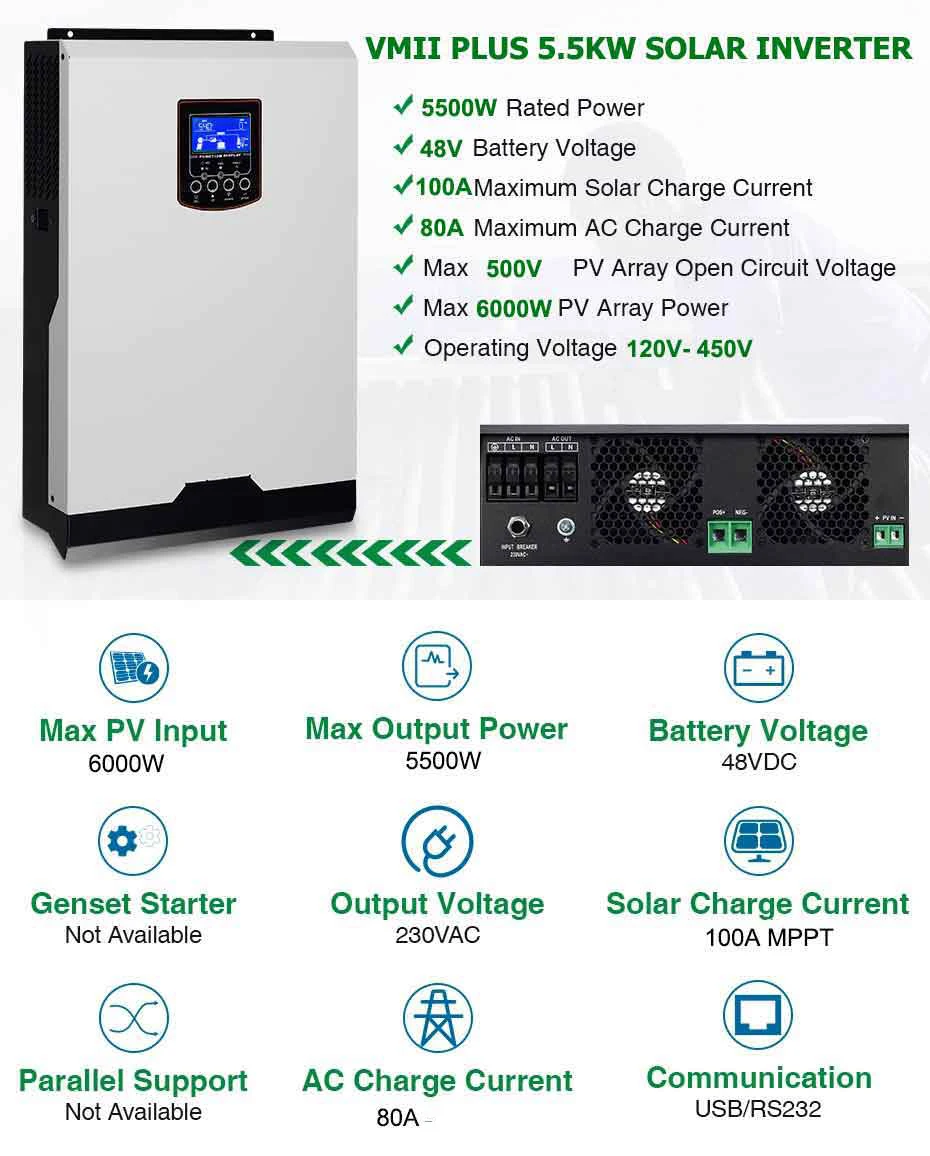

VM II PLUS 5.5KW Solar Hybrid Inverter with MPPT 100A
DC Input 120-500Vdc/Working with or without battery/Lithium battery
Description:

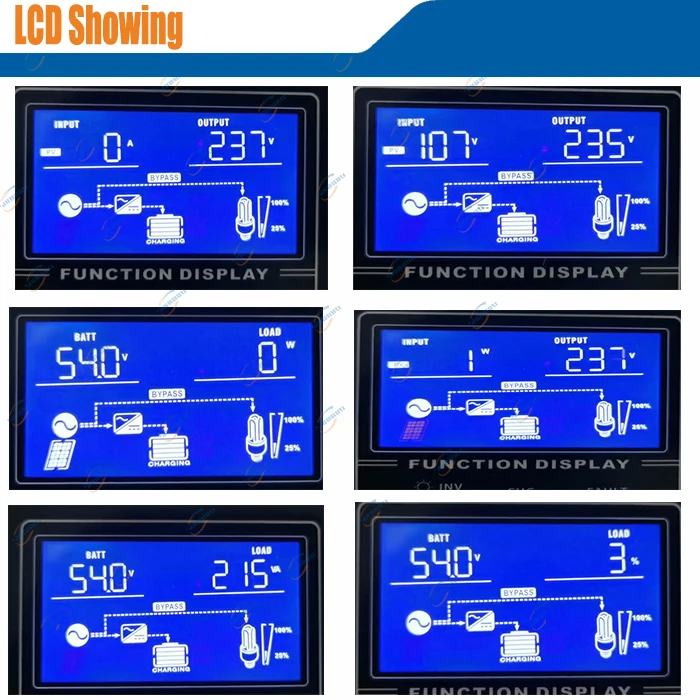

This is a multi functional inverter/charger, combining functions of inverter,solar charger and battery charger to offer uninterruptible power support in portable size. Its comprehensive LCD display offers
user-configurable and easy-accessible button operation such as battery charging current,
AC/solar charger priority, and acceptable input voltage based on different applications.

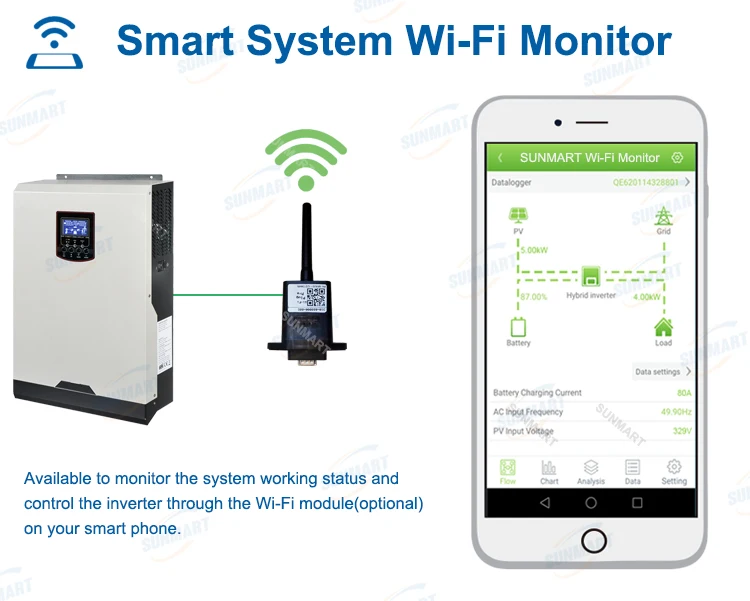

WIFI Monitor for optional .

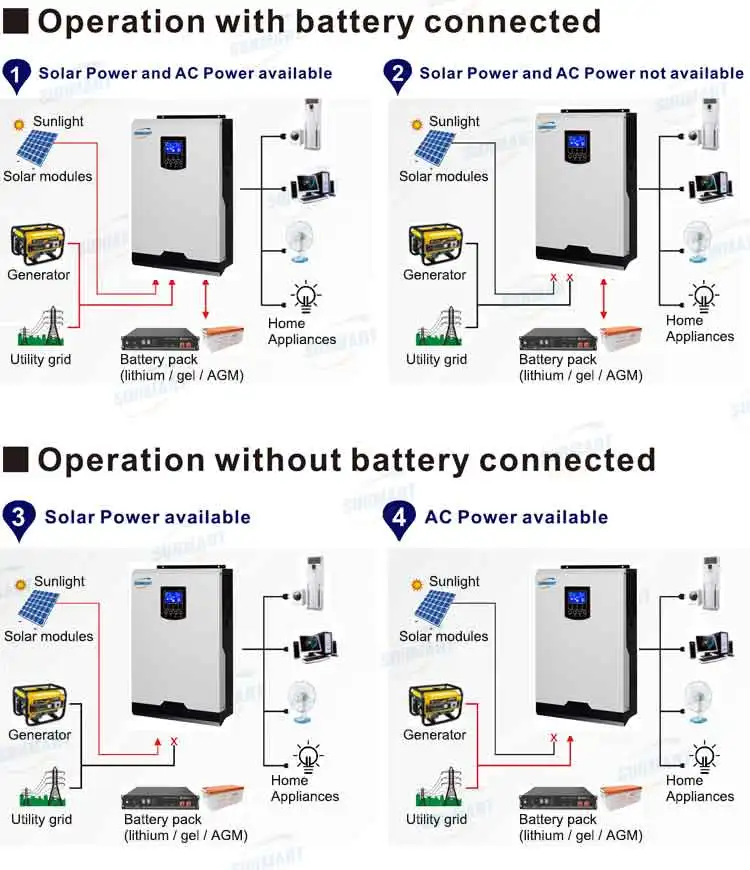

| Three Working Model Selectable option | |
| Utility First | Utility will provide power to the loads as first priority. Solar and battery energy will provide power to the loads only when utility power is not available. |
| Solar First | Solar energy provides power to the loads as first priority. If solar energy is not sufficient to power all connected loads, utility will supply power to the loads at the same time. Battery provides power to the loads only when any one condition happens: - Solar energy and utility is not available. - Solar energy is not sufficient and utility is not available. |
| SBU Priority | Solar energy provides power to the loads as first priority. If solar energy is not sufficient to power all connected loads, battery energy will supply power to the loads at the same time. Utility provides power to the loads only when battery voltage drops to either low-level warning voltage or the setting point. |

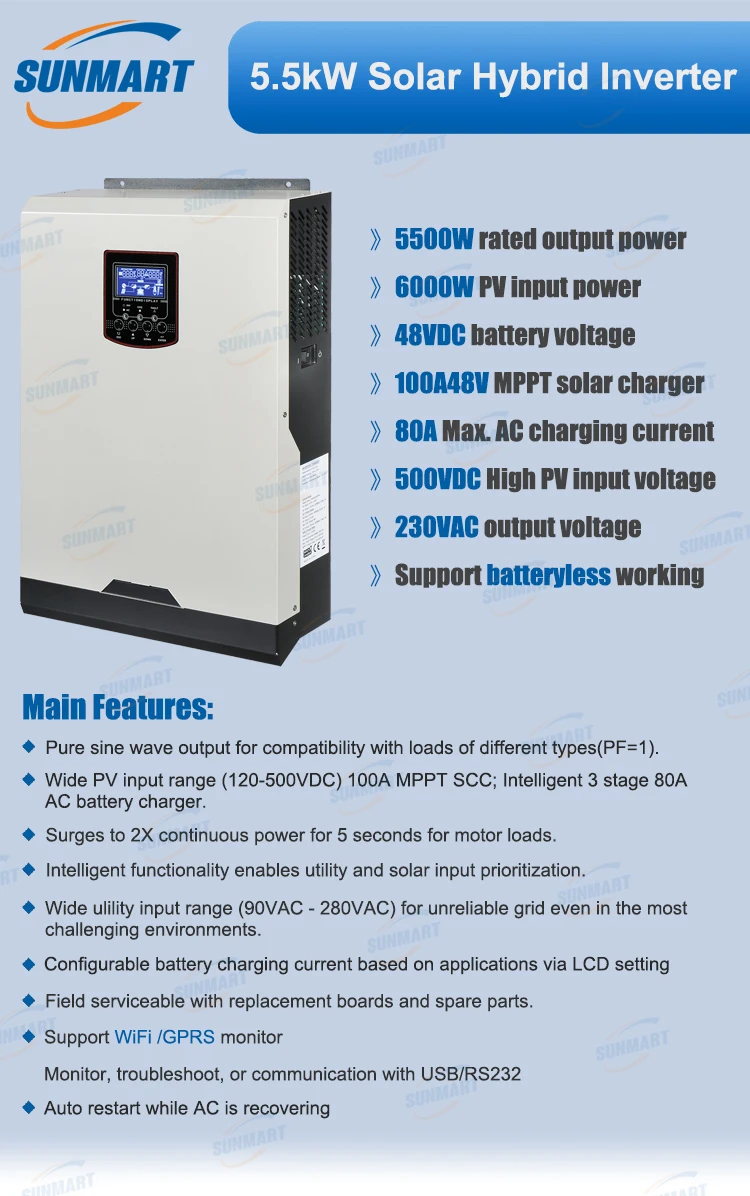

Features:
1.High effciency pure sine wave inverter(PF=1);Wide PV input range (12V dc -50V dc) 80A MPPT SCC;Intelligent 3stage 80A AC battery charger.
2. Surges to 2X continuous power for 5 seconds for motor loads.
3. Intelligent functionality enables utility and solar input prioritization.
4. Wide ulility input range (90Vac _280Vac) for unreliable grid even in the most challenging environments.
5. Field serviceable with replacement boards and spare parts.
6. Monitor, troubleshoot, or communication with USB/RS 232.
7. System configures quickly into compact, wall-mounted system.
Specifications:
Model | VM II PLUS 5500-48 |
RATED POWER | 5500VA / 5500W |
INPUT | |
Voltage | 230 VAC |
Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) |
Frequency Range | 50 Hz/60 Hz (Auto sensing) |
OUTPUT | |
AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% |
Surge Power | 11000VA |
Efficiency (Peak) PV to INT | 97% |
Efficiency(Peak)Battery to INT | 93% |
Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) |
Waveform | Pure sine wave |
BATTERY | |
Battery Voltage | 48 VDC |
Floating Charge Voltage | 54 VDC |
Overcharge Protection | 63 VDC |
SOLAR CHARGER & AC CHARGER | |
Max. PV Array Open Circuit Voltage | 500VDC |
Max. PV Array Power | 6000W |
MPP Range @operating Voltage | 120~450VDC |
Max. Solar Charge Current | 80 A |
Max. AC Charge Current | 80 A |
Max. Charge Current | 80 A |
PHYSICAL | |
Dimension, D x W x H (mm) | 100 x 300x 440 |
Net Weight (kgs) | 12 |
Communication Interface | USB/RS232/GPRS/WIFI |
ENVIRONMENT | |
Humidity | 5% to 95% Relative Humidity (Non-condensing) |
Operating Temperature | -10°C to 50°C |
Storage Temperature | -15°C to 60°C |

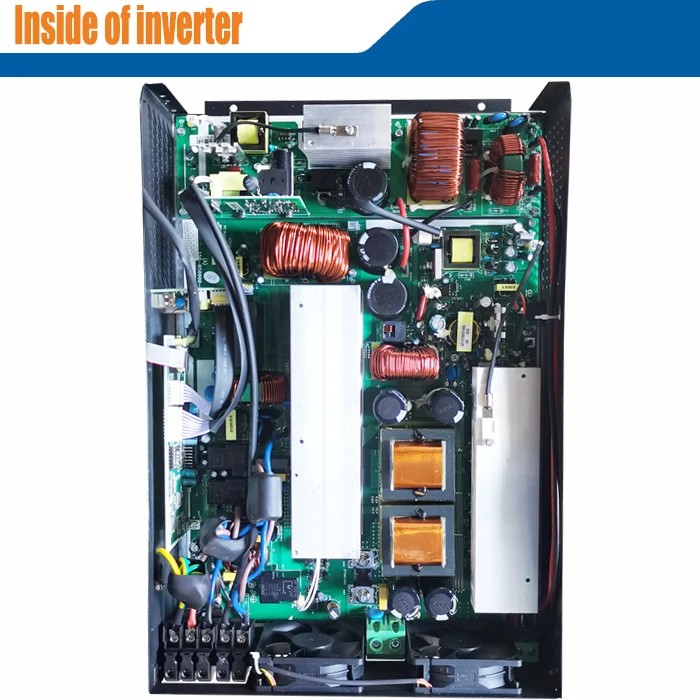

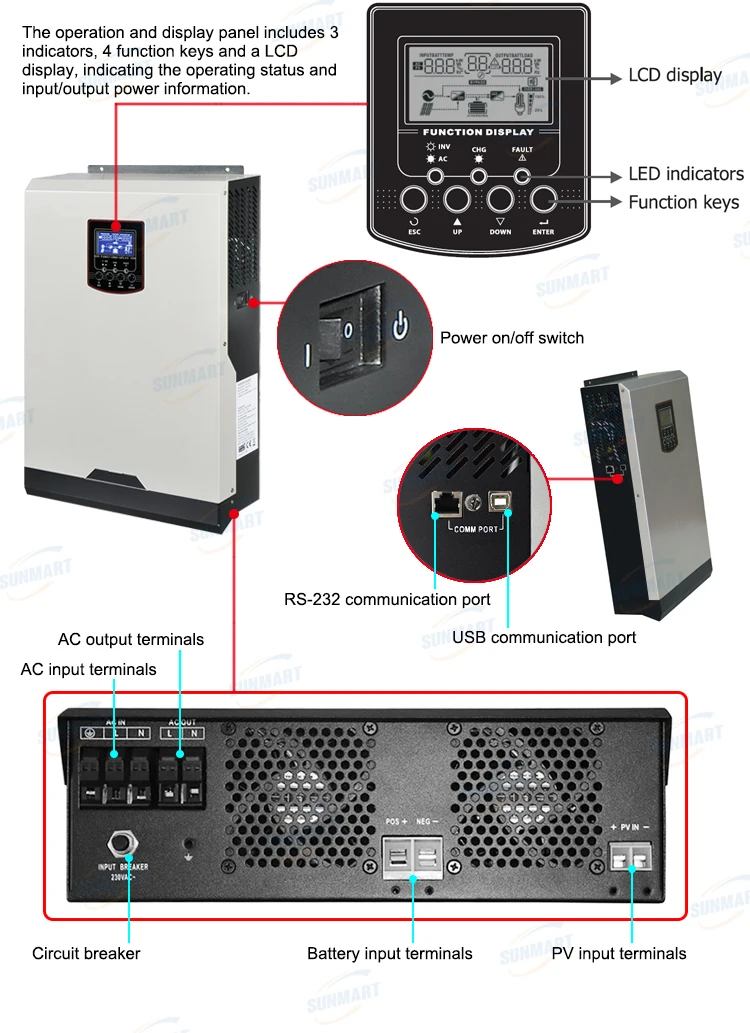

Inverter Detail

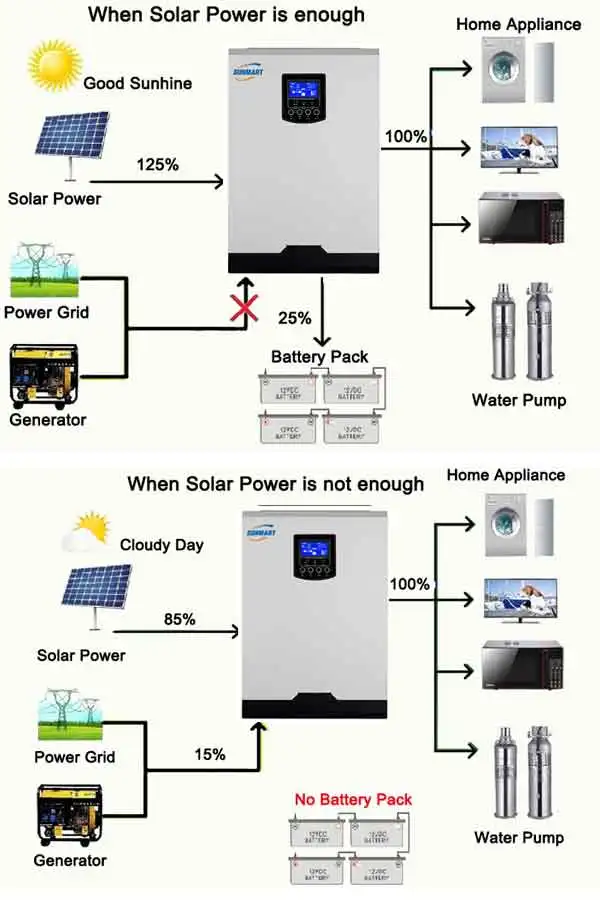

How does this Sunmart inverter make most use of solar power:
