Off Grid Solar Pawer 300 Convertidor De Corriente Watts 12V Dc Ac 110V230v Inverter 24V 220V 300W
- Category: >>>
- Supplier: Yueqing Youwang Electronic Co. Ltd.
Share on (1600386200990):
Product Overview
Description

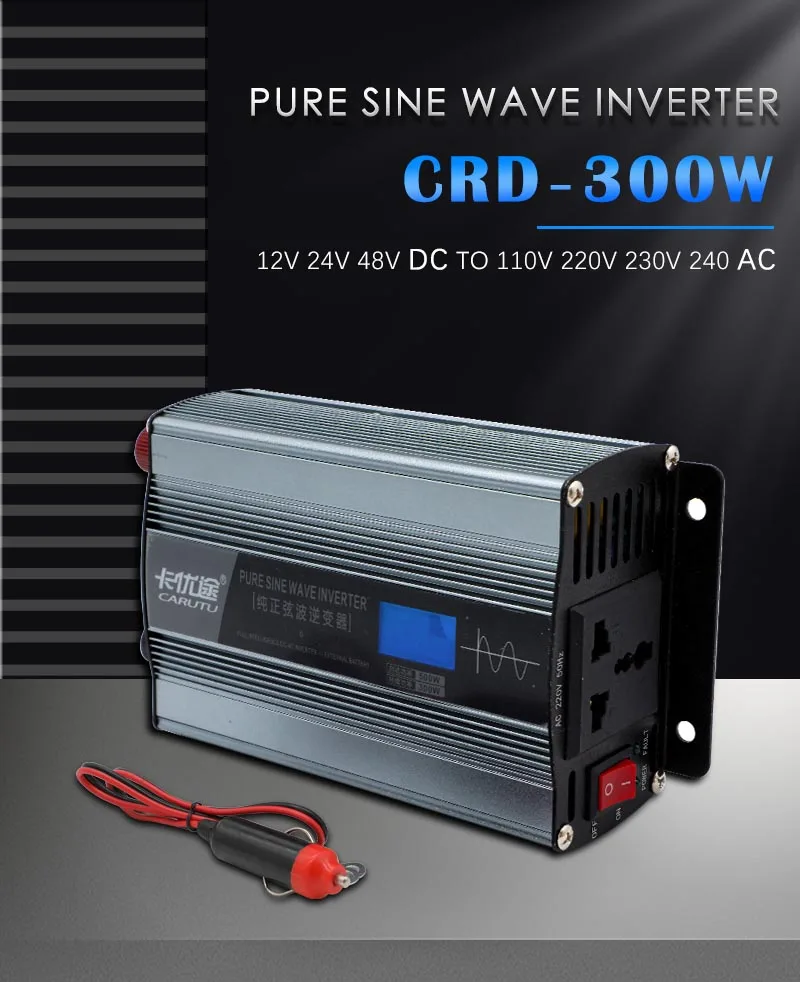

300W Pure Sine Wave Power Inverter for Car Truck RV Adapter DC 12V to AC 220V 230V with LCD Display
Provides 300watt pure sine wave power, 600watt surge power inverter, convering DC 12 volt to AC 220~230 volt with 1 universal AC
sockets, 1 intelligent cooling fan and 1 LCD display.This travel-sized 600w power inverter with cig lighter plug is ideal for your

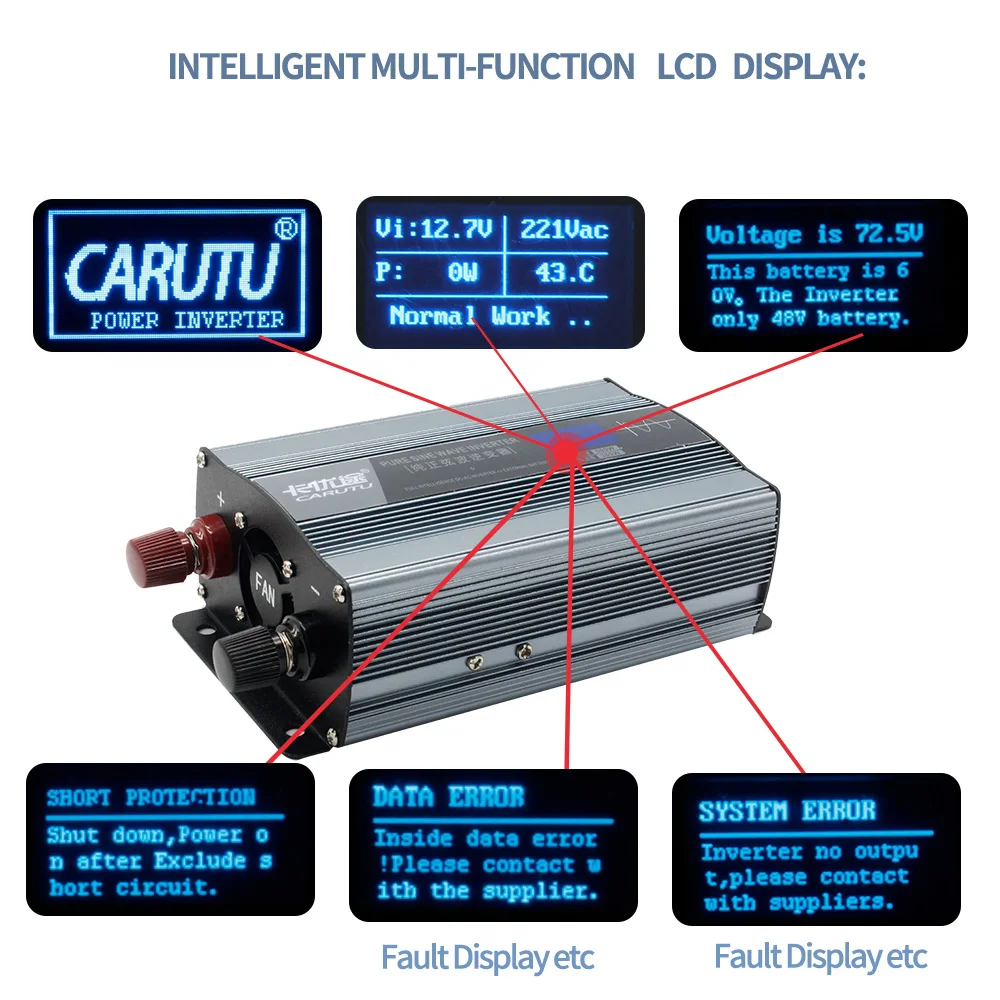

road trips, vacations, and camping. And suit for most of 12V car. .Featured with a Intelligent multifunction LCD display,which not
only can let users know AC/DC voltage, power ,temperature etc, but also know failure cause.
Model:CRD-300W
Output Waveform:pure sine wave
Rated Power: 300W
Peak Power: 600W
Output voltage: AC100/110/120/220/230/240
Input voltage:DC12/24/48/60/90/110
Frequency:60HZ/50HZ

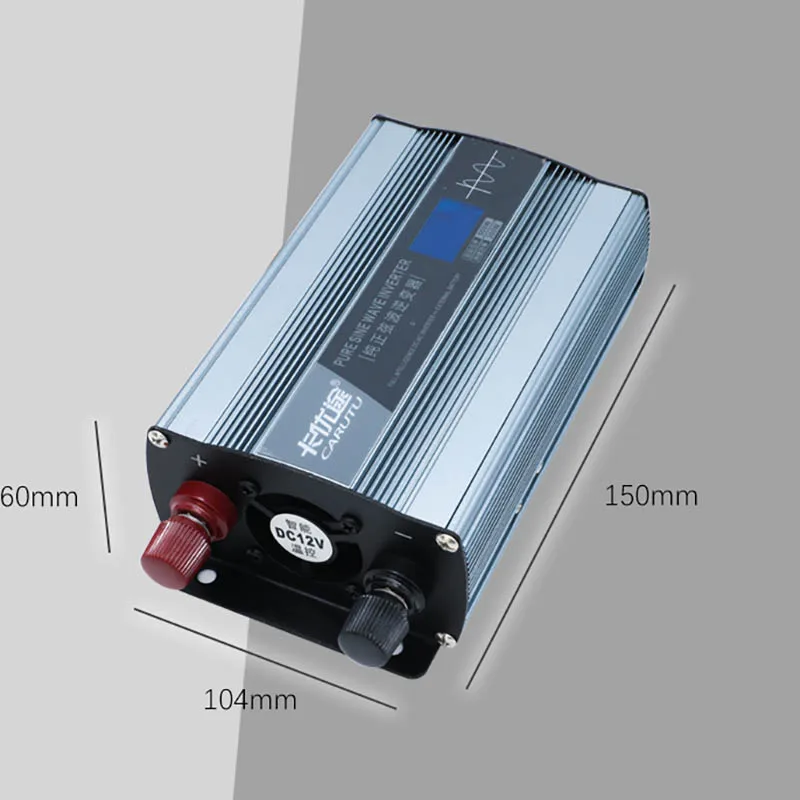

Size：211*104*70mm
N.W. :0.65KGS
Provides 300watt pure sine wave power, 600watt surge power inverter, convering DC 12 volt to AC 220~230 volt with 1 universal AC
sockets, 1 intelligent cooling fan and 1 LCD display.This travel-sized 600w power inverter with cig lighter plug is ideal for your
road trips, vacations, and camping. And suit for most of 12V car. .Featured with a Intelligent multifunction LCD display,which not
only can let users know AC/DC voltage, power ,temperature etc, but also know failure cause.
Model:CRD-300W
Output Waveform:pure sine wave
Rated Power: 300W
Peak Power: 600W
Output voltage: AC100/110/120/220/230/240
Input voltage:DC12/24/48/60/90/110
Frequency:60HZ/50HZ
Size：211*104*70mm
N.W. :0.65KGS
Model | CRD-300W-12V | CRD-300W-24V | CRD-300W-48V | |||||||
Output | AC voltage | 100/110/120/220/230/240VAC | ||||||||
Rated power | 300W | |||||||||
Surge power | 600W(for few seconds) | |||||||||
Waveform | Pure Sine Wave(THD<3%) | |||||||||
Frequency | 50/60Hz±3Hz | |||||||||
Input | DC voltage | 12V | 24V | 48V | ||||||
Voltage range | 10~15VDC | 20~30VDC | 40~60VDC | |||||||
Efficiency | >87.0% | >90.0% | >90.0% | |||||||
Protection | Bat.low voltage alarm | 11±0.5VDC | 22±1VDC | 44±2VDC | ||||||
Bat.low voltage shut down | 10±0.5VDC | 20±1VDC | 40±2VDC | |||||||
Overload | Shutdown,then start automatically. | |||||||||
Over voltage | 15±0.5VDC | 30±1VDC | 60±2VDC | |||||||
Over temperature | Shut-off output voltage, recover automatically after temperature goes down | |||||||||
Short circuit | Shut-off output voltage, restart to recover | |||||||||
Bat.reverse polarity | Reverse protection circuit：A reverse protection circuit no burning fuse | |||||||||
*60V/72V/96V/110V----These specifications can also be customized. *These data are from our laboratory. | ||||||||||

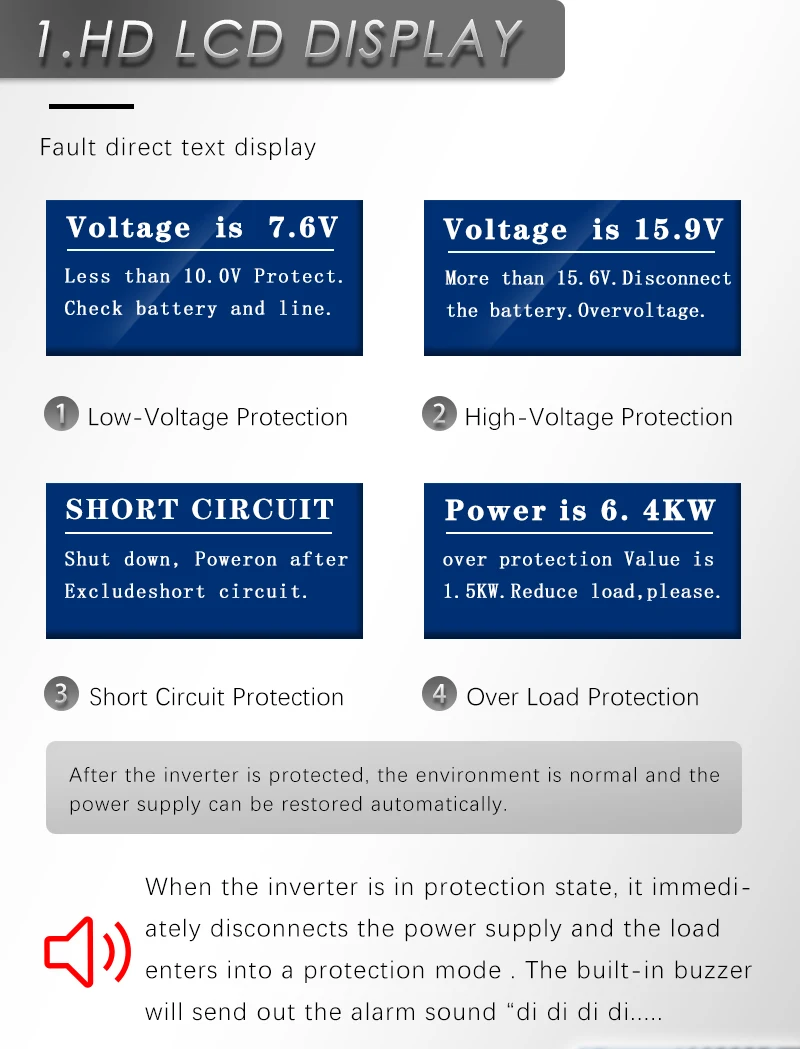

Fault direct text display
Low Voltage Protection
High Voltage Protection
Short Circuit Protection
Over Load Protection
Over Heat Protection
After the inverter is protected. When the environment is normal and the inverter can be restored automatically.
When the inverter is in protection state. It immediately disconnects the inverter and the load enters into a protection mode. The built-in buzzer will send out the alarm sound"di di di di....
