Product Overview
Description

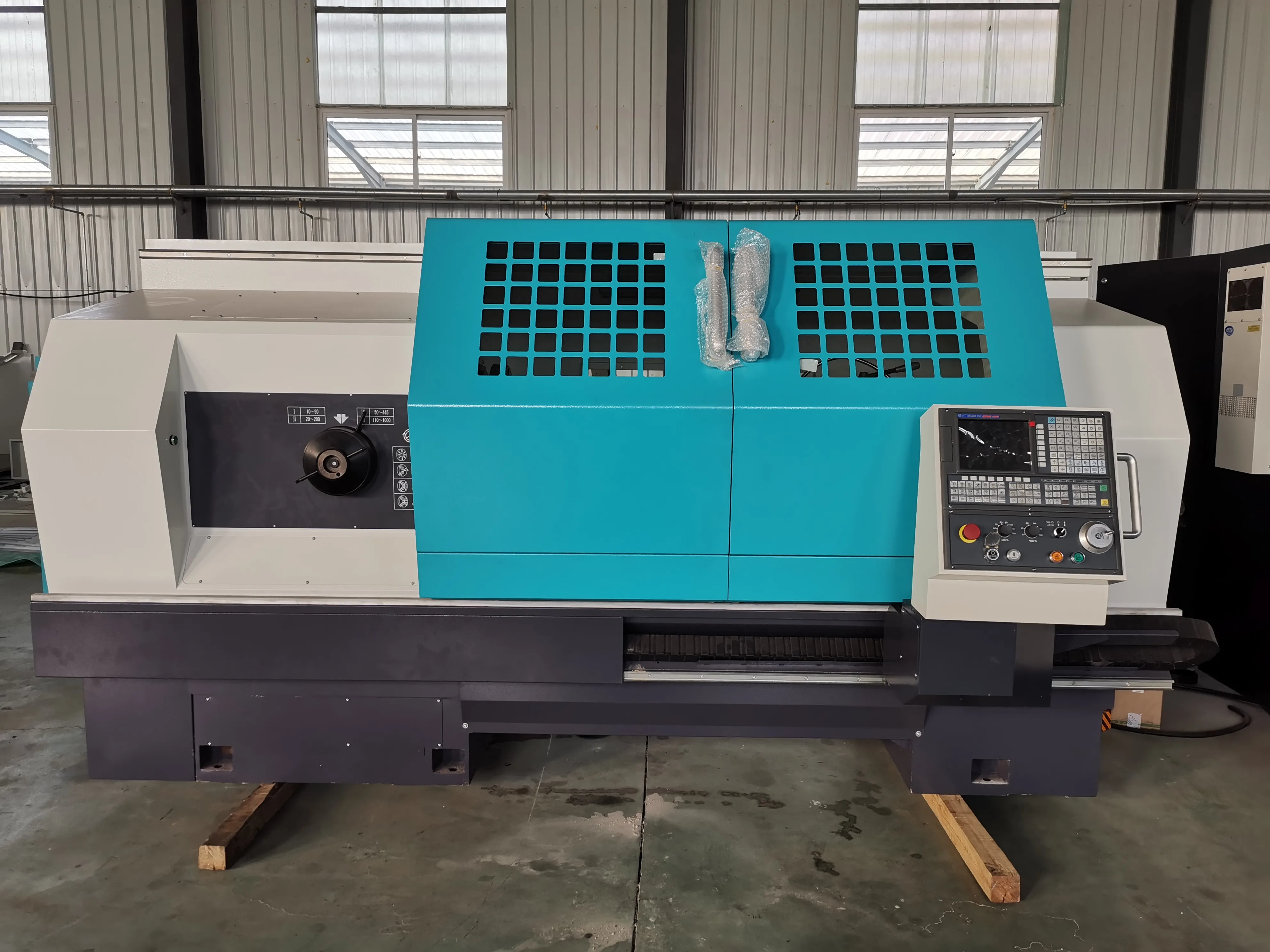

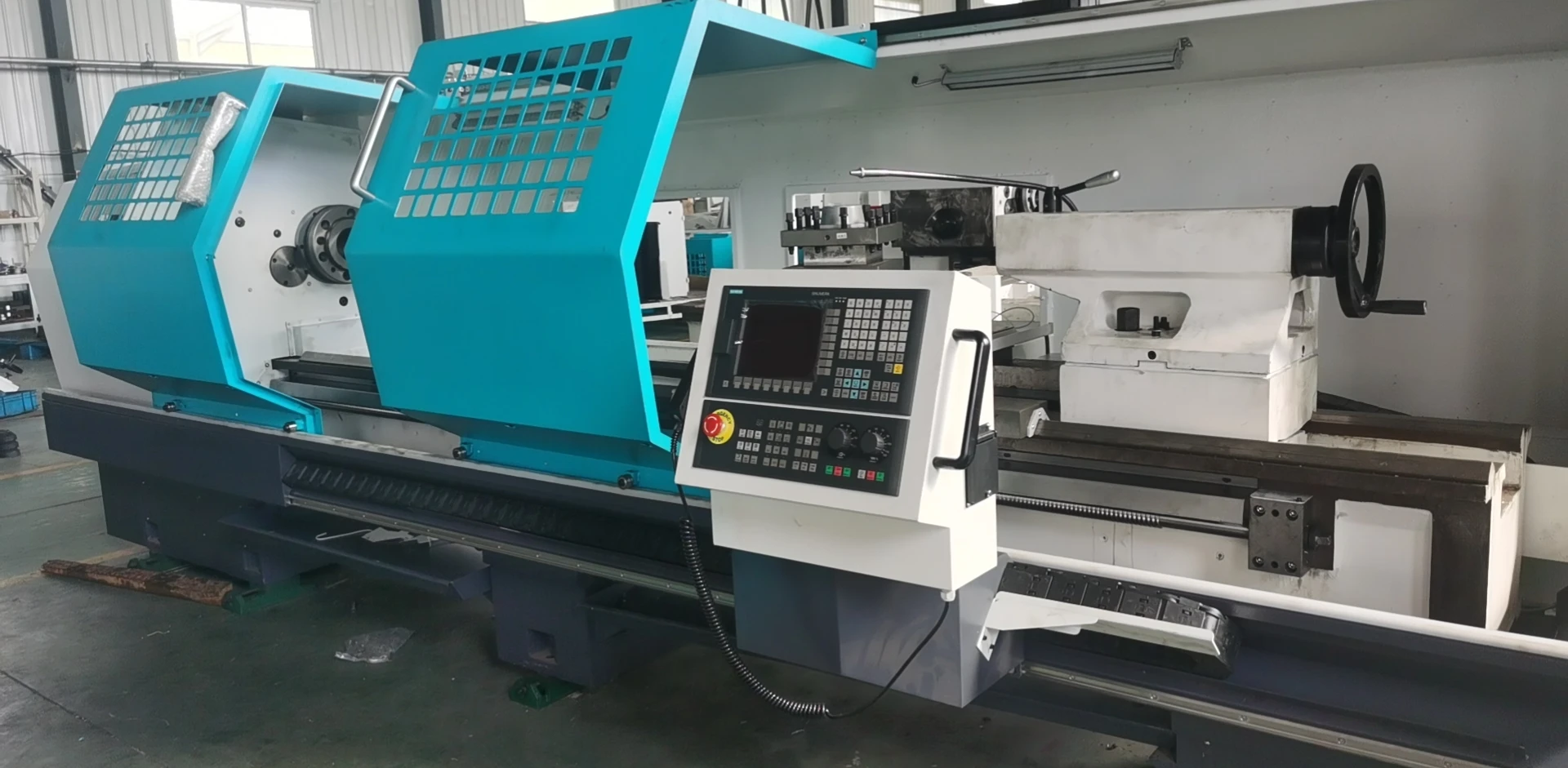

Flat bed CNC lathe CK6163

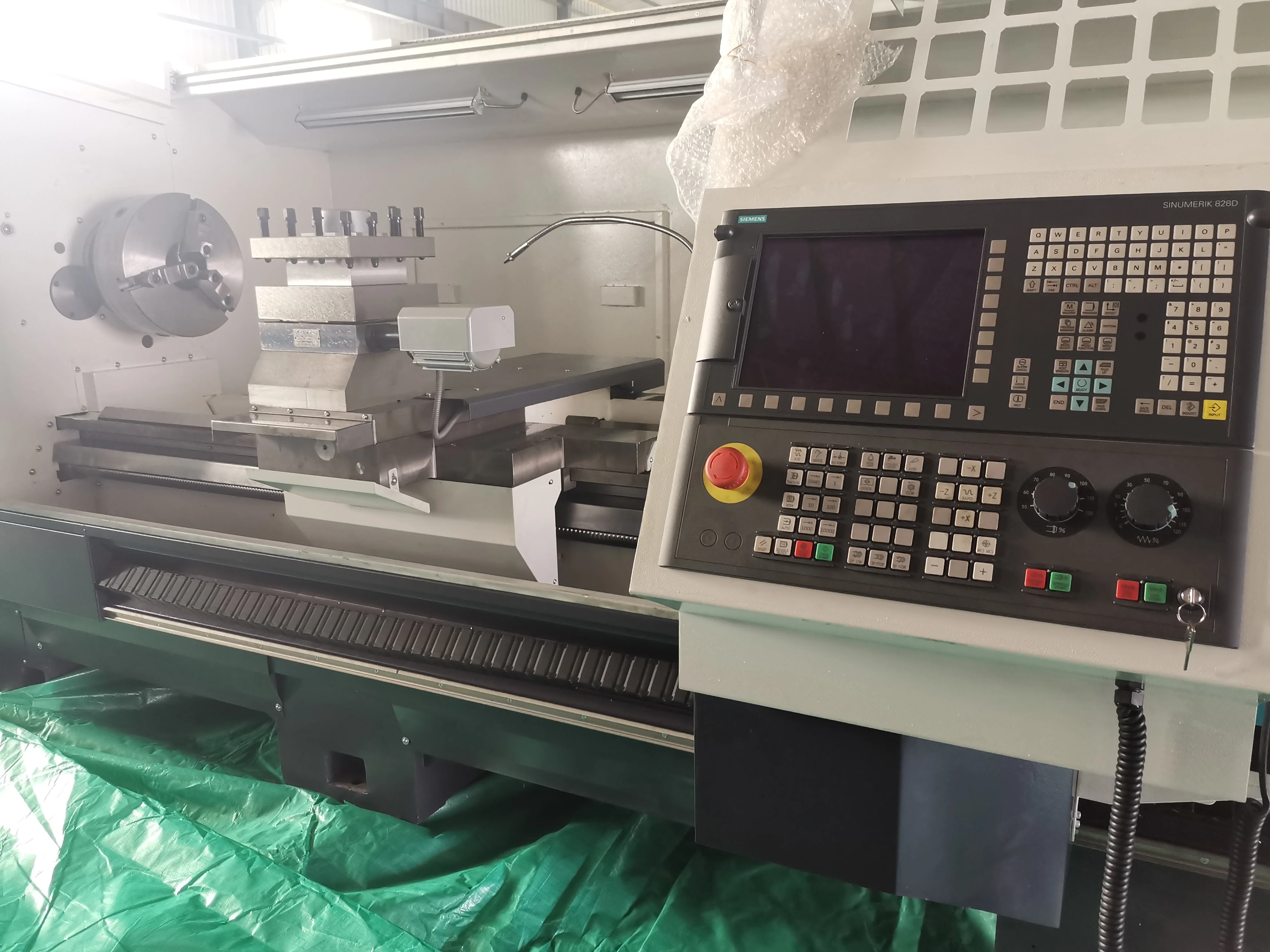

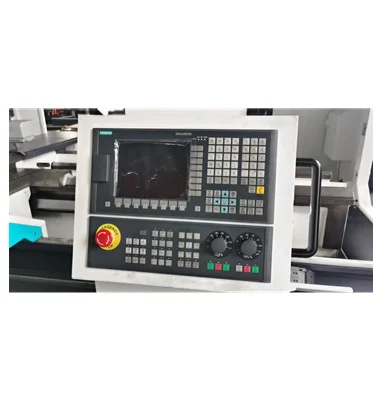

CK6163 is a CNC horizontal lathe with controls on both Z & X axis. Tons of shaft-type and disc-type workpiece machining can be achieved, such as OD, conical surface, arc surface, end surface, grooving, chamfering, in addition to metric straight thread, end thread, imperial straight thread and conical thread. Fanuc, Siemens, GSK system can be applied to CK6163. It is suitable for multiple-type complicated workpiece, small and medium production.
Resin sand casting of high strength cast iron bed.
The main drive is frequency conversion main motor or servo main motor.

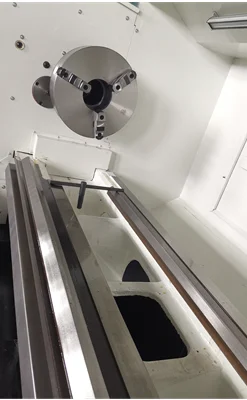

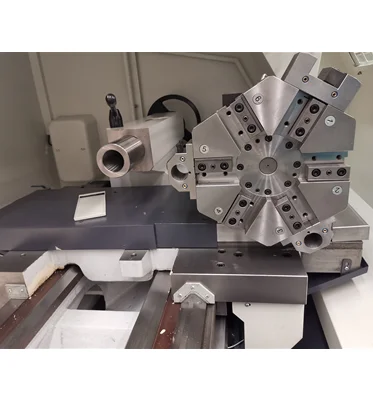

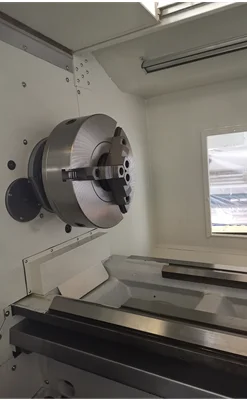

Standard configuration: sliding guide, manual tailstock, four position turret, manual chuck, cooling pump and water tank.
The main drive is frequency conversion main motor or servo main motor.
Standard configuration: sliding guide, manual tailstock, four position turret, manual chuck, cooling pump and water tank.
Please pay attention! All products in this store are customized products, not directly ordered products. The specific parameters and appearance shall be subject to the communication between both parties! | ||||
Technical | Max. Swing over bed | φ800mm | ||
Max. Swing over cross slide | φ500mm | |||
Max component length | 1500mm | |||
Max cutting length | 790 | |||
Max turning diameter （Vertical 4-position toolpost） | 1250mm | |||
Spindle center height | 400mm | |||
Max component weight(Only with chuck) | 1000 kg | |||
Transmission | Main motor horsepower （regular） | 11kw | ||
Spindle bore | φ100 mm | |||
Spindle bore taper | Front metric120 | |||
Spindle nose | C11 | |||
Spindle speed (regular) | Manual 18step 7.5～1000r/min | |||
Tailstock | Quill diameter | φ100mm | ||
Quill travel | Manual tailstock240 mm | |||
Feed system | Toolpost max. travel (X) \u007F\u007F\u007F (Z) | 400 mm 1250mm | ||
Ballscrew diameter*screw pitch (X) (Z) | φ32×5 (mm) φ50×10 (mm) | |||
Rapid feed （X） （Z） | 4m/min 3.5~7.5m/min | |||
Max. Cutting speed （X） （Z） | 0.01~2000mm/min 0.01~4000mm/min | |||
Positioning accuracy （X） （Z） | 0.045mm | |||
Repeated position accuracy （X） （Z） | 0.020 mm | |||
Machining accuracy | IT6～ IT7 | |||
Component surface roughness | Ra1.6 | |||

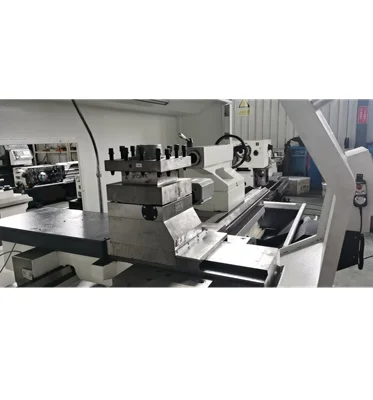

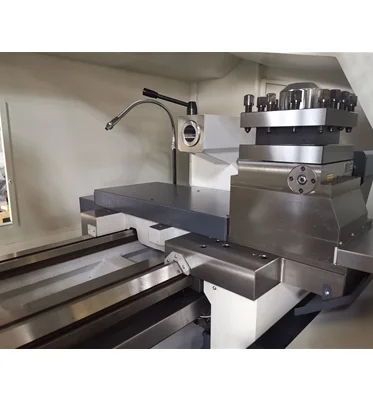

Toolpost Standard： Electrical vertical 4position toolpost | horsepower | 400 W | ||
Speed r/min | 940 r/min | |||
Tool shank mm | 32×25 mm | |||
Repeated position accuracy mm | 0.005 mm | |||
Tool-change time | 2.9sec(90°) | |||
Power supply | power | AC 3 PHASE/380 V±10% /50Hz±2Hz | ||
CAPACITY | 24KVA | |||
Cooling system | TANK VOLUME | 25L | ||
Horsepower | 150 W | |||
Flow | 25 L/min | |||
Size & weight | Ø800 | 3920x2050x1830 | ||
Weight | Ø800 | 5700 kg | ||
