54 2 Series 11kV/33kV ANSI Porcelain Guy Strain Insulator / Stay Insulators / Ceramic Insulator Stay for Pole Accessories
- Category: >>>
- Supplier: Jiangxi,Johnson,Electric,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

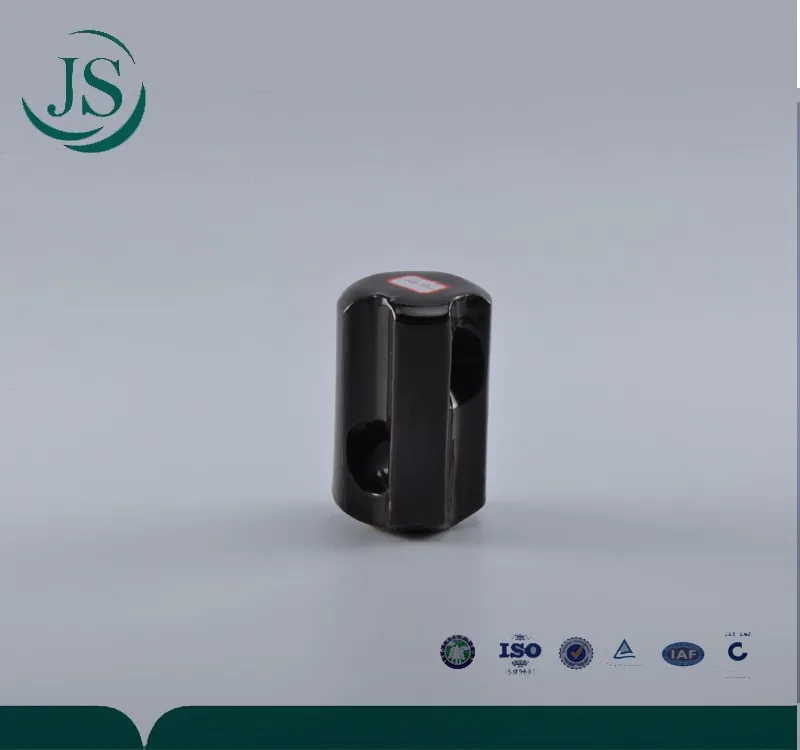

54-1 54-2 54-3 54-4 Stay dead end guy Insulator For Lines
Stays/strain insulator are to be insulated from ground at a height for low voltage lines. The insulator used in the stay wire is called as the stay insulator and is usually of porcelain and is so designed that in case of breakage of the insulator the guy-wire will not fall to the ground.
Cat. No. | QS11355 | QS11356 | QS11357 | QS11358 | |||
Fig | 1 | 1 | 1 | 2 | |||
Class ANSI | 54-1 | 54-2 | 54-3 | 54-4 | |||
Main Dimensions(mm) | H | 88 | 108 | 140 | 171 | ||
h | 44 | 57 | 79 | 69 | |||
h1 | 64 | 76 | 103 | 114 | |||
D | 64 | 73 | 86 | 89 | |||
d | 44 | 54 | 60 | 60 | |||
d1 | 16 | 22 | 25 | 25 | |||
Mechanical Failing Load(KN) | 44 | 53 | 89 | 89 | |||
Creepage Distance (mm) | 41 | 47 | 57 | 76 | |||
Minimum Flashover Voltage | Power-frequency | Dry (KV) | 30 | 25 | 35 | 40 | |
Wet (KV) | 15 | 12 | 18 | 23 | |||
Weight (KG) | 0.43 | 0.63 | 1.2 | 2 | |||
