Automatic 2 in 1 Cooking Edible Oil Bottling Production Line / Sunflower Oil Filling Capping Labeling Processing Machine
- Category: >>>
- Supplier: Shanghai Ipanda Intelligent Machinery Co. Ltd.
Share on (1600387210481):
Product Overview
Description
Product Description
Introduction

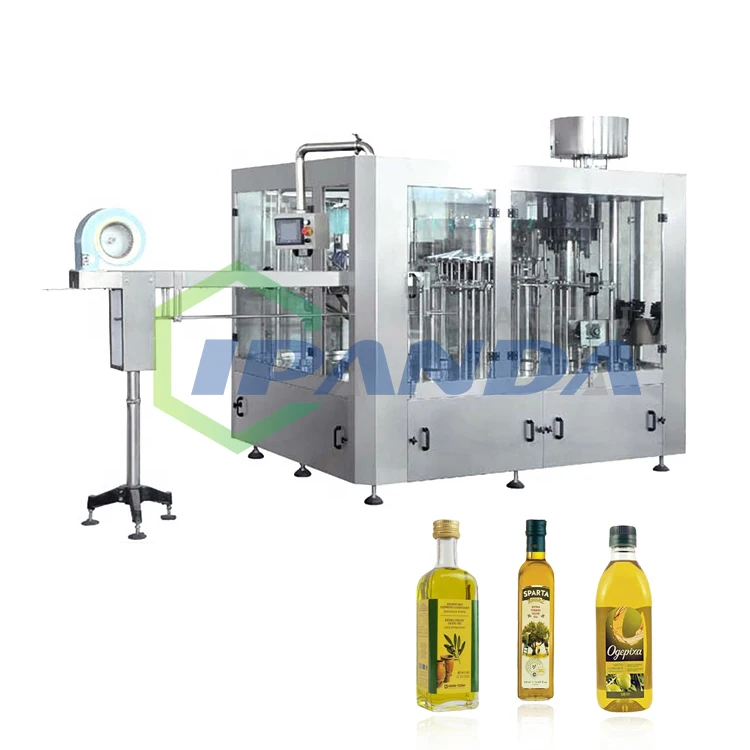

This cooking oil filling machine is an automatic 2-in-1 monoblock oil filling capping
machine. cooking oil filling machine adopt piston filling type,it could be applicable for all
kinds of edible oil, olive oil, sunflower oil, coconut oil, ketchup, fruit &vegetable sauce(with or without solid piece),granule drink volumetric filling and capping . no bottles no filling and capping, PLC control system,easy operation.
kinds of edible oil, olive oil, sunflower oil, coconut oil, ketchup, fruit &vegetable sauce(with or without solid piece),granule drink volumetric filling and capping . no bottles no filling and capping, PLC control system,easy operation.
Features
1. This cooking oil filling machine has compact structure, flawless control system, and is convenient to operate with high grade automatism
2. All the parts of cooking oil filling machine contacting the media are made of high quality stainless steel, able to bear corrosion and easily rinsed
3. Adopts high precision and high speed piston filling valve so that the oil level is exact with loss, ensuring high quality filling
4. The capping head of sunflower oil production line has constant twisting movement, which ensures capping quality, without damaging caps
5. Adopts high efficiency cap tidying system, with flawless equipment for feeding caps and protecting
6. Needs only to change the pinwheel, bottle entering screw and arched board when changing bottle models, with simple and convenient operation oil production line
7. There is flawless equipment for overload protecting, which can protect effectively machine and operator safety
8. It adopts an electro motor with transducer adjusting speed, and is convenient to adjust productivity
2. All the parts of cooking oil filling machine contacting the media are made of high quality stainless steel, able to bear corrosion and easily rinsed
3. Adopts high precision and high speed piston filling valve so that the oil level is exact with loss, ensuring high quality filling
4. The capping head of sunflower oil production line has constant twisting movement, which ensures capping quality, without damaging caps
5. Adopts high efficiency cap tidying system, with flawless equipment for feeding caps and protecting
6. Needs only to change the pinwheel, bottle entering screw and arched board when changing bottle models, with simple and convenient operation oil production line
7. There is flawless equipment for overload protecting, which can protect effectively machine and operator safety
8. It adopts an electro motor with transducer adjusting speed, and is convenient to adjust productivity

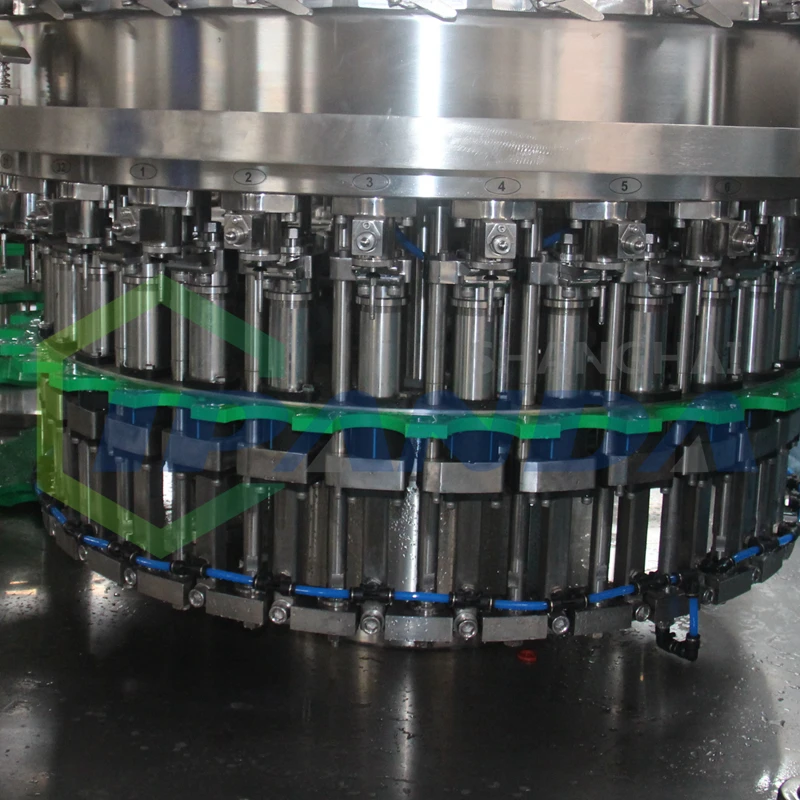

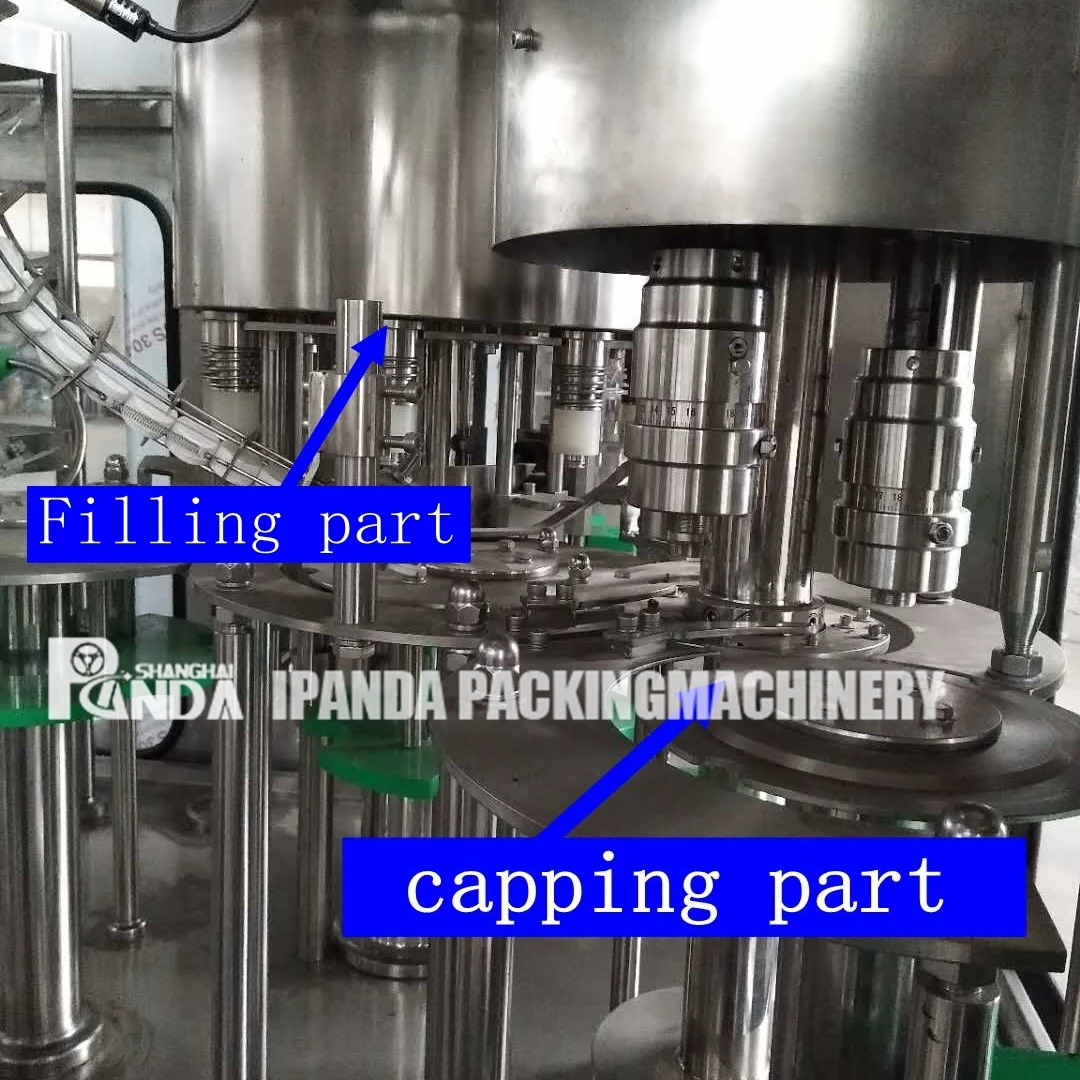

Filling part
<1> 304 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304 stainless steel contact parts and liquid tank, fine polish, easy to clean because of no death corner
<4> 304 stainless steel filling pump system
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304 stainless steel contact parts and liquid tank, fine polish, easy to clean because of no death corner
<4> 304 stainless steel filling pump system

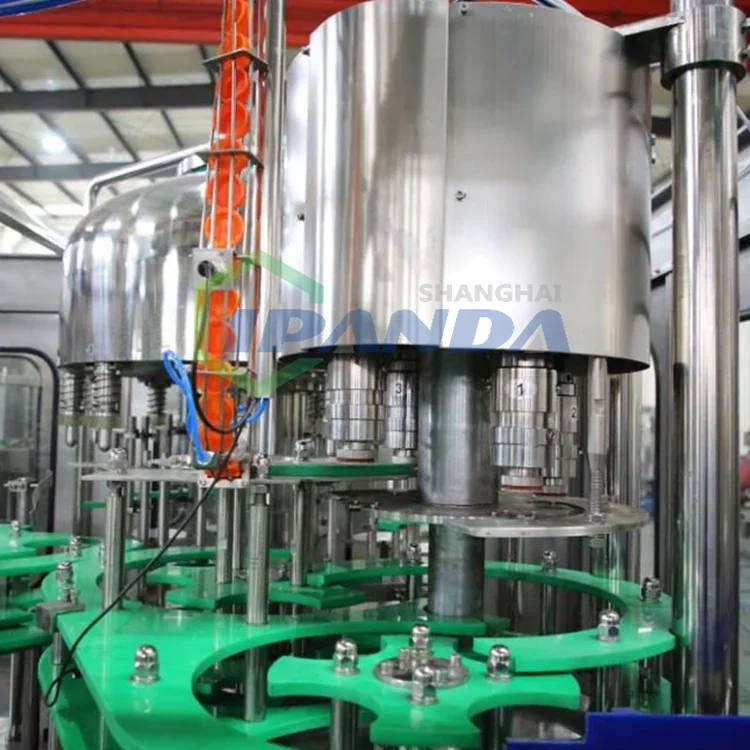

Capping part
<1>Place and capping system,electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
<2> All 304 stainless steel construction
<3> Automatic stop when lack of bottle ,no bottle no capping
<2> All 304 stainless steel construction
<3> Automatic stop when lack of bottle ,no bottle no capping
Main technical parameters
Technical Parameter | ||||||||||||
Model | Filling heads | Capping heads | Capacity(500ml)(B/H) | Motor power(kw) | Dimensions(mm) | Weight(kg) | ||||||
8-3 | 8 | 3 | 2000 | 1.9 | 1900*1420*2000 | 1500 | ||||||
12-6 | 12 | 6 | 4000 | 3.5 | 2450*1800*2400 | 2500 | ||||||
18-6 | 18 | 6 | 7000-8000 | 4.0 | 2650*1900*2400 | 3500 | ||||||
24-8 | 24 | 8 | 10000-12000 | 4.8 | 2900*2100*2400 | 4500 | ||||||
32-10 | 32 | 10 | 12000-15000 | 7.6 | 4100*2000*2400 | 6500 | ||||||
Application
It applies electronic measuring mode and special liquid component to realize low foam volumetric filling and can realize non-contact filling under all temperature condition. Other product :vegetable oil food oil ,edible oil.cooking oil,palm oil, engine oil, etc.
Related Products
Company Profile
Our Advantages
FAQ
Q1: What is your company's main products?
Palletizer, Conveyors, Filling Production line, Sealing machines, Capping Machines, Packing Machines, and Labeling Machines.
Q3: What is payment term?
Deposit 30% in advance and 70% before shipment the machine.
Q4:Are you manufacturer or trading company?
Q5:Where are you located? Is it convenient to visit you?
We are located in Shanghai. Traffic is very convenient.
Q6:How can you guarantee quality?
1.We have completed working system and procedures and we follow them very strictly.
2.Our different worker is responsible for different working process, their work is conflrmed,and will always operate this process, so very experienced.
3. The electrical pneumatic components are from the world famous companies,such as Germany^ Siemens, Japanese Panasonic etc.
4. We will do strict test running after the machine is finished.
5.0ur machines are certified by SGS,ISO.
Q7:Can you design the machine according to our requirements?
Yes. We not only can customize the machine according to your technicaldrawing, but also can he new machine according to your requirements.
Q8:Can you offer overseas technical support?
Yes. We can send engineer to your company to set the machine and train your.
Palletizer, Conveyors, Filling Production line, Sealing machines, Capping Machines, Packing Machines, and Labeling Machines.
Q2: What is delivery date of your products?
Delivery date is 30 working days usually most of the machines.
Delivery date is 30 working days usually most of the machines.
Q3: What is payment term?
Deposit 30% in advance and 70% before shipment the machine.
Q4:Are you manufacturer or trading company?
We are manufacture verified by ALIBABA and we have our own design team.
Q5:Where are you located? Is it convenient to visit you?
We are located in Shanghai. Traffic is very convenient.
Q6:How can you guarantee quality?
1.We have completed working system and procedures and we follow them very strictly.
2.Our different worker is responsible for different working process, their work is conflrmed,and will always operate this process, so very experienced.
3. The electrical pneumatic components are from the world famous companies,such as Germany^ Siemens, Japanese Panasonic etc.
4. We will do strict test running after the machine is finished.
5.0ur machines are certified by SGS,ISO.
Q7:Can you design the machine according to our requirements?
Yes. We not only can customize the machine according to your technicaldrawing, but also can he new machine according to your requirements.
Q8:Can you offer overseas technical support?
Yes. We can send engineer to your company to set the machine and train your.
