High Precision Fully Automatic Auto Range Multi Meter Digital multimeters Tester 6000 counts digital clamp meters
- Category: >>>
- Supplier: Rui Du Mechanical and electrical (Shanghai) Co. Ltd.
Share on (1600387248698):
Product Overview
Description
Product Description

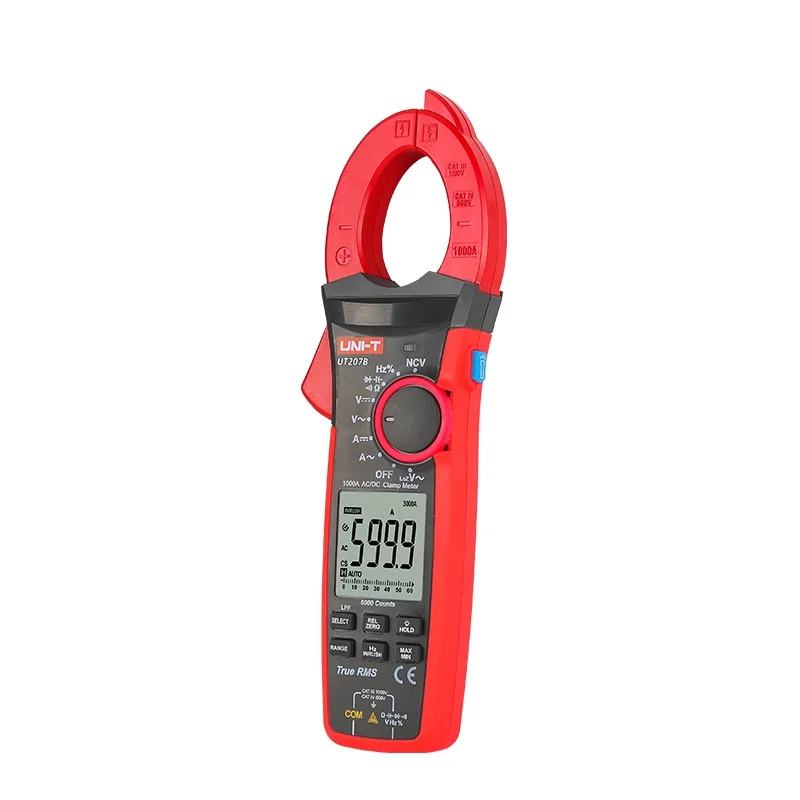

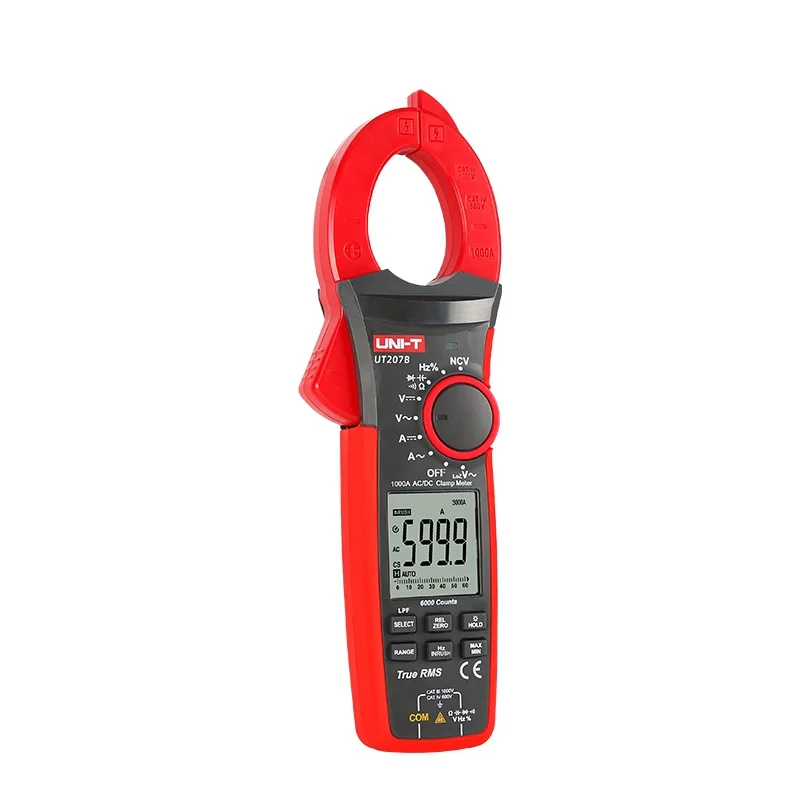

UT207B True RMS Digital Clamp Meter are 6000-counts digital clamp meters with auto range, large LCD, true RMS, autoscale memory, and NCV functions. They conform to CAT III 1000V/CAT IV 600V safety rating andcertified by CE/ETL. The UT206B, UT207B, and UT208B come with LoZ mode for eliminating ‘ghost ’voltage, LPF ACV function for measuring INV and VFD voltage, and inrush current modefor capturing transient current.
Product features
1.\tTrue RMS
2.\tAuto/Manual range
3.\tMAX/MIN/Relative modes

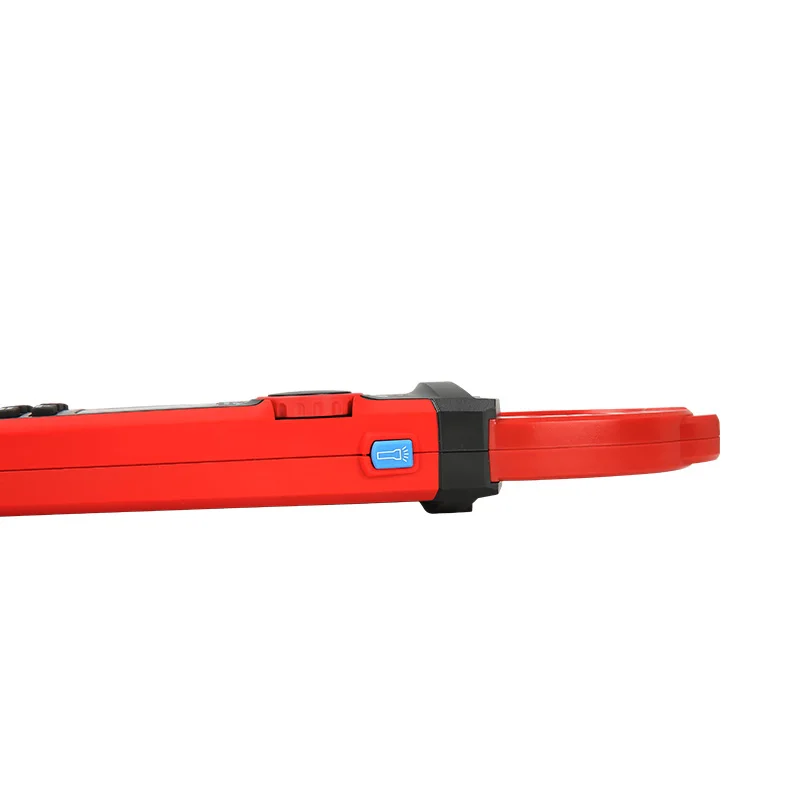

4.\tFlashlight
5.\tNCV, non-contact AC voltage testing
6.\tLow pass filter
7.\tZeroing function
8.\tInrush current
9.\tAnalog bar graph
Product technical parameters
Specifications | Range | Accuracy | |
AC current (A) | 60A | ±(2%+9) | |
600A /1000A | ±(2%+5) | ||
DC current (A) | 60A/600A/1000A | ±(2%+5) | |
AC current frequency response | 40Hz~400Hz | ||
Inrush current (A) | 1000A | ±(10%+10) | |
AC voltage (V) | 6V | ±(1.2%+3) | |
60V/600V/1000V | ±(1%+8) | ||
DC voltage (V) | 600mV | ±(0.8%+3) | |
6V/60V/600V/1000V | ±(0.5%+5) | ||
Low pas filter (LPF ACV) | 600V/1000V | ±(2%+5) | |
AC voltage frequency response | 40Hz~400Hz | ||
LoZ ACV | 600V/1000V | ±(2%+5) | |
Resistance (Ω) | 600Ω | ±(1%+3) | |
6kΩ/60kΩ/600kΩ | ±(1%+2) | ||
6MΩ/60MΩ | ±(2%+8) | ||
Capacitance (F) | 60nF | ±(4%+25) | |
600nF/6μF/60μF/600μF | ±(4%+5) | ||
6mF/60mF | ±(10%+9) | ||
Low voltage frequency (Hz) | 10Hz~1MHz | ±(0.1%+3) | |
Duty cycle (%) | 10%~90% | ±(2.6%+7) | |
Display counts | 6000 | ||
Jaw opening | 42mm | ||
Current frequency | 40Hz~400Hz | ||
High voltage frequency | 40Hz~400Hz | ||
Analog bar graph | 31 | ||
Continuity test | √ | ||
Auto/Manual range | √ | ||
True RMS | √ | ||
NCV | √ | ||
LCD backlight | √ | ||
Low battery indication | √ | ||
Diode test | √ | ||
Relative mode/Data hold | √ | ||
MAX/MIN | √ | ||
Function selection | √ | ||
Flashlight | √ | ||
Wake-up function | √ | ||
Auto power off current: ＜50μA | √ | ||
Zero mode | √ | ||
Input impedance (ACV/DCV) | ≥10MΩ | ||
Power | 1.5V battery (R03) ×3 | ||
Product color | Red and grey | ||
Product net weight | 420g | ||
Product size | 272mm ×81mm × 43.5mm | ||
