15ml 30ml 60ml glass dropper bottle filling machine/ e liquid essential oil filling and capping line
- Category: Capping Machines >>>
- Supplier: Shanghai,Jiaoban,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
JB-YX2 Automatic 15ml 30ml 60ml glass dropper bottle filling machine/ e liquid essential oil filling and capping line
Our factory has manufactured filling machines for over 20 years.
Usage:
This machine is mainly used for automatic filling, stoppering and screw capping of electronic cigarette liquid, e-liquid, eye drops, nail polish, eye shadow, essential oil , etc.
Machine features:
1. This machine adopts constant torque screw caps, equipped with automatic sliding device, to prevent the cap damage.
2. Peristaltic pump or piston pump filling, measuring precision, convenient manipulation.
3. Filling system has function of suck back, avoid liquid leak through.
4. Color touch screen display, PLC control system, no bottle no filling, no adding plug, no capping.
5. Machine is easy to dismantle and clean, full compliance with GMP requirements.
Technical parameters:
Model | JB-YX2 | JB-YX4 |
Filling head number | 2 | 4 |
Filling volume | 5-100ml | 5-100ml |
Capacity | 10-40 bottles/min | 20-80 bottles/min |
Filling accuracy | ≤ ±1% | ≤ ±1% |
Pass rate | ≥ 98% | ≥ 98% |
Power supply | 1ph 220V, 50/60Hz | 1ph 220V, 50/60Hz |
Power | 3.5 KW | 4.0 KW |
Net weight | 11000kg | 1300kg |
Overall dimension | L6200 × W1800 × H1800mm | L4800 × W4300 × H1850mm |
Detailed pictures

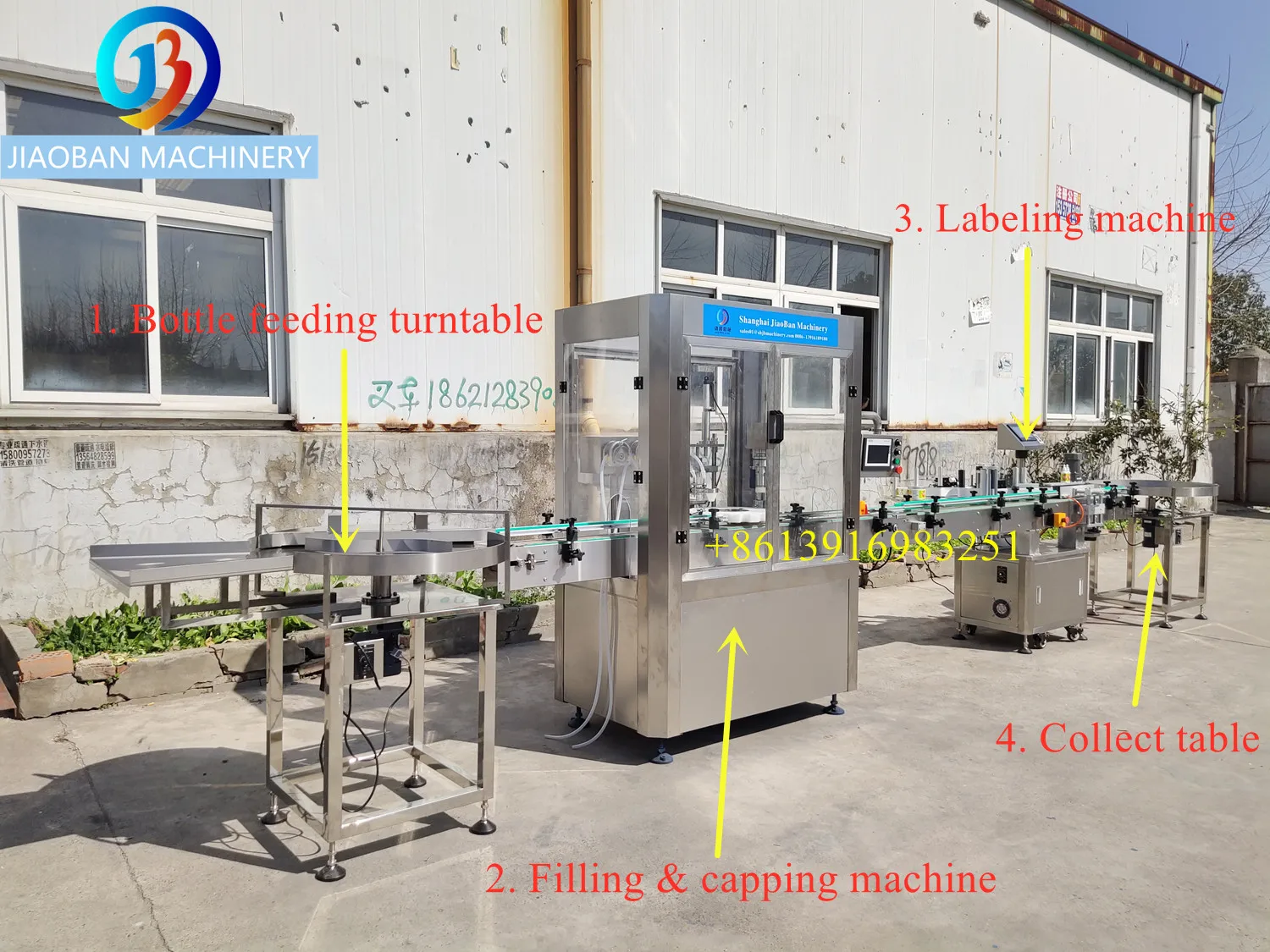

JB-YX2 Automatic glass bottle CBD oil, essential oil filling line

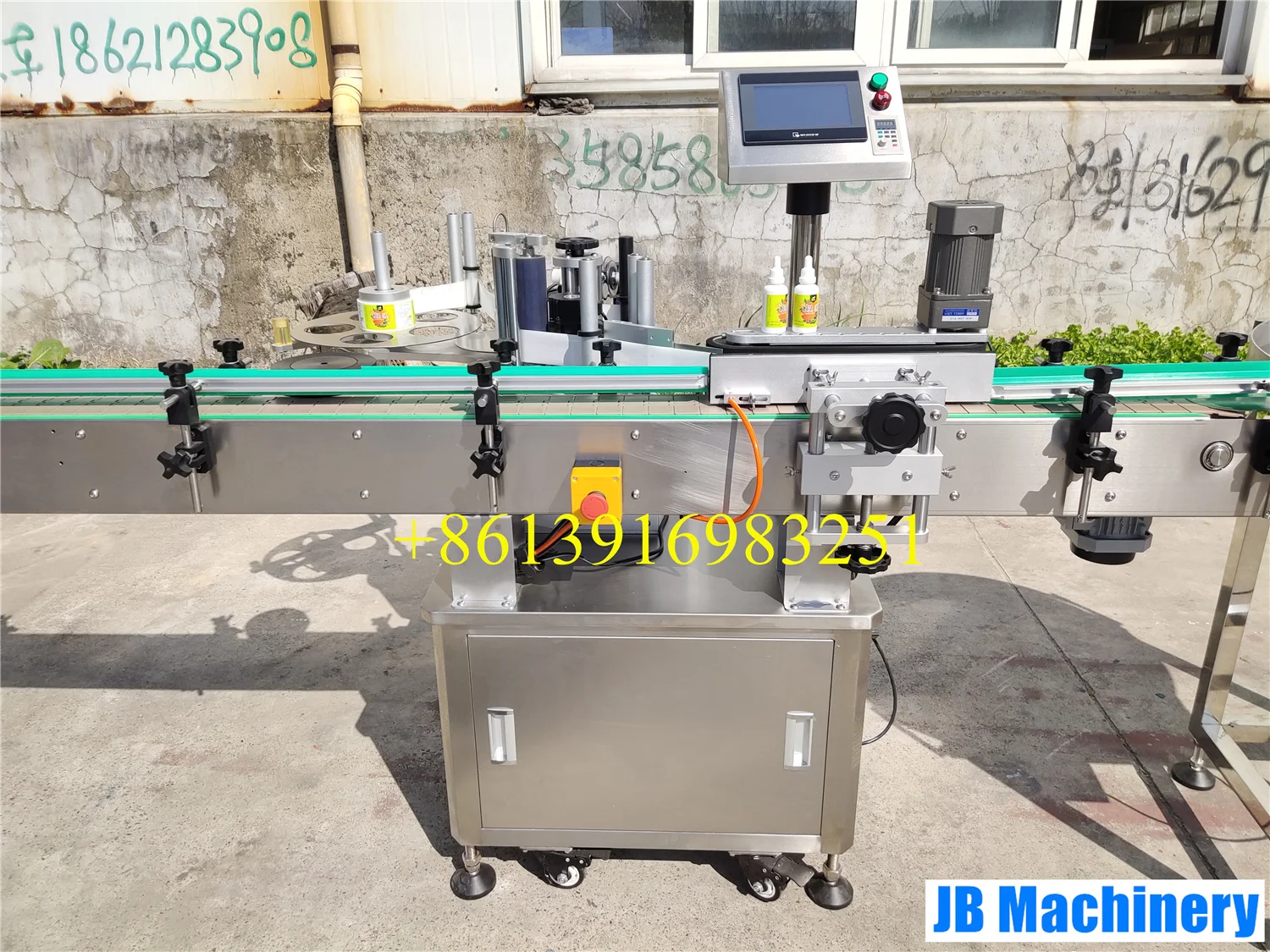

JB-LT80 Automat bottle labeling machine:

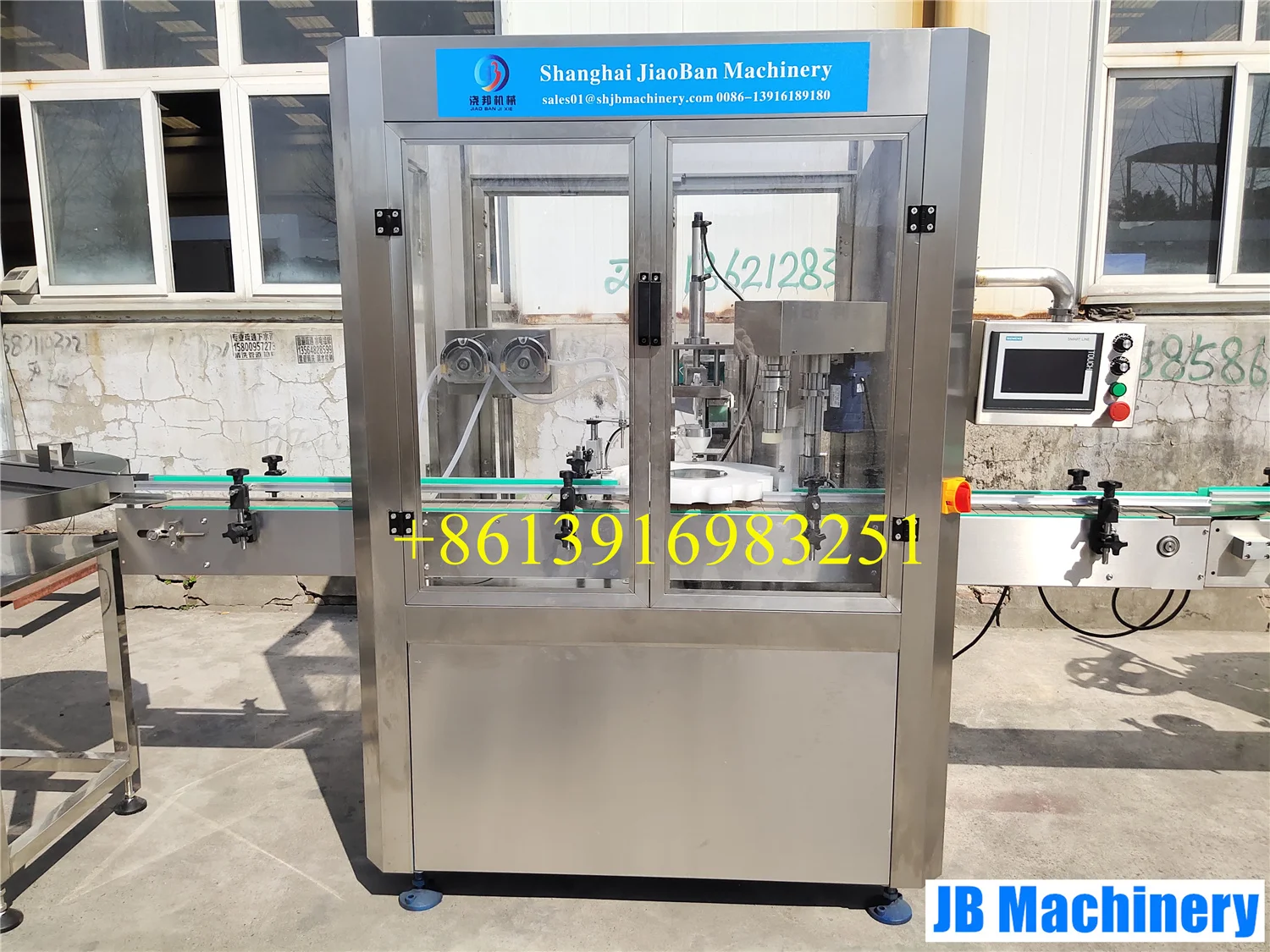

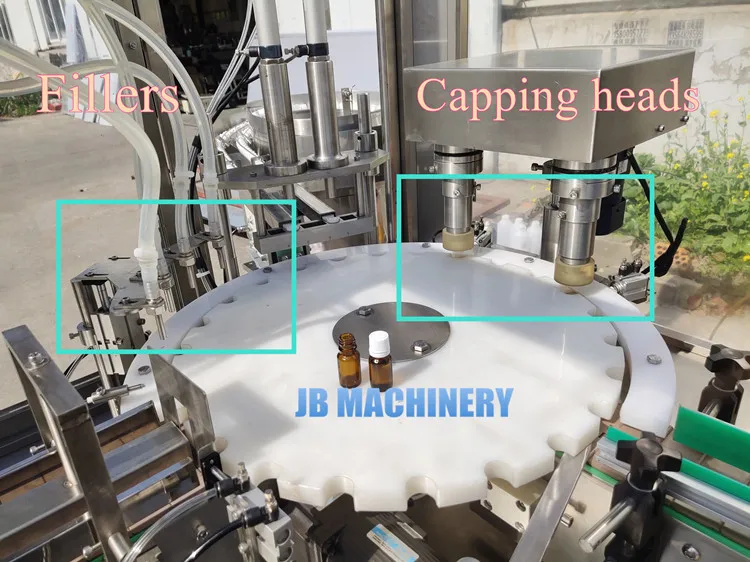

Automatic essential oil filling, add plug and capping machine

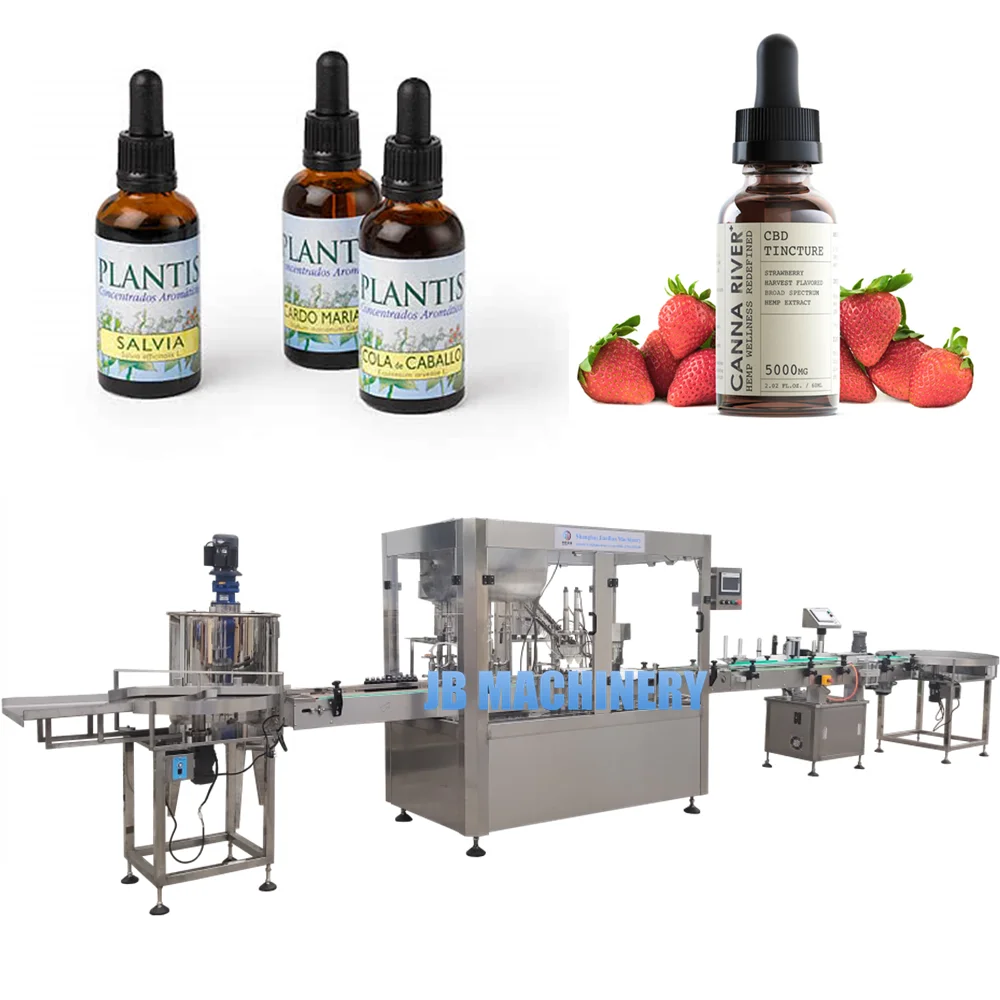

4 heads bottle filling line, click below to see more details
