Products Description




The PPW series switch mode DC power supplies are high precision programmable DC power supplies with single DC output 15V 20V 30V 36V 45V 60V 80V 120V 150V.

The high precision programmable DC power supply features low ripple 2mVrms and high resolution 1mV 1mA.

The laboratory programmable power supply is designed with Battery Charge Mode, specially made curved charge for Lithium batteries in a precision way.


Features
>>> High accuracy, high resolution
>>> 5 digits 4. 3-inch backlit Segment LCD display
>>> High speed rotary dial and keypad input
>>> Built-in beeper alarm
>>> Panel lock and output ON/OFF function
>>> List mode function, 300 sets save & recall for voltage, current and time setups

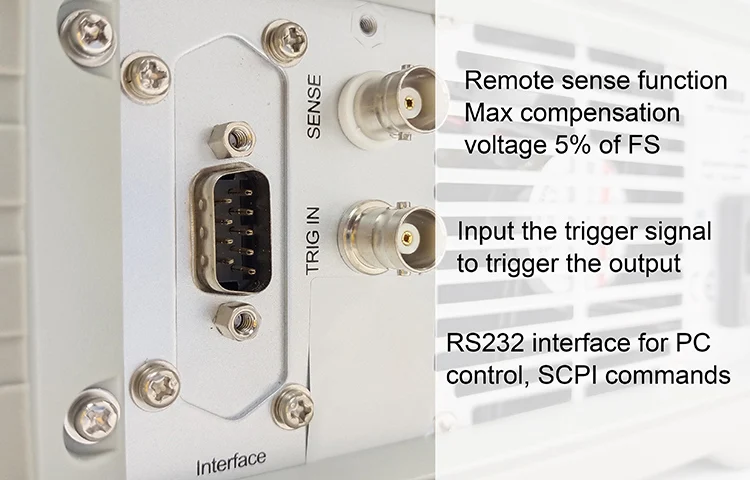

>>> Remote sense function
>>> Display load resistance value
>>> Battery charge mode to make Lithium battery curve charge
>>> Digital interface RS232, support SCPI commands
>>> Optional analog interface 0-5V
>>> Optional 0-5V analog control


Selection Guide
We have different series of laboratory programmable power supplies. Each of them has their own remarkable features.
PPA
PPS
PPW
PPM
TPM
Display
4.3-inch TFT
LCD
4.3-inch TFT
LCD
4.3-inch LCD
4.3-inch LCD
122*32 LCD
Rated Power
 400W
 850W
1500W
 300W
 600W
900W
 300W
 600W
900W
90W~375W
90W~180W
Voltage Ripplec
50mVpp
30mVpp
30mVpp
1mVrms
1mVrms
Ramp output
√
√
×
×
×
USB Host
√
√
×
×
×
USB Device
×
×
×
×
√
RS232
√
√
√
√
×
RS485
√
√
Optional
Optional
×
Analog Control 0-5V
×
√
Optional
Optiona
×
Remote Sensing
√
√
√
√
×
Battery Charge Mode
√
√
√
√
×
Low resistance measurement
√
√
√
√
×
List Mode
√
√
√
√
√
19-Inch Rack Compatible
√
√
√
√
×
Data logger
Optional
Optional
Optional
×
×


 Specifications (900W)
(0℃~40℃)
PPW-1560
PPW-2045
PPW-3030
PPW-3625
PPW-4520
PPW-6015
PPW-8011
PPW-12H75
PPW-15H60
Rated output
0~15V
0~60A
0~20V
0~45A
0~30V
0~30A
0~36V
0~25A
0~45V
0~20A
0~60V
0~15A
0~80V
0~11A
0~120V
0~7.5A
0~150V
0~6A
O.V.P range
0.1~18V
0.1~24V
0.1~34V
0.1~40V
0.1~55V
0.1~64V
0.1~88V
0.1~132V
0.1~160V
O.C.P range
0.1~62 A
0.1~50A
0.1~34A
0.1~27.5A
0.1~22A
0.1~17A
0.1~12A
0.1~8A
0.1~6.6A
Line regulation
CV≤0.01%+4mV
CC≤0.1%+3mA
Load regulation
CV≤0.1%+5mV
CC≤0.1%+5mA
Setting accuracy
Voltage ±(0.03% of reading + 10mV)
Current ±(0.1% of reading + 0.1% of FS)
Setting resolution
1mV
1mA
1mV
1mA
1mV
1mA
1mV
1mA
1mV
1mA
1mV
1mA
1mV
1mA
10mV
1mA
10mV
1mA
Reading accuracy
Voltage ±(0.02% of reading +5mV)
Current ±(0.1% of reading + 0.1% of FS)
Reading resolution
1mV
1mA
1mV
1mA
1mV
1mA
1mV
1mA
1mV
1mA
1mV
1mA
1mV
1mA
10mV
1mA
10mV
1mA
Ripple & Noise
Voltage ripple ≤2mVrms, 30mVpp(20Hz~20MHz)
Current ripple ≤10mArms
Rise time
(Empty load)
≤200ms
≤300ms
≤500ms
≤300ms
≤300ms
≤1s
≤1s
≤1.5s
≤1.5s
Rise time
(Full  load)
≤300ms
≤1s
≤1s
≤1s
≤1s
≤1.5s
≤1.5s
≤2s
≤2s
Fall time
(Empty load)
≤2s
≤2s
≤2s
≤3s
≤3s
≤3s
≤3s
≤8s
≤8s
Fall time
(Full load)
≤2ms
≤2ms
≤2ms
≤3ms
≤3ms
≤3ms
≤4ms
≤9ms
≤12ms
Recovery time
≤1.5ms (50% load change)
Temperature Coefficient
≤100ppm/℃
Remote sense function
Maximum compensation voltage 5% of FS
Digital interface
RS232 interface, Support SCPI commands
RS485 interface, Support ModBus-RTU commands
Analog interface
0-5V analog control for output ON/OFF, voltage & current control & monitor
Power source
AC220V±10%, 50/60Hz
Accessories
Power cord x1, Operation manual x1, RS232 cable x1, Software CD x1
Dimension
215W x 89H  x412D mm
Weight
5.5KG
