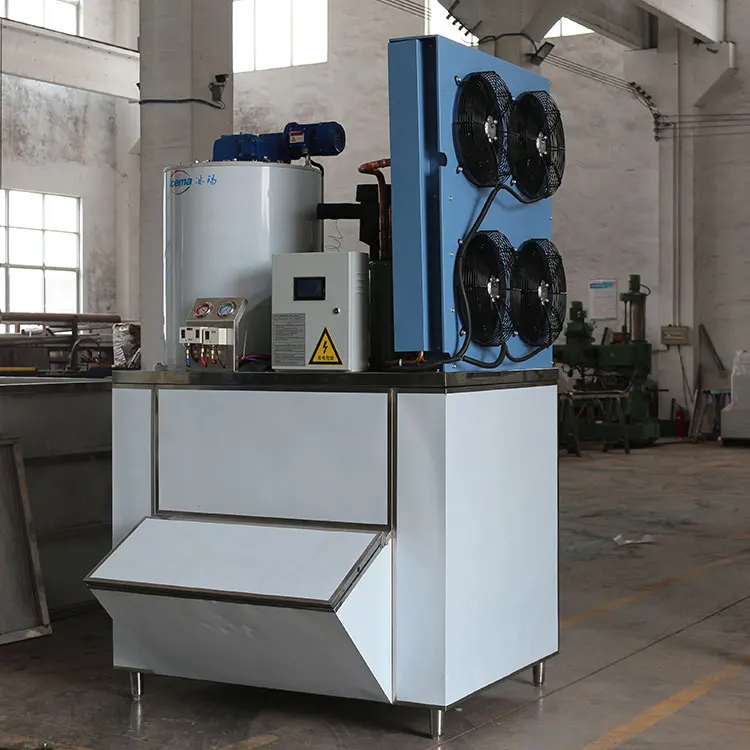

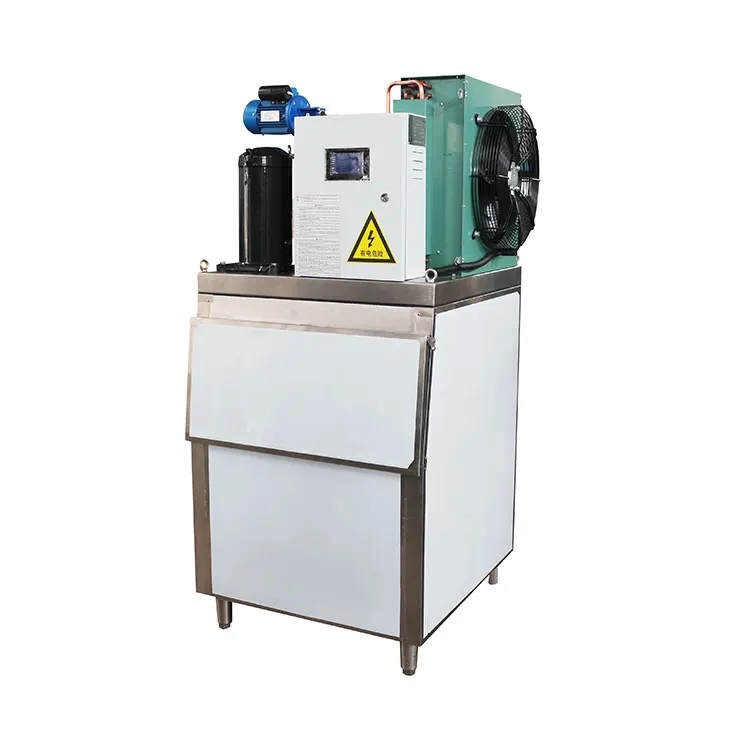

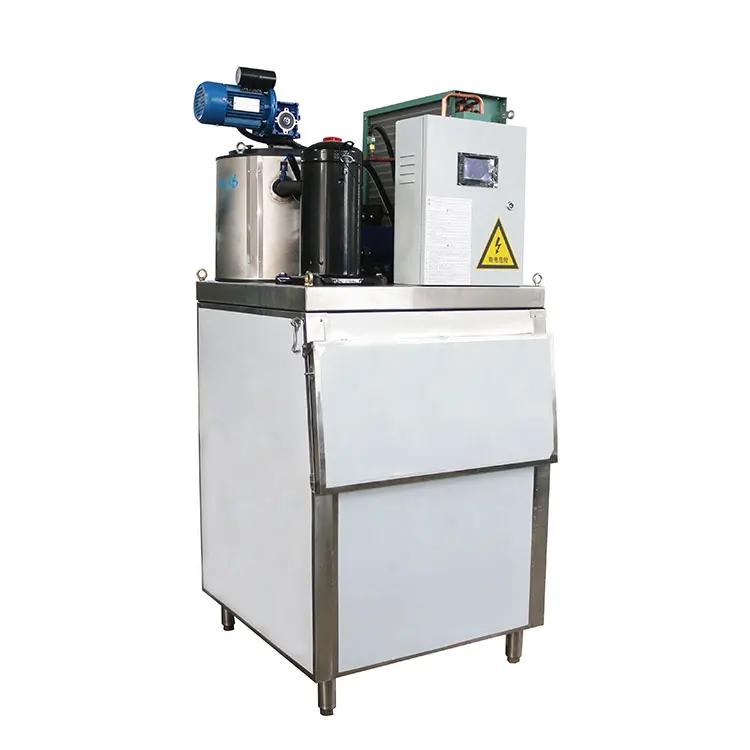

300kg commercial ice manufacturing machine snow flake ice machine with bin
- Category: >>>
- Supplier: Shanghai Hengyue Refrigeration Equipment Co. Ltd.
Share on (1600387980263):
Product Overview
Description
Product Description
Ice application:
The flake ice is used in different industries: precooling for butchery process, cooling for fish and meat, refreshing vegetable,fruits, foods in supermarket, cooling in the pharmaceutical & chemical industry, dairy production, concrete and mining, etc.
Model | Production/kg | Refrigeration capacity | Input power/KW | Rate current/A | Temperature | Compressor power/KW | Refrigerant | Size L*W*H | |
HYF03 | 300 | 2.1 | 1.90 | 4.3 | -8 | 1.5 | R22/R404A | 1000*730*480 | |
HYF05 | 500 | 3.5 | 2.45 | 5.6 | -8 | 2.1 | R22/R404A | 1000*730*630 | |
HYF10 | 1000 | 7.0 | 5.37 | 10.6 | -8 | 4.8 | R22/R404A | 1100*800*820 | |
HYF15 | 1500 | 10.5 | 6.80 | 13.4 | -8 | 6.1 | R22/R404A | 1200*850*850 | |
HYF20 | 2000 | 14.0 | 8.35 | 16.0 | -8 | 7.5 | R22/R404A | 1500*1200*1000 | |
HYF30 | 3000 | 21.0 | 10.52 | 18.6 | -8 | 9.6 | R22/R404A | 1700*1300*1069 | |
HYF50 | 5000 | 35.0 | 16.72 | 33.0 | -8 | 15.3 | R22/R404A | 2200*1500*1600 | |
1) Scientific design and many years of engineering experience.
2) High efficiency and energy saving.
3) Simple maintenance and convenient operation.
4). Outstanding electric control system, PLC program control system, ice discharge automatically: hygienic and labor-saving;
5). Emergency Alarm: Your people will be alarmed once the emergency happens;
6). Use stainless steel 304 / 316 or carbon steel evaporator drum. The scratching-style system inside machine ensures constant running at the lowest power consumption, exquisite welding and processing technology ensure high-efficiency heat transfer and energy saving.
7) Once formed, Ice flakes are dry, clean, beautiful in shape. Sanitary and convenient.
8) Without any acute edges and damage concerns. Ice flakes cannot damage the surfaces of refrigerated objects but are extremely suitable for storage and deliver.
2) High efficiency and energy saving.
3) Simple maintenance and convenient operation.
4). Outstanding electric control system, PLC program control system, ice discharge automatically: hygienic and labor-saving;
5). Emergency Alarm: Your people will be alarmed once the emergency happens;
6). Use stainless steel 304 / 316 or carbon steel evaporator drum. The scratching-style system inside machine ensures constant running at the lowest power consumption, exquisite welding and processing technology ensure high-efficiency heat transfer and energy saving.
7) Once formed, Ice flakes are dry, clean, beautiful in shape. Sanitary and convenient.
8) Without any acute edges and damage concerns. Ice flakes cannot damage the surfaces of refrigerated objects but are extremely suitable for storage and deliver.
Details Images
Compressor
Small-sized flake ice machines use Copeland or Danfoss scroll compressors, and medium-sized flake ice machines use Bitzer piston compressors.
Expansion valve
Expansion valve is the core component of the flake ice machine refrigeration system, which is directly related to the efficiency of the refrigeration system. A high-quality expansion valve can increase the ice production of the flake ice machine. Our expansion valves are equipped with Danfoss and Emerson as standard, ensuring the stable operation of the refrigeration system.

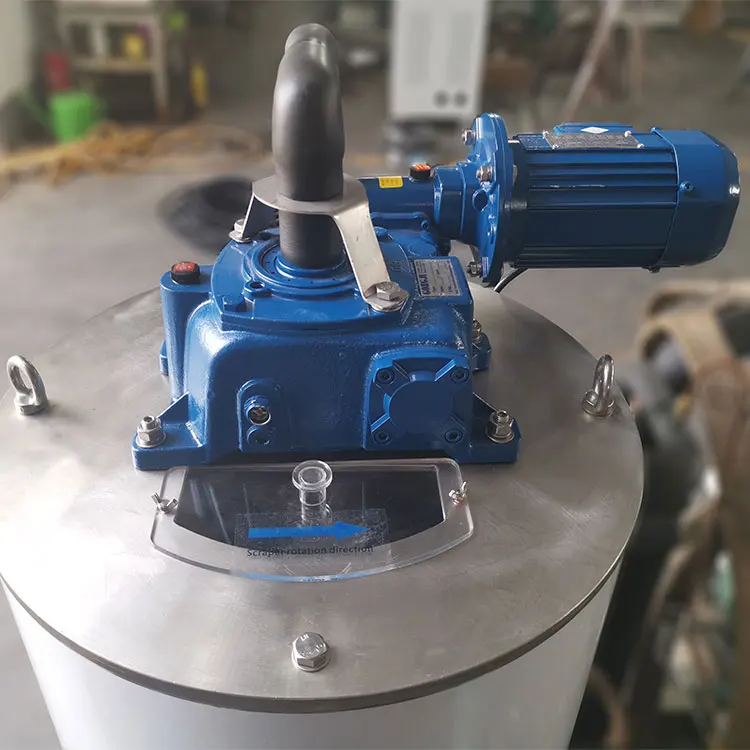

Evaporator
The outer shell of the evaporator is made of SUS304 stainless steel, the upper and lower seats are made of cast aluminum, and the inner container of the evaporator is divided into three materials, the ordinary one is made of carbon steel, the edible one is made of SUS304, and the seawater series is made of SUS316.

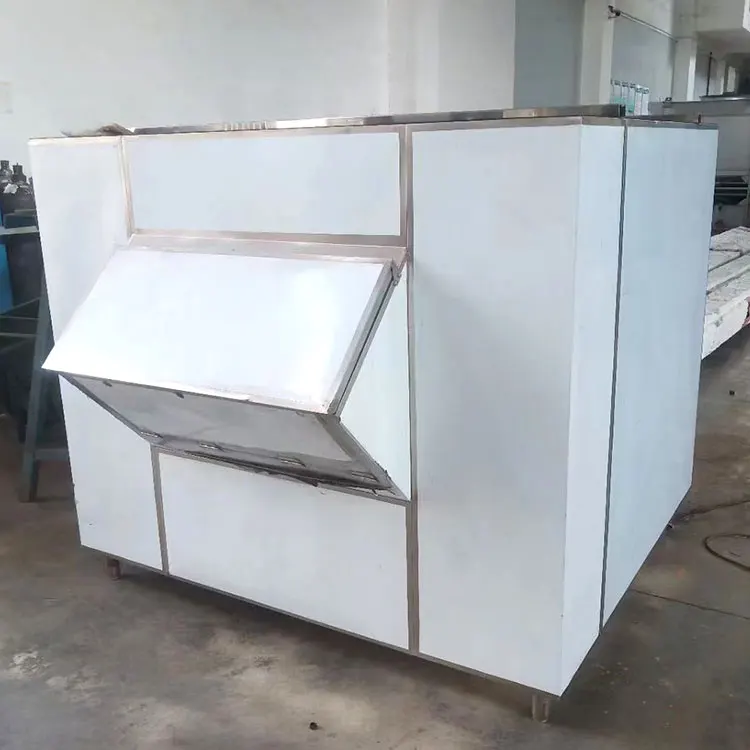

Ice bin
Small flake ice machine: 200kg, 300kg, 500kg, 800kg and 1000kg machines are equipped with stainless steel ice storage. Machines over 1000kg require special notes for ice storage.
Control System
The ice maker adopts PLC programming control, which is more flexible than the single-chip control method.All flake ice machines are equipped with a color touch screen and use Schneider control components.
Touch screen
Man-machine communication can be realized, used to modify control parameters, read alarms, and view
machine status.
machine status.
Our Advantages
* Easy to clean efficient evaporator
* Front accessible parts
* Disconnect-type design thereby to extend ice storage
* Easy, convenient and inexpensive installation
* Durable exteroir, fingerproof resistant
* Auto shut off when ice bin is full
* Eco-friendly water based polyurethane foam
* Front venting for built in installation
* Switch with adjustable ice bridge thickness
* Front accessible parts
* Disconnect-type design thereby to extend ice storage
* Easy, convenient and inexpensive installation
* Durable exteroir, fingerproof resistant
* Auto shut off when ice bin is full
* Eco-friendly water based polyurethane foam
* Front venting for built in installation
* Switch with adjustable ice bridge thickness
* Gravity Drain without extra power
* With CE、RoSH、IOS9001 certificate
* With CE、RoSH、IOS9001 certificate
* LED internal long lasting lighting ·
FAQ
Q1: Are you a factory or trading company?
A:We are a factory, located in Shanghai,China.
Q2: What is the raw material of your products?
A: As general,the raw material of steel is 304# .
Q3: What is the term of payment?
A:As general,less than 5000 USD ,100%T/T in advance. More than 5000 USD ,30%T/T in advance,balance before shipment.
Q4: How to ensure the payment security?
A:we recommend starting order through Alibaba trade assurance to make sure customer will receive goods as the order after finish the payment.
Q5: What is the delivery time?
A:It depends on the order quantity and racking types. If you purchase our standard machine,the delivery time is around 7days.
Q6: Which port will be used as loading port?
A:Shanghai port or Ningbo Port is recommended.
Q7: May I know the status of my order?
A:Yes.We will send you information and photos at different production stage of your order.You will get the latest information in time.
Q8: Can we put our own logo on the machine?
A:Yes,we can do OEM for you.
Q9: About the warranty?
A: One year for the whole unit. During warranty time,we offer parts for free(except consumption parts like rings and beaters).
A:We are a factory, located in Shanghai,China.
Q2: What is the raw material of your products?
A: As general,the raw material of steel is 304# .
Q3: What is the term of payment?
A:As general,less than 5000 USD ,100%T/T in advance. More than 5000 USD ,30%T/T in advance,balance before shipment.
Q4: How to ensure the payment security?
A:we recommend starting order through Alibaba trade assurance to make sure customer will receive goods as the order after finish the payment.
Q5: What is the delivery time?
A:It depends on the order quantity and racking types. If you purchase our standard machine,the delivery time is around 7days.
Q6: Which port will be used as loading port?
A:Shanghai port or Ningbo Port is recommended.
Q7: May I know the status of my order?
A:Yes.We will send you information and photos at different production stage of your order.You will get the latest information in time.
Q8: Can we put our own logo on the machine?
A:Yes,we can do OEM for you.
Q9: About the warranty?
A: One year for the whole unit. During warranty time,we offer parts for free(except consumption parts like rings and beaters).
