Semi Automatic Small Drinks Yogurt Cup Sealing Machine One Time Four Cups Customized Calippo Tube Tea Cup Aluminum Foil Sealer
- Category: >>>
- Supplier: Wenzhou Inteltek Import & Export Co. Ltd.
Share on (1600388032982):
Product Overview
Description
Product Overview

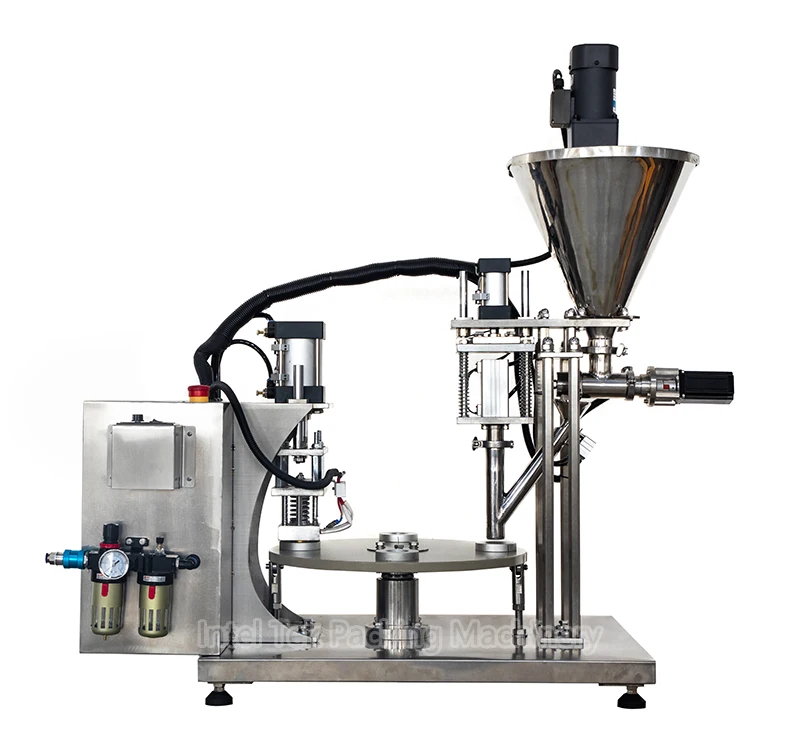

MS-1 Semi Automatic Cup Filling & Sealing Machine
Can be customized according to customer's demand
Cup material available: PS, PP, PE, PET, paper and so on
Sealing film: roll film or pre-cut foil
Filling: liquid, paste, powder

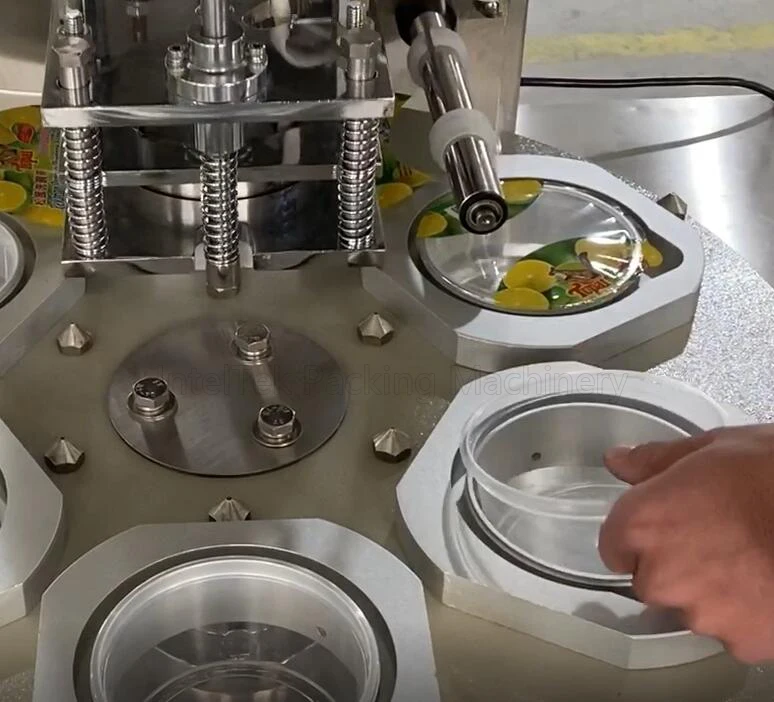

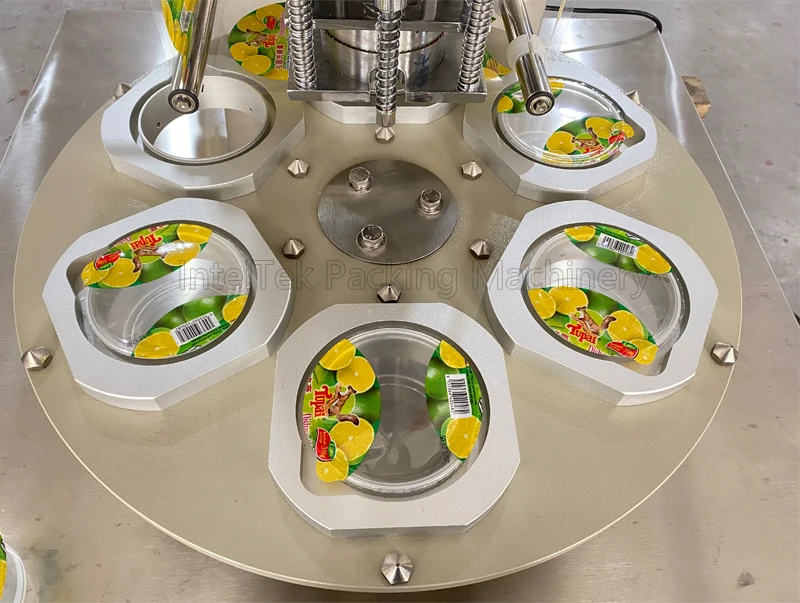

MS-1 semi-automatic rotary cup filling sealing machine with manual drive can be customized with or without filling station. The cup sealing machine is characterized by its compact design and a small capacity, about 300-400 cups/hour. The machine consists of a rotating table, a filling station (pre-cut aluminum lid storage and lid application station), and a sealing station. The sealing of aluminum cover or plastic film can also be selected.The cup is manually inserted and removed from the rotating table.
It can also customize filling products, including round, oval, square or rectangular plastic containers for liquid, paste, powder,and granular materials. Such as yogurt, milk, soft cheese, cheese and dairy products as well as pasta sauce, bean paste, hummus, salad dressing, dessert, soup, mayonnaise, jelly, pudding, chocolate, jam, honey, juice, tomato sauce, Butter, cosmetic cream,etc.
It can also customize filling products, including round, oval, square or rectangular plastic containers for liquid, paste, powder,and granular materials. Such as yogurt, milk, soft cheese, cheese and dairy products as well as pasta sauce, bean paste, hummus, salad dressing, dessert, soup, mayonnaise, jelly, pudding, chocolate, jam, honey, juice, tomato sauce, Butter, cosmetic cream,etc.
4 position
6 position
6 position
Function
Pre-cut foil sealing
1. Put cup by hand.
2. Turn rotary table by hand.
3. Automatic filling liquid, paste, powder, etc.
4. Put pre-cut foil by hand.
5. Automatic sealing.
6. Take cup out by hand.
1. Put cup by hand.
2. Turn rotary table by hand.
3. Automatic filling liquid, paste, powder, etc.
4. Put pre-cut foil by hand.
5. Automatic sealing.
6. Take cup out by hand.
Roll film sealing
1. Put cup by hand.
2. Turn rotary table by hand.
3. Automatic filling liquid, paste, powder, etc.
4. Automatic roll film sealing.
5. Take cup out by hand.
1. Put cup by hand.
2. Turn rotary table by hand.
3. Automatic filling liquid, paste, powder, etc.
4. Automatic roll film sealing.
5. Take cup out by hand.
Details Images

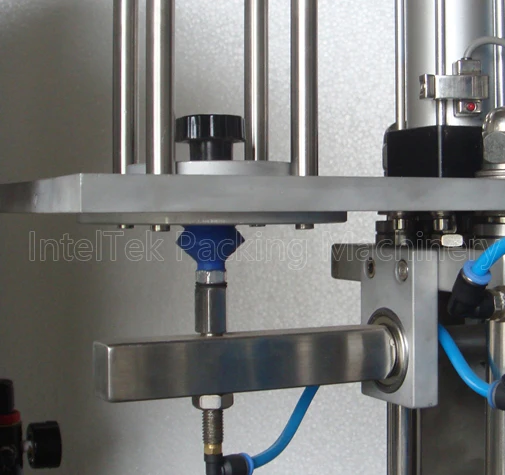

Liquid & Paste Filling
Powder Filling
Sealing Methods

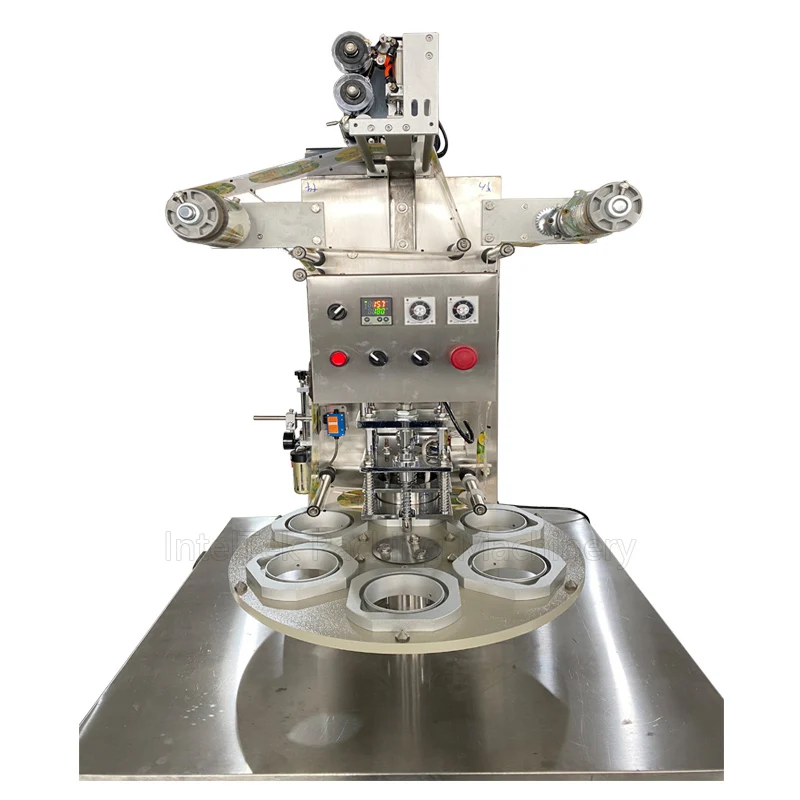

Roll Film Sealing

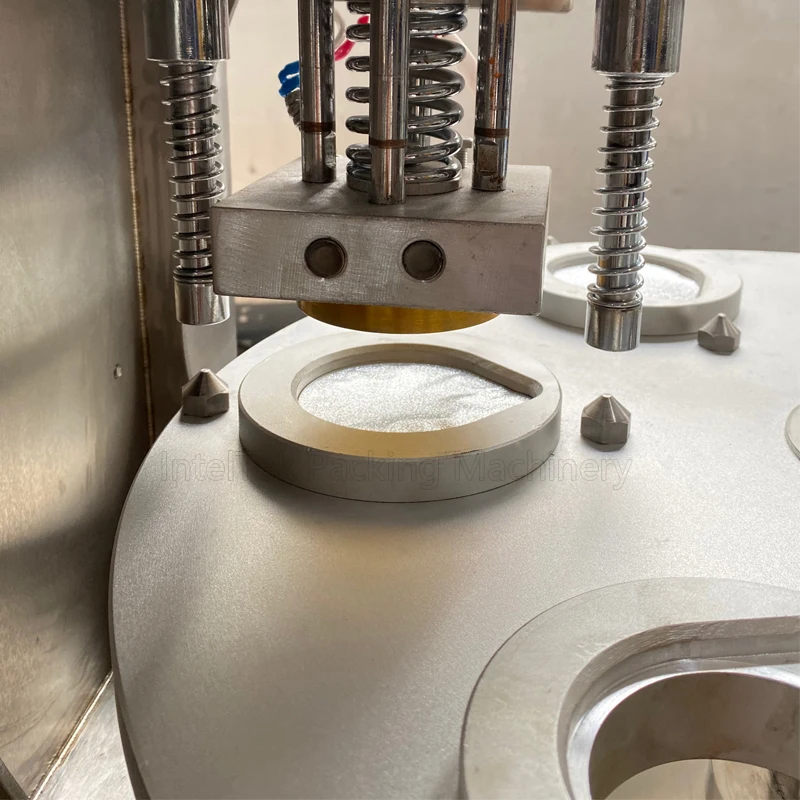

Pre-cut Foil Sealing
Technical parameter
output | 300-400 cups/hour |
volume | can be customized |
heat power | 0.5 Kw |
air consumption | 0.4 m3/min |
voltage | 220V/380V 50-60Hz |
mould | made according to the size of cup |
machine dimension | 800mm*600mm*800mm |
weight | 90kg |
Options
Turn rotary board automatically
Touch screen.
Mixing tank.
Double jacket tank.
Color ribbon date printer for roll film.
Touch screen.
Mixing tank.
Double jacket tank.
Color ribbon date printer for roll film.
Sample

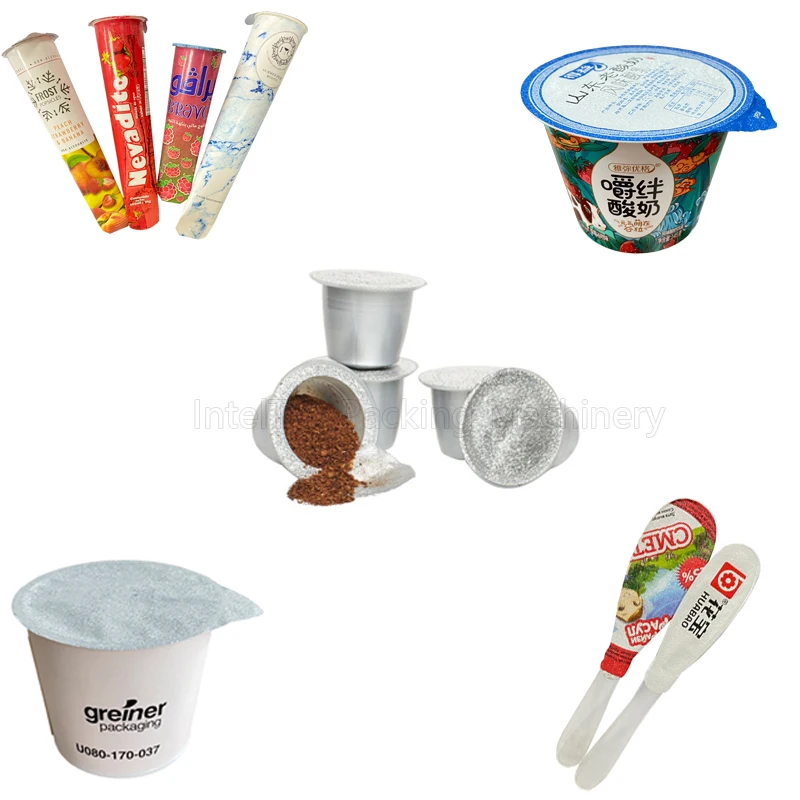

Scope Of Application
Filling for liquid ,paste,granule,powder,and so on. Sealing for cup,bottle,bowl,tray,can,jar,bucket etc... | ||||
Yogurt /Milk/Chocolate Filling Sealing Machine | Water Filling Sealing Machine | Juice Filling Sealing Machine | ||
Jelly/Pudding Filling Sealing Machine | Jam Filling Sealing Machine | Sauce Filling Sealing Machine | ||
Instant Noodles Sealing Machine | Tofu/Beancurd Sealing Machine | Coffee Filling Sealing Machine | ||
Lunch box Sealing Machine | Frozen Food/MAP Packaging Machine | Potato Chips Canister Sealing Machine | ||
Porridge Filling Sealing Machine | Plastic Jar Sealing Machine | Plastic Bucket Sealing Machine | ||
Wet Wipe Can Sealing Machine | Dehumidifier Box Filling Sealing Machine | Cosmetic/Detergent Filling Sealing Machine | ||
Recommended For You
Company Information
Wenzhou IntelTek Import & Export Co., Ltd. is a professional supplier of all kinds packaging machines, integrating development,production and trading together. We mainly supply filling sealing machine, filling machine, MAP packaging machine, capping machine, labeling machine, water treatment, and other packing related machines.
Our company have many years of history in the packing machinery. Through the efforts of our entire staff, we have become a famous proffessional packing machine supplier. IntelTek people have continuously tried to improve product quality.
Currently, IntelTek machines are already exported to America, Canada, Switzerland, Australia, Germany, Italy, UK, Egypt, Brazil and 30 other countries and regions. Our company has always focused on research, development and innovation, and has recently developed new continous filling sealing machine. IntelTek also have their own factory. We have CE certification.
Our company offers 'reasonable prices, efficient production time and good after-sales service'. We hope to cooperate with more customers for mutual development and benefits. Buyers are welcome to contact us.
Our company have many years of history in the packing machinery. Through the efforts of our entire staff, we have become a famous proffessional packing machine supplier. IntelTek people have continuously tried to improve product quality.
Currently, IntelTek machines are already exported to America, Canada, Switzerland, Australia, Germany, Italy, UK, Egypt, Brazil and 30 other countries and regions. Our company has always focused on research, development and innovation, and has recently developed new continous filling sealing machine. IntelTek also have their own factory. We have CE certification.
Our company offers 'reasonable prices, efficient production time and good after-sales service'. We hope to cooperate with more customers for mutual development and benefits. Buyers are welcome to contact us.
Workspace
Production Workshop
Exhibition
Our Certificate
Packaging & Shipping
Packaging | Shipping |
First Rust inhibitor | First contact you the machine is ok |
Second Wrap film | Second put the freight come and take the machine |
Third Plywood cases | Third Plywood cases |
Last in container | Last in container |
Our Services
1. Best Service: Product manager for your service.Always FREE.
2. 12H Skypee( chunlaipack1 ) on line.
3. Welcome visit factory.
4. After sale service:we have professional technical service for you.
5. Mail be reply in 12 Hours.(except not working days )
6. Photos ing in trade line.
2. 12H Skypee( chunlaipack1 ) on line.
3. Welcome visit factory.
4. After sale service:we have professional technical service for you.
5. Mail be reply in 12 Hours.(except not working days )
6. Photos ing in trade line.
7. Technology Training:we can arrange professional technician to install and adjust the machine if customers require, as well as train the operator to operate, adjust and maintain the machine.
FAQ
Q: First time import, how can I believe that you would send product ?
A: We are verified company by Alibaba ,to make transaction success, we support and recommend LC or with visit our factory.
Q: How to ensure that I received the machine undamaged?
A: First , we package is standard for shipping,then send you the photo when give the product to the freight forwarder.before pick up , please confirm product undamage, if damage, The ship company will take the responsibility.
A: We are verified company by Alibaba ,to make transaction success, we support and recommend LC or with visit our factory.
Q: How to ensure that I received the machine undamaged?
A: First , we package is standard for shipping,then send you the photo when give the product to the freight forwarder.before pick up , please confirm product undamage, if damage, The ship company will take the responsibility.
Q: What aftersales service or any question about products?
A: This machine enjoys 1 years warranty , any problem , I am on line from 9 am to 5 pm, or you can send me mail , will reply you within 12 hours, I'll give you detail instruction.
A: This machine enjoys 1 years warranty , any problem , I am on line from 9 am to 5 pm, or you can send me mail , will reply you within 12 hours, I'll give you detail instruction.
