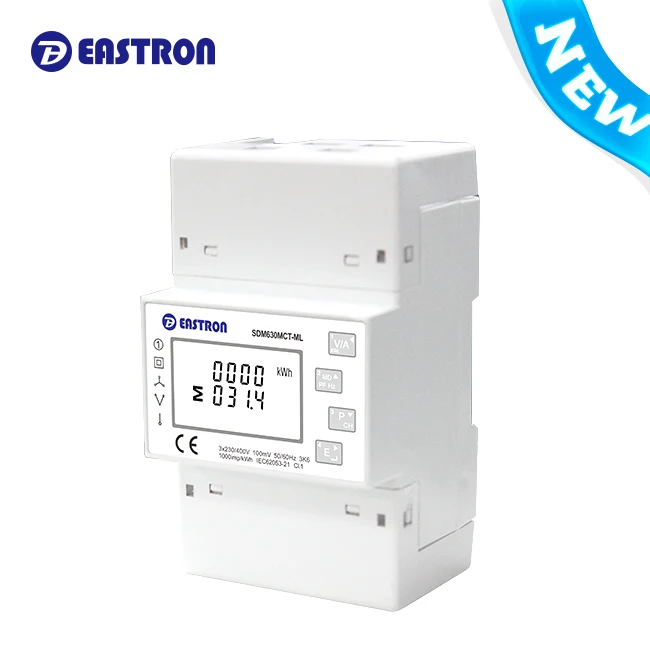

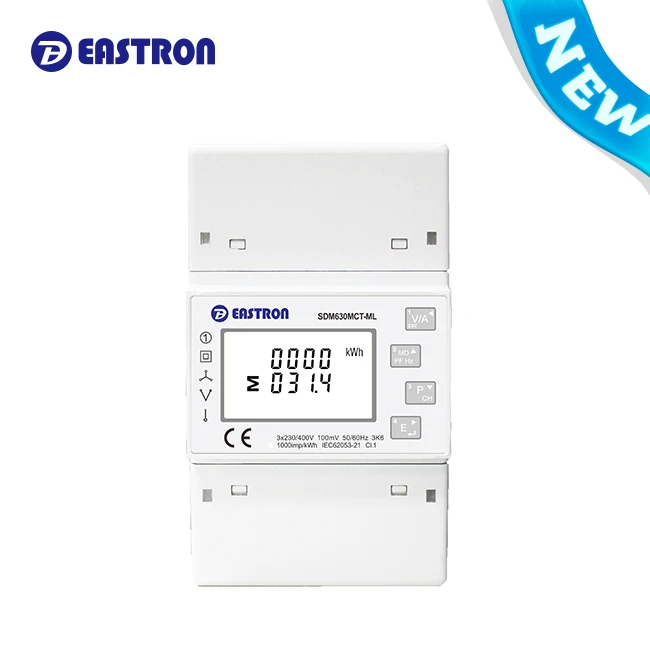

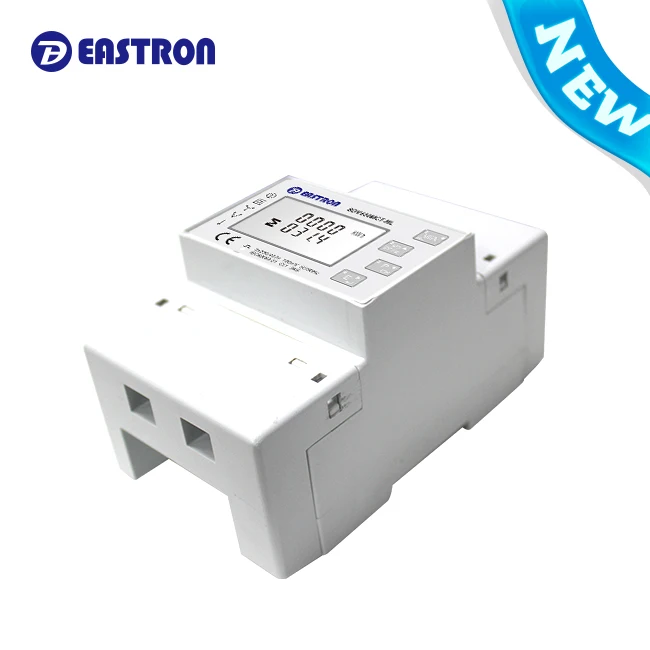

SDM630MCT ML TCP Ethernet Modbus TCP IP Input Power Analyzer

Product Overview

Description

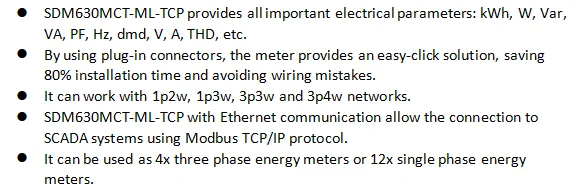

EASTRON SDM630MCT-ML-TCP with Ethernet communication allow the connection to SCADA systems using Modbus TCP/IP protocol.

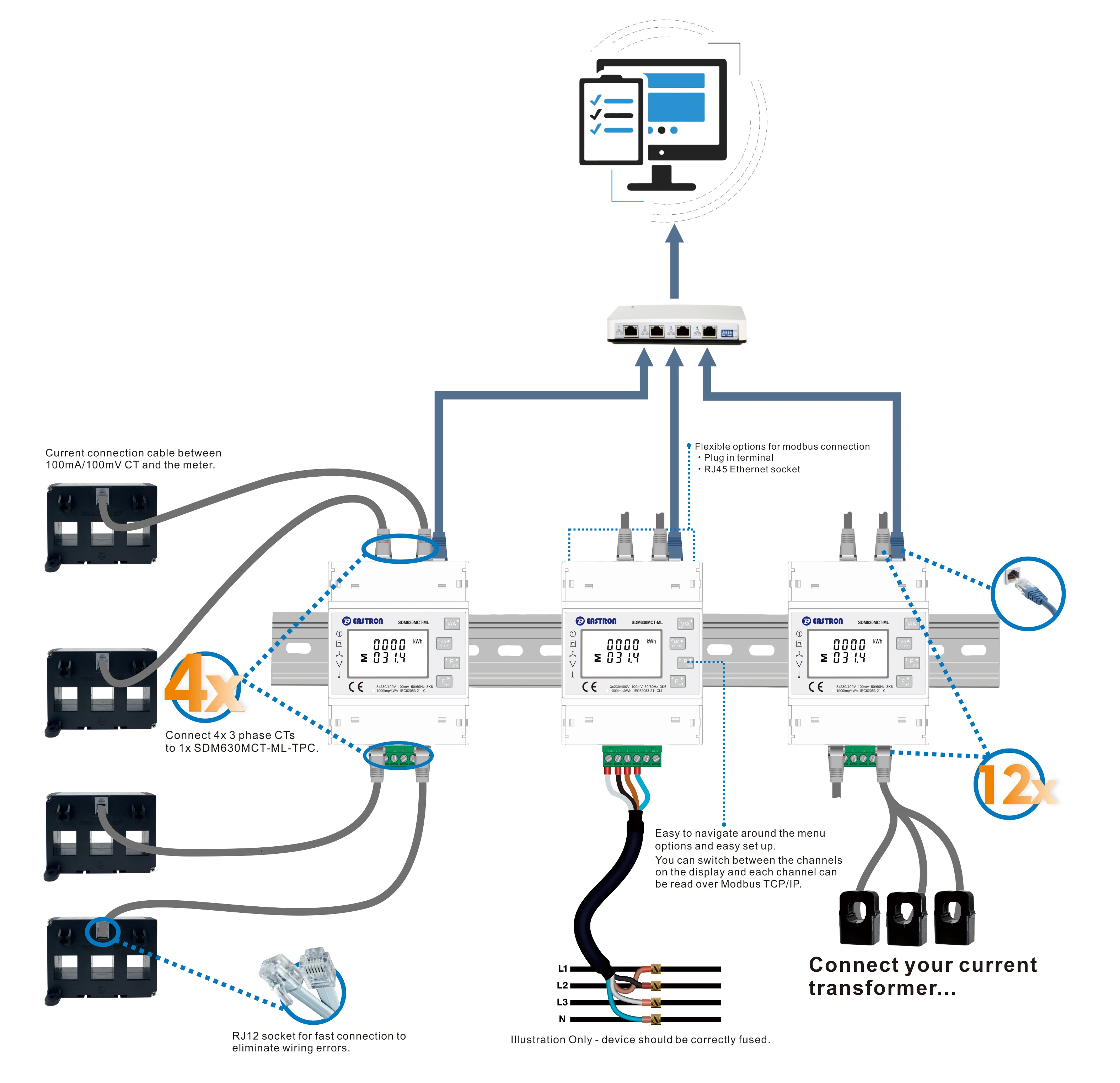

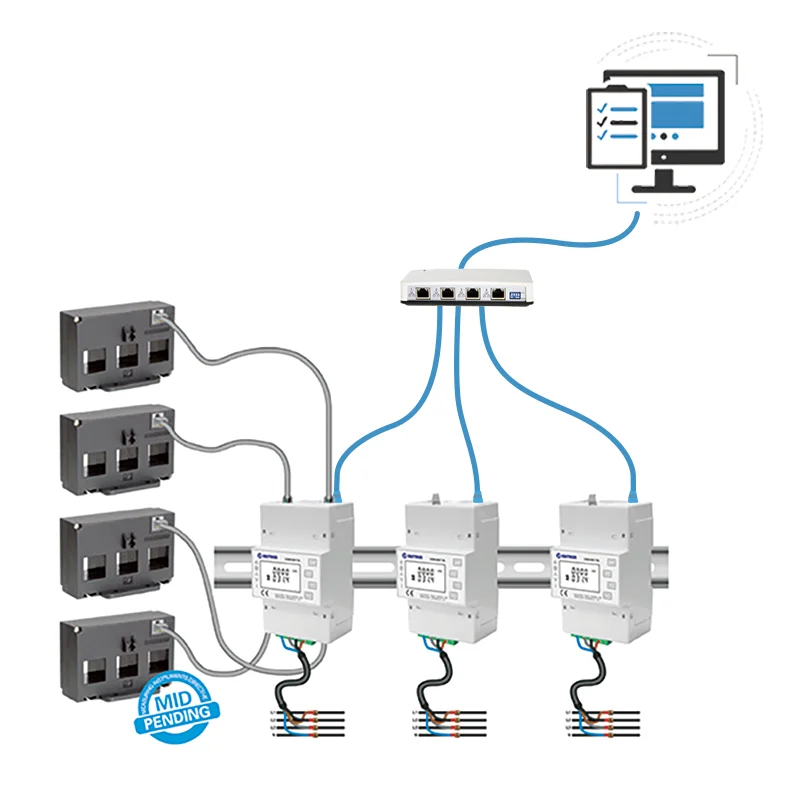

It can be used as 4x three phase energy meters or 12x single phase energy meters.



The meter can work with 1p2w, 1p3w, 3p3w and 3p4w electricity grid, and it provides all important electrical parameters: voltage, current, power, PF, THD, frequency, demand, energy etc.

By using plug- in connectors, the meter provides an easy click solution saving 80% installation time and avoiding wiring mistakes.

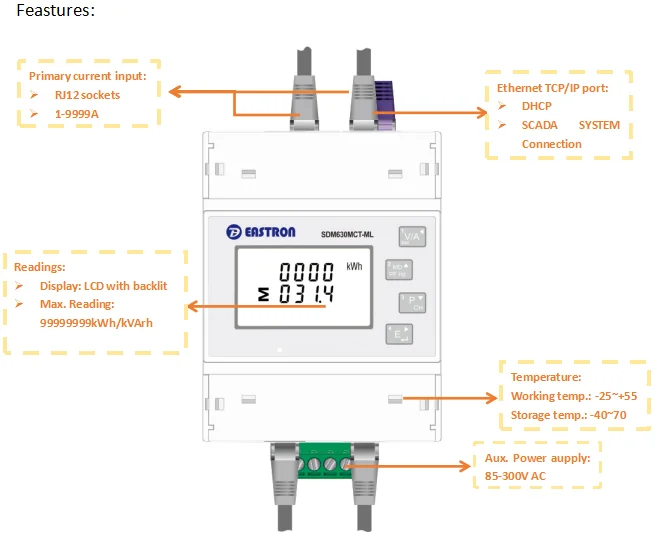

Characteristics

• Multi-parameters.


• CE and MID certified in the UK ( MID pending)


• Bi-directional measurement IMP & EXP


• Built-in Ethernet Modbus TCP/IP


• Phase sequence indication


• Quad load option 4 x 3 phase 4 wire


• Accuracy Class 0.5S/ 1.0


• Touch Button Opercation


• Din Rail Mounting 35mm


• Backlit LCD Display











Input & Output
Input-Current	CT Secondary	100mA / 100mV
	CT Primary	1-9999A
	Min Current	0.25A
	Starting Current	10mA
Output	Ethernet Modbus TCP/IP



Modbus Communications
Interface Standard and Protocol	Ethernet Modbus TCP/IP
Communication Address	1~247
IP Address Assignment	DHCP Factory default address: 192.168.1.200
Data Type	Floating Point
Transmission Speed	>100MB
Response Time	<100 mS
