T9010V подшипник T 9010 V упорные конические роликовые подшипники T9010V
- Category: Thrust Roller Bearings >>>
- Supplier: Jinan Baisite Bearing Co. Limited
Share on (1600388405348):
Product Overview
Description
T9010V Bearing T 9010 V Thrust Tapered Roller Bearings T9010V
Product Description
Product Description:
1.High quality and good service
2.Less friction and low noise
3.Competitve price
4.Durable
5.Ability to carry heavy loads
6.Less coefficient of fricti on
7.High limiting speed
8.Large size range:inner diameter from 20mm-800mm
Detail of spherical roller thrust bearing
Item | Thrust Tapered Roller Bearings T9010V |
Model number | T9010V |
Deliver time : | 1-2days |
Packing : | Wooden case |
Stock | available |
Certification | ISO9001:2008 standard |
Feature | low voice,high speed,long life,low vibration |
Market | Homeland,South East Asia,Middle East,Europe ,Africa and so on |

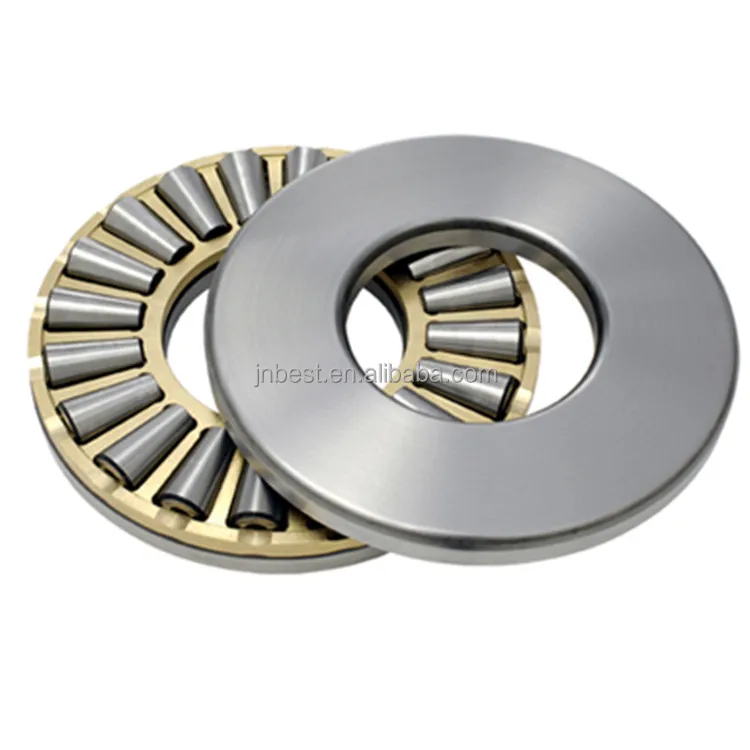

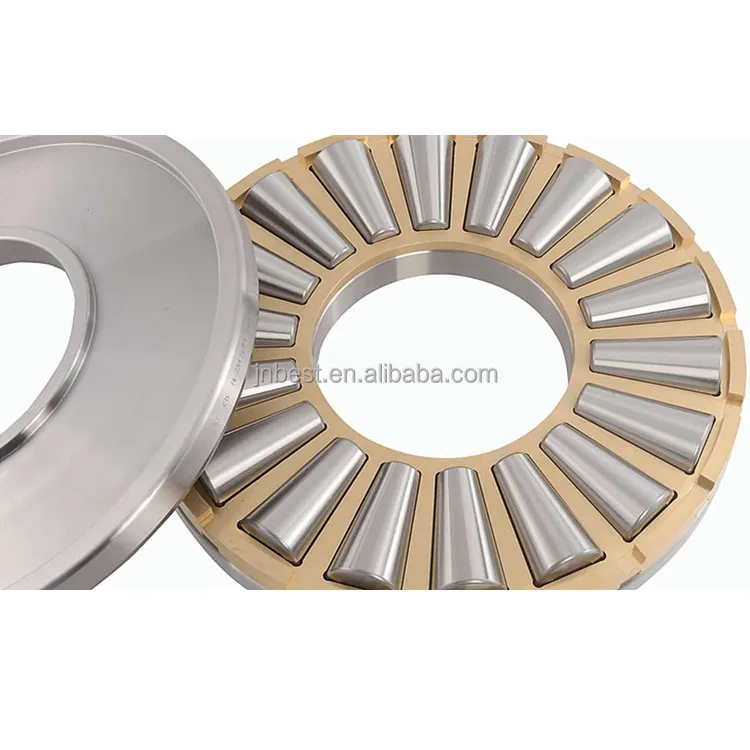

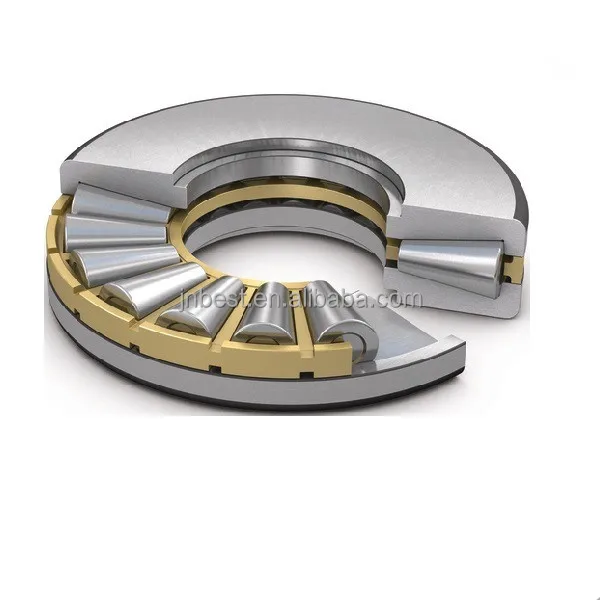

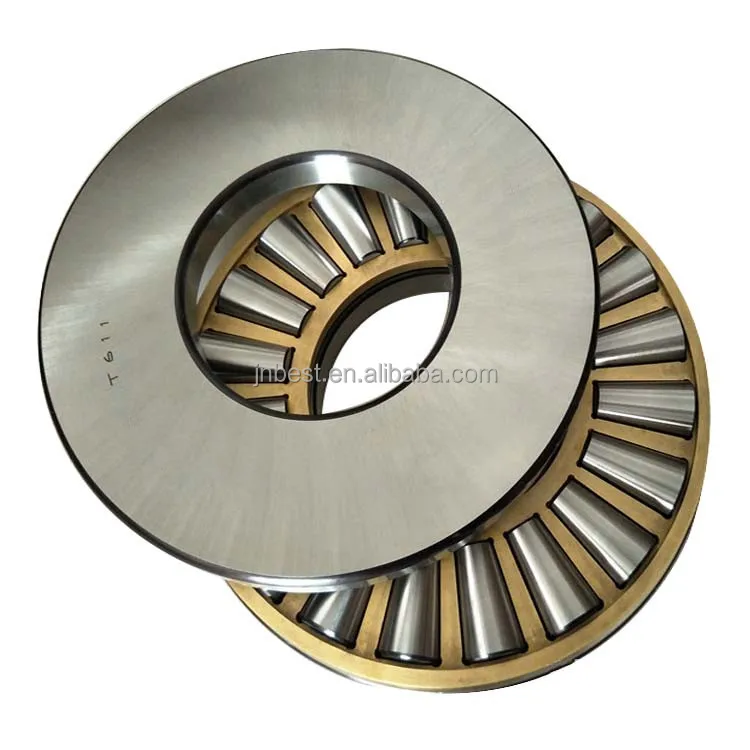

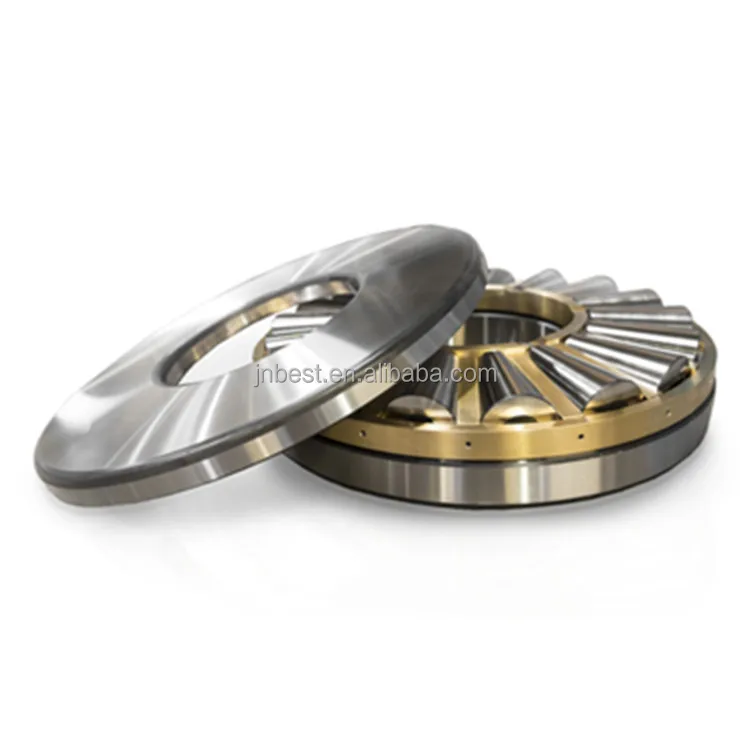

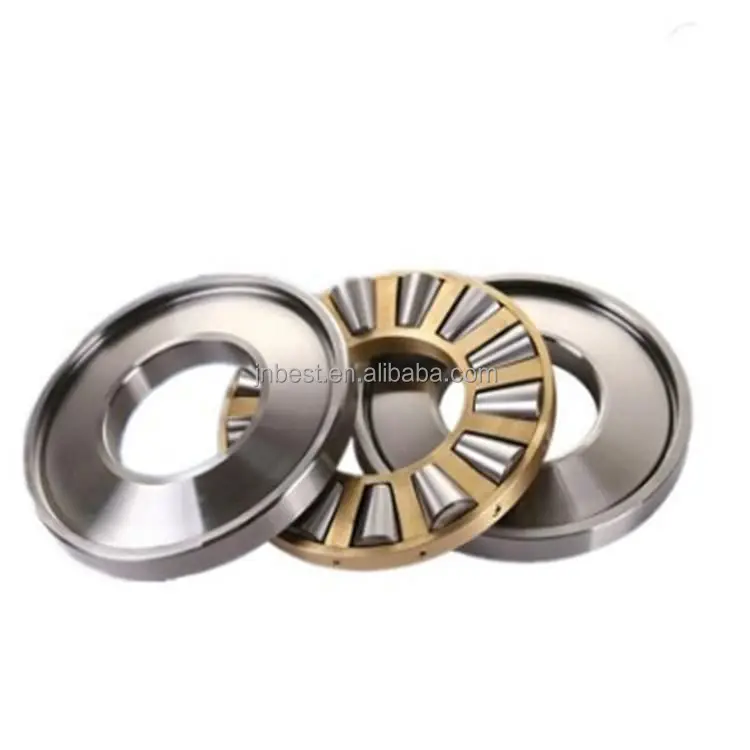

spherical roller thrust bearing Photos:
Thrust Tapered Roller Bearings have specially designed raceways and asymmetrical rollers. The bearings can accommodate axial loads acting in one direction and simultaneously acting radial loads. The load is transmitted between the raceways via the rollers at an angle to the bearing axis, while the flange guides the rollers.
Depending on their series and size the spherical roller thrust bearings are manufactured to two basic designs:
Bearings with no designation suffix
Bearings with no designation suffix are fitted with a machined prong-type brass cage as standard. The cage is guided by a sleeve held in the shaft washer bore. The shaft washer, cage and rollers form a non-separable unit.
Bearings with an E designation suffix
E-design bearings have larger rollers and an optimized internal design for increased load carrying capacity.
E-design bearings up to size 68 are fitted with a stamped window-type steel cage, which forms a non-separable unit with the shaft washer and rollers.
E-design bearings from size 72 and larger are fitted with a machined prong-type cage. This type of cage is guided by a sleeve held in the shaft washer bore. The shaft washer, cage and rollers form a non-separable unit.
Depending on their series and size the spherical roller thrust bearings are manufactured to two basic designs:
Bearings with no designation suffix
Bearings with no designation suffix are fitted with a machined prong-type brass cage as standard. The cage is guided by a sleeve held in the shaft washer bore. The shaft washer, cage and rollers form a non-separable unit.
Bearings with an E designation suffix
E-design bearings have larger rollers and an optimized internal design for increased load carrying capacity.
E-design bearings up to size 68 are fitted with a stamped window-type steel cage, which forms a non-separable unit with the shaft washer and rollers.
E-design bearings from size 72 and larger are fitted with a machined prong-type cage. This type of cage is guided by a sleeve held in the shaft washer bore. The shaft washer, cage and rollers form a non-separable unit.
T9010V Bearing T 9010 V Thrust Tapered Roller Bearings T9010V
Company Information
Company Information:
Our company specialized in manufacturing and exporting bearings for more than 7 years. our factory located on lingqing city, the export office in Jinan city, our brand is BEST, also we are export more import brands bearings.
We are supply ball bearing and roller bearing, also supply housings
Packaging & Shipping
Packaging :
1) origin packing+pallets
1)Tube package+outer carton+pallets
2)Single box+outer carton+pallets
3)Tube package+middle box+outer carton+pallets
4)According to your requirement
Delivery:
1).For a small order,we can send you by UPS,DHL,FEDEX,OR EMS. Thracking number will be advised after delivery.
2).If order is big,we will advise you use Air Freight or Sea Freight.
3). In generally,we delivery the goods within 15 days.
4).Our shipping port is Qingdao , Guangzhou and Shenzhen Port(from our city to Guangzhou and shenzhen need 3 days by truck )
5) we can sent good to Yiwu, Wulumuqi and Feisunhe city
We will do my best to you and your clients happy for business!
