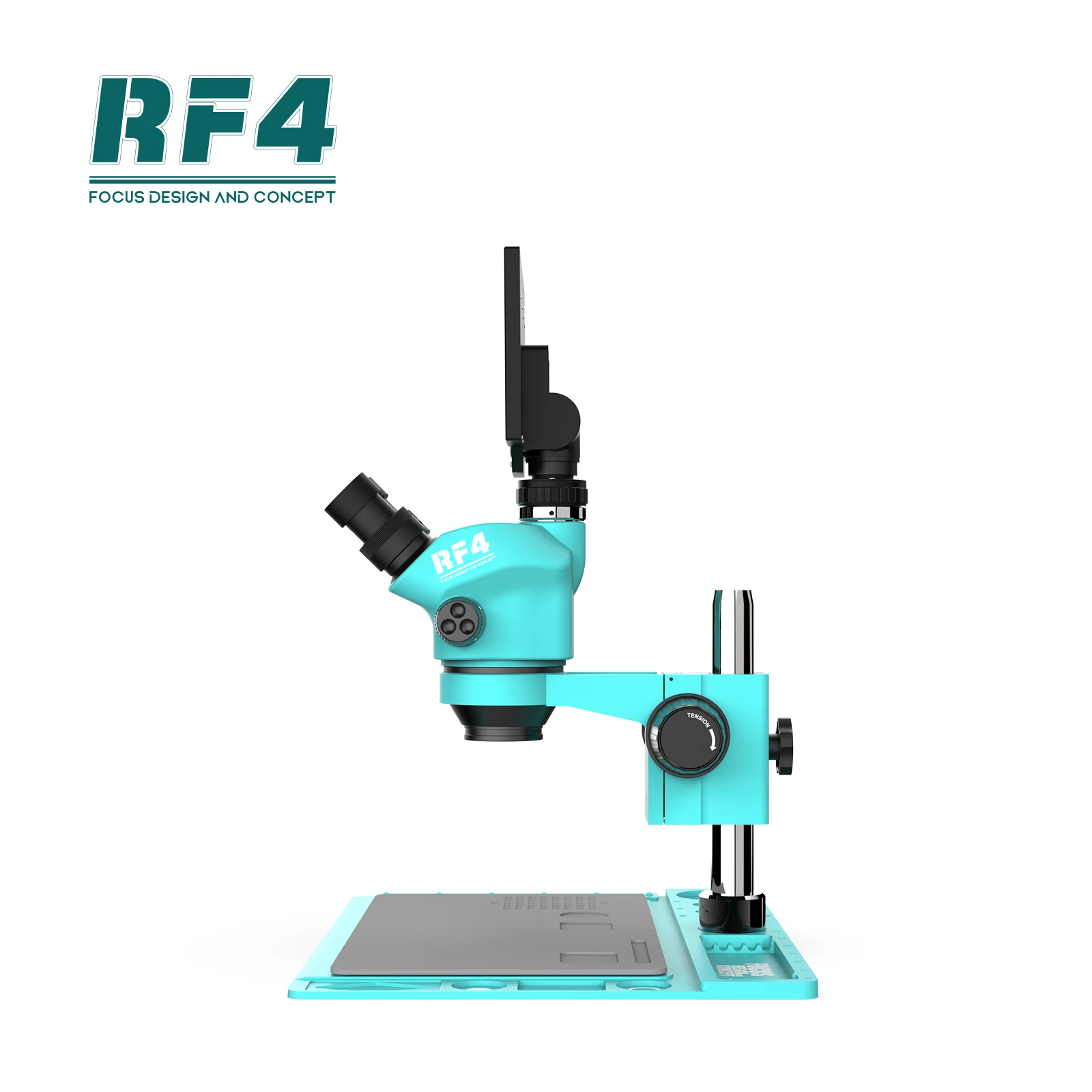

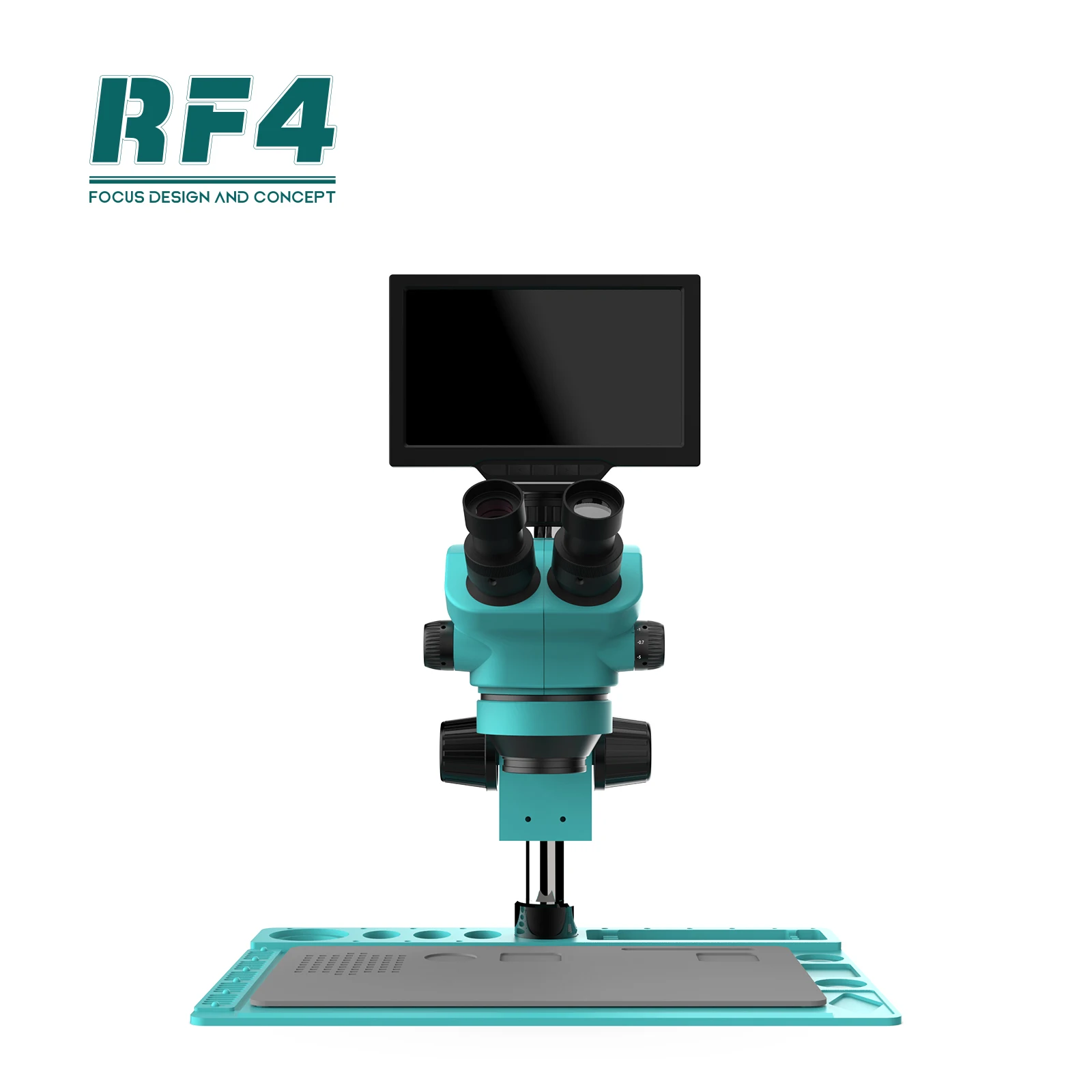

RF4 7 50X optical trinocular stereo microscope with camera monitor 10 INCH big base RF7050TVD2 YS010W
- Category: >>>
- Supplier: Guangzhou KSL Electronic Equipment Co. Ltd.
Share on (1600388437005):
Product Overview
Description
Specification
item | value |
Warranty | 1 year |
Place of Origin | China |
Guangdong | |
Brand Name | RF4 |
Model Number | RF7050TVD-YS010W |
Theory | Stereo Microscope |
Drawtube | Trinocular |
Product name | RF4 7-50X trinocular microscope with camera monitor 10-INCH |
Magnification | 7-50X |
Light source | 144 LED ring light |
Color | green |
Eyepiece | 10X/22 |
Working distance | 100mm |
moniter output | HD/USB |
moniter Pixel | 16mp |
Accessories | Dustproof lens |
Application | PCB repair/jewelry/carving |
Product Description
Magnification:continuous zoom 7X to 50X
Head: 45-degree inclined 360-degree swiveling trinocular
Eyepiece: WF10X/22MM
Barlow Lens: 0.5X & 0.7&2.0X(optional)
Objective: 0.7-5.0X
Camera connector：1/2ctv
Monitor and eyepiece. Synchronous zoom
Camera:Different models optional

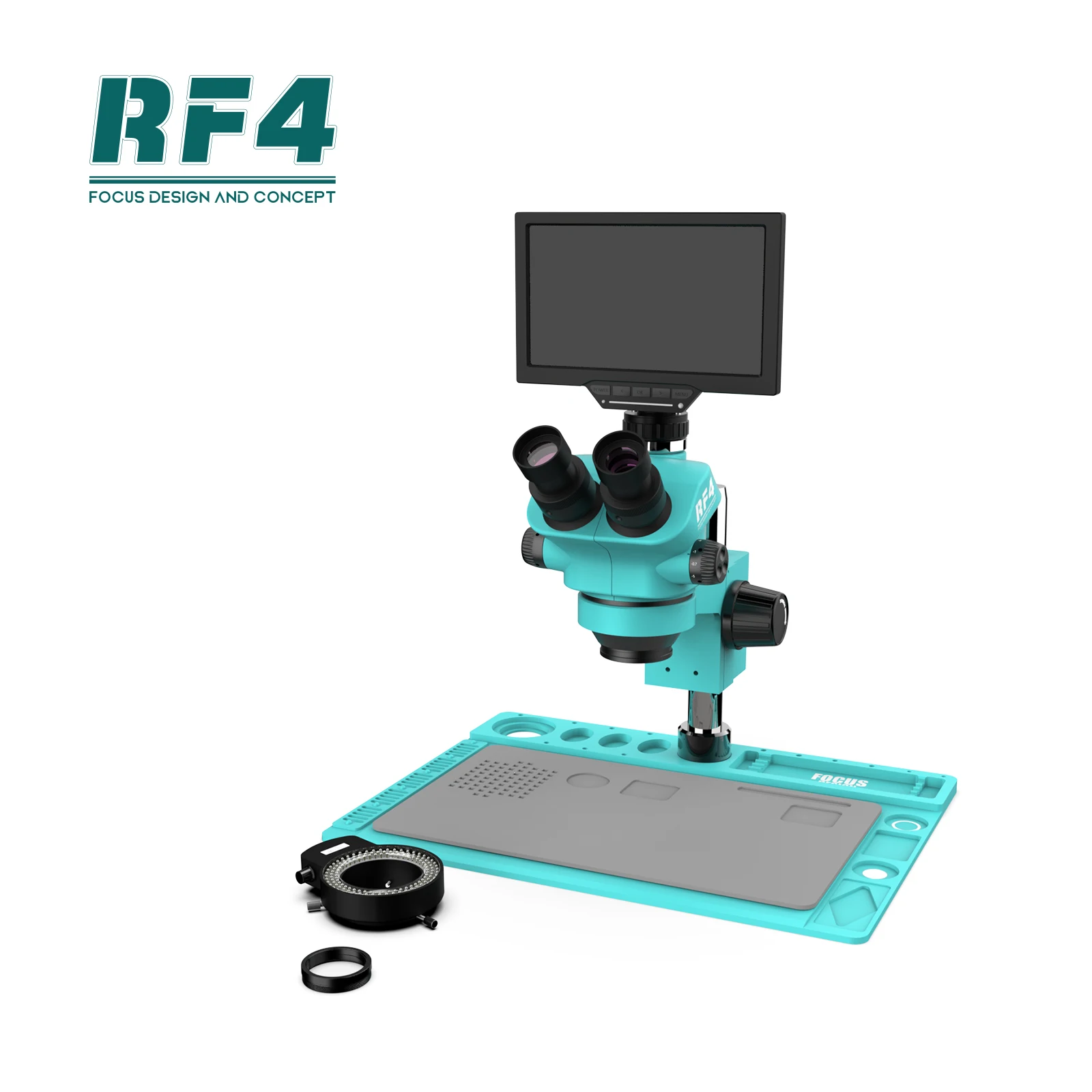

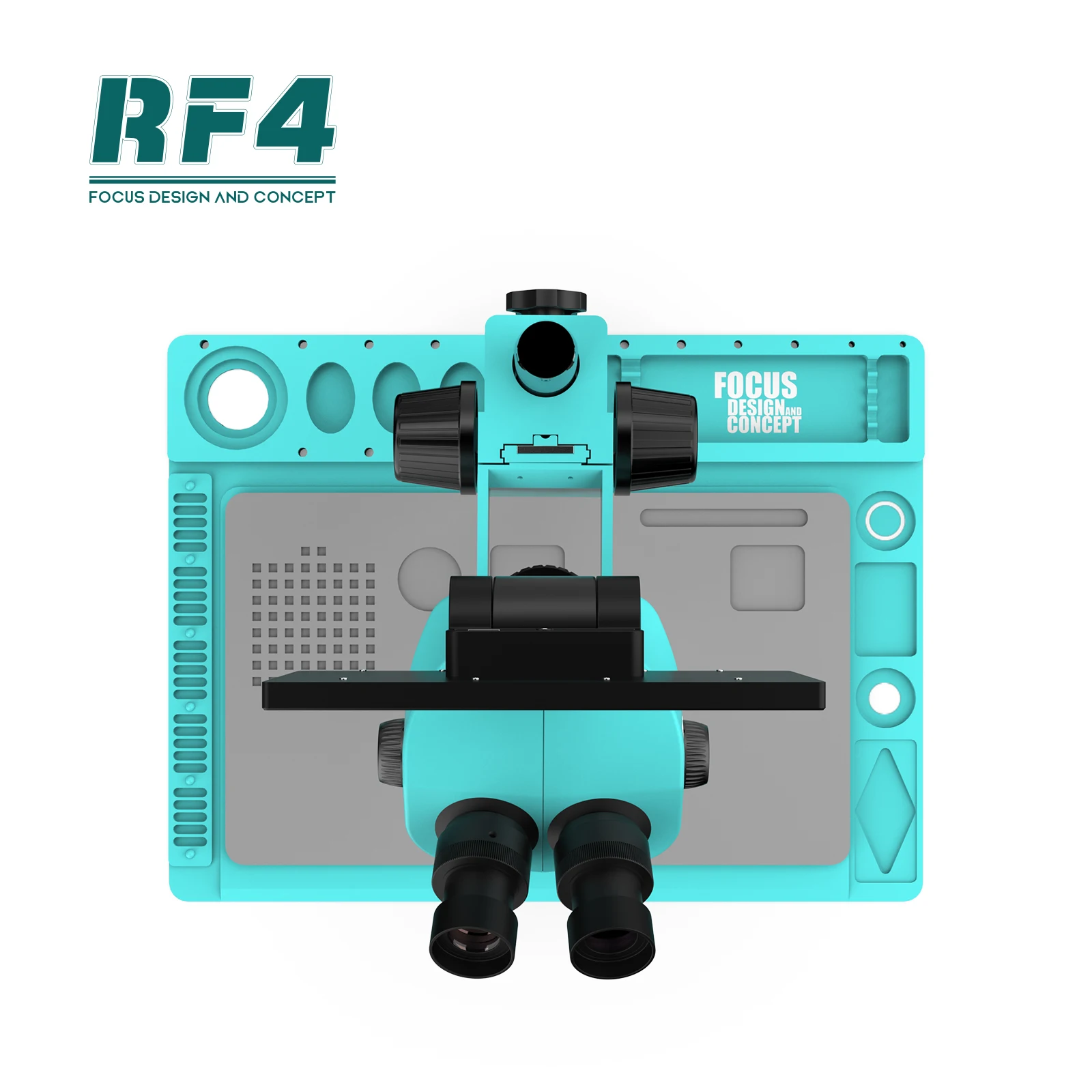

Boom Stand: 280mm φ32mm pillar, 300mm*400mm repair big base with silicone pad
Accessories: 144 adjustable led light & dust proof Lens
Head: 45-degree inclined 360-degree swiveling trinocular
Eyepiece: WF10X/22MM
Barlow Lens: 0.5X & 0.7&2.0X(optional)
Objective: 0.7-5.0X
Camera connector：1/2ctv
Monitor and eyepiece. Synchronous zoom
Camera:Different models optional
Boom Stand: 280mm φ32mm pillar, 300mm*400mm repair big base with silicone pad
Accessories: 144 adjustable led light & dust proof Lens
Eyepiece | （Standard Configuration） | （Auxiliary Observation） | ||||||||
0.5X | 2X | |||||||||
Working Distance 100mm | Working Distance 165mm | Working Distance 30mm | ||||||||
Magnification | Field of View | Magnification | Field of View | Magnification | Field of View | |||||
10X/22 Standard Configuration | 7X-50X | 4.4-31.4mm | 3.5X-25X | 8.8-62.8mm | 14X-100X | 2.2-15.7mm | ||||
20X/10 | 14X-100X | 1.0-7.1mm | 7X-50X | 2.0-14.2mm | 28X-200X | 0.5-3.5mm | ||||
LED ring light | instructions |
Input | AC 100-240V , 50/60Hz |
Output | DC 12V , max 700mA |
Max output | 4.5W-6W |
Plug | EU/US |
LED | 144 LEDs |
Illumination | Over 30000-35000Lux |
Color Temperature | 6000-7000K |
Light color | White |
Inside diameter | 60mm |
Package | 144-LED Lamp Ring Power Adapter (Default EU Plug) |

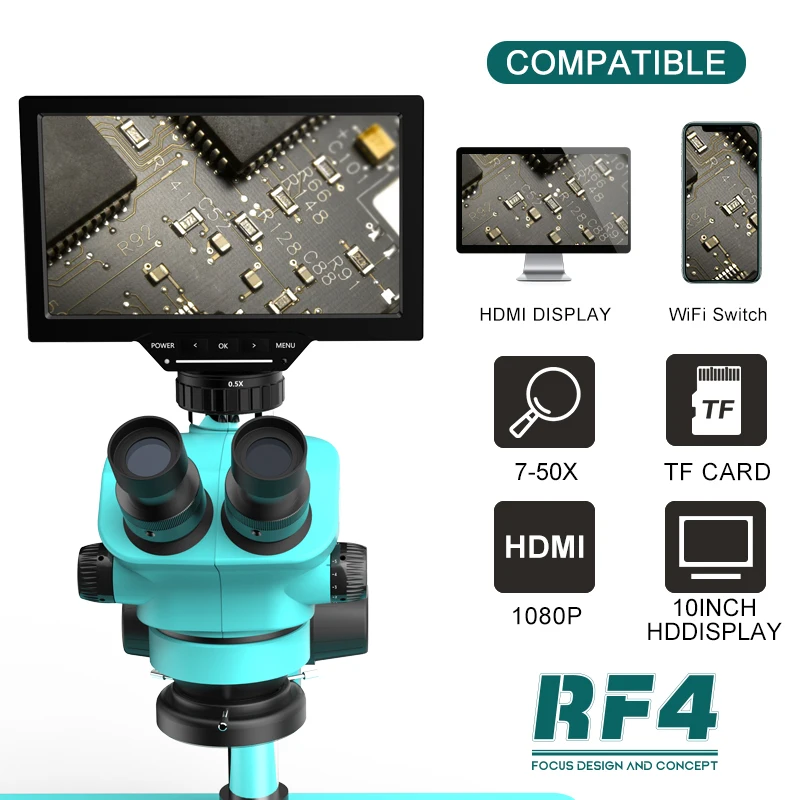

Screen size: 10 inches
Screen resolution: 1024x600
Image Sensor: 1/3 inch (BSI)
Pixel size: 2um x 2um
Photo Resolution: 2688x1512, 5376*3024 (Interpolation)
video resolution: 1080P30 (clear), 720P60 (smooth)
HDMI resolution: 720P60
USB resolution: 1080P20
WiFi output:720x360@30fps,support Android and iOS (optional)
Exposure control: AE lock, exposure compensation (adjustable at ten levels)
White Balance:Automatic, manual (R, G, B ten level adjustable), one key
Image control: Contrast, saturation, sharpness ten level adjustment
Compared with the screen: full screen, left and right, up and down, 1/4
grid: 8 groups, position, color, thickness adjustable
Measurement: point, line, circle, Angle (optional)
Language: English, Simplified Chinese,Traditional Chinese
Fill light: touch type stepless regulation
Mouse interface: USB-A, recommended to use the original mouse (optional)
Infrared remote control: maximum 5 meters
WiFi distance: up to 10 meters (optional)
HDMI interface: Type-A
USB interface: Type-C USB2.0
Extended storage: supports up to 32G TF card
Working distance: 1cm~5m
Body size: 175mm (L) x 129mm (W) x 51mm (H)
Body weight: 320g (including battery) / 270g (excluding battery)
Screen resolution: 1024x600
Image Sensor: 1/3 inch (BSI)
Pixel size: 2um x 2um
Photo Resolution: 2688x1512, 5376*3024 (Interpolation)
video resolution: 1080P30 (clear), 720P60 (smooth)
HDMI resolution: 720P60
USB resolution: 1080P20
WiFi output:720x360@30fps,support Android and iOS (optional)
Exposure control: AE lock, exposure compensation (adjustable at ten levels)
White Balance:Automatic, manual (R, G, B ten level adjustable), one key
Image control: Contrast, saturation, sharpness ten level adjustment
Compared with the screen: full screen, left and right, up and down, 1/4
grid: 8 groups, position, color, thickness adjustable
Measurement: point, line, circle, Angle (optional)
Language: English, Simplified Chinese,Traditional Chinese
Fill light: touch type stepless regulation
Mouse interface: USB-A, recommended to use the original mouse (optional)
Infrared remote control: maximum 5 meters
WiFi distance: up to 10 meters (optional)
HDMI interface: Type-A
USB interface: Type-C USB2.0
Extended storage: supports up to 32G TF card
Working distance: 1cm~5m
Body size: 175mm (L) x 129mm (W) x 51mm (H)
Body weight: 320g (including battery) / 270g (excluding battery)
Packing & Delivery
Packing Detail:carton within foam inside or wooden box;
Shipping: 2~3 day after confirm payment;
3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc;
We can arrange shipment by sea. Minium CBM requirement : 1 CBM.
Shipping: 2~3 day after confirm payment;
3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc;
We can arrange shipment by sea. Minium CBM requirement : 1 CBM.
