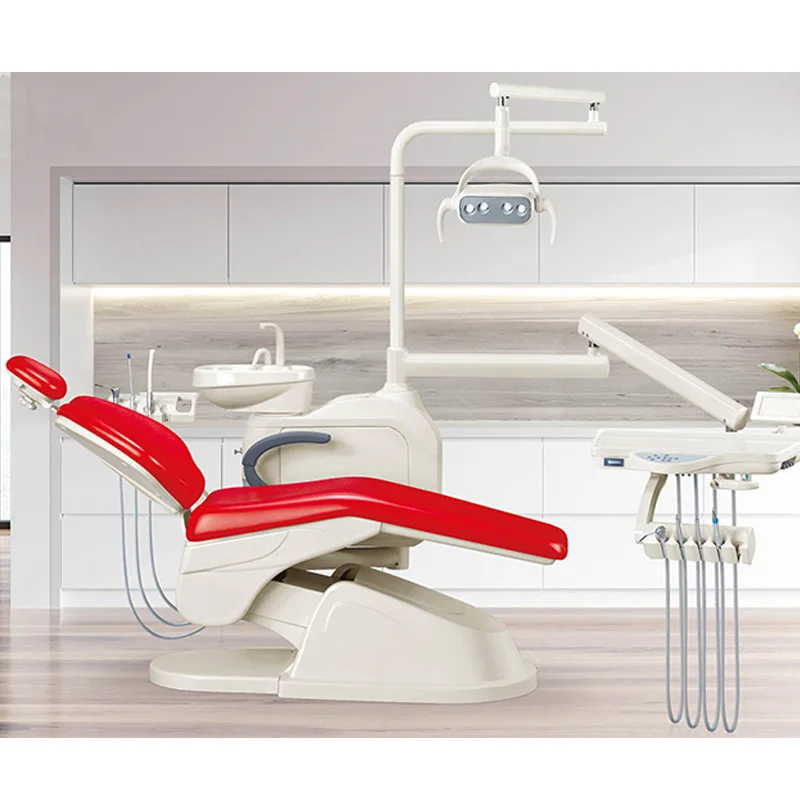

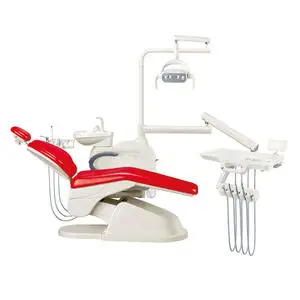

High Quality Integral Luxury motor chair control system Dental Chair Unit
- Category: >>>
- Supplier: Henan Siho-Health Medical Equipment Co. Ltd
Share on (1600388536239):
Product Overview
Description
Product Description
Technical parameters
1, Siho-GD200 dental unit
1.1, the minimum chair position is less than 430mm, and the maximum chair position is less than 720mm;
Chair load 135kg (without treatment machine);
Chair lifting speed is more than 15mms, and is very stable;
Cushion inclined angle is less than or equal to 10 degree;
Back 0 degrees to 70 degrees.

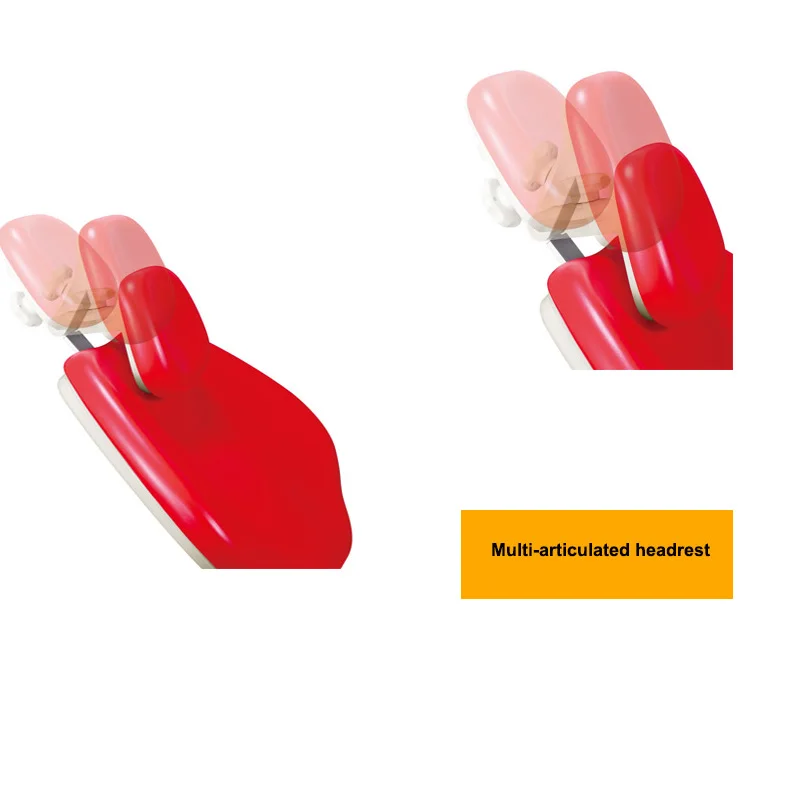

1.2, the headrest can be adjusted, head extension length of less than 120mm, head tilt angle of 20 degrees, tilt angle of 40
degrees
1.3, noise less than 45 decibels, the motor rotates with mute DC motor, ensure the safe use of the hospital.
1.4, the machine has a hand control and foot control four directions chair mode of operation, with the microcomputer control
system, a reset and PLC (programmable controller: according to user requirements and to control the circuit with programming logic
function).
1.5, the machine is handsome, and conforms to the principles of human function, European style modeling,.PU leather pad with
artificial leather, seamless compression molding; or choose super fiber environmental protection: soft, wear-resistant, bright
colors
1.6, the power supply voltage: a.c.100V110V220V230V-50HZ60HZ
Motor voltage: d.c24V
Source pressure: 0.2MPa ~ 0.4MPa
Air pressure: 0.5MPa ~ 0.8MPa
2, therapeutic machine
2.1, the whole computer control, plane operation switch panel, convenient for doctors to observe and operate, and also not easy to
cause wrong operation
2.1.1 chair position control: rise, fall, back, forward, reset function
2.1.2 shadowless lamp control: Shadowless lamp light intensity
2.1.3 water heater control: point action, open, close
2.1.4 mouthwash feed water control: inching operation, opening and closing, quantitative feed water setting function and automatic
feed water supply function
2.1.5: move the spittoon flushing control operation, and automatic timing closing function, closing time can be set.
2.1.6 low voltage watch lamp control: pull, operate, turn on, turn off

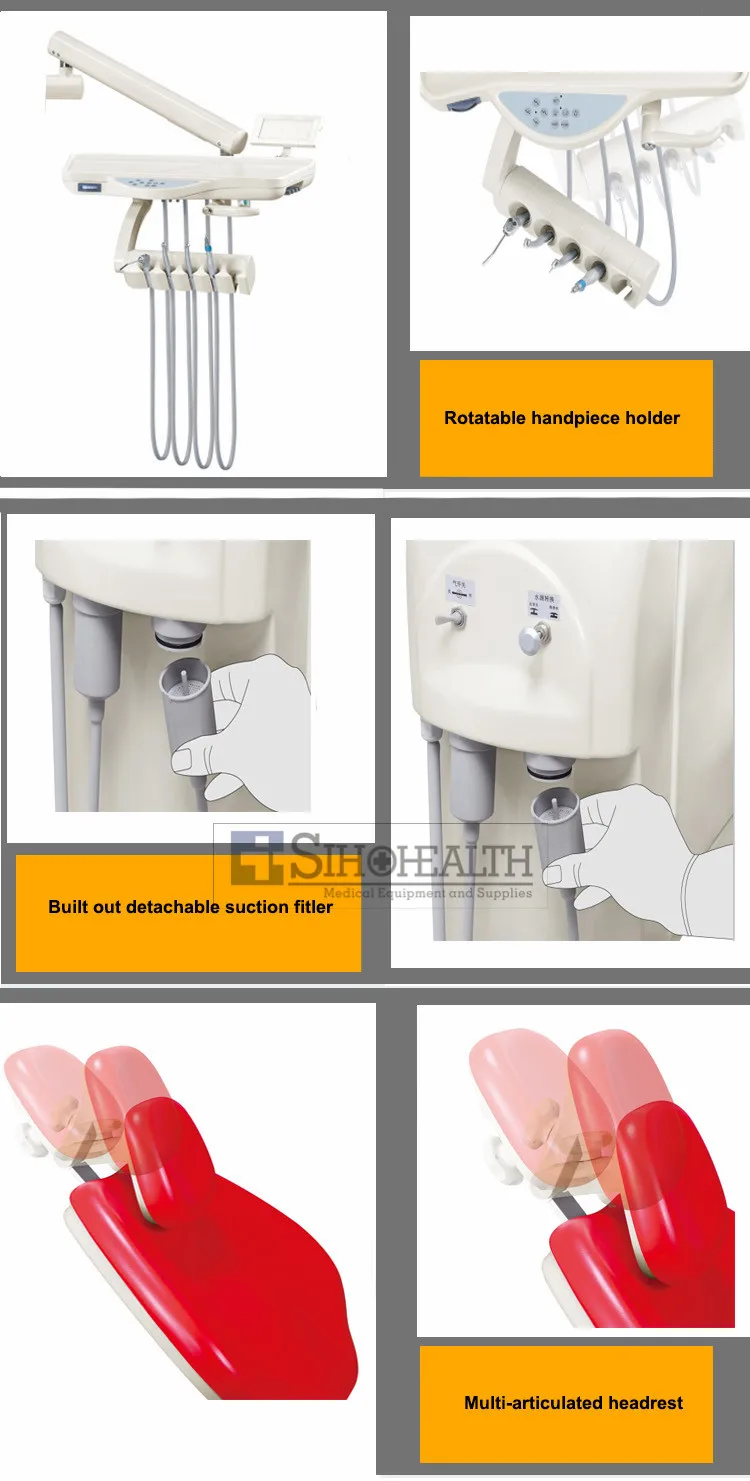

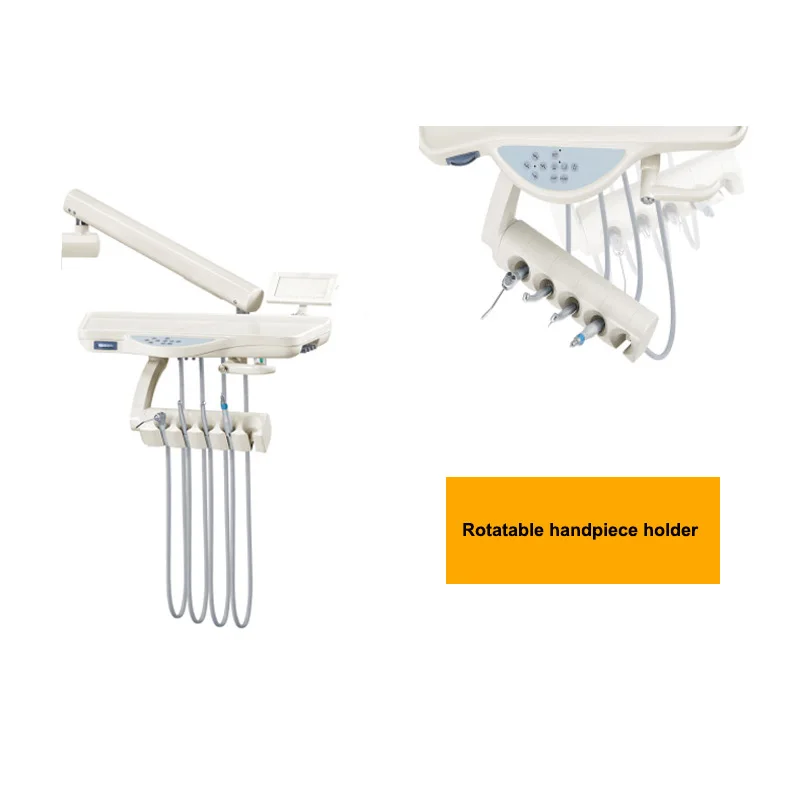

2.2, instrument tray
(two sets of four holes or two holes) standard high-speed handpiece tube
(a set of four holes or two holes) standard low speed handpiece tube
Configuration: two syringe . (the gun head and the shell can be separated quickly, high temperature sterilization).
Configuration easy cleaning instrument plate and a set of view lamp.
Water regulating valve is located in the instrument right, bring convenience for doctors working in the process.
2.3, the assistant side
2.3.1 a strong suction, a weak suction
2.3.2 saliva suction tube can easily remove cleaning and disinfection.
2.3.3 is equipped with a set of syringe. (spray gun and shell can be separated quickly and can be sterilized at high temperature)
2.3.4 provided by nurses the cupping, water supply, heating and position control.

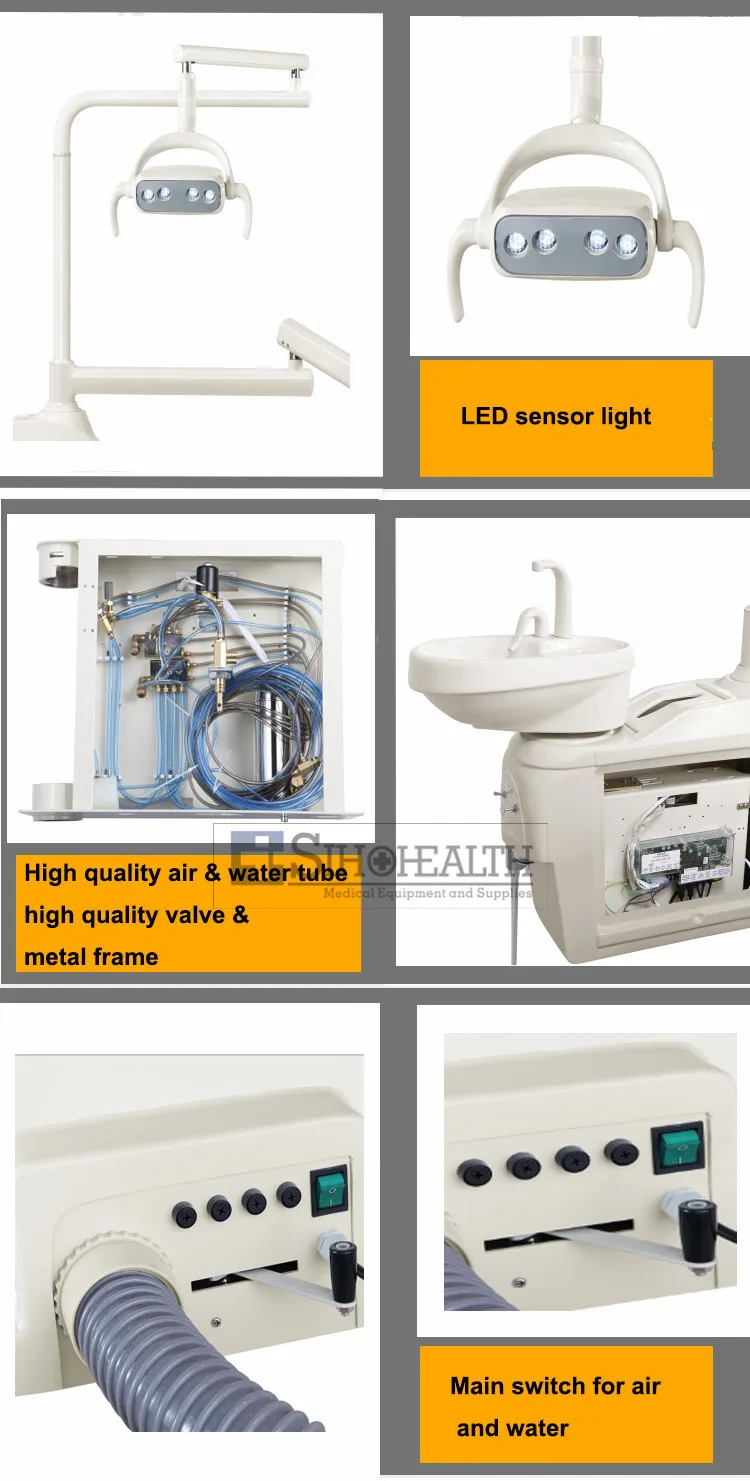

2.4, Halogne oral cold light
Oral cold light can infrared induction switch control stepless dimming switch
Debuggable stepless gear, low than 8000Lx, more than 20000Lx grade,

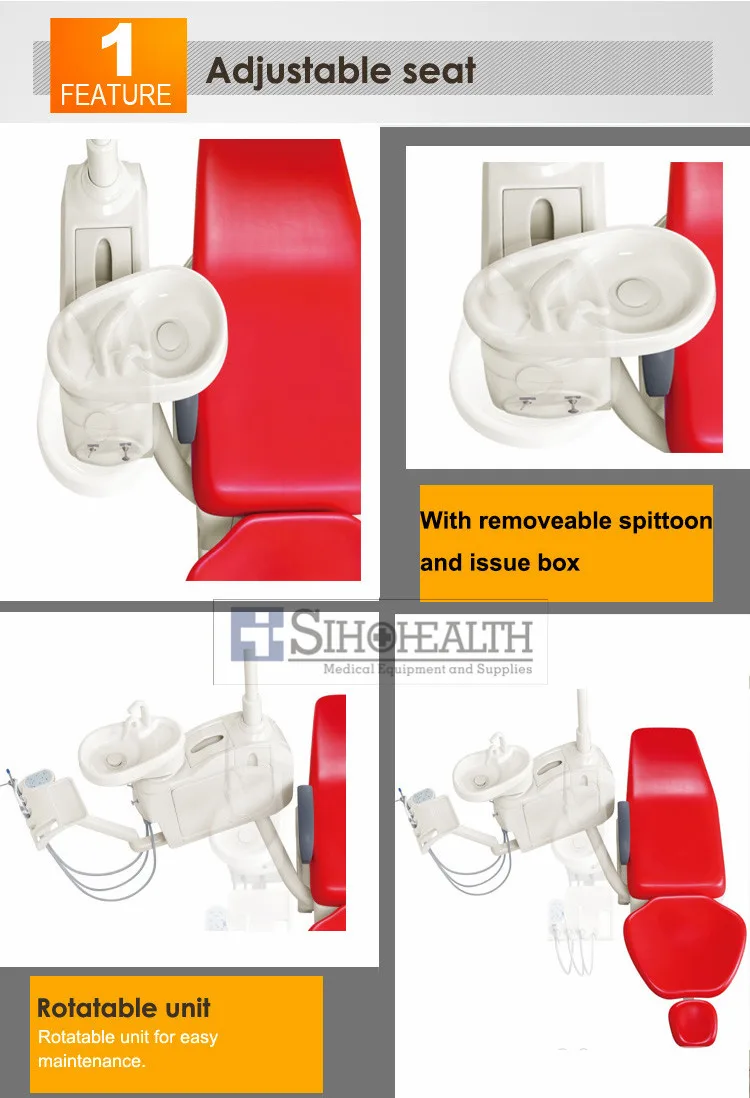

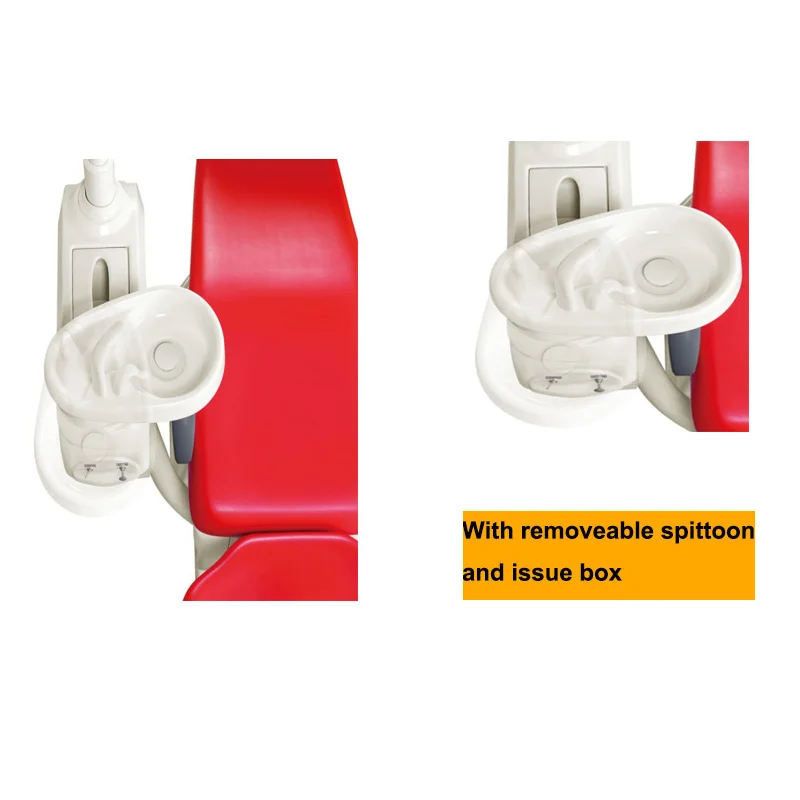

2.5, ceramic spittoon
2.5.1 easy to clean, easy to disinfect, removable
The water velocity is greater than or equal to 4.5L min. 2.5.2 spittoon
2.6 configuration debugging a doctor chair, height adjustable, flexible movement.
2.6.1 chair lift range 130mm.
2.6.2 doctor chair maximum load is 135kg.
2.6.3 with lumbar adjustment, to slightly long time work
1, Siho-GD200 dental unit
1.1, the minimum chair position is less than 430mm, and the maximum chair position is less than 720mm;
Chair load 135kg (without treatment machine);
Chair lifting speed is more than 15mms, and is very stable;
Cushion inclined angle is less than or equal to 10 degree;
Back 0 degrees to 70 degrees.
1.2, the headrest can be adjusted, head extension length of less than 120mm, head tilt angle of 20 degrees, tilt angle of 40
degrees
1.3, noise less than 45 decibels, the motor rotates with mute DC motor, ensure the safe use of the hospital.
1.4, the machine has a hand control and foot control four directions chair mode of operation, with the microcomputer control
system, a reset and PLC (programmable controller: according to user requirements and to control the circuit with programming logic
function).
1.5, the machine is handsome, and conforms to the principles of human function, European style modeling,.PU leather pad with
artificial leather, seamless compression molding; or choose super fiber environmental protection: soft, wear-resistant, bright
colors
1.6, the power supply voltage: a.c.100V110V220V230V-50HZ60HZ
Motor voltage: d.c24V
Source pressure: 0.2MPa ~ 0.4MPa
Air pressure: 0.5MPa ~ 0.8MPa
2, therapeutic machine
2.1, the whole computer control, plane operation switch panel, convenient for doctors to observe and operate, and also not easy to
cause wrong operation
2.1.1 chair position control: rise, fall, back, forward, reset function
2.1.2 shadowless lamp control: Shadowless lamp light intensity
2.1.3 water heater control: point action, open, close
2.1.4 mouthwash feed water control: inching operation, opening and closing, quantitative feed water setting function and automatic
feed water supply function
2.1.5: move the spittoon flushing control operation, and automatic timing closing function, closing time can be set.
2.1.6 low voltage watch lamp control: pull, operate, turn on, turn off
2.2, instrument tray
(two sets of four holes or two holes) standard high-speed handpiece tube
(a set of four holes or two holes) standard low speed handpiece tube
Configuration: two syringe . (the gun head and the shell can be separated quickly, high temperature sterilization).
Configuration easy cleaning instrument plate and a set of view lamp.
Water regulating valve is located in the instrument right, bring convenience for doctors working in the process.
2.3, the assistant side
2.3.1 a strong suction, a weak suction
2.3.2 saliva suction tube can easily remove cleaning and disinfection.
2.3.3 is equipped with a set of syringe. (spray gun and shell can be separated quickly and can be sterilized at high temperature)
2.3.4 provided by nurses the cupping, water supply, heating and position control.
2.4, Halogne oral cold light
Oral cold light can infrared induction switch control stepless dimming switch
Debuggable stepless gear, low than 8000Lx, more than 20000Lx grade,
2.5, ceramic spittoon
2.5.1 easy to clean, easy to disinfect, removable
The water velocity is greater than or equal to 4.5L min. 2.5.2 spittoon
2.6 configuration debugging a doctor chair, height adjustable, flexible movement.
2.6.1 chair lift range 130mm.
2.6.2 doctor chair maximum load is 135kg.
2.6.3 with lumbar adjustment, to slightly long time work
Operation tray
Hanging type instrument tray | 1 Set |
2 Hole or 4 hole air tubing hose from Taiwan | 3 Set |
Build in 24V X-Ray viewer | 1 Set |
Three way syringe | 1 Set |
Main control panel | 1 Set |
Unit box
rotatable ceramic spitton | 1 Set |

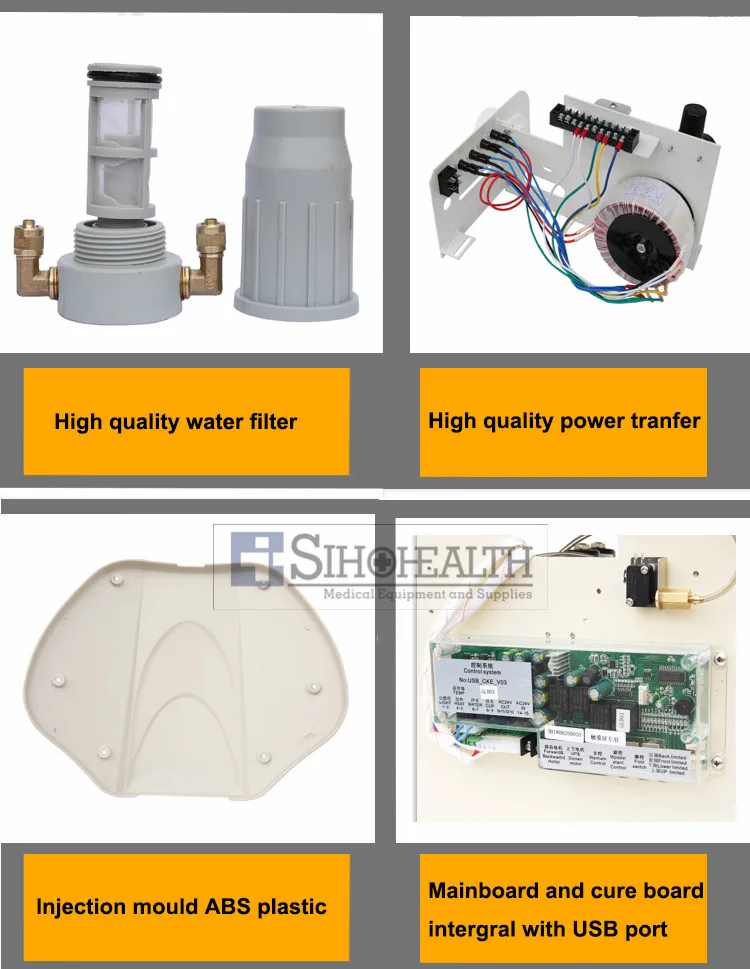

Suction filter | 1 Set |
Pure water system | 1 Set |
24V Water heater | 1 Set |
Assistant tray | |
Three way syringe | 1 Set |
High suction and saliva ejector system | 1 Set |
Assistant control panel | 1 Set |
Dental stool | 1 Set |
Options |

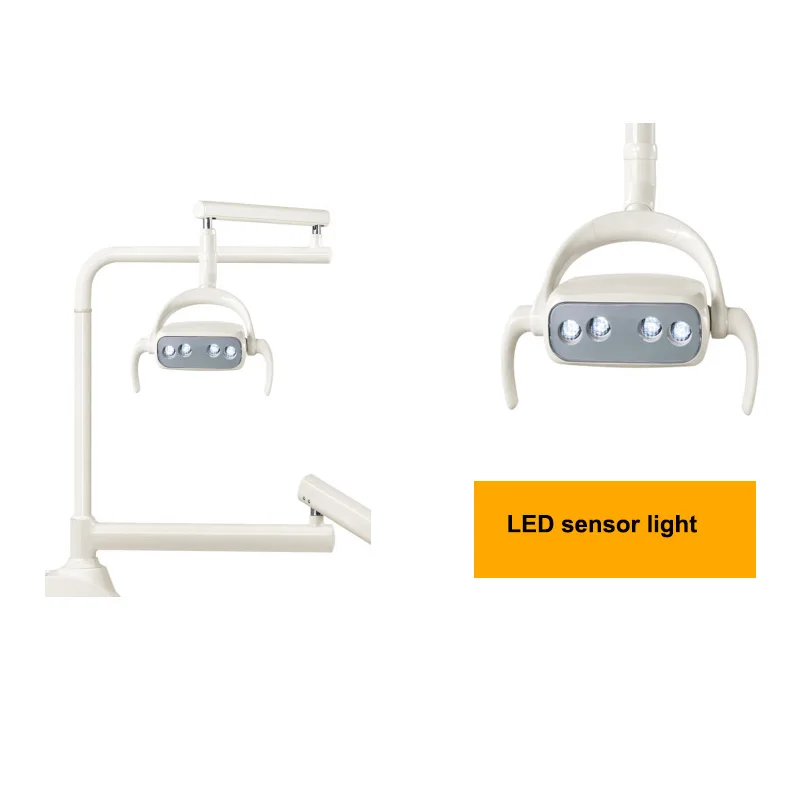

Dental operating light with sensor(or LED Operating light) |
Top-mounted instrument tray |
fiber handpiece tube with light system |
High speed handpiece |
Low speed handpiece |
Built in ultrasonic scaler |
Built in curing light |
Dental oral camera system |
leatal cushion |
suction unit |
oil free air compressor |
Customer Photos
Recommend Products
Packing & Delivery

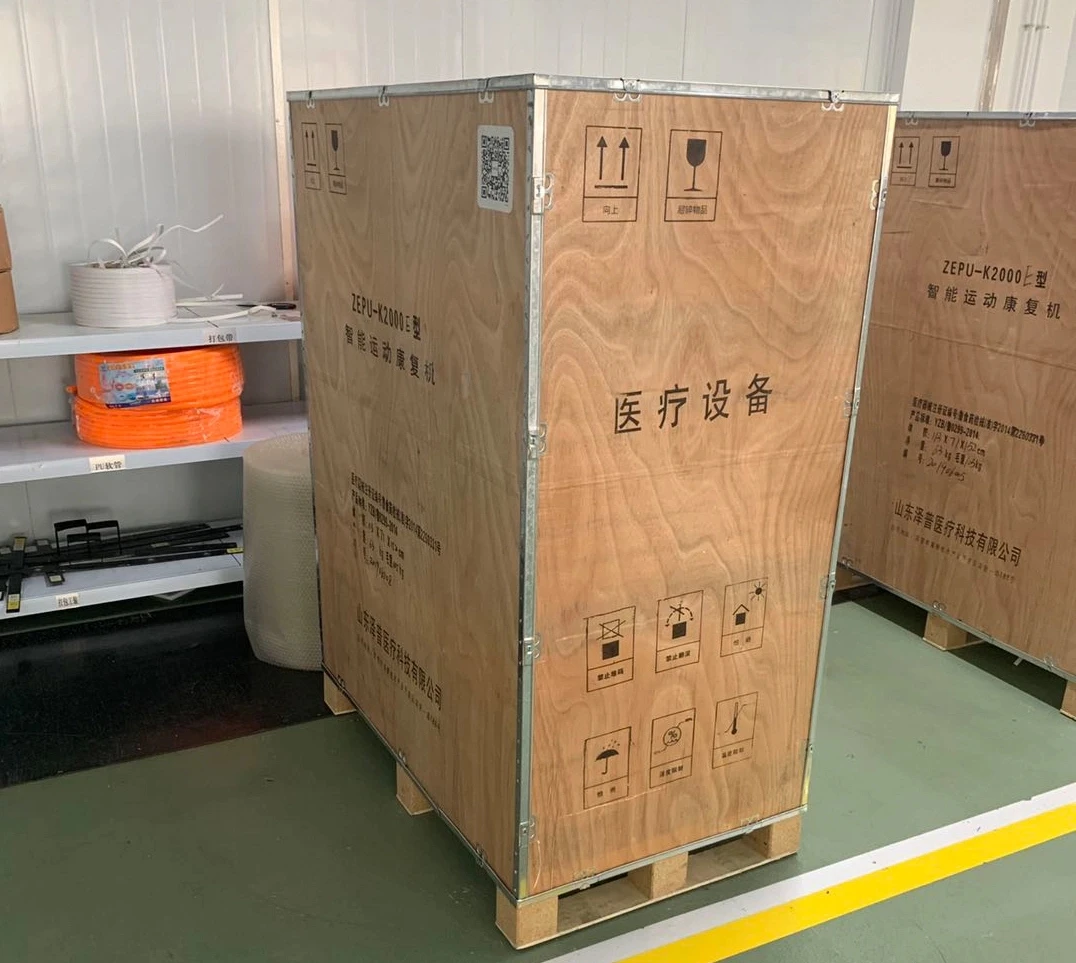

1. All of our equipment will be packed into cartons for small size and wooden cases for the big size.
2. We will pack the different items into one package for saving space if the order qty is more.
3. We will load the package in our factory for safety problem if the order qty is full container.
3. We will load the package in our factory for safety problem if the order qty is full container.

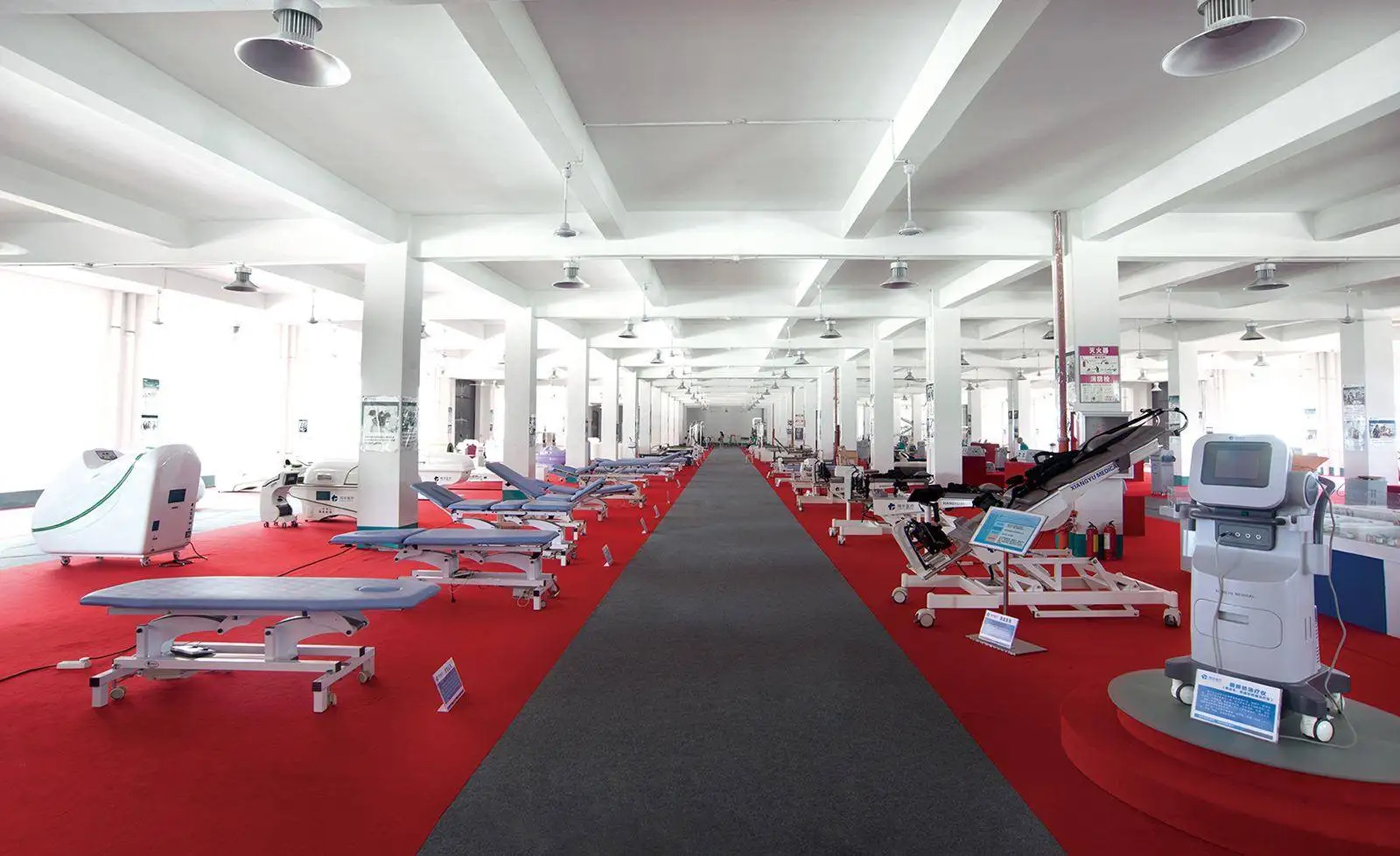

Company Profile
