3296W B103 10K Variable resistance
- Category: >>>
- Supplier: Sichuan Qixing Electronics Co. Ltd.
Share on (1600388726352):
Product Overview
Description
Product Description

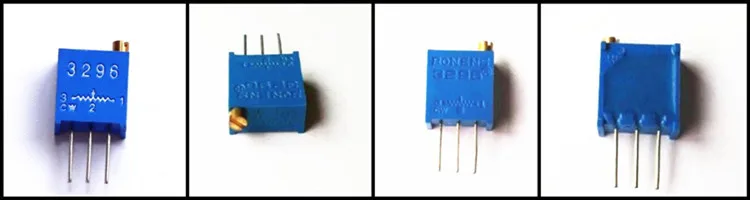

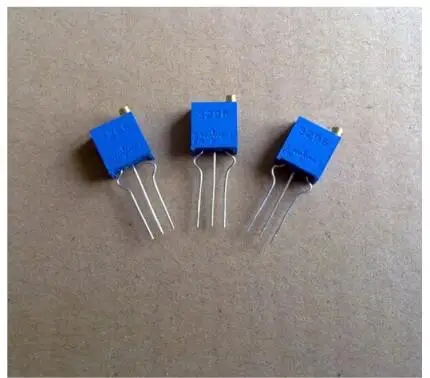

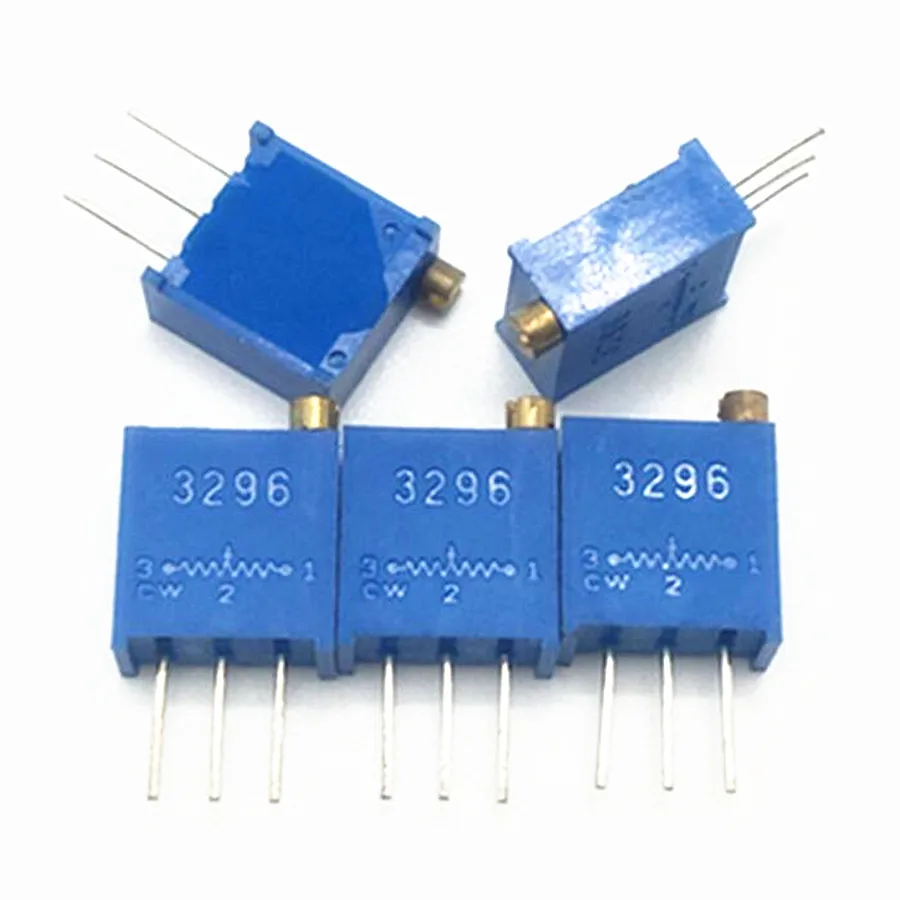

3296W B103 10K Variable resistance Picture

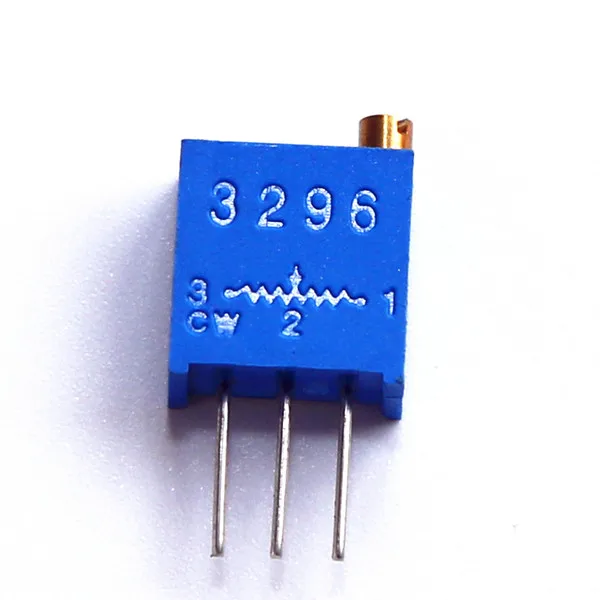

3296W Linear top adjust 50k potentiometer Blue type

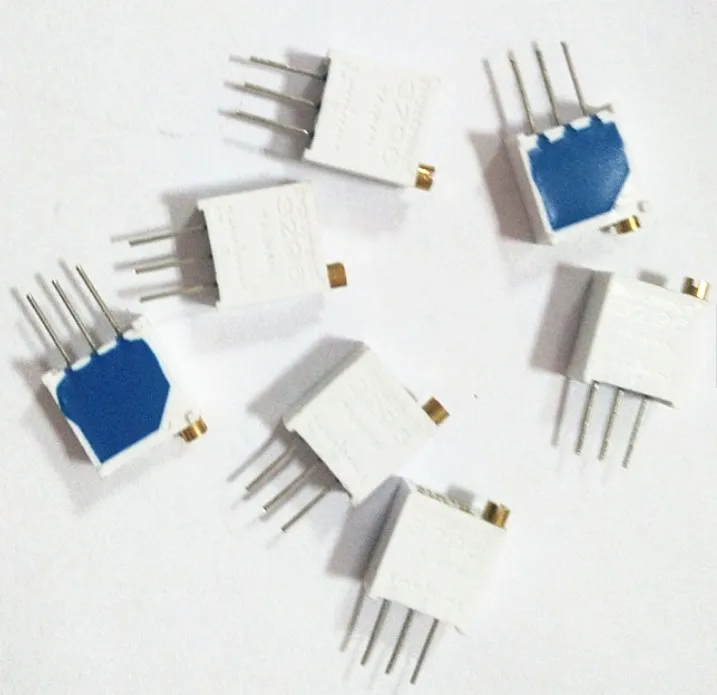

3296W B103 10K Variable resistance white type

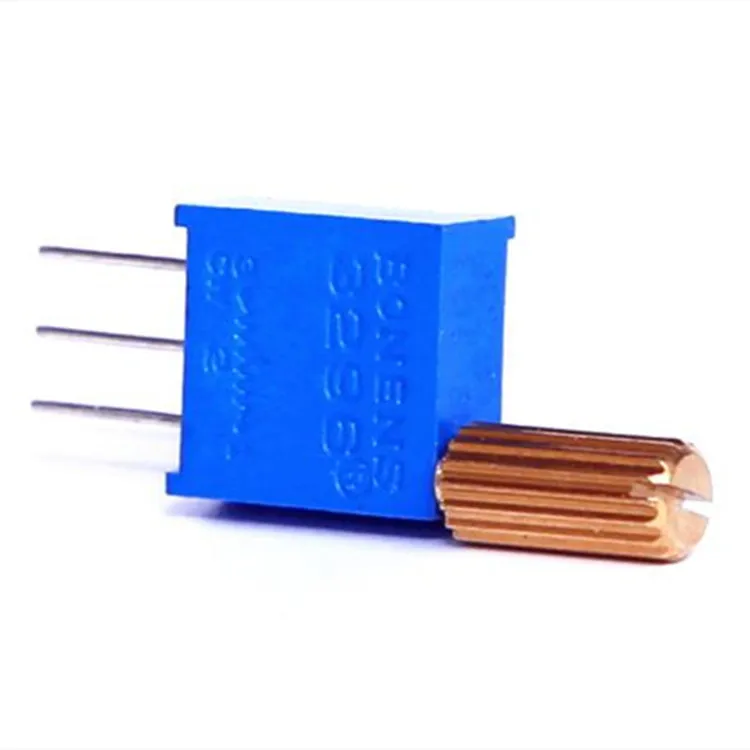

3296W B103 10K Variable resistance with knob type
Products drawing

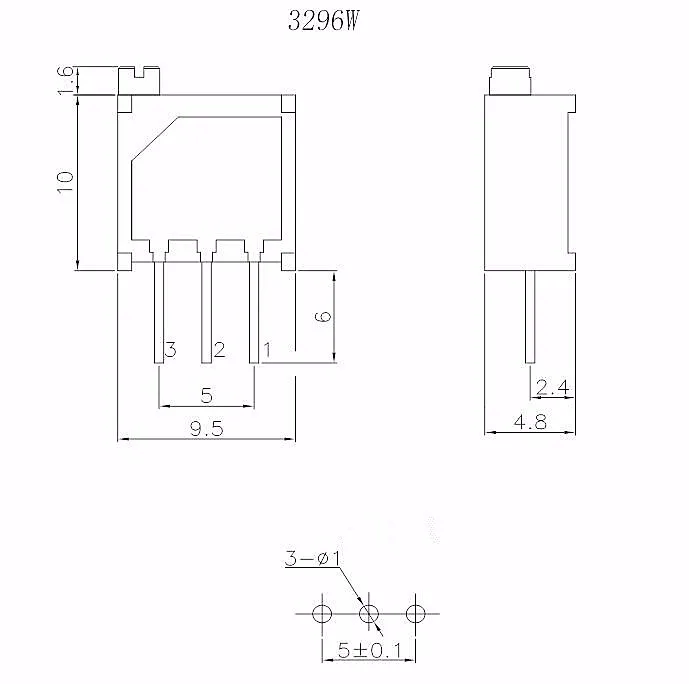

3296W B103 10K Variable resistance drawing
Specification
3296W B103 10K Variable resistance Parameters:
Electrical Characteristics | Range of nominal resistance | 10Ω~5MΩ | ||||||||||
Resistance tolerance | ±10% | |||||||||||
Terminal resistance | ≤±1%R or 2Ω | |||||||||||
Contact resistance variation (CRV) | ≤±1%R or 3Ω | |||||||||||
Insulation resistance | ≥ 1GΩ (100V AC) | |||||||||||
Withstand voltage | 640V (DC or AC peak value) | |||||||||||
Effective electrical travel | ≥70% of mechanical travel | |||||||||||
Environment Characteristics | Rated power | 0.5W ( 300V max) | ||||||||||
Temperature range | -55°C~+125°C | |||||||||||
TCR | ±250×10-6/°C | |||||||||||
Collision (390m/S2, 4000 times) | ΔR≤±1%R | |||||||||||
Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS | |||||||||||
Temperature variation (-55°C/30min, +125°C/30min, 5 cycles) | ΔR≤±2%R, ΔUab/Uac≤±2%R | |||||||||||
Climate category (IEC68-2-2) | ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ | |||||||||||
Electrical endurance (0.5W, 1000h) | ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω | |||||||||||
Mechanical endurance (200 cycles) | ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω | |||||||||||
Steady damp heat (IEC68-2-3, Ca, 96h) | ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ | |||||||||||
Physical Characteristics | Total mechanical travel | 28±2 lap | ||||||||||
Starting torque | ≤25mN.m | |||||||||||
50 pcs /tube(3296W,3296Y) | ||||||||||||
40 pcs /tube(3296X,3296Z,3296P) | ||||||||||||

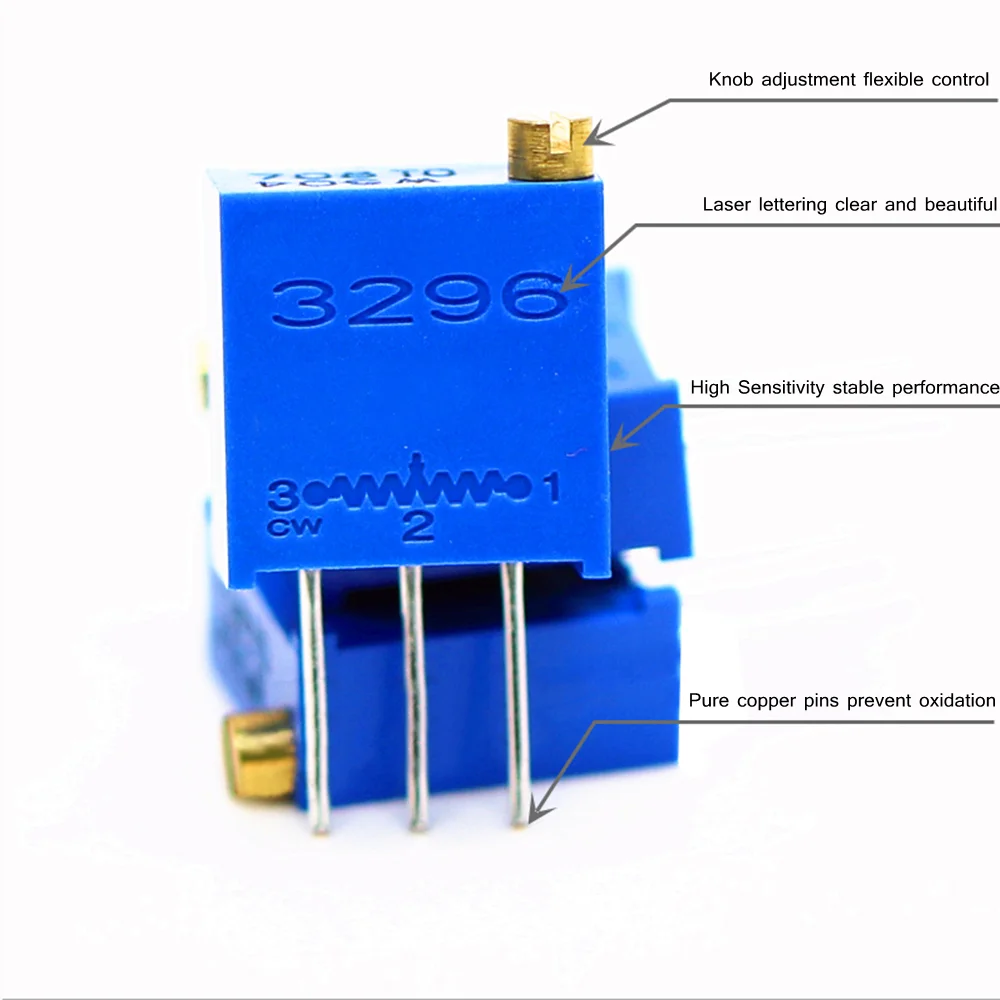

Features
Our other popular items

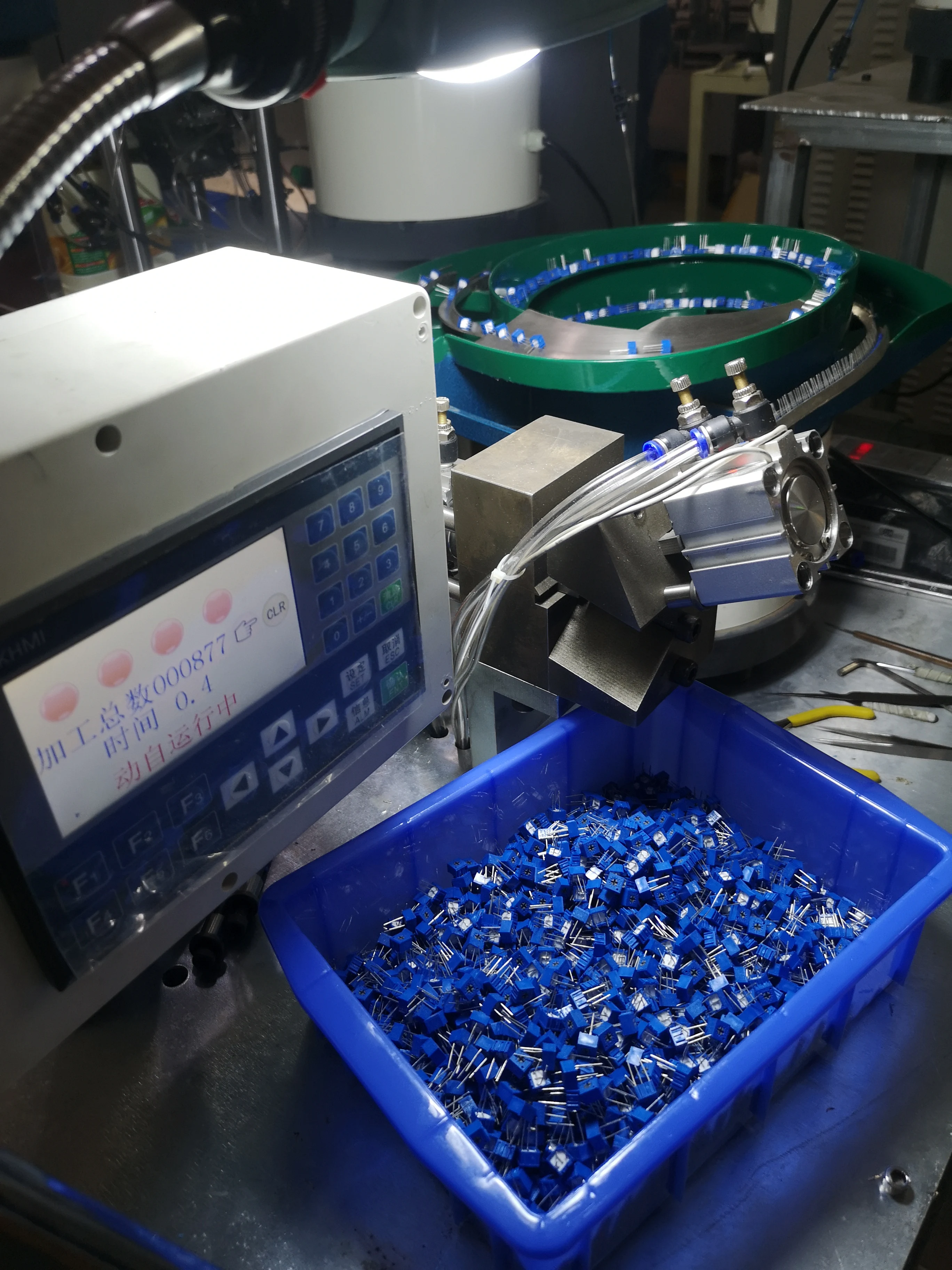

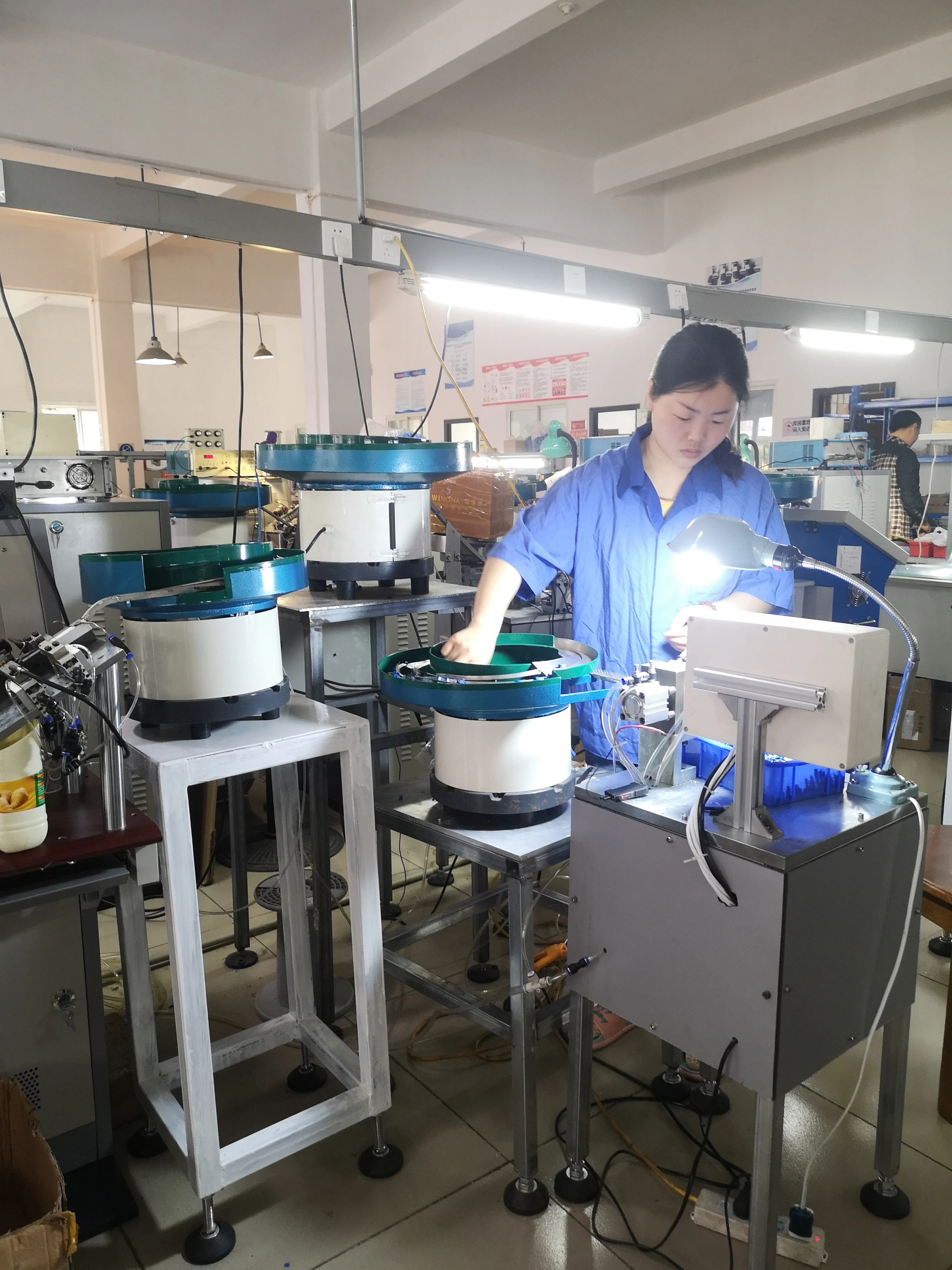

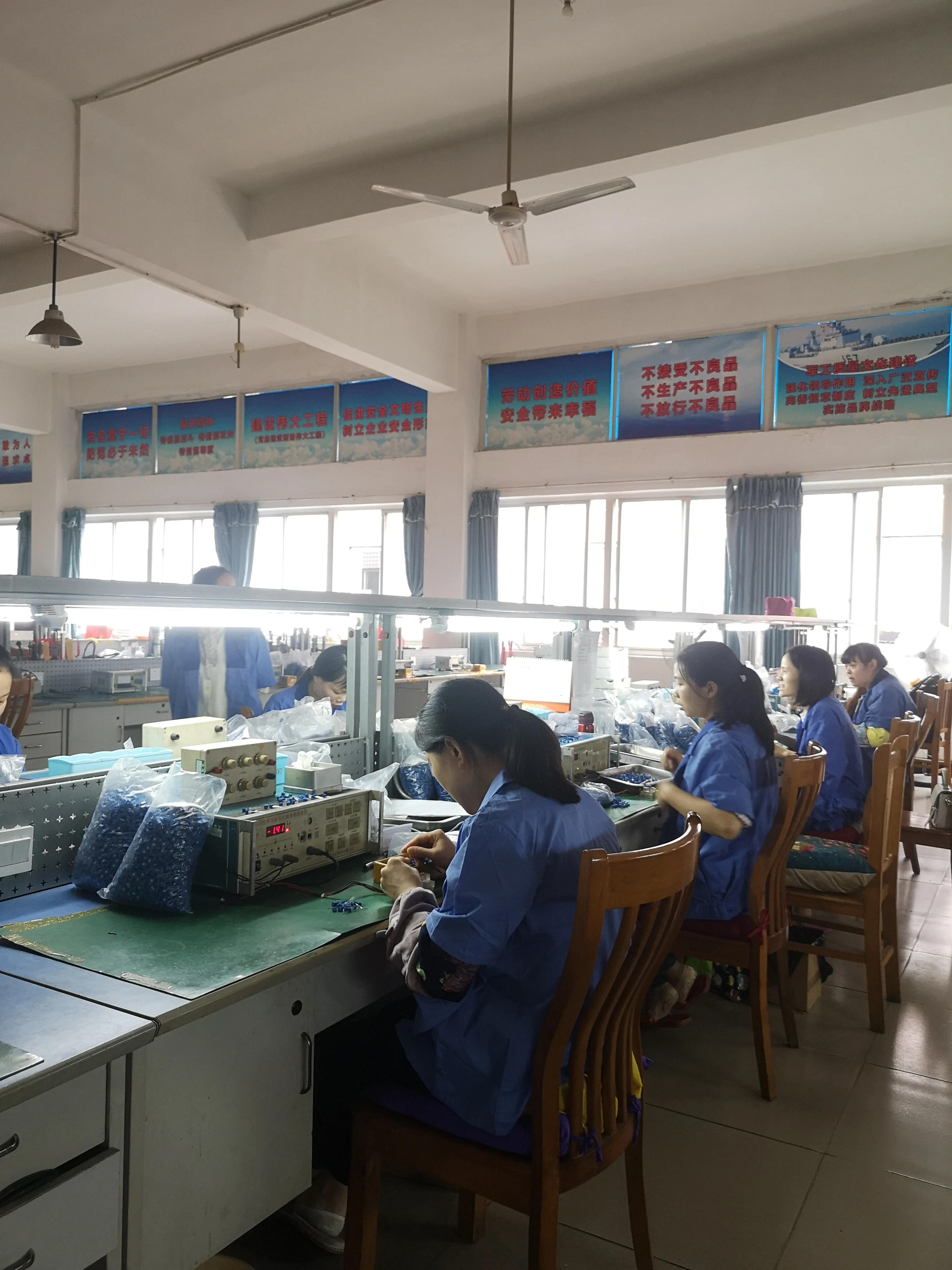

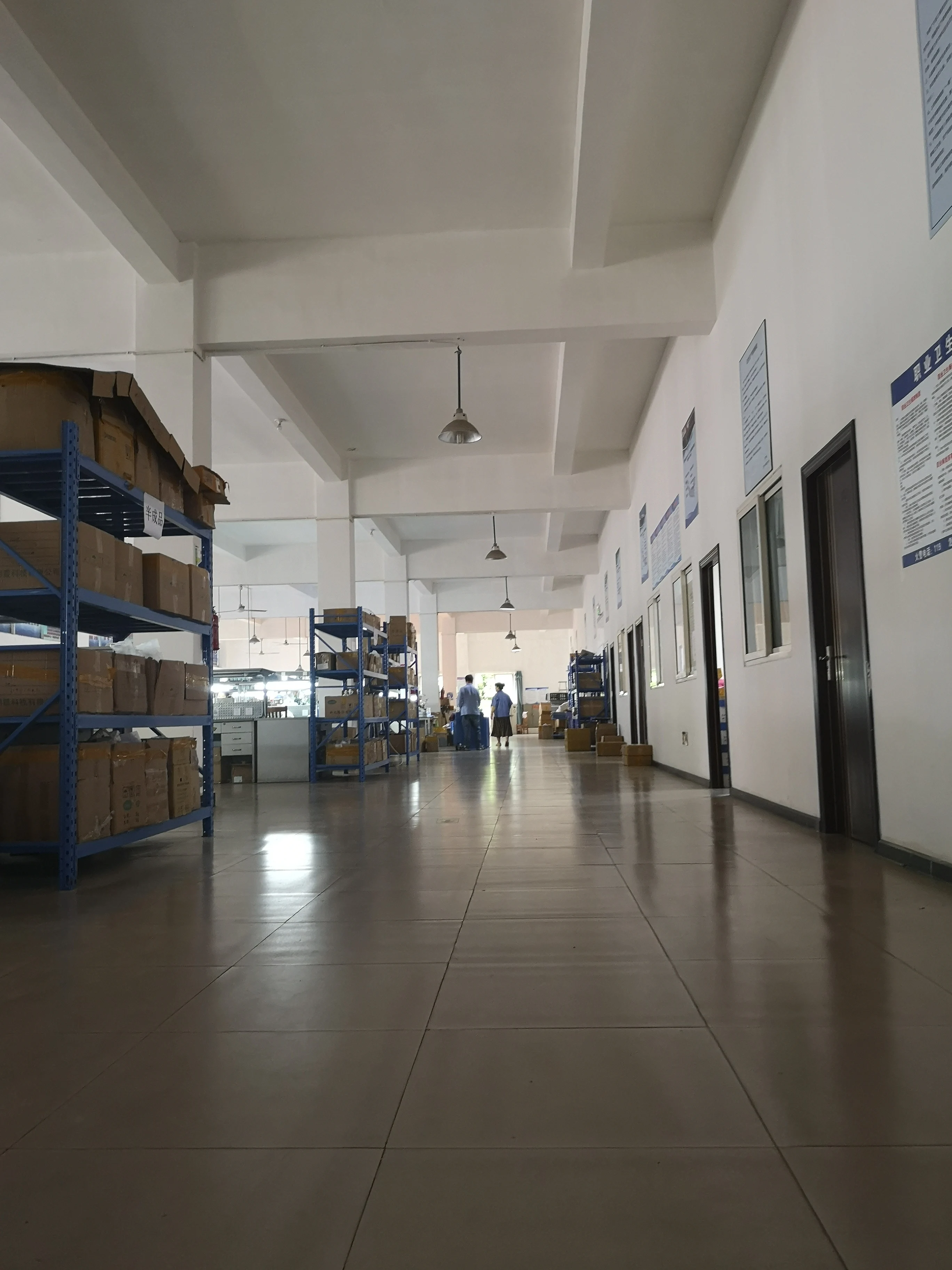

OUR FACTORY
