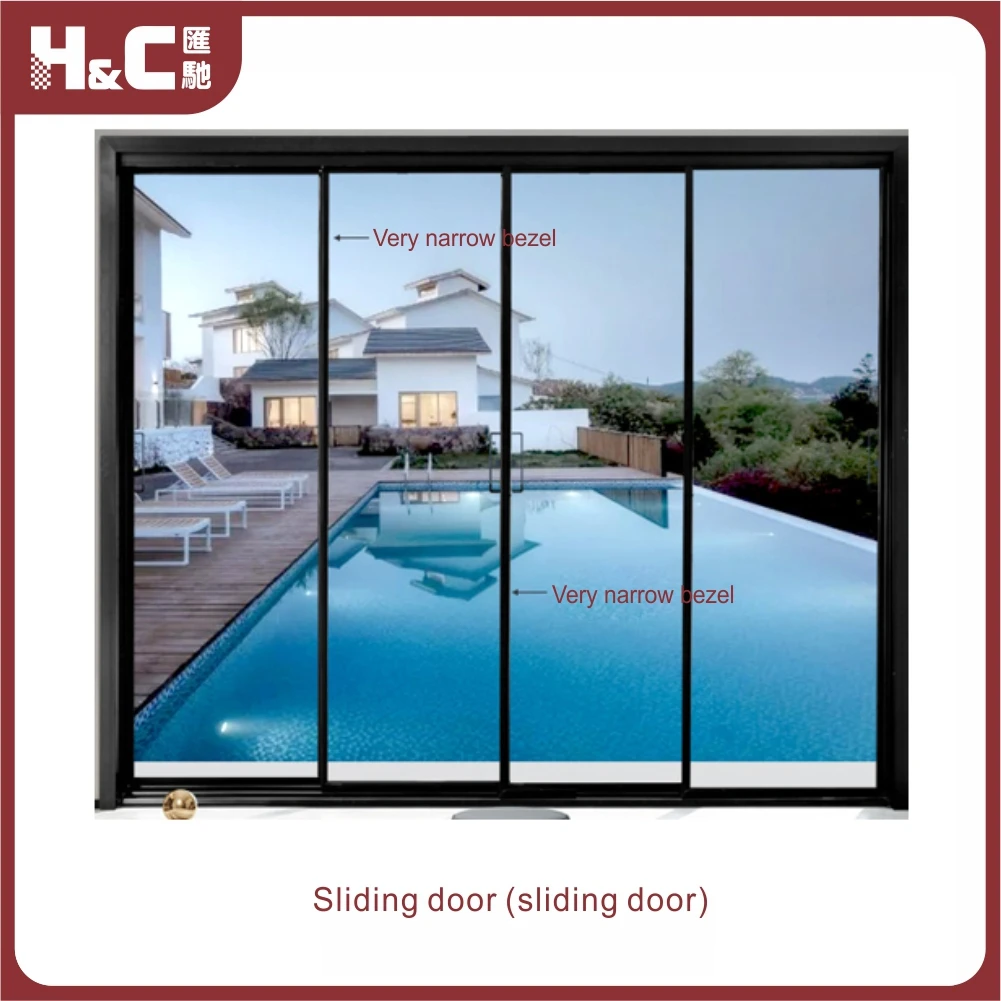

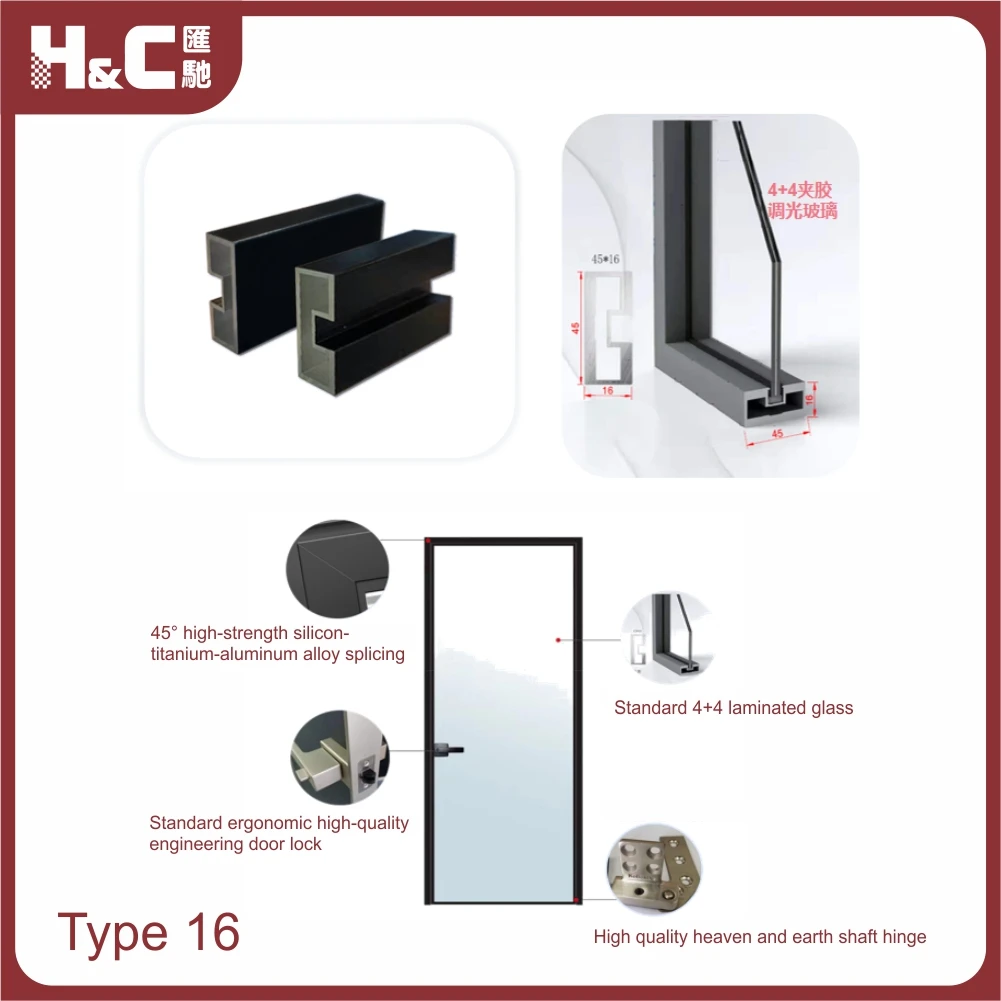

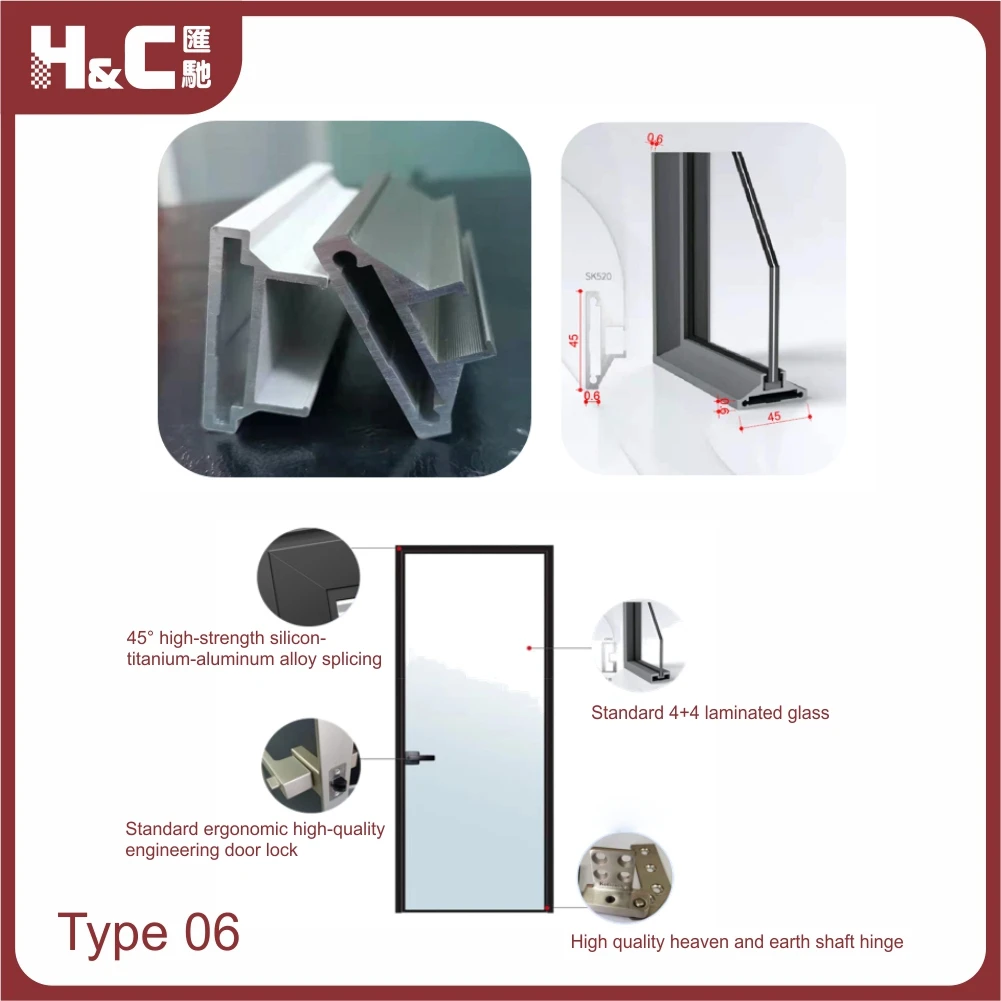

Glass aluminum alloy partition magnetic automatic sliding door smart glass door
- Category: Building & Industrial Glass >>>
- Supplier: Guangzhou Huichi Industrial Development Co. Ltd.
Share on (1600388779063):
Product Overview
Description

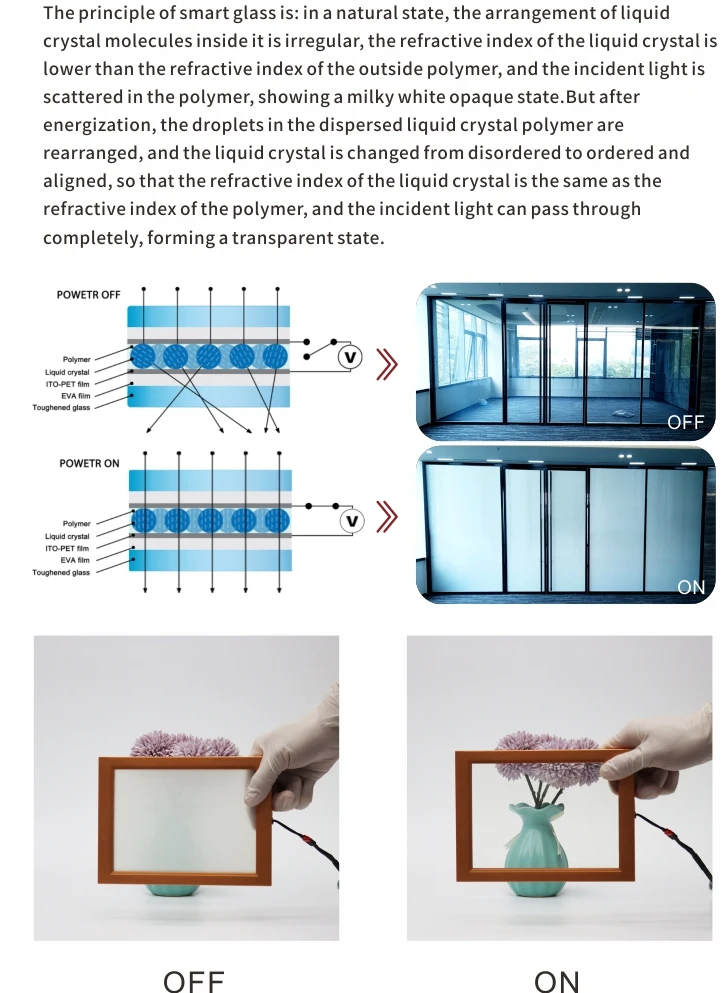

The principle of smart glass is

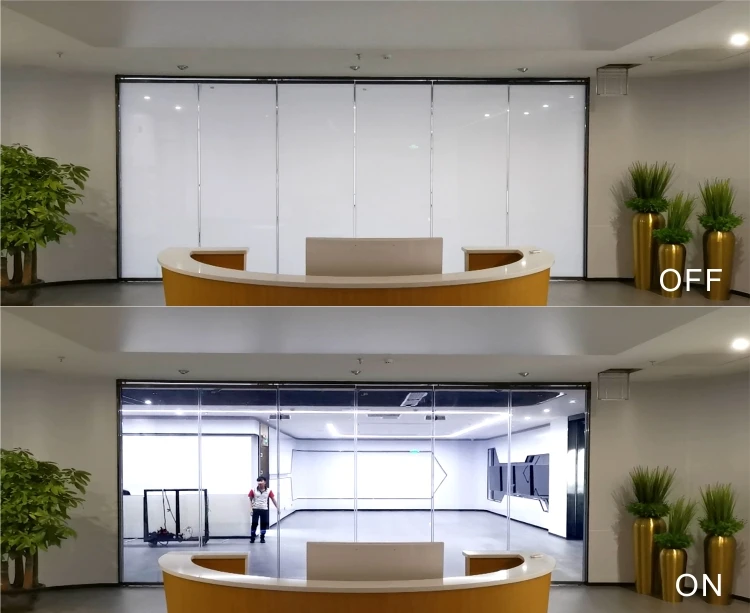

in a natural state, the arrangement of liquid crystal molecules inside it is irregular, the refractive index of the liquid crystal is lower than the refractive index of the outside polymer, and the incident light is scattered in the polymer, showing a milky white opaque state.But after energization, the droplets in the dispersed liquid crystal polymer are rearranged, and the liquid crystal is changed from disordered to ordered and aligned, so that the refractive index of the liquid crystal is the same as the refractive index of the polymer, and the incident light can pass through completely, forming a transparent state.
Product Paramenters
SItem Description | Suoer Clear PDLC Glass(CT-125) | Super Clear PDLC Glass（CT2-188） | HD PDLC Smart Glass(GT-188) | HD PDLC Smart Glass (GT2-188) | ||||
Optical Test | Transmittance(Visable) | ON | 86% | 89% | 78% | 80% | ||
OFF | 58% | 65% | 58% | 60% | ||||
Transmittance(Parellel) | ON | >75% | ＞75% | ＞75% | ＞75% | |||
OFF | <6% | ＜6% | ＜6% | ＜6% | ||||
Infrared barrier coefficient | ON | 14.5% | 15.6% | 14.5% | 15.6% | |||
OFF | 60% | 59.5% | 36% | 59.5% | ||||
Visual angle | ON | 140° | 145° | 140° | 145° | |||
Haze | ON | <5% | ＜3.4% | <5% | ＜3.7% | |||
OFF | >90% | ＞90% | >90% | >90% | ||||
UV barrier coefficient | ON | 92% | 92% | 92% | 92% | |||
OFF | 99.6% | 99.6% | 99.6% | 99.6% | ||||
Eletrical Test | Working Voltage | ON | AC 60V | AC 48-60V | AC 48-60V | AC 48-60V | ||
Saturation Voltage | ON | AC 60V | AC 60V | AC 60V | AC 60V | |||
Response Time | ON-OFF | 200ms | 200ms | 200ms | 200ms | |||
OFF-ON | 10ms | 10ms | 10ms | 10ms | ||||
Power Consumption | ON | 6w/sqm | 6w/sqm | 6w/sqm | 6w/sqm | |||
Mechanical Parameter | Thickness | 10-30mm | 10-30mm | 10-30mm | 10-30mm | |||
Maximum Size | 1100*3000mm | 1100*3000mm | 1900*3500mm | 1500*3500mm | ||||
Environmental Parameter | Working Temperature | -10°C - 65°C | -10°C - 65°C | -10°C - 65°C | -10°C - 65°C | |||
Storage Temperature | 0°C - 40°C | 0°C-35°C | 0°C-35°C | 0°C-35°C | ||||
Service Life | >50000 hours | >50000 hours | >50000 hours | >50000 hours | ||||
Switch Life | > 1000000 times | > 1000000 times | > 1000000 times | > 1000000 times | ||||

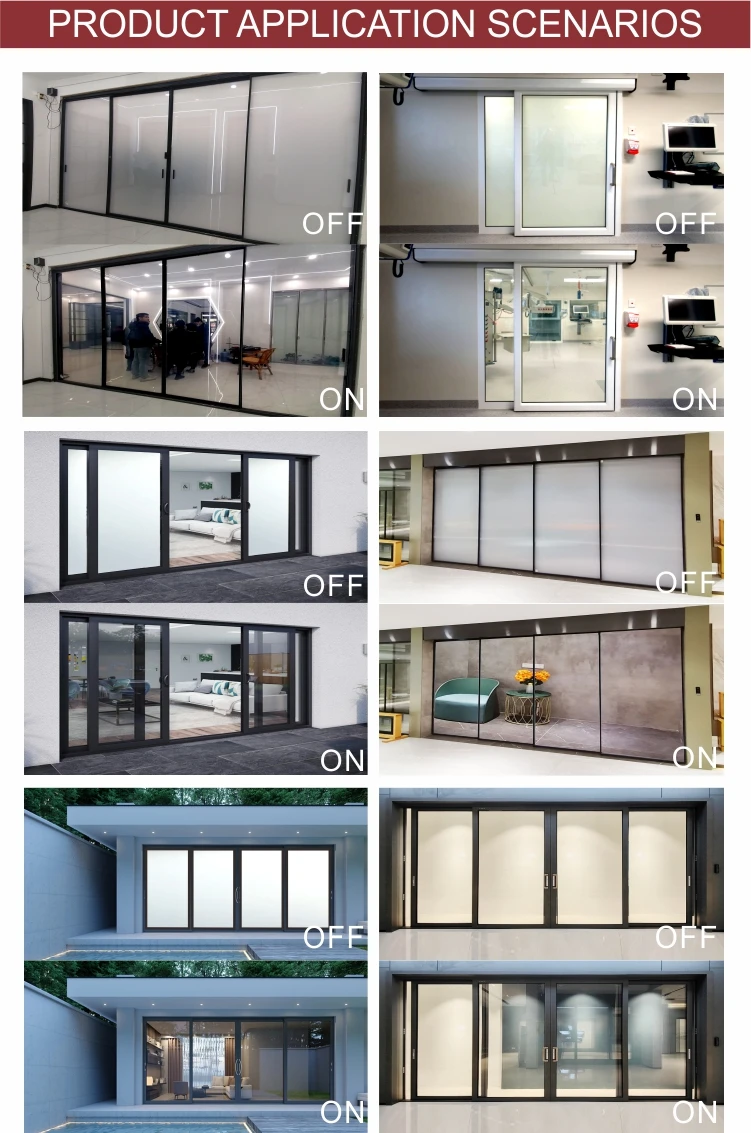

Product Application Scenarios

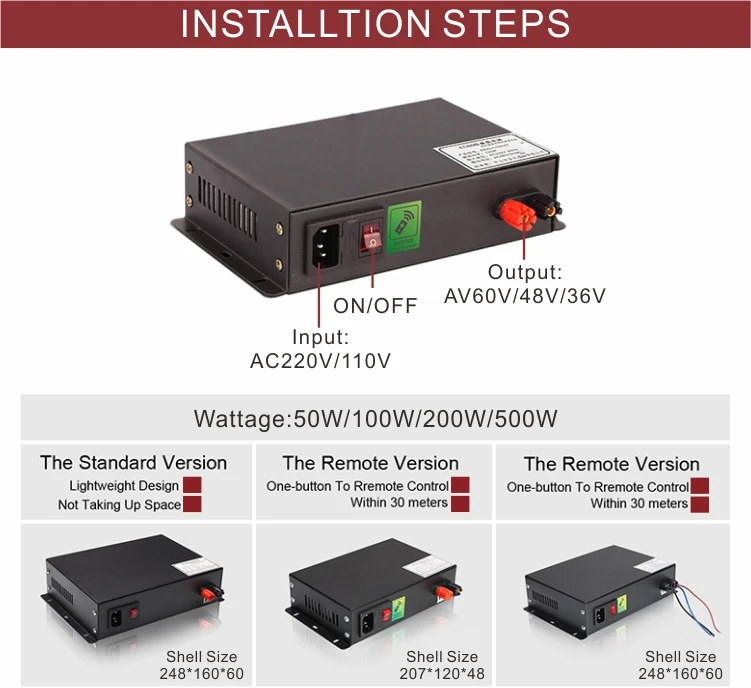

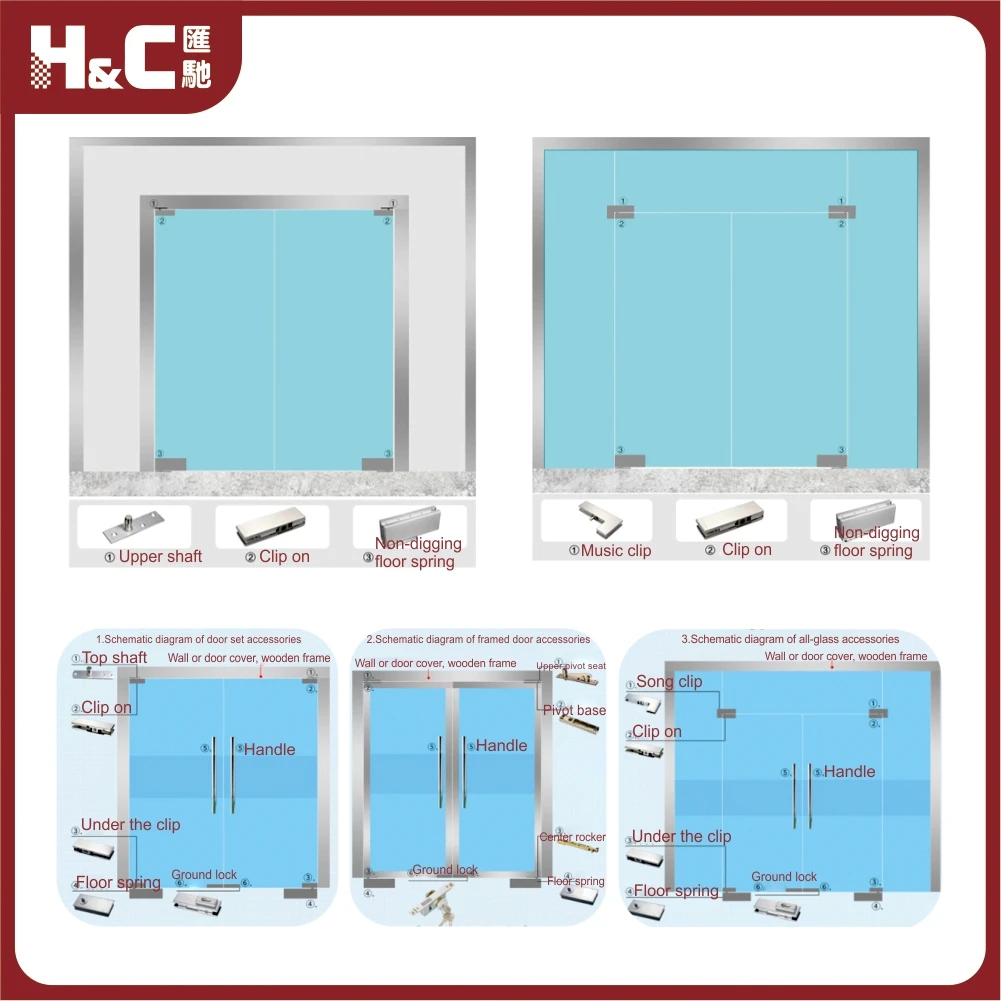

Installtion Steps

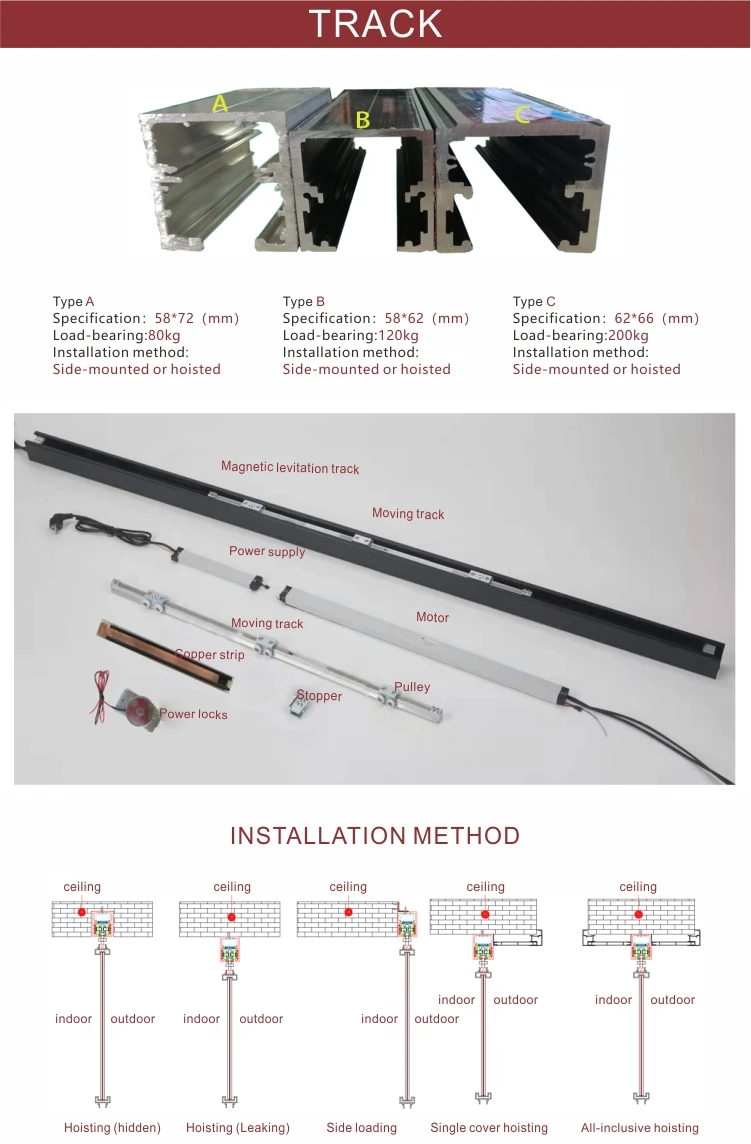

Track
