4 Station Automatic Pressure ABS Sheet Thermoforming Machine Bops Plastic Thermoforming Machine
- Category: >>>
- Supplier: ZHEJIANG SAYEAH MACHINERY CO. LTD
Share on (1600388908679):
Product Overview
Description
Products Description
Sheet Loading& Feeding Station
Driving by motor. Sheet roll Max diameter 1M. With dust-free plate to keep the sheet clean.
Touch Screen
Easy to operate, all-electric adjustments can be done on the touch screen.
Upper & Lower Mold Guides
Can move up and down to produce various convex and concave products to meet various production needs.All lower mold movable guides are driven by servo motors, which are energy-saving, efficient and accurate.
Punching Station
Quick front mold change, safe and simple die change, reducing machine downtime.
Stacking Station
Various materials can be used, such as PP, PS, PET, PVC, etc., as well as environmental friendly material PLA.
Automatic Waste Edge Winding Device
The machine is equipped with automatic waste edge winding device, which is reasonable in layout, solid and durable.
Model | FSCT-600/400-2 | FSCT-600/400-3 | FSCT-600/400-4 | ||
Quantity Of Stations | 2 | 3 | 4 | ||
Sheet Material | PP, PS, PVC, PET, HIPS, PLA, OPS, EPS, C-PET, C-PLA, ABS | ||||
Application | lid, container, egg tray, fruit box, cake box, box, plate, flower pot, etc | ||||
Max. Forming Area | 600 X 400 mm | ||||
Max. Forming Depth | 80/40mm | ||||
Max. Plastic Sheet Width | 640mm | ||||
Max. Plastic Sheet Dia. | 1100mm,1T | ||||
Thickness Of Plastic Sheet | 0.15-2mm | ||||
Max. No-Load Speed | 35Cycles/min | ||||
Overall Power | 85 KW | 90 KW | 95 KW | ||
Dimension | L76000 x W1200 x H2600mm | L8200 x W2100 x H2600mm | L9000 x W2100 x H2600mm | ||
Weight | 4T | 5.5T | 7T | ||

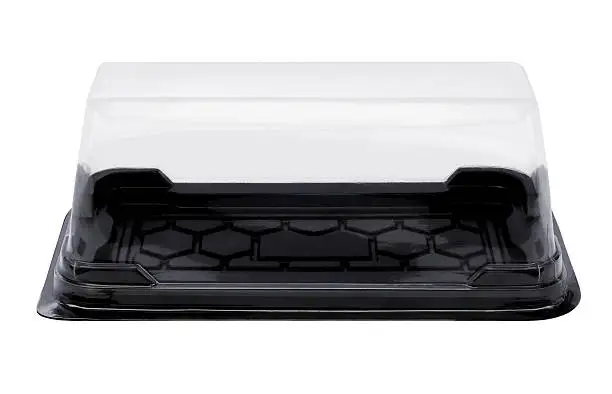

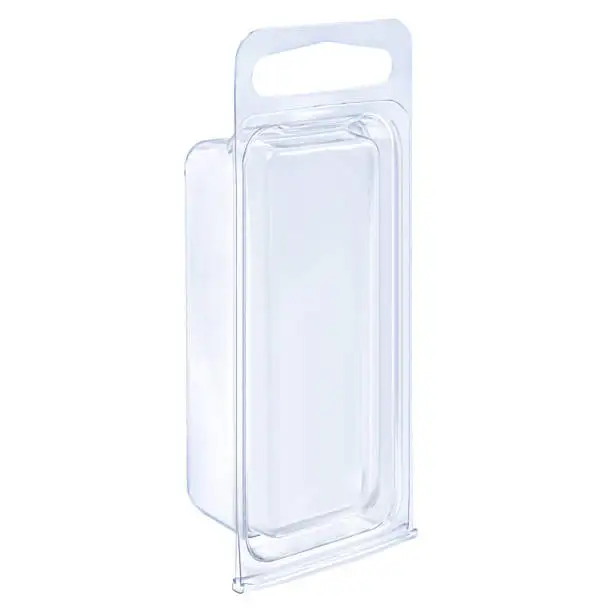

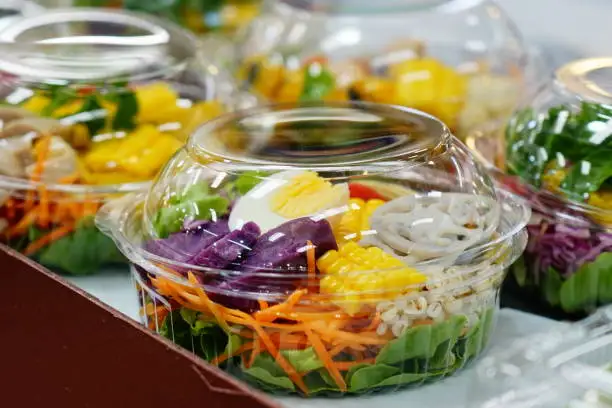

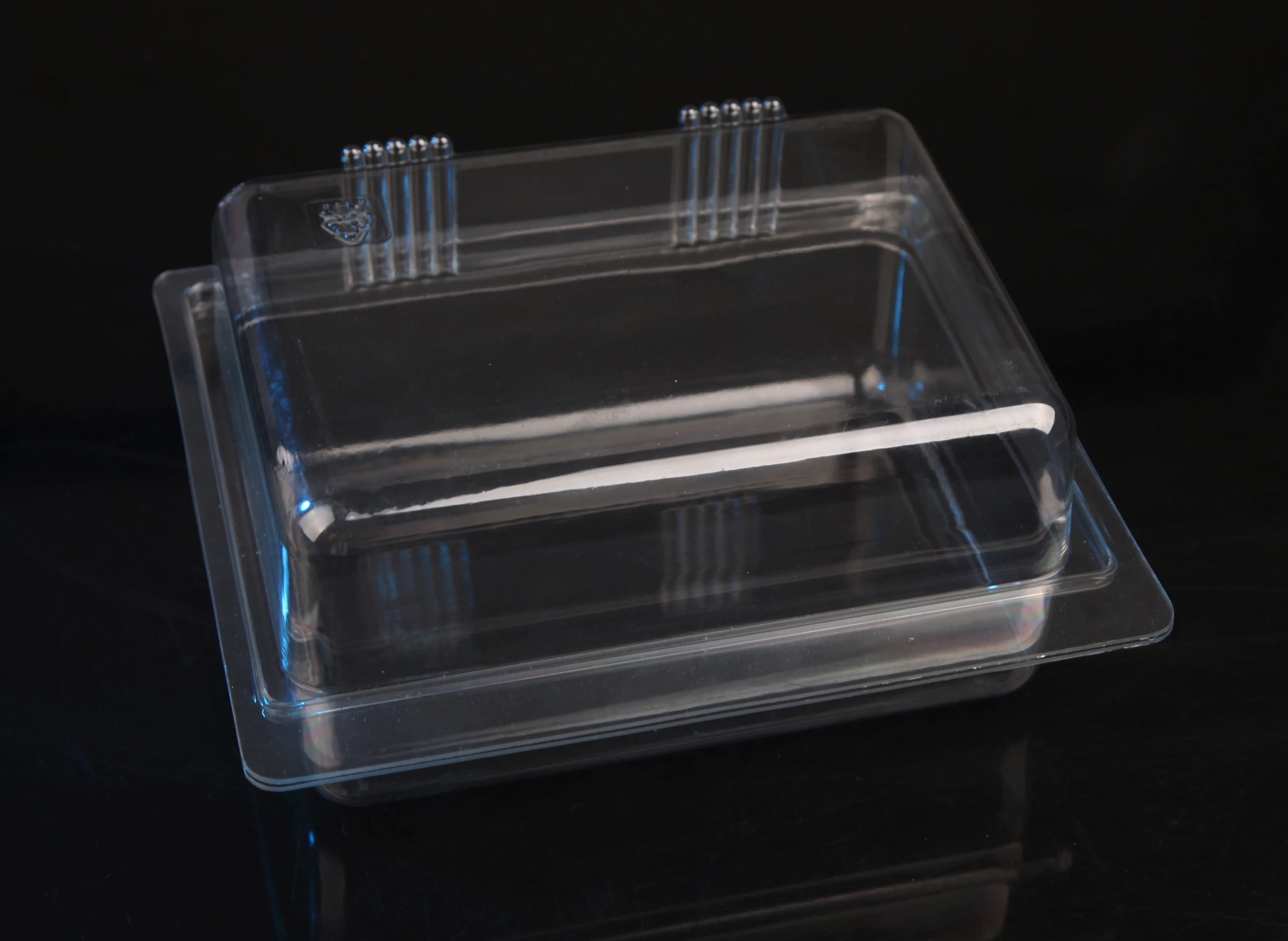

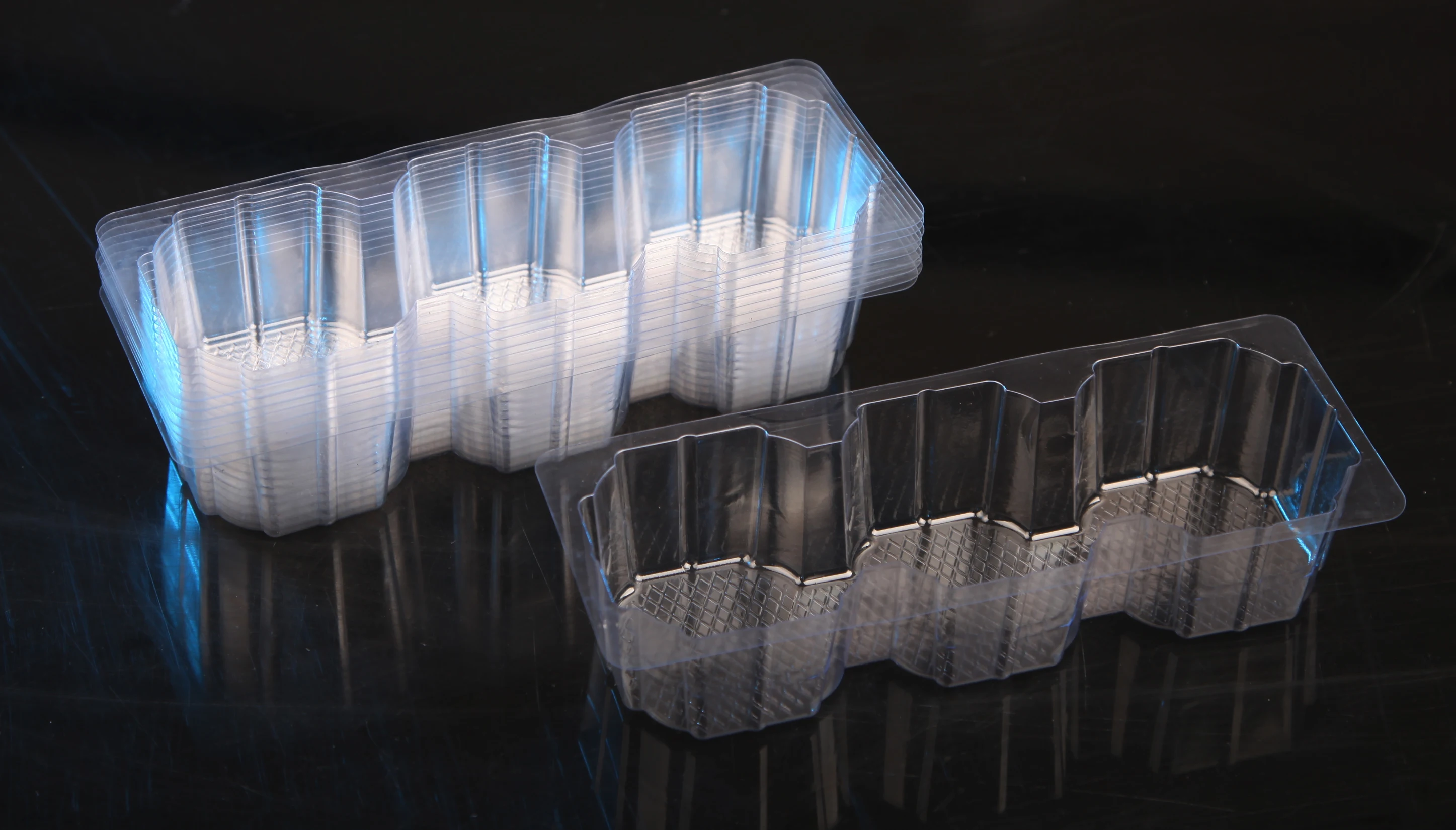

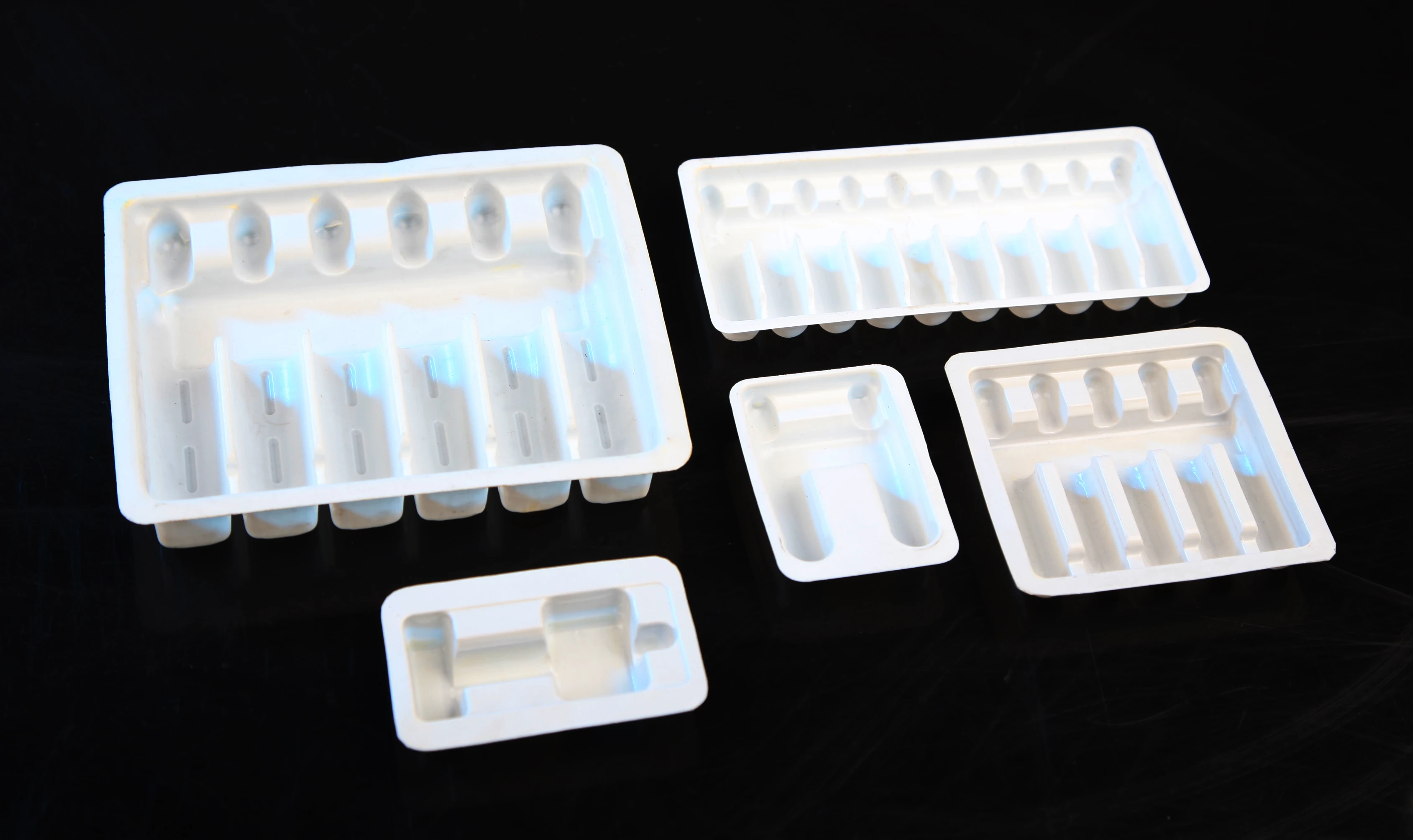

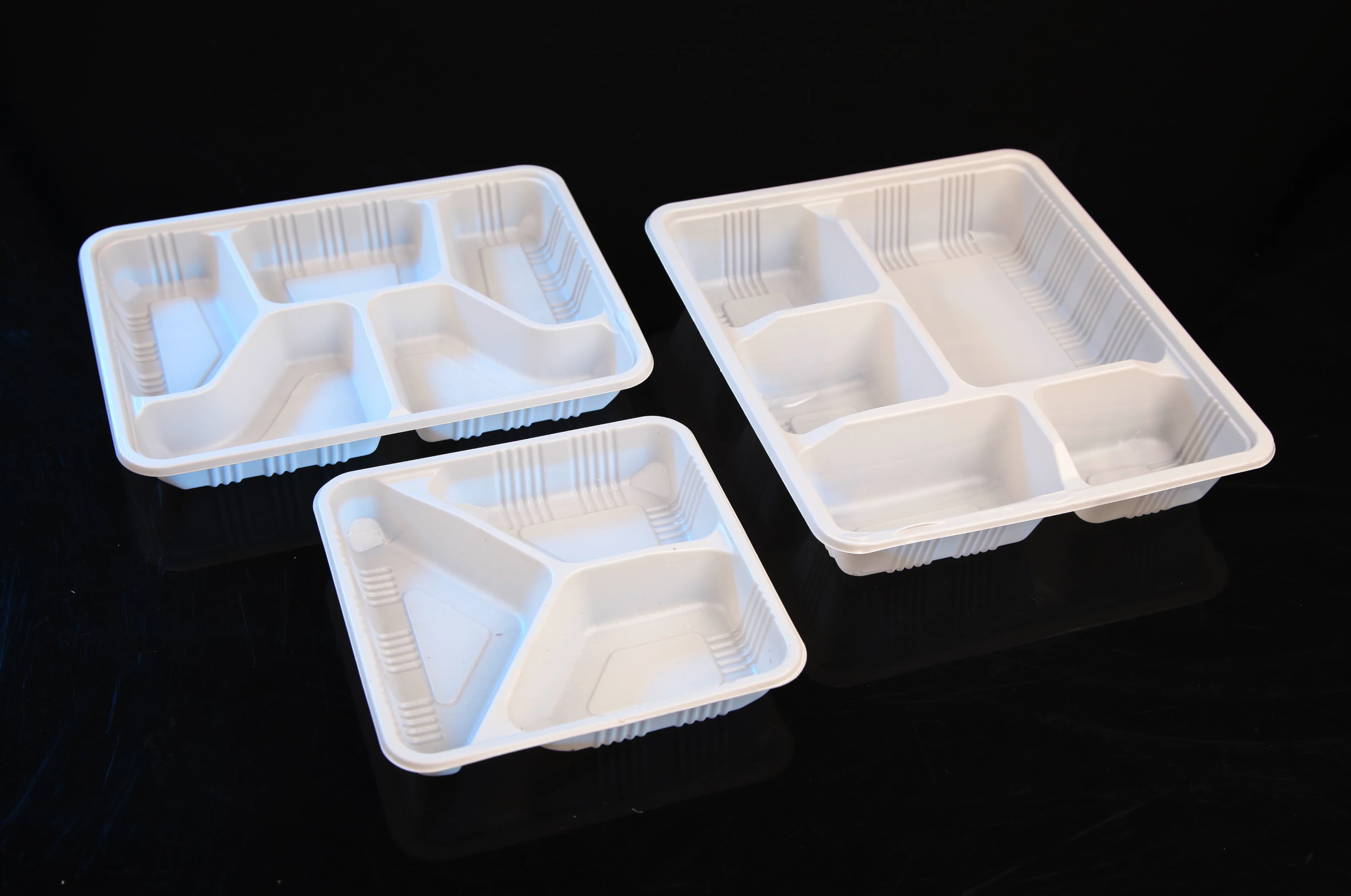

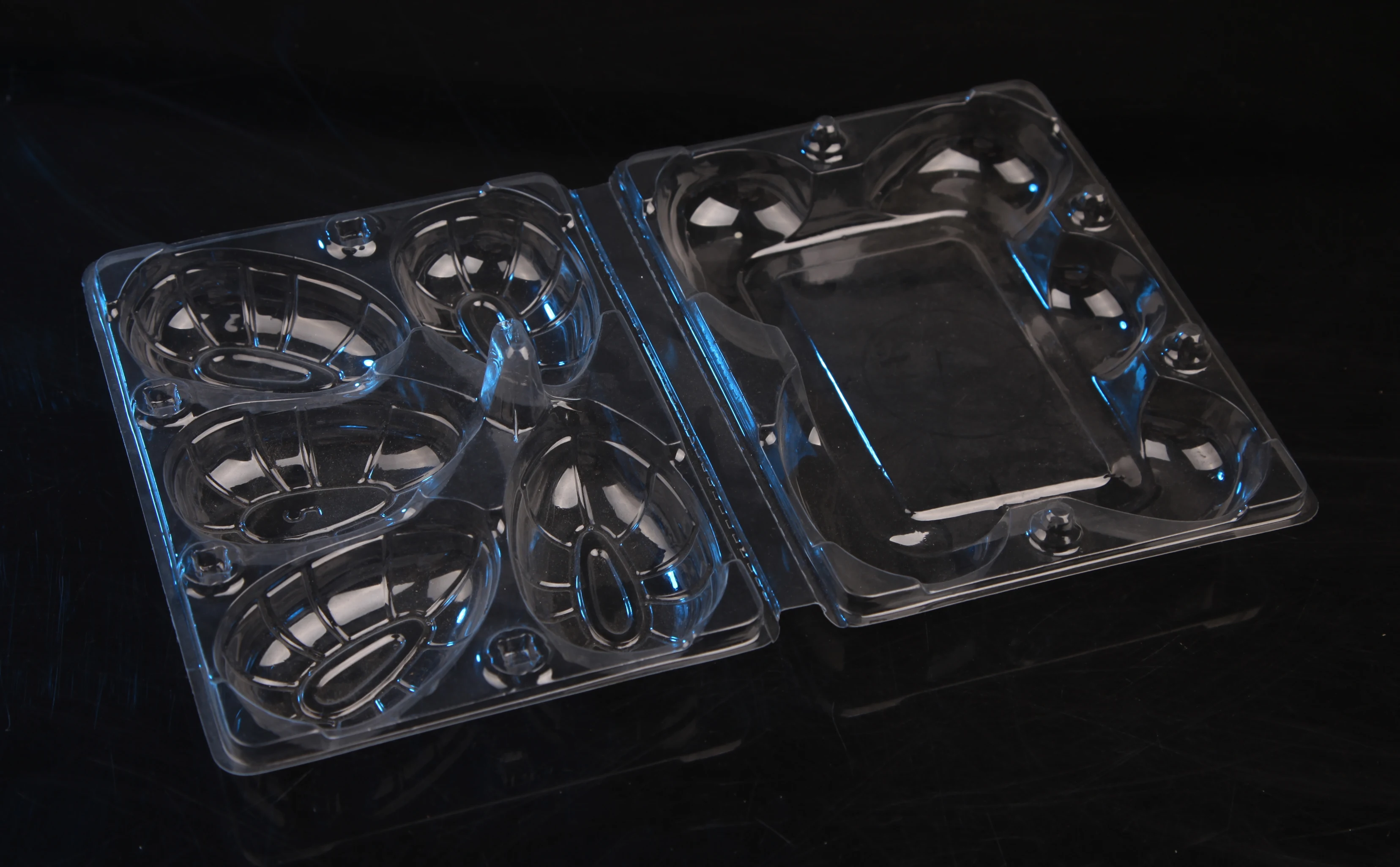

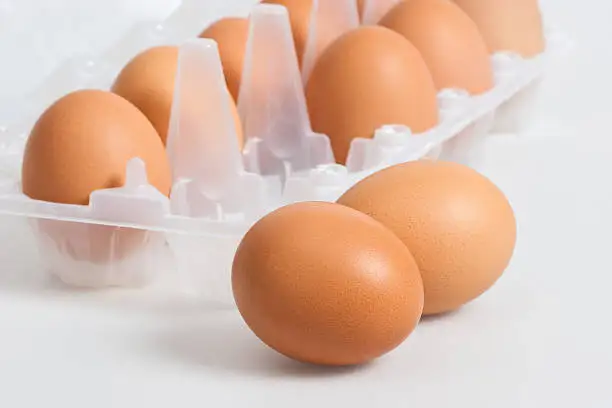

Production Product Display
Recommend Products
Company Profile
FAQ
Q1:Are you a factory or trading company?
A1:We are factory.
Q2:How does your factory do regarding quality control?
A2:We have a special QC department in charge of products'quality.
Q3: How long is the warranty period?
A3: All of our machine have one year warranty.
Q4: What's the main market of your company?
A4:We have customers all over the world.Now our products have been widely used in 62 countries.
Q5:Can we visit your machine operation in your factory?
A5:Yes, we have many customers near our factory .we can take you to see the machine operation.
Q6: Where is your factory located? How can we visit there?
A6:Our factory is located in Ruian City, Zhejiang Province, China, by high speed train to Ruian station,then 20 minutes by car.or by airplane to Wenzhou airport,then 1 hour by car.we provide free pick-up service from train station and airport.
Q7: Which payment can offer?
A7: We accept 30% payment in advance, the balance payment before shipping.We also accept UC according to the order amount.We can accept the payment by TIT, Western Union, Paypal, Private Account, Escrow,Cash,and others.
Q8:How&When can I get the price?
A1:We are factory.
Q2:How does your factory do regarding quality control?
A2:We have a special QC department in charge of products'quality.
Q3: How long is the warranty period?
A3: All of our machine have one year warranty.
Q4: What's the main market of your company?
A4:We have customers all over the world.Now our products have been widely used in 62 countries.
Q5:Can we visit your machine operation in your factory?
A5:Yes, we have many customers near our factory .we can take you to see the machine operation.
Q6: Where is your factory located? How can we visit there?
A6:Our factory is located in Ruian City, Zhejiang Province, China, by high speed train to Ruian station,then 20 minutes by car.or by airplane to Wenzhou airport,then 1 hour by car.we provide free pick-up service from train station and airport.
Q7: Which payment can offer?
A7: We accept 30% payment in advance, the balance payment before shipping.We also accept UC according to the order amount.We can accept the payment by TIT, Western Union, Paypal, Private Account, Escrow,Cash,and others.
Q8:How&When can I get the price?
A8: Email us your inquiry or communicate online, state your specifications(product, material, size, quantity,output etc).We usually quote within 24 hours. Please call us or inform in your email when it is urgent, we will regard your inquiry priority.our service number is 0086-577-65572988
