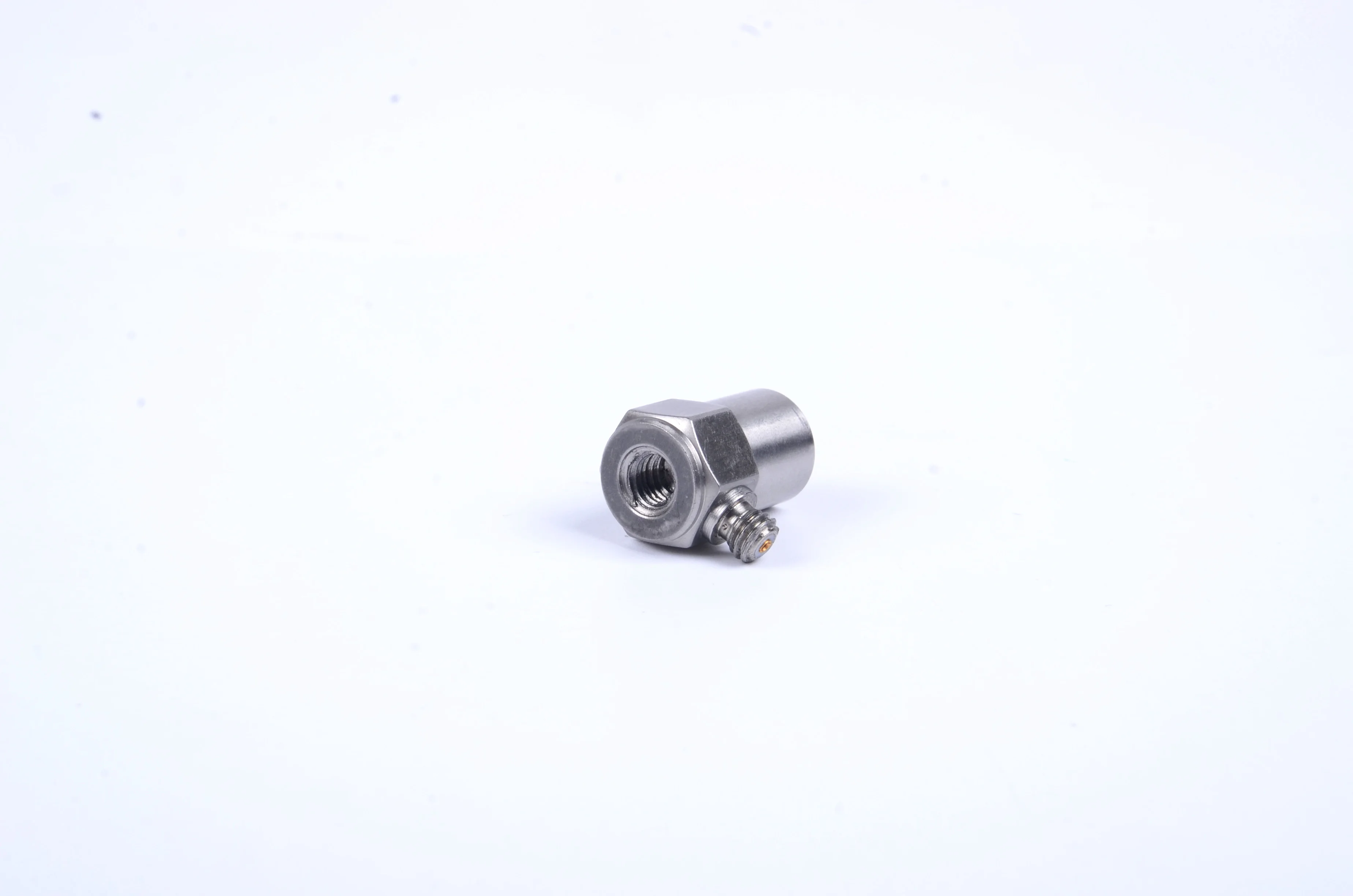

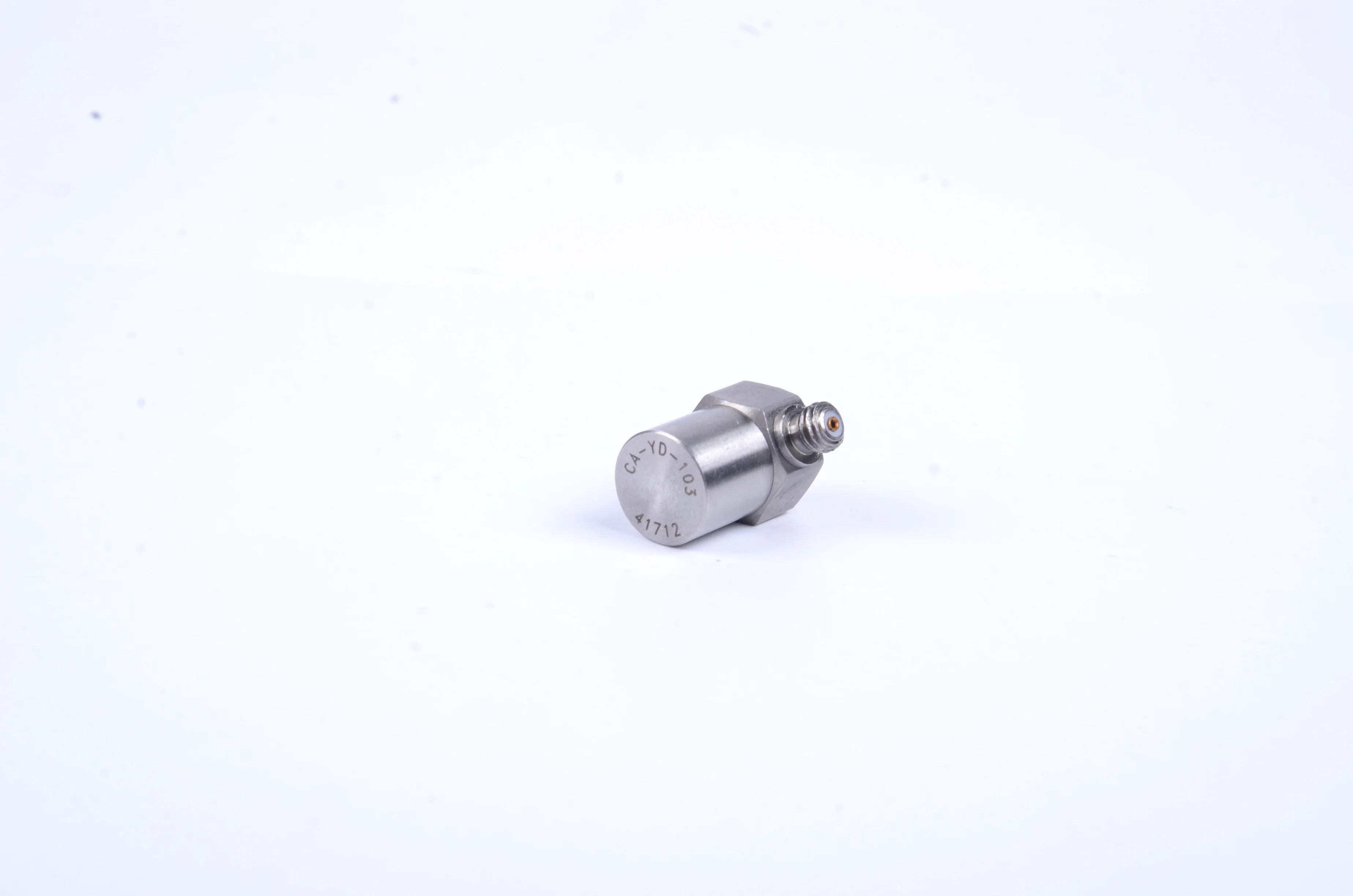

General PE acceleration sensor
- Category: >>>
- Supplier: Sinocera Piezotronics Inc.
Share on (1600388965249):
Product Overview
Description
PE piezoelectric accelerometer sensors
Features
♦ General vibration testing
♦ Small size, wide frequency response
♦ Side output
Specifications
Model:CA-YD-103
Sensitivity(20±5℃) | 20 pC/g |
Measurement Range(pk) | 2000 g |
Max Transverse Sensitivity | ≤5 % |
Frequency Response(±5%) | 0.5 ~12,000 Hz |
Mounting Resonant Frequency | 40,000 Hz |
Operating Temp. Range | -20~+120 ℃ |
Temperature Response | See Graph |
Transient Temperature Response | 0.5 g/℃(0.3Hz) |
Magnetic Sensitivity | 2 g/T |
Base Strain Sensitivity | 0.6 g/με |
Case Isolation | >109 Ω |
Capacitance | ~700 pF |
Mounting | M5 |
Sensing Element | Piezoelectric Ceramics |
Sensing Geometry | Central compressed |
Case Material | Stainless steel |
Weight | 14 g |
Output | Side L5 |
Accessories |
|
Certificate | Calibration parameter, frequency response |
M5, M5/M8 Stud, Protection cap | Each one |
L5/ L5(2m) STYV-1 | one |
Detailed Images
| Dimensions |  |

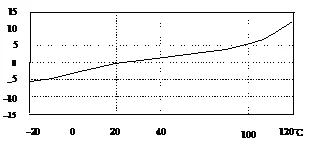

Temperature Response |  |

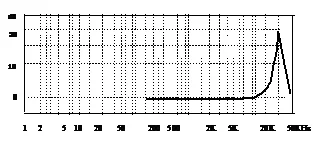

Frequency Response |  |
Company Information
SINOCERA PIEZOTRONICS, INC was established in 2001, with 34.6 million yuan registered capital and factory area more than 9000m2.We are mainly engaged in the development, production, and sales of high-performance piezoelectric ceramic materials, piezoelectric sensors and dynamic testing instruments.
We are committed to the research and application development of high performance of piezoelectric ceramic materials. Successfully developed all kinds of different performance piezoelectric ceramic products, and the piezoelectric ceramic material ultra-high piezoelectric constant (D33 >800PC) has reached the international advanced level.
Our products has get a good reputation all over the world, for example, our professional D33 Test Meter was very popular. Also we have a good quality control system, have passed ISO9001. Some of the products have received the certificate for measurement assurance and the explosion proof certificate, Rohs certificate, CE certificate and so on.
