high speed double hydraulic legal size paper cutter machine
- Category: Paper Trimmer >>>
- Supplier: Zhengzhou,Miles,Tech,Company,Ltd.
Share on:
Product Overview
Description
Product Description

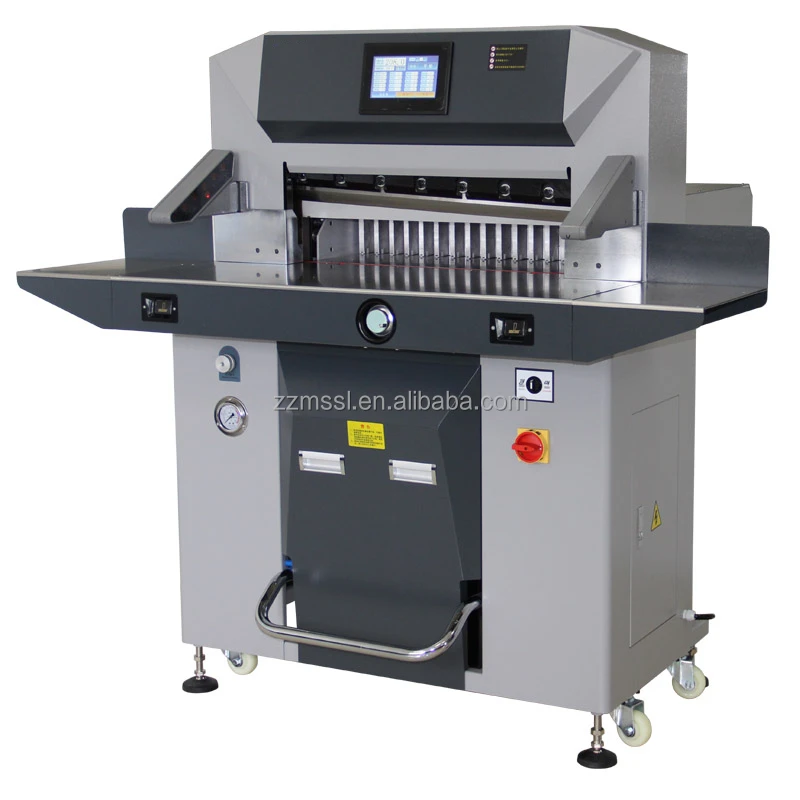

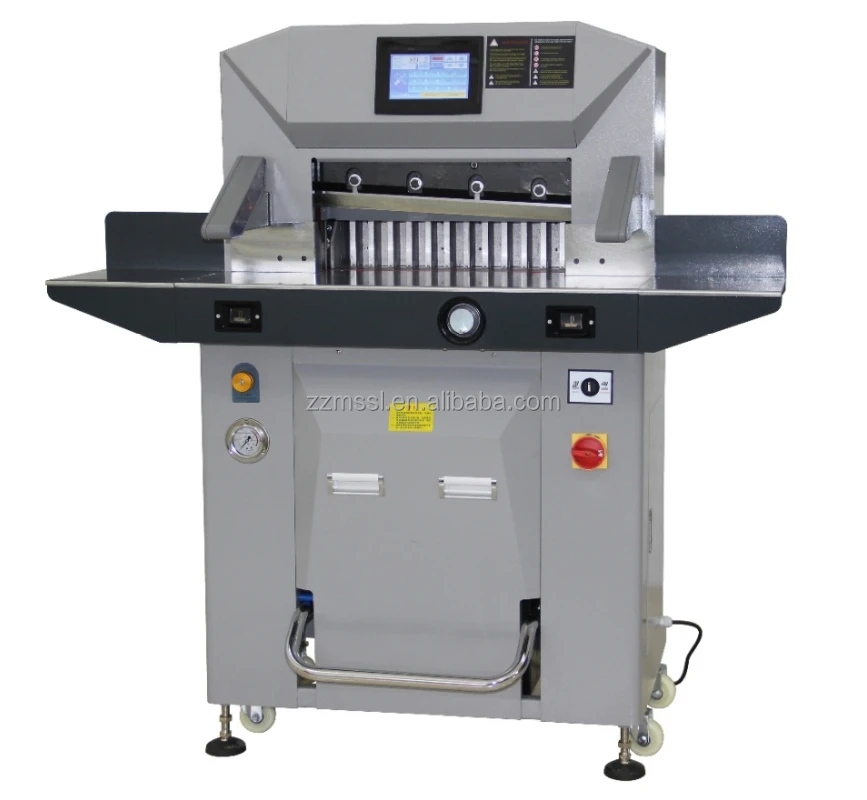

High Speed Double Hydraulic Industrial Paper Cutter Machine
Specification
Model | MT-6710PX | MT-5010PX |
Max cutting width | 670mm | 500mm |
Min cutting width | 30mm | 30mm |
Max cutting thickness | 100mm | 100mm |
Cutting speed | 5-20times/min | 5-20times/min |
Cutting paper | Hydraulic | Hydraulic |
Clamp paper | Hydraulic | Hydraulic |
Push paper | Double Rod&Double Guide | Double Rod&Double Guide |
Protection | Infrared | Infrared |
Voltage | 220/110V,50/60Hz, AC | 220/110V,50/60Hz, AC |
Dimension | 1540*1275*1435mm | 1470*1120*1020mm |
Weight | 550kg | 430kg |

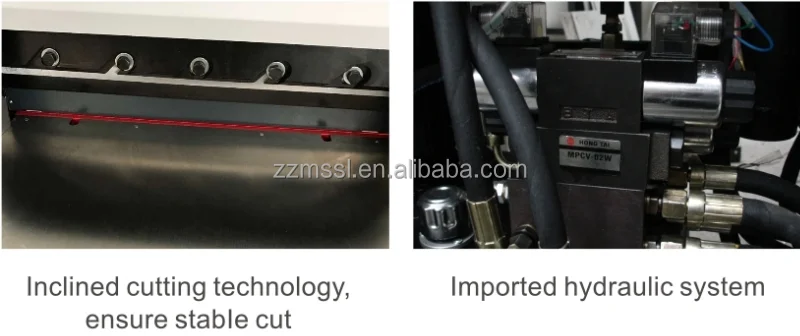

lmported main motor provides a strong impetus to machine and it is also in good quality of imported hydraulic valve part.
lt is easy to cutting for pasteboard. External fine-tuning and conveniently.
Process optimization level,Press paper, cutting time and the calibration points of pushing paper size can be arbitrary set,lt has self test function.
Fault code display and counting function,Program can be set to 99 groups X 7 knifes.

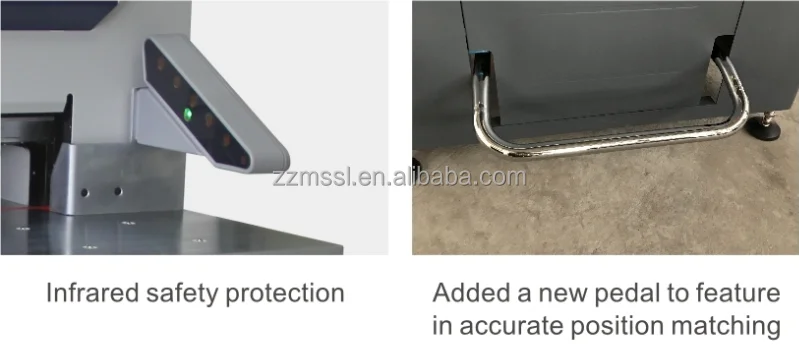

Previous infrared safety protection design and back defend cover,it comply with CE standards.

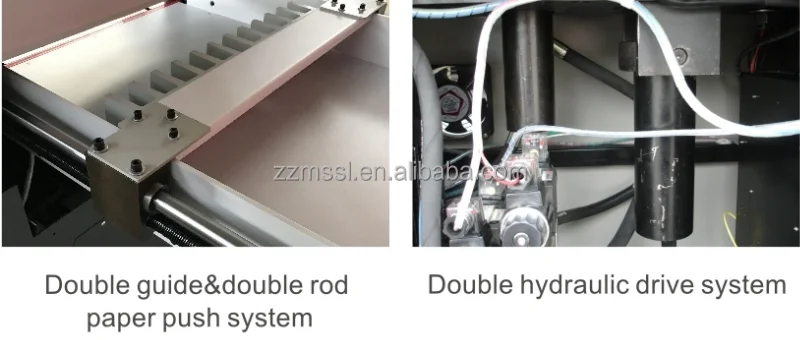

Double rod and double guide to push paper,Design of the rear platform No slot.
Process optimization level,Press paper, cutting time and the calibration points of pushing paper size can be arbitrary set,lt has self test function.
Fault code display and counting function,Program can be set to 99 groups X 7 knifes.
Previous infrared safety protection design and back defend cover,it comply with CE standards.
Double rod and double guide to push paper,Design of the rear platform No slot.
Keep accuracy and steady for pushing paper.
The back guide can be folding design.

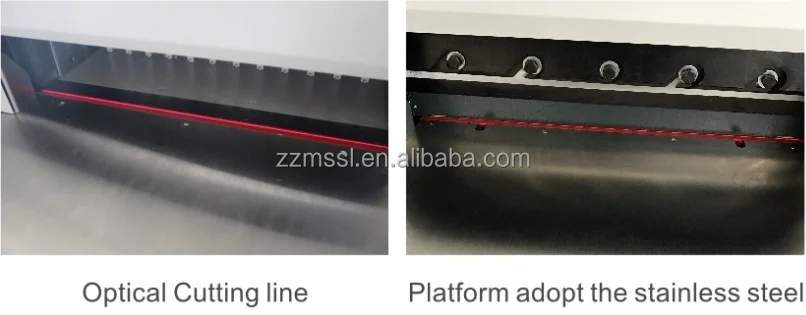

Clear and infrared laser direct lines.
Details Images
Recommend Products
Product packaging
Wooden Case
Wooden Case
Carton
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.Or according to your request.
Company Profile
Zhengzhou Miles Tech Company Ltd.
We are quite strong in technique forces and our products are highly reliable in quality.
Miles Company have been established for more than ten years. Business all over the world.
FAQ
1.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 10 years and also a professional exporter.
2. Q: What about the payment term?
A: Mostly 30%T/T in advance as deposit, 70% T/T when machine is finished before shipping.
3. Q: What is the warranty?
A: One year warranty after sales.During the warranty period, we will send the spare parts that break out due to the quality.
4. Q: What is your after sale service?
A: Any questions will be responded within 24 hours by email, Skype, call or Whatsapp/Wechat.
5. Q: What is the delivery time?
A: Mostly it takes 5 to 10 working days (depend on different machine).
2. Q: What about the payment term?
A: Mostly 30%T/T in advance as deposit, 70% T/T when machine is finished before shipping.
3. Q: What is the warranty?
A: One year warranty after sales.During the warranty period, we will send the spare parts that break out due to the quality.
4. Q: What is your after sale service?
A: Any questions will be responded within 24 hours by email, Skype, call or Whatsapp/Wechat.
5. Q: What is the delivery time?
A: Mostly it takes 5 to 10 working days (depend on different machine).
