Worth buying Qualified Tablet PC motherboard PCBA PCB Assembly service
- Category: >>>
- Supplier: Yuwei Electronic Technology (Wuhan) Co. Limited
Share on (1600389180490):
Product Overview
Description
We have 25+ years of production experience in this industry. We have built a modern factory, which has greatly improved in Production Capacity and Quality Control. In order to adapt to the upgrading speed of electronic products, we can provide customers with One-Stop service (PCB + PCBA), which not only shortens the product launch cycle, but also saves customers' Research and Development costs. We can provide flexible production of Prototypes and Small&Middle volume production to meet customers' requirements from r&d to product launch.
SMT(B/T)+ Pressure Welding +DIP
Product size 350*360*2.0mm
14-Layers PCB
Minimum component specification 0201
Product process characteristics:
More components (BGA), more types of components (250 kinds), the quality of the SMT requirements are relatively high.
14-Layers PCB
Minimum component specification 0201
Product process characteristics:
More components (BGA), more types of components (250 kinds), the quality of the SMT requirements are relatively high.
SMT(B/T)+DIP
Product size 150*180*1.6mm
6-Layers PCB
Minimum component specification 0402
Product process characteristics:
The volume difference of components is large, and the welding temperature difference of reflux furnace is large, which requires high temperature control.
6-Layers PCB
Minimum component specification 0402
Product process characteristics:
The volume difference of components is large, and the welding temperature difference of reflux furnace is large, which requires high temperature control.
SMT(B/T)+ Pressure Welding +DIP
Product size 250*320*3.0mm
18-Layers PCB
Minimum component specification 0201
Product process characteristics:
High speed connector need to do Pressure Welding; Board is thicker, use selective wave soldering plug-in, ensure that the penetration rate of plug-in tin 100%.
18-Layers PCB
Minimum component specification 0201
Product process characteristics:
High speed connector need to do Pressure Welding; Board is thicker, use selective wave soldering plug-in, ensure that the penetration rate of plug-in tin 100%.
SMT(B/T)+ Pressure Welding +DIP
Product size 200*310*2.0mm
10-Layers PCB
Minimum component specification 0201
Product process characteristics:
SMT and DIP require double-sided welding, which requires high process control in production.
10-Layers PCB
Minimum component specification 0201
Product process characteristics:
SMT and DIP require double-sided welding, which requires high process control in production.
1. Service Advantages
2. Quality Advantages
①.Make full preparations before SMT Assembly
Prepare relevant product process documents; Receive materials (PCB, Components) according to the mounting details of product process documents and check them; Baking treatment shall be carried out according to the shelf life of PCB, the length of unsealing time, Components characteristics and whether it is affected by moisture.
Prepare relevant product process documents; Receive materials (PCB, Components) according to the mounting details of product process documents and check them; Baking treatment shall be carried out according to the shelf life of PCB, the length of unsealing time, Components characteristics and whether it is affected by moisture.
Check Components
ERP Manages Components
Baking Components And PCB

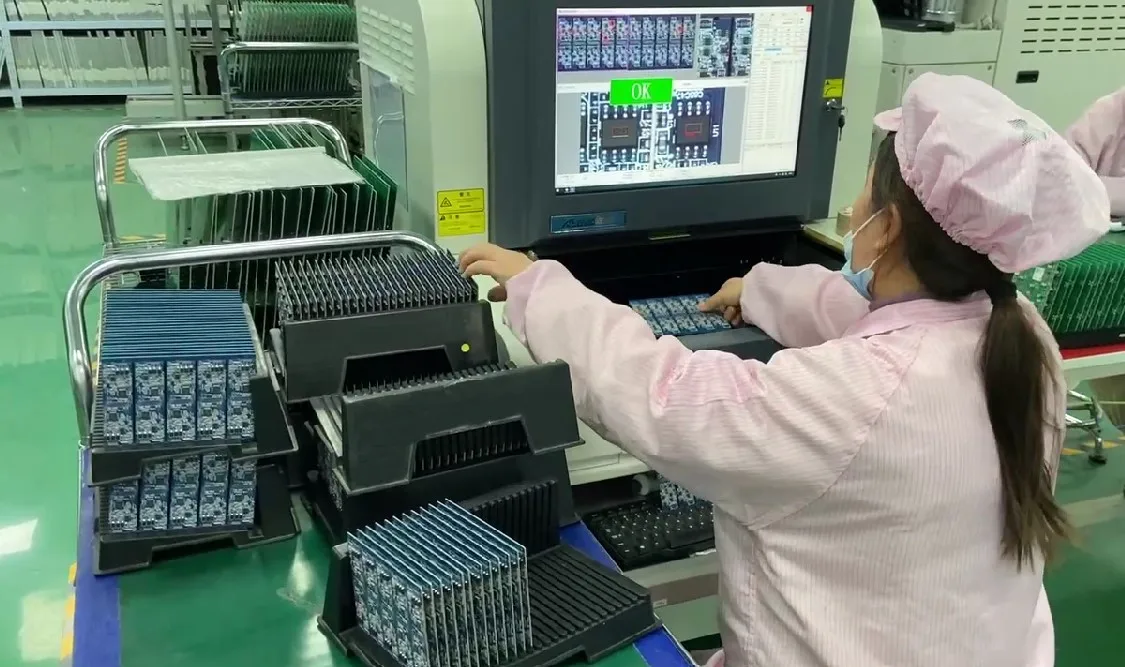

②.Inspection during SMT Assembly
Perform product quality inspection during SMT assembly using precision equipment such as AOI, X-RAY, ICT equipment.Ensure the quality of assembly process is up to standard.
Perform product quality inspection during SMT assembly using precision equipment such as AOI, X-RAY, ICT equipment.Ensure the quality of assembly process is up to standard.
AOI Inspection
X-RAY Inspection
ICT Inspection
③.Conduct inspection of the Assembled products
The First Article shall be sent to the special inspection after passing the self inspection, and then pasted in mass production after passing the special inspection.
The First Article shall be sent to the special inspection after passing the self inspection, and then pasted in mass production after passing the special inspection.
First Article Inspection
Special Inspection
ITEM | Capacity | ||
Min. IC Pitch | 03015 Chip/0.35 Pitch BGA | ||
Minimum Component accuracy | ±0.04mm | ||
IC assembly precision | ±0.03mm | ||
PCB size | 50*50mm - 774*710mm | ||
PCB Thickness | 0.3-6.5mm | ||
ITEM | Capacity |
SMT Production Capacity | 8.5 million solder joints per day |
SMT Production Line | 8 |
The scrap rate of resistance and capacitance is 0.3% | |
IC no scrap | |
Machined PCB Type | POP/ Normal PCB /FPC/ Rigid-flex /metal substrate |
1.What's the order process?
1)Inquiry---provide us all clear requirements (total qty and package details).
2)Quotation---officaial quotation from with all clear specifications from our professional team.
3)Marking Sample --- confirm all quotation details and the final sample.
4)Production---mass production.
5)Shipping---by sea or by air.
2.What terms of payment you use?
As for the payment terms,it depends on the total amount.
3.How do you ship the products?
4.What is the average delivery time?
Prototypes usually takes about 5-10days depending on product type.Small&Middle volume usually takes about 20 days.
5.How would I get a price list for a wholesaler ?
Please E-mail us, and tell us about your market with MOQ for each order. We would send the competitive price list to you ASAP.
1)Inquiry---provide us all clear requirements (total qty and package details).
2)Quotation---officaial quotation from with all clear specifications from our professional team.
3)Marking Sample --- confirm all quotation details and the final sample.
4)Production---mass production.
5)Shipping---by sea or by air.
2.What terms of payment you use?
As for the payment terms,it depends on the total amount.
3.How do you ship the products?
By Sea ,By Air ,By courier, TNT , DHL, Fedex, UPS Etc. It is up to you .
4.What is the average delivery time?
Prototypes usually takes about 5-10days depending on product type.Small&Middle volume usually takes about 20 days.
5.How would I get a price list for a wholesaler ?
Please E-mail us, and tell us about your market with MOQ for each order. We would send the competitive price list to you ASAP.
