Similar to Flojet BW4003 230V UK Plug Bottled Water Dispensing System
- Category: >>>
- Supplier: Xiamen Whaleflo Industry And Trade Co. Ltd.
Share on (1600389406473):
Product Overview
Description
Product Description

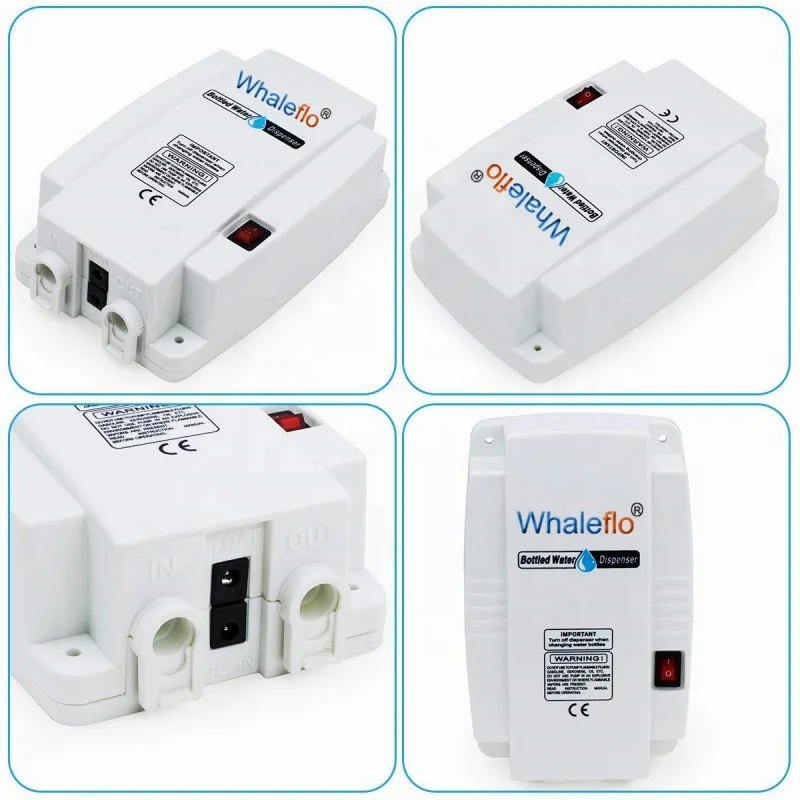

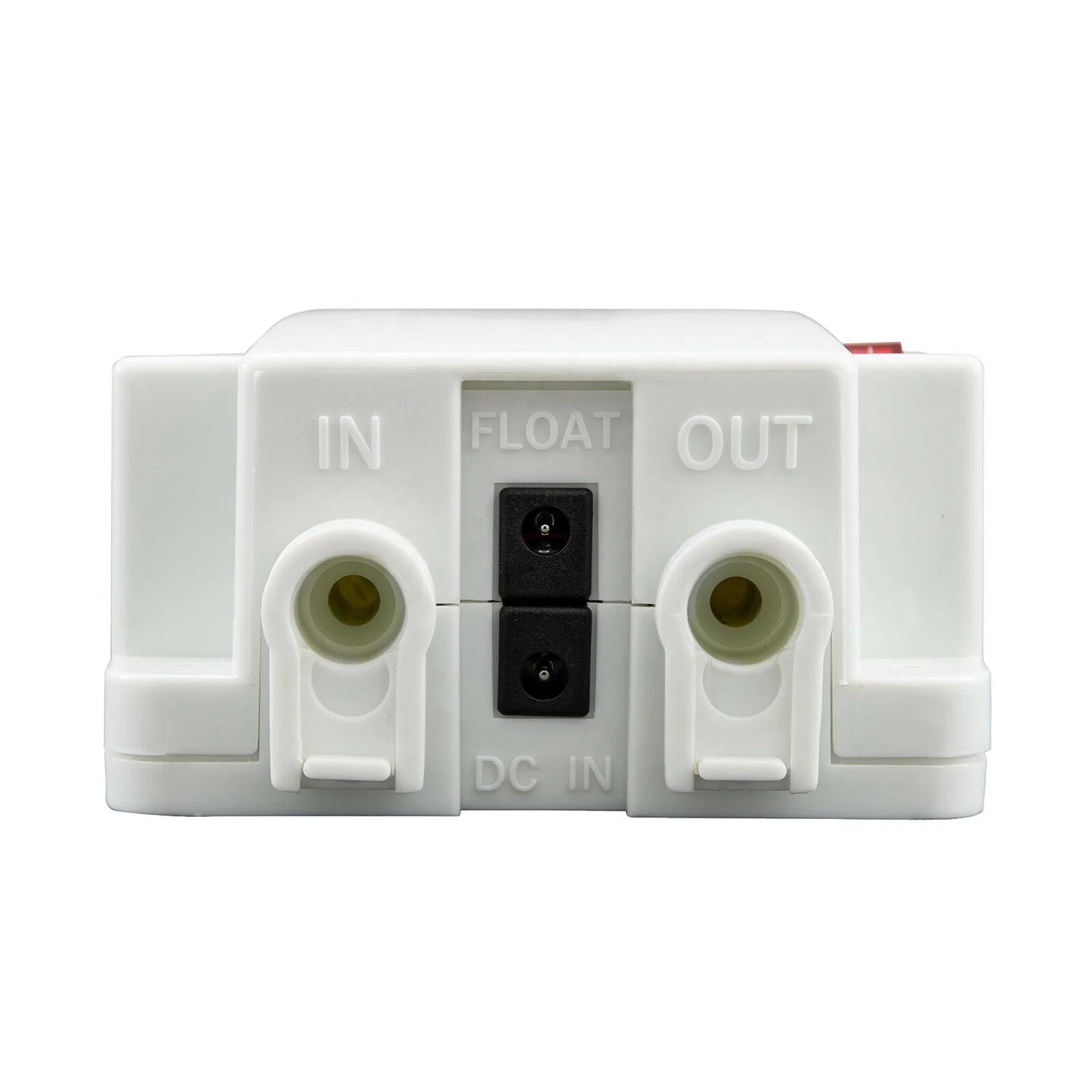

Whaleflo Similar to Flojet Bottled Water Dispenser System
Whaleflo AC Bottle Water Dispensing System Design For Home And Commercial Applicances.

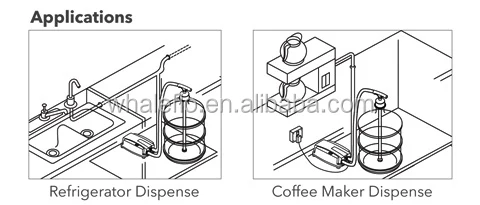

Works well for Refrigerator/Ice Maker/Coffee Machine/Faucet/Sinks.It Makes Water Supply More Convenient.
Features
Auto power off.
Low light consumption
Automatic pump operating Easy bottle change
UK/US/EU/AUS Plug optional.
Connect to your filtration kit/espresso machine easy
CE/Rohs/also with 12 months warranty.
Works well for Refrigerator/Ice Maker/Coffee Machine/Faucet/Sinks.It Makes Water Supply More Convenient.
Features
Auto power off.
Low light consumption
Automatic pump operating Easy bottle change
UK/US/EU/AUS Plug optional.
Connect to your filtration kit/espresso machine easy
CE/Rohs/also with 12 months warranty.
Specification
item | value |
Place of Origin | China |
Brand Name | Whaleflo |
Model Number | BW4003A |
Power (W) | 57.5 |
Voltage (V) | 110-230V |
After-sales Service Provided | Free spare parts |
Warranty | 1 Year |
Type | cold |
Installation | Stand |
Certification | ce, RoHS |
Application | Hotel, Outdoor, RV, Commercial, Household |
Power Source | Electric |
Model | BW4003A |
Voltage | 110-230V ac |
Amps | 0.25-0.5A |
Pressure | 40PSI |
Outlet | 1/4" |
Cycle | 50/60 |

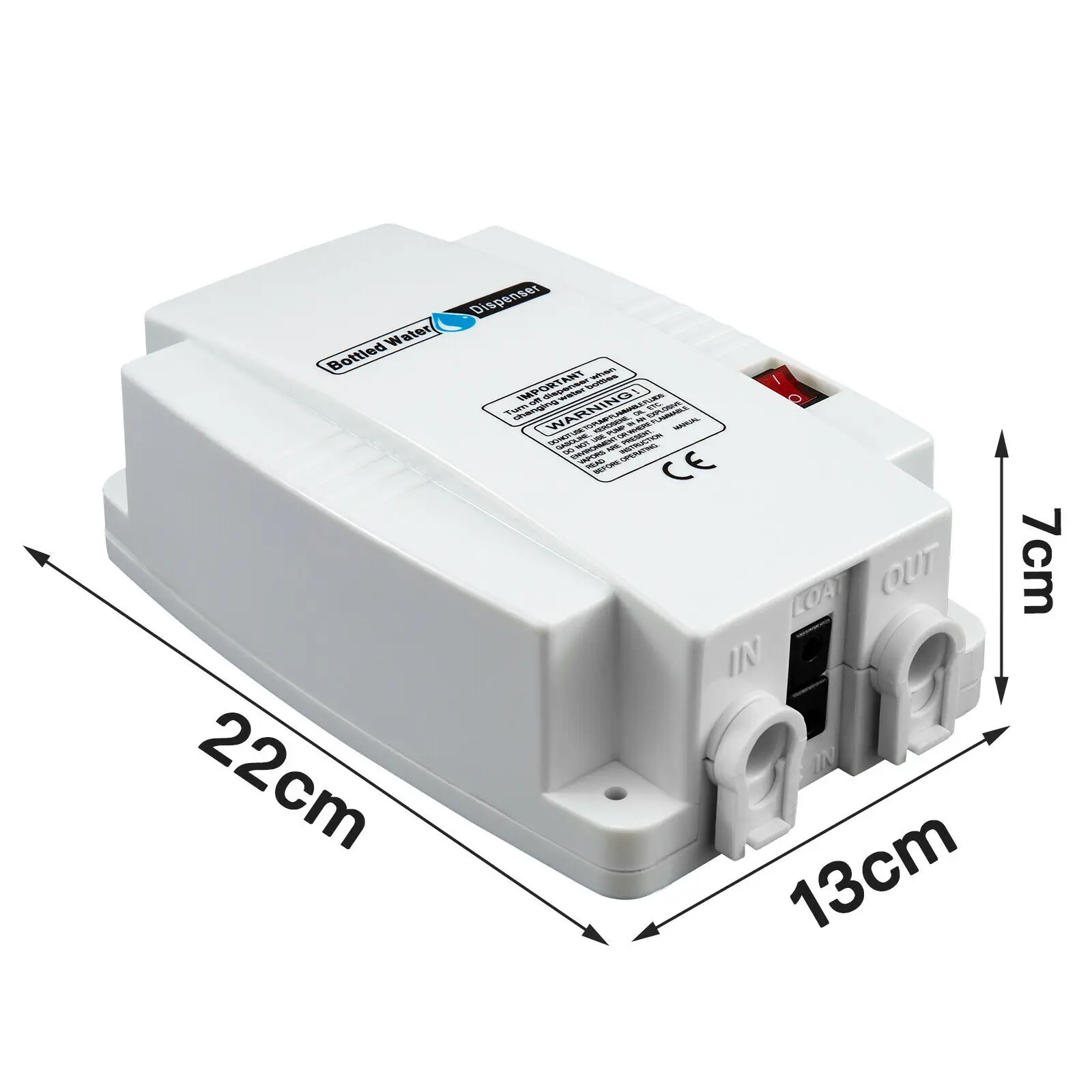

Dimensions (H x W x D) | 3.0" x 5.5" x 7.5" |
Weight | 3.5kgs |
adaptor | UK/US/EU/AUS Plug optional. |
Application | Refrigerator/Ice Maker/Coffee Machine/Faucet/Sinks. |
BW1000A | 1GPM | 40PSI | 1/4" Outlet | 110V AC/0.5A |
BW2000A | 1GPM | 40PSI | 1/4" Outlet | 230V AC/0.25A |
BW3000A | 1GPM | 40PSI | 1/4" Outlet | 12V DC/3.0A |
BW4003A | 1GPM | 40PSI | 1/4" Outlet | 110V-230V AC/0.5A |
bw1010A/2020A | 1GPM | 40PSI | 1/4" Outlet | 110V/230V AC/0.5A/0.25A |
TROUBLESHOOTING
System Will Not Dispense Water
* Check on/off switch position
* Check power to dispensing system
* Check location of suction wand in bottle
* Check for empty bottle
* Check for air in system
Discharge Tube Leaks At Fitting
* Push tube all the way into tube stop
* Remove tube and cut 1/4 in.(6.35mm)off end,square and reinstall
* Check correct tube size in fitting,tube size is 1/4 in.(6.35mm)O.D.Fitting should be 1/4 in.(6.35mm)I.D.
System Gets Warm and Turns Off
* Check the float switch
* Check for leaks in discharge tube
System Will not Shut-Off
* Check for leaks in tubing system
* Check for leaks at bube fittings
* Check for leaks at faucet,ice maker or refrigerator water valve
* Check pressure switch by turning faucet off and on
* Check float switch position in bottle
System Continually Turns Off and On While in Use
System Will Not Dispense Water
* Check on/off switch position
* Check power to dispensing system
* Check location of suction wand in bottle
* Check for empty bottle
* Check for air in system
Discharge Tube Leaks At Fitting
* Push tube all the way into tube stop
* Remove tube and cut 1/4 in.(6.35mm)off end,square and reinstall
* Check correct tube size in fitting,tube size is 1/4 in.(6.35mm)O.D.Fitting should be 1/4 in.(6.35mm)I.D.
System Gets Warm and Turns Off
* Check the float switch
* Check for leaks in discharge tube
System Will not Shut-Off
* Check for leaks in tubing system
* Check for leaks at bube fittings
* Check for leaks at faucet,ice maker or refrigerator water valve
* Check pressure switch by turning faucet off and on
* Check float switch position in bottle
System Continually Turns Off and On While in Use
*
Check for restriction devise at appliance inlet.
* Check for filter unit in line.
* Check for internal filters in the refrigerator
Check for restriction devise at appliance inlet.
* Check for filter unit in line.
* Check for internal filters in the refrigerator
Installation Instructions
Packing & Delivery
1pcs into a single color carton.10pcs into a seaworthy carton
packing details
one unit in a box
10 units in a carton
carton size:60*27*10
carton weight:35kgs
