YTB 6800 6 color High Speed HDPE BOPP Plastic Bag pp poly bag flexo printing machine (1600389435194)

Share on:


Price:$42,000.00 - $44,000.00
Price in USD:Details

Quantity:


Product Overview

Description


YTB-6800 6 color High Speed HDPE BOPP Plastic Bag pp poly bag flexo printing machine


1.Feature:


1)Ink Roller: With the Ceramic roller by 100LPI-1000LPI, high speed dot reproduction rate, screen printing, structure three dimensional sense of strong, registering accurately


2)Ink :Adopt the automatic circle system ,running ink by single small motor


3)Timing :Adopt Japanese inverter controlled ,running by small fluctuations


4)Unwind EPC :adopt the high quality automatic EPC controller device


5)Unwind and rewind way : adopt the magnetism Auto tension controller.


6)Ink way :our company has special design for the doctor blade device with the ink pump can suck the ink automatically


7)Up and down plate :adopt the hydraulic pressure rising and down the printing plate automatically





11)Body: thick wall (75mm), longer bridges, thick base, making the machine more stable.


2.Detail Technical Specification












































































































































































































































2.1 Main Parameter



Model



YTB-6800



Max Width of Material



800mm



Max.Width of Printing



760mm



Suitable material



Non-woven fabric:15-120g; Paper:15~400g;


PVC:15~120μm; OPP:10~100μm; BOPP:10~100μm; PE:15~150μm; NY:15~120μm; PET:15~100μm



Printing color



6 colors



Max.Length of Printing



200-1000mm



Machine speed



10-100m/min



Printing speed



10-90m/min



Total power



32kw



Rubber plate thickness



2.38mm



machine weight



6000KG



machine dimension



5.2×2×3M



Power condition



380V,3PH,50HZ/220V,3phase,60HZ



2.2 Unwind Unit



Max.Length of Roller



800mm



Max.Width of Printing



760mm



Max.unwind diameter



1000mm



Unwind type



auto tension with magnetic powder



Unwind Magnetism device



10kg



Unwind auto tension controller



20kg



Unwind EPC system



Electrical Edge Correction Device



Feeding shaft



Air shaft



Axis core diameter



76mm



2.3Traction Unit



Constitution of Traction



Aluminum roller, Chrome plated Roller



Traction Zones



6Zones



2.4 Printing Unit



Constitution of Printing



Anilox roller, Rubber roller, Chrome plated roller, Version roller Resin version, Scraper



Girth of Pressing Roller



200-1100mm



Material of Plate



Resin or Rubber



Principle of Work



Synchronizing transmit belt



Adjusting of Register



Manual



Overprint Precision(mm)



Horizontal:+-0.15mm,Vertical:+-0.2mm



Plated-glued roller adjusting



hydraulic type of plate-cylinder



Anilox Roller



Ceramic Anilox Roller:1 pcs/per color



Rubber rollers



1 pcs/per color



Scraper



Ordinary



2.5 Heating and Drying Unit



Type of Heating and drying



blowing first then heating



Heating Zones



12zones



Power of Heating



11 kw



Assistance of Drying Length



2m



Fan blowers



8 Fans



Power of Blowers



1.5kw×2pcs; 0.2kw×6pcs



2.6 Electrical Parts



Main motor



3.7kw



Ink-Transfer Motor



0.2kw



inverter



3.7kw



Tension controller



2--30kg



2.7 Rewind Unit



Max Width of Material



800mm



Max.rewind diameter



1000mm



Type of Wind



magnetic powder auto tension controller



Rewind Magnetic Powder



10kg



Collect Reducer Motor



1.5KW



Auto tension controller



20kg



Rewind shaft



Air shaft



Paper core diameter



76mm






3.Detail picture display


1)unwind


unwinding





2)PLC touch screen


PLC 2

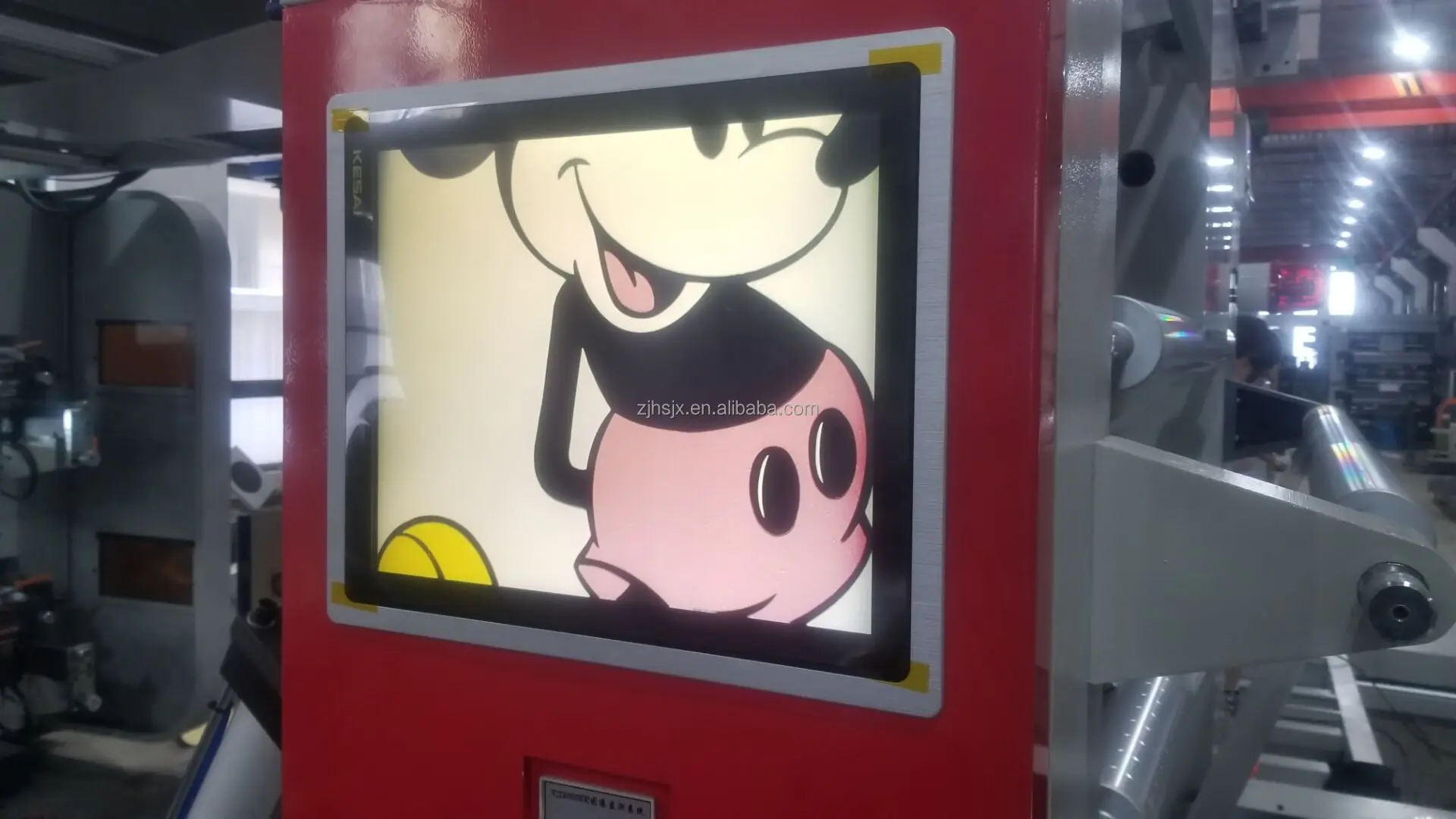

3)video inspectioncamera 2





4)printing unit


6 COLOR PRINTER UNIT





5)FRICTION REWIND


rewind roll





6) WHOLE MACHINE VIEW


65.


7)printing quality show


quality
