stainless steel spoon and fork magnetron sputtering deposition machine/ion plating machine/ pvd coating machine

Product Overview

Description

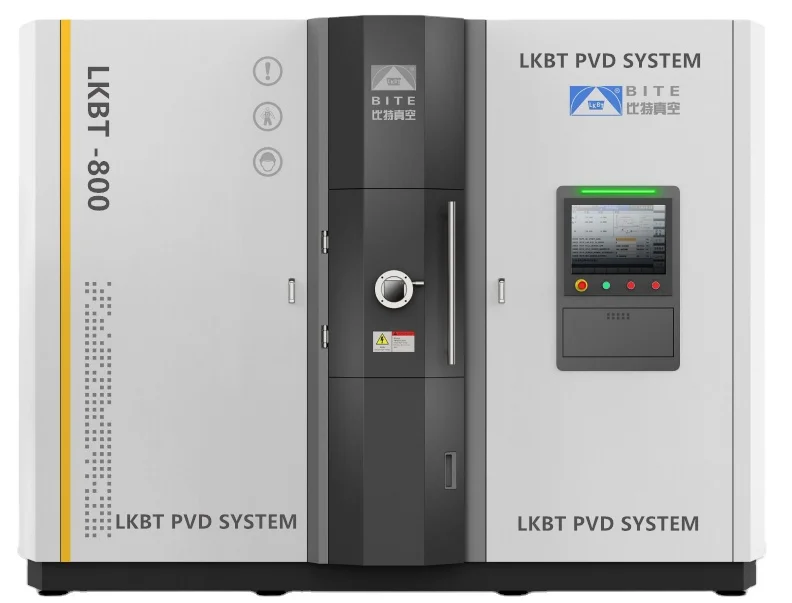

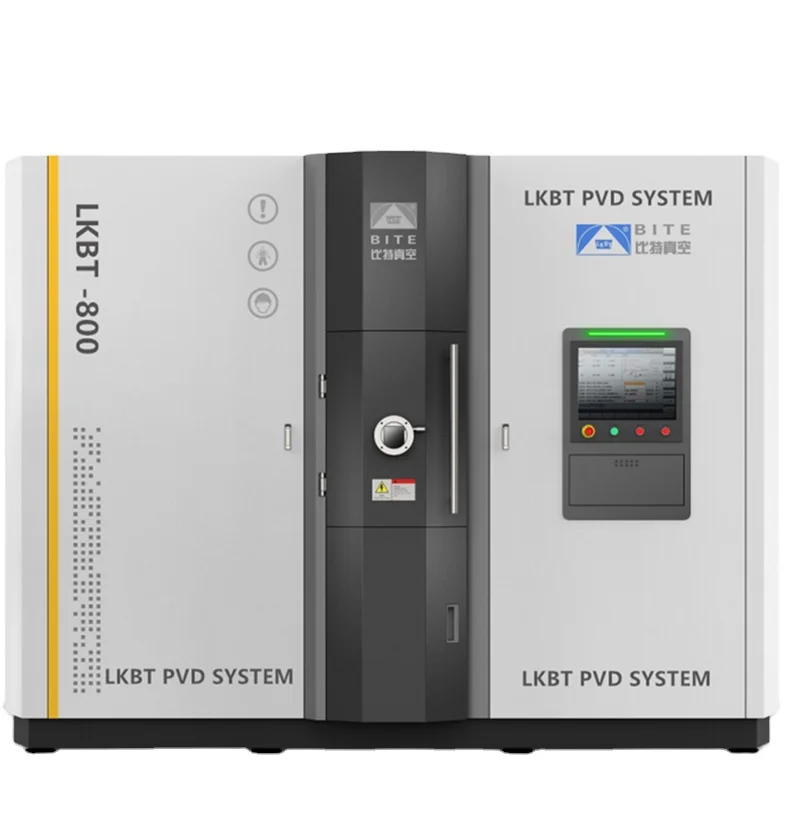

stainless steel spoon and fork magnetron sputtering deposition machine

This is a ion coating machine of efficiency, harmless and pollution-free. It has the features of fast deposition rate , great ionization rate,

big ion energy,easy operation, low cost, large productive capacity, etc.

Characteristic: The principle of the electric arc is integrating cold cathode arc discharge self-sustained light unite pulse technique and

magnetron sputtering technology, thinning the particles to improve the properties of the film. It can coat on the surface of the metal as well as nonmetal.

 Applied industry: It can be used to coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel,

chromium, copper , and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film, and in a very short time to

complete all the machining process, it is a highly efficient multi-functional coating equipment



This machine is extensively used in the fields of ultra-hard coating about the tools and mould, decorative coating about car wheels, ceramics, golf,

watches making, hotel product, sanitary ware, luminaires, optical frame, hardware, etc .



Technical parameter:



parameters type	700 type	800 type		900 type	1000 type
dimension of  vacuum chamber	700×1000mm	800×1000 mm		900×1000 mm	1000×1000 mm
pumping speed	1×105Pa~3×10-3Pa≤20min
limit vacuum	≤1×10-3Pa
system form a  complete set	KT-600×2-2X-30/2X-70×4(ZLD-300×2)			KT-600×2-2X-30/2X-70×4 (ZLD-300×2)
Work piece system	Rotation of the planet forms(8 roating shaft, since the amount)
heating methods	Edge installation of stainless steel heating tube
ion bombardment	direct current 1000V or contravariant impulse 1000V high voltage bombardment
vent system	Mass flow controller control input gas
arc target amount	20			25
working methods	plc semi-auto control or pc+plc auto control
working gas	Ar N2
total power	120KW		160KW
compress air	0.4~0.8MPa
water-cooling system	hydraulic pressure/water temperature:≤25°C/≥0.25MPa(user provide for himself

We can also design and configure the vacuum unit and electric controlling

system according to your requirement.

machine production flow chart:

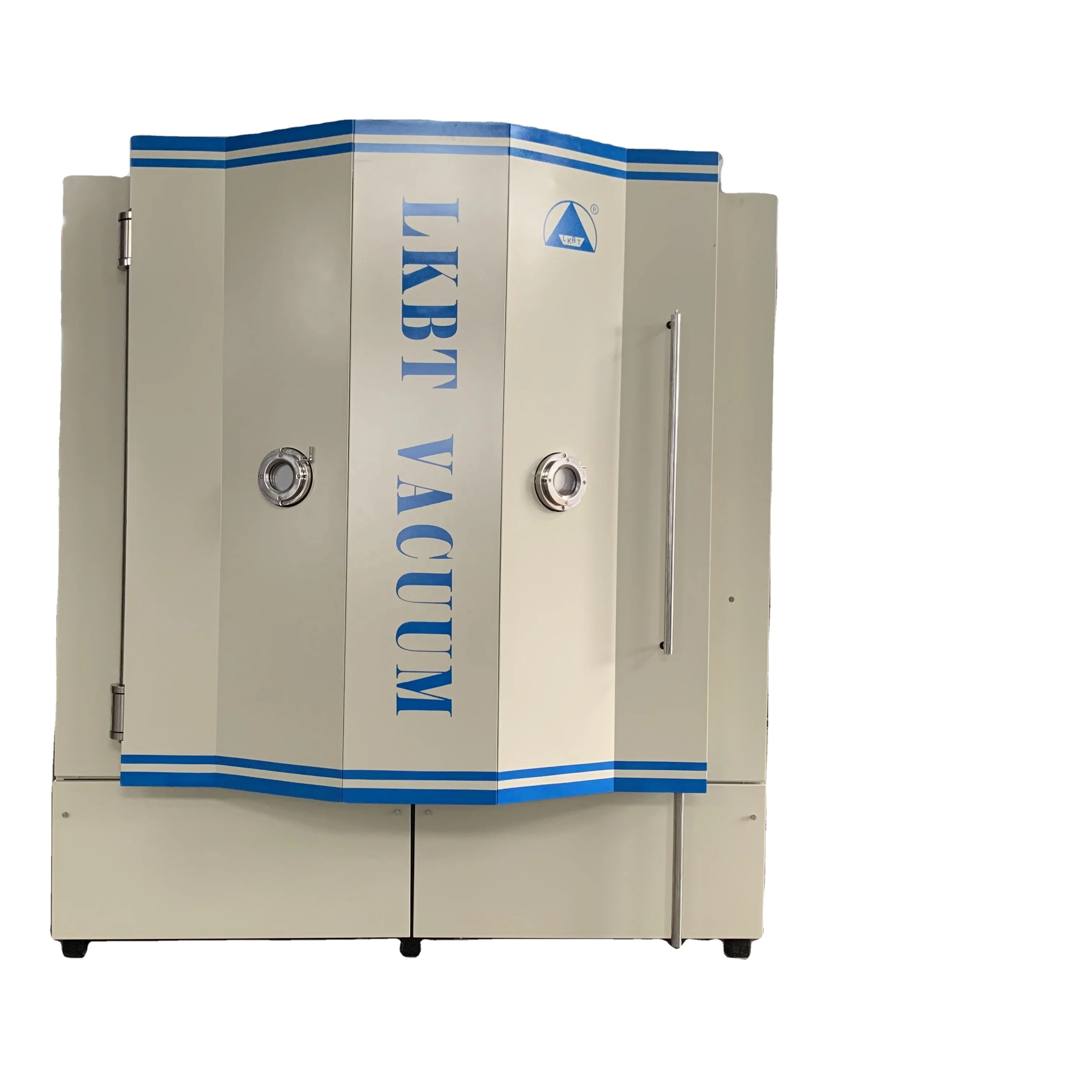

product show:









We don't only offer the machine, also provide after-sales service,

hope to establish forever business relationship with you.





Dear friends:

When you send us a inquiry, in order to design the most suitable machine for your project, please inform me the following questions in your letter:

1. What is your product, its material and application

2. What is the possible max. size of your product

3. What is your desired productivity per 8 hours/shift.

The answers to the above question will help us a lot on designing or do the recommendation.

Pls send the inquiry at the bottom of this page.

Our machine is custom made,If you need any help ,pls feel free to contact me !
