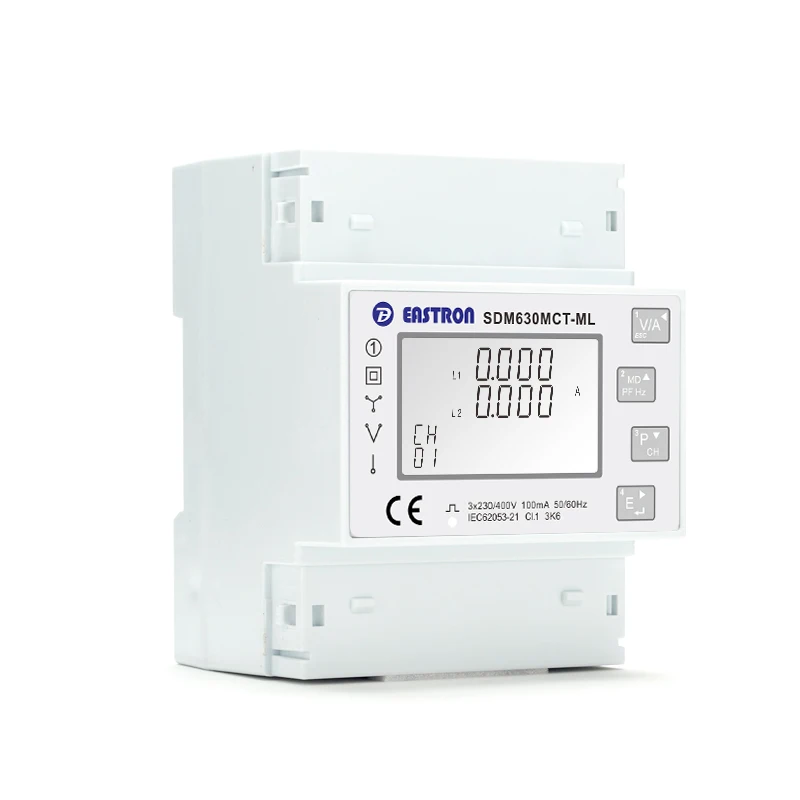

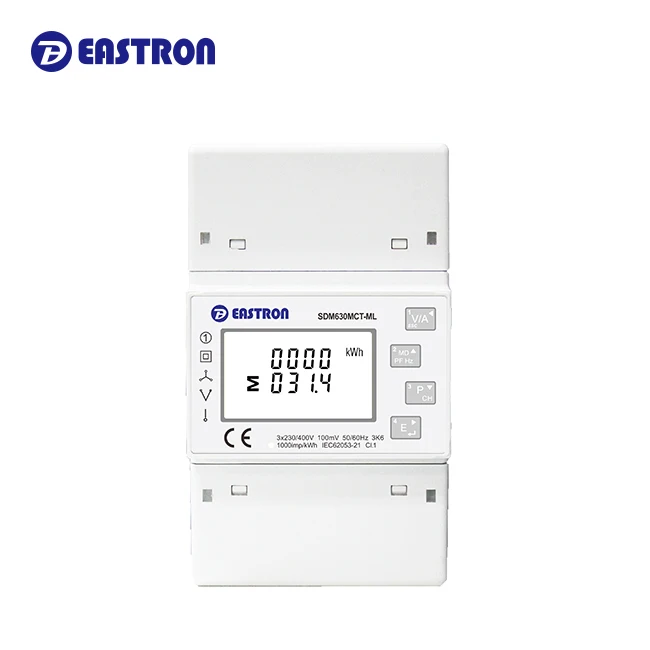

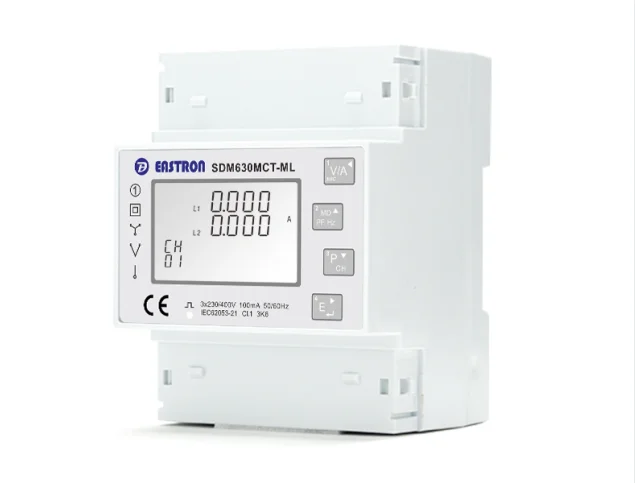

SDM630MCT ML TCP Ethernet Network SCADA Reading Smart Meter
- Category: >>>
- Supplier: Zhejiang Eastron Electronic Co. Ltd.
Share on (1600389690609):
Product Overview
Description

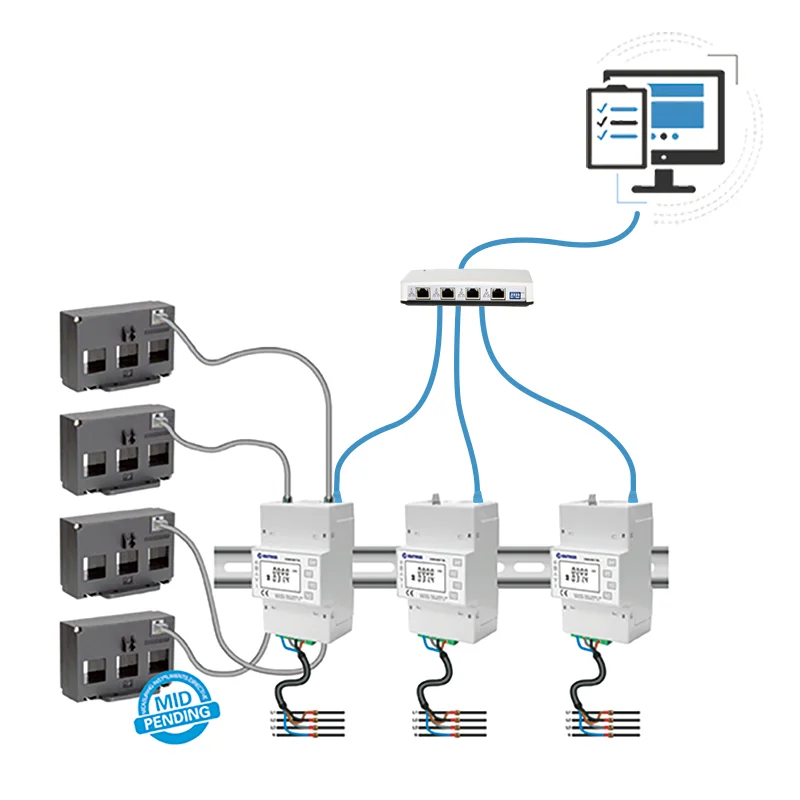

EASTRON SDM630MCT-ML-TCP with Ethernet communication allow the connection to SCADA systems using Modbus TCP/IP protocol. The meter can be directly connected with TCP/IP masters for remote reading.

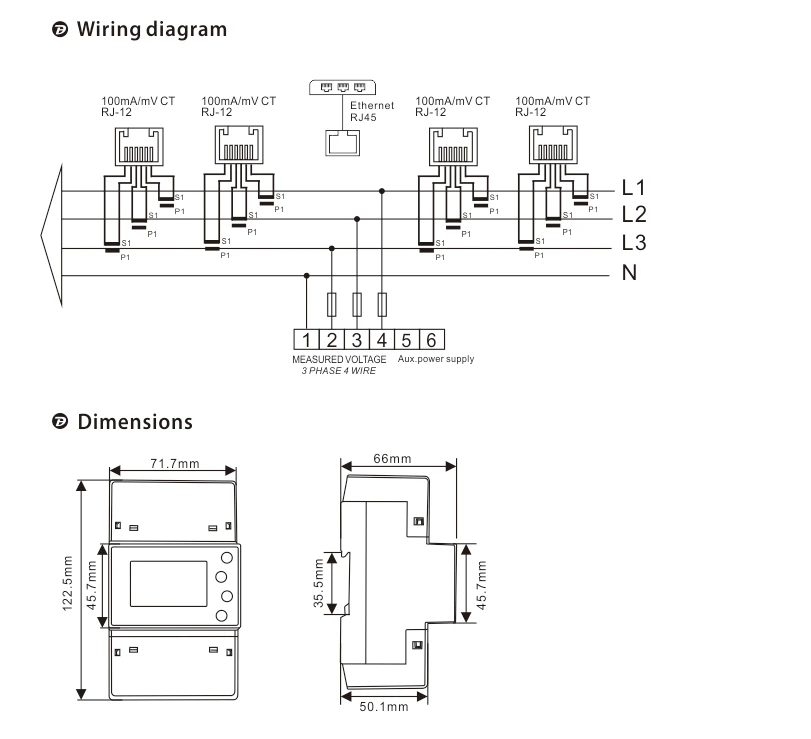

The meter can work with 1p2w, 1p3w, 3p3w and 3p4w electricity grid, and it provides all important electrical parameters: voltage, current, power, PF, THD, frequency, demand, energy, etc.

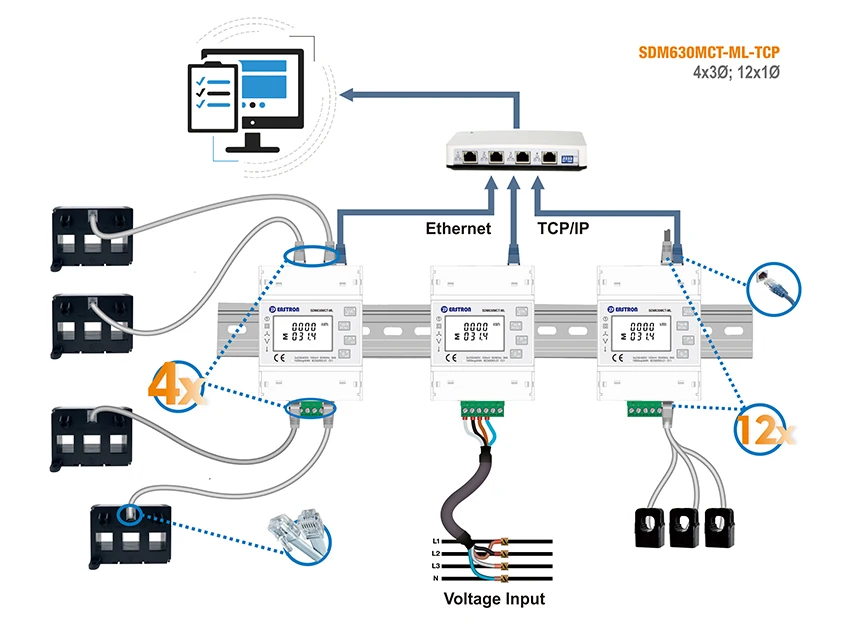

It can be used as 4x three phase energy meters or 12x single phase energy meters.

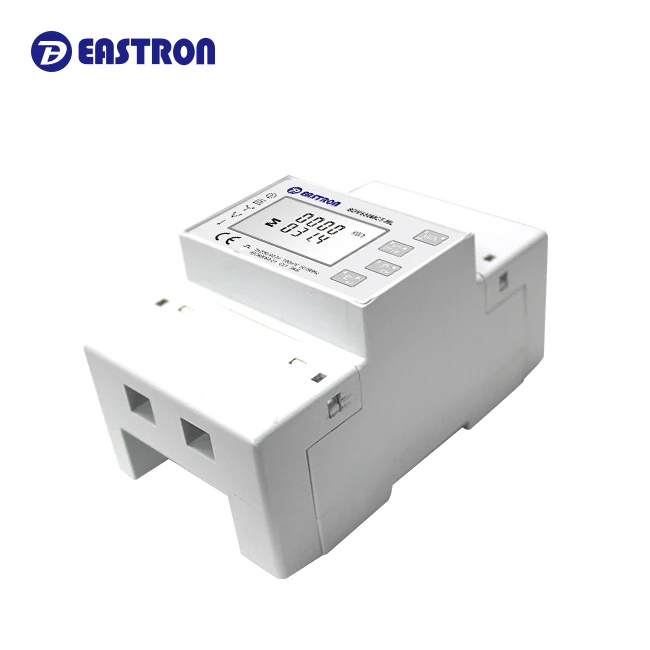

By using plug- in connectors, the meter provides an easy click solution saving 80% installation time and avoiding wiring mistakes.
Characteristics
| · Ethernet Modbus TCP/IP Communication | · Quad load option 4x 3 phase 4 wire |
| · Multi-parameters | · Accuracy Class 0.5S/1.0 |
| · CE certified/ MID pending | · Touch Button Operation |
· Bi-directional measurement IMP & EXP | · Din Rail Mounting 35mm |
· Phase sequence indication | · Backlit LCD Display |
Input & Output | ||
Input-Current
| CT Secondary | 100mA / 100mV |
CT Primary | 1-9999A | |
Min. Current | 0.25A | |
Starting Current | 10mA | |
Output | Ethernet Modbus TCP/IP | |
Modbus Communications | |
Interface Standard and Protocol | Ethernet Modbus TCP/IP |
Communication Address | 1~247 |
IP Address Assignment | DHCP Factory default address: 192.168.1.200 |
Data Type | Floating Point |
Transmission Speed | >100MB |
Response Time | <100 mS |
Measurement Accuracy | |
Power | IEC 61557-12 Class 0.5 |
Active Energy | IEC 62053-22 Class 0.5S, IEC 61557-12 Class 0.5 |
Reactive Energy | IEC62053-23 Class 2, IEC 61557-12 Class 2 |
Frequency | ±0.2% |
Voltage | ±0.2% |
Power Factor | ±0.01 |
Harmonic Distortion | 2 |
