Current Sensing Switch Overload Linkage Switch Normally Open Module 3 Years CE ROHS Normally Closed Type Furison 1 200A CN;GUA
- Category: >>>
- Supplier: Guangdong Fengli Electronics Co. Ltd.
Share on (1600389765879):
Product Overview
Description
Basic function
For the normally open type, when the wire current passing through the hole is greater than the set value, the output terminal is turned on,When the current of the wire passing through the hole is less than the set value, the output terminal is disconnected.
For the normally closed type, when the wire current passing through the hole is greater than the set value, the output terminal is turned off,When the current of the wire passing through the hole is less than the set value, the output terminal is connected.
It can switch signals to relays, LED lights, alarms, PLCs, etc., so as to play a role in automatic control.
PRODUCT SPECIFICATIONS
Item | Data |

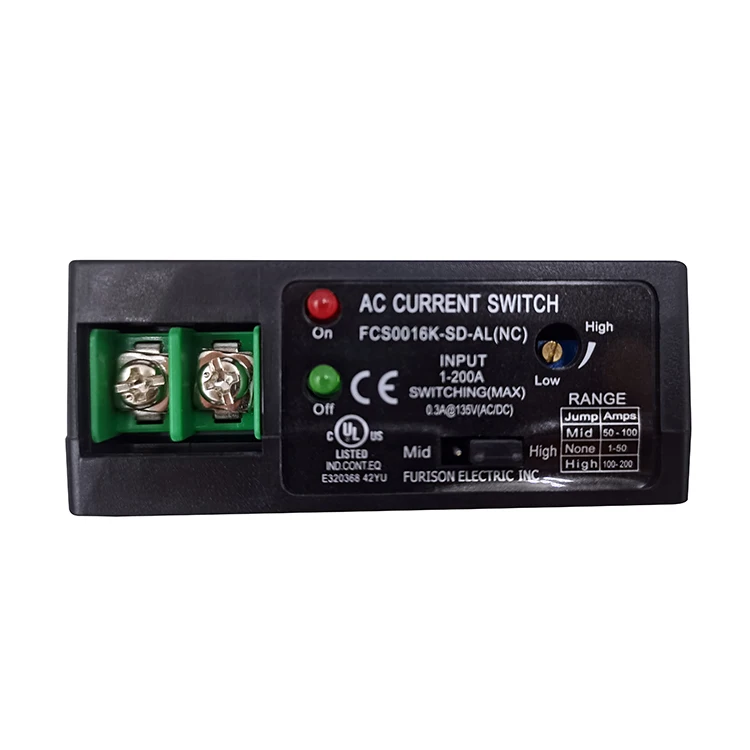

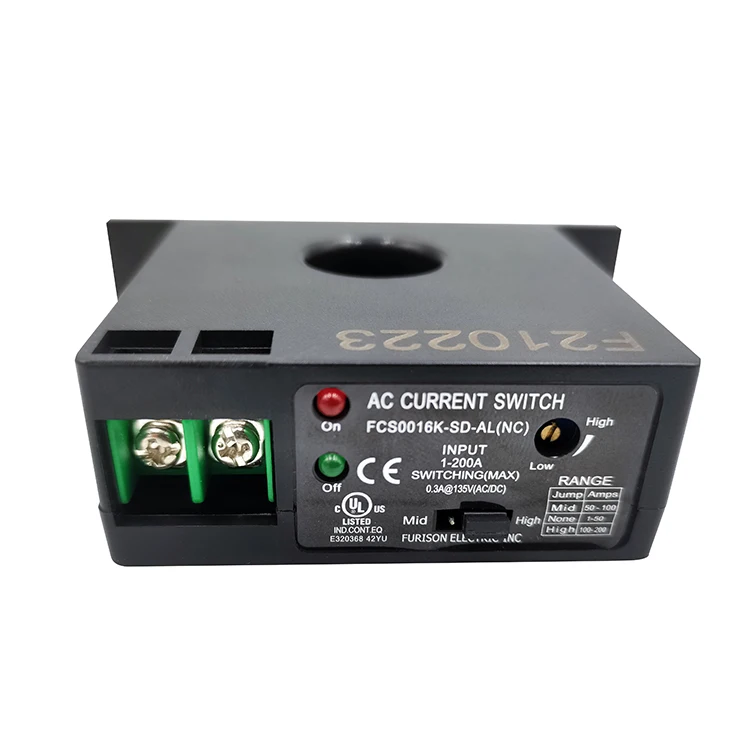

Model | FCS0016K-SD-AL(NC) |
Brand | Furison |
Type | Normally closed |
Core type | Solid-core |
Power-supply | None, self-powered. |
Setpoint range | 1-200A |
Certification | CE/ROHS/UL |
Output rating | 0.3A@135V AC/DC |
Frequency range | 10-200Hz |
Hysteresis | ≤ 1% |
Accuracy | 10% |
Repeatability | 100% |
Power consumption | ≤ 1W |
Response time | ＜200Ms |
Off-state leakage | ≤ 1mA |
Environmental | -20-60℃ 10-95% RH (none-condensing) |
Overload | 200% (< 200% of the rated feedthrough current). |
Dimensions | 90*25*61mm (Aperture 20mm) |
Characteristics:
> Mutual inductance current monitoring, safe isolation of input and output, self-powered
> The monitored current range is within 200A, and the monitoring setpoint can be set at any point
within this range.According to the needs of the application, it can also be set to a fixed start setpoint.
> Hysteresis <1%, can be used in a strong magnetic environment.
> Non-contact electronic switch, fast response speed, no limit on the number of on-offs.
> The shell is made of fireproof material ABS.
PRODUCT CONFIGURATION

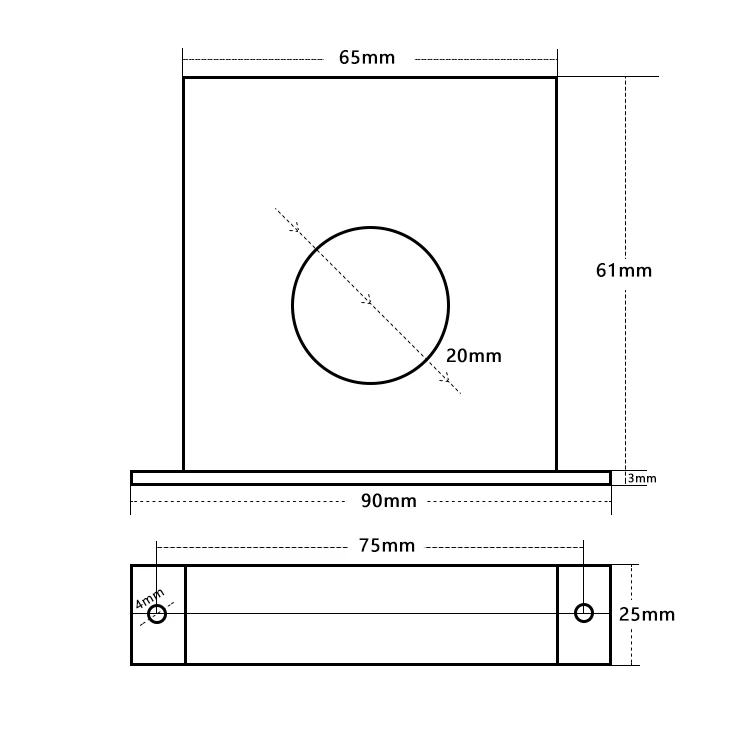

PRODUCT SIZE

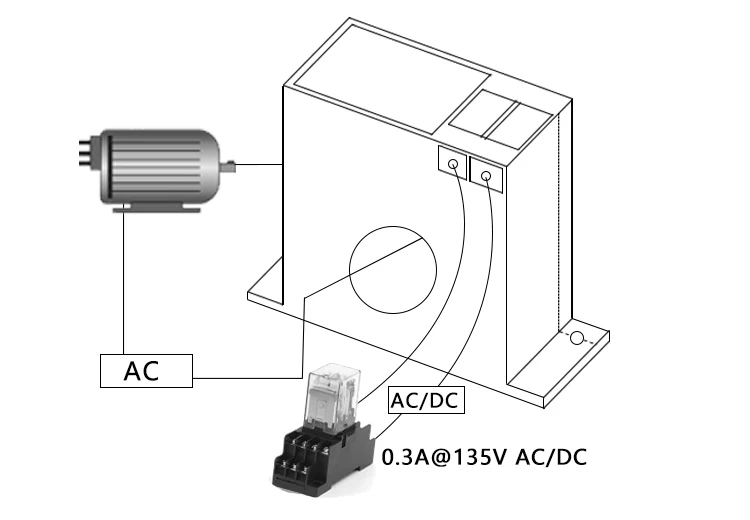

WIRING DIAGRAM
Normally open:
When the current through the perforated line is greater than the set value, the output terminal is connected
When the current through the perforated line is less than the set value, the output terminal is disconnected
When the current through the perforated line is less than the set value, the output terminal is disconnected
Normally closed:
When the current through the perforated line is greater than the set value, the output terminal is disconnected
When the current through the perforated line is less than the set value, the output terminal is connected
When the current through the perforated line is less than the set value, the output terminal is connected
ENTERPRISE DISPLAY
Fengqi brand current mutual inductance switches have passed CE,FCC, and ROSH certifications, with reliable
and stable quality, and are widely welcomed by merchants, manufacturers and partners from all walks of life.
Guangdong Fengli Electronics Co., Ltd. is an electronic technology company integrating R&D, manufacturing
and sales. The company's main products include AC and DC mutual inductance switches, current transformers,
ammeters, current transmitters, digital display current mutual inductance switches, small intermediate relays
and other products.
WORKSHOP DISPLAY
TRANSPORT PACKAGING
