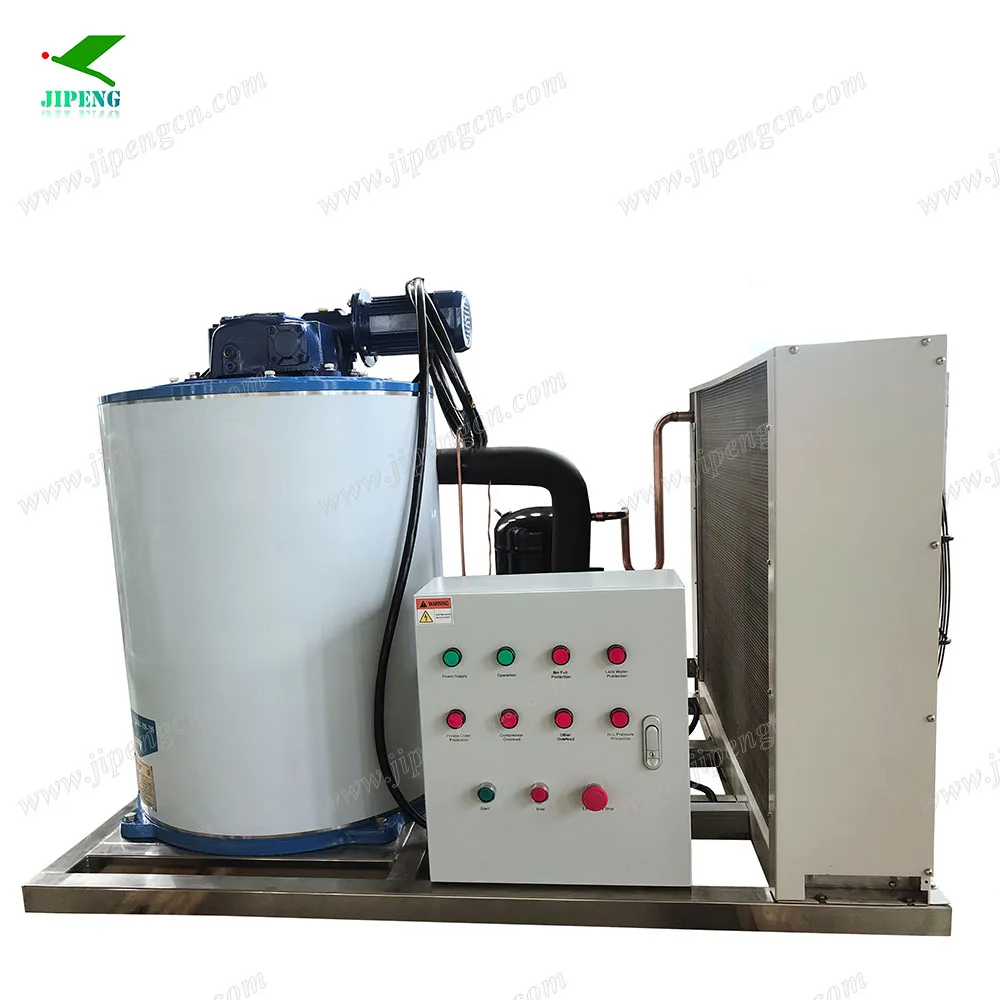

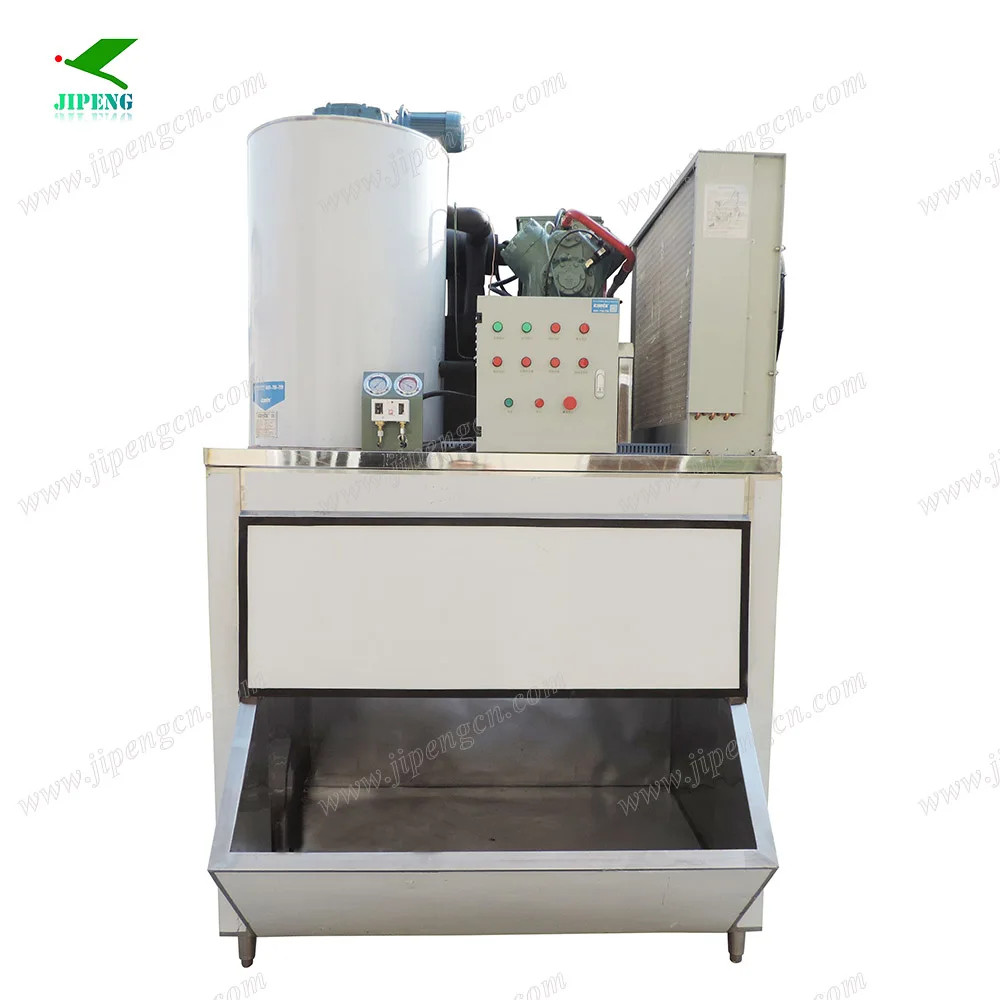

Best Price Automatic flake Ice Making Machine flake ice maker dry ice maker machine
- Category: >>>
- Supplier: Shijiazhuang Jipeng Import And Export Co. Ltd.
Share on (1600390259671):
Product Overview
Description
Product Description

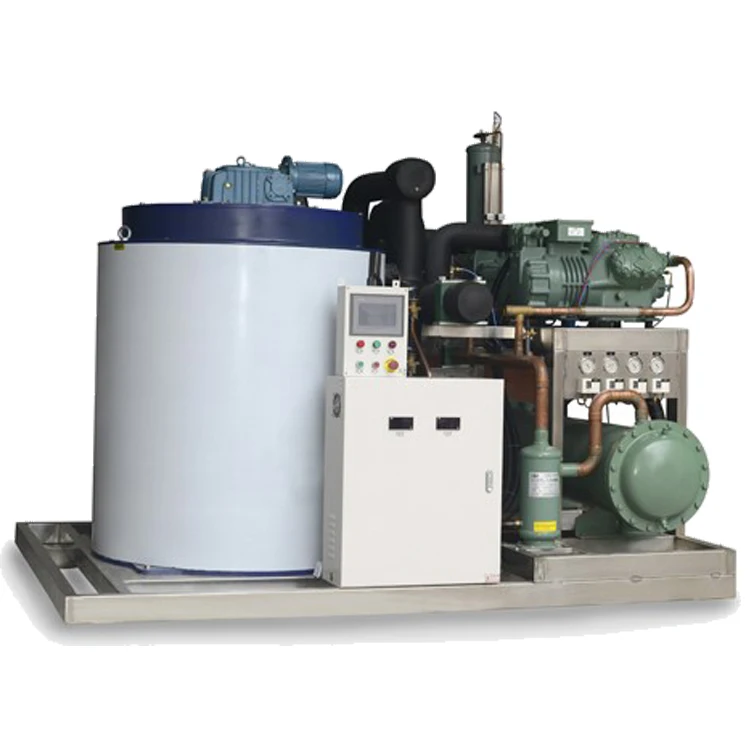

The unique Flake Ice Machine specifically to freeze ice automatically in stainless steel cylinder, ice will loose from the interior cylinder by ice cutter. We have have fresh water type and seawater type for different water supply.
1.The flake ice machine is very economical with low consumption.
2.Wide interface area and fast refrigeration.
3.The flake shape so that it has big contact area with refrigerating products and the effect is excellent.
4.The thickness of flake ice is 1mm-2mm. No need to crush and can use at any time.
5.As the dry property, flake ice made by our flake ice machine is dry and transparent, good looking shape, non-caked, good mobility and sanitary, so convenient for storage and transport.
6.The temperature of ice can reach -5℃.
2.Wide interface area and fast refrigeration.
3.The flake shape so that it has big contact area with refrigerating products and the effect is excellent.
4.The thickness of flake ice is 1mm-2mm. No need to crush and can use at any time.
5.As the dry property, flake ice made by our flake ice machine is dry and transparent, good looking shape, non-caked, good mobility and sanitary, so convenient for storage and transport.
6.The temperature of ice can reach -5℃.
Specification
Name | MIF1T-R4A | MIF2T-R4A | MIF3T-R4A |
The technical data based on | 25℃ambient temp. 20℃water inlet temp. | 25℃ambient temp. 20℃water inlet temp | 25℃ambient temp. 20℃water inlet temp |
Daily Output(Ton/24hrs) | 1T/24h | 2T/24h | 3T/24h |
Cooling Capacity(kw) | 5.8 | 13kW | 23.2kw |
The evaporating temperature | -20℃ | -20℃ | -20℃ |
The condensing temperature | 40℃ | 40℃ | 40℃ |
General Power(kw) | 4KW | 8.57KW | 13KW |
Compressor Input(kw) | 3.4KW | 0.88KW | 0.88KW |
Input power of condensing fan | 0.460KW | 7.2KW | 11.7KW |
Reductor Power(kw) | 0.18 KW | 0.37 KW | 0.37 KW |
Pump power | 0.009KW | 0.12KW | 0.12KW |
Power supply | 3P-380V-50Hz | 3P-380V-50Hz | 3P-380V-50Hz |
Feed water pressure | 0.1Mpa－0.5Mpa | 0.1Mpa－0.5Mpa | 0.1Mpa－0.5Mpa |
Refrigerant | R404A | R404A | R404/R22 |
Flake ice temperature | -5℃ | -5℃ | -5℃ |
The ice thickness | 1.6mm-2.3mm | 1.6mm-2.3mm | 1.6mm-2.3mm |
Water consumption（M3/h） | 0.04 | 0.083 | 0.125 |
Water Inlet/ Drain Pipe | 1/2’’ | 1/2’’ | 1/2’’ |
Weight(kg) | 450kg | 500kg | 600KG |
Dimension(mm)（L*W*H）mm | 1320×900×900 | 1500×1100×1150 | 1700×1200×1245 |

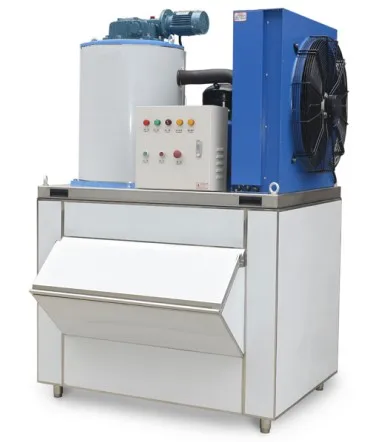

Dimension with ice bin（L*W*H)mm | 1320×1200×2100 | 1735×1420×2350 | 1700×1635×2645 |
Application
Recommend Products
Packing & Delivery
carton or Solid Plywood Cases suitable for long distance transportation
Company Profile
Shijiazhuang Jipeng Imp. & Exp. Co., Ltd. established in 1998, is one of the largest company that specialized in meat processing machinery and food packing materials in Hebei Provice.We are well know for excellent products, unbelievable service and very fast production.
Our main products is: polyamide sausage casing, filling machine, clip machine, bowl cutter, mixer, smoke house,tumbler, Aluminum clips......
Due to the good quality and favorable price,our products are widely accepted by the customers from Asia,Australia,North America, Europe,and Africa.
our mission is simple-to be your partner in identifying and developing solutions that meet your unique business needs. We will be there for you every step of the way.
Our main products is: polyamide sausage casing, filling machine, clip machine, bowl cutter, mixer, smoke house,tumbler, Aluminum clips......
Due to the good quality and favorable price,our products are widely accepted by the customers from Asia,Australia,North America, Europe,and Africa.
our mission is simple-to be your partner in identifying and developing solutions that meet your unique business needs. We will be there for you every step of the way.
FAQ
1. How can we guarantee quality?
A: Always a pre-production sample before mass production;Always final Inspection before shipment.
2.How long is the warranty period?
A: Warranty period is 12 months.During the warranty period, we will undertake replacement of the defect parts.
3. Can you provided the worldwide service?
A: Yes, the worldwide service can be provided. If you want the start-up or repair of our machine at site, you just need to pay the traveling costs for our service engineer(s).
4. Why should you buy from us not from other suppliers?
A: high quality, unbelievable service, excellent reputation
5.What services can we provide?
A: Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
6. Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
A: Always a pre-production sample before mass production;Always final Inspection before shipment.
2.How long is the warranty period?
A: Warranty period is 12 months.During the warranty period, we will undertake replacement of the defect parts.
3. Can you provided the worldwide service?
A: Yes, the worldwide service can be provided. If you want the start-up or repair of our machine at site, you just need to pay the traveling costs for our service engineer(s).
4. Why should you buy from us not from other suppliers?
A: high quality, unbelievable service, excellent reputation
5.What services can we provide?
A: Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
6. Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
