Product Overview
Description

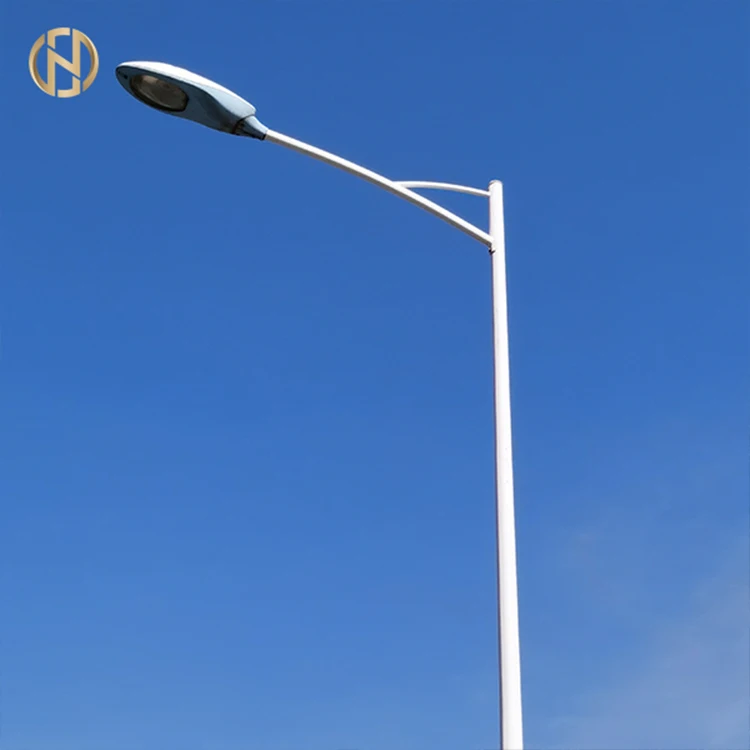

8M 10M Galvanized Double Arm Octagonal Street Lighting Pole
Company information
Product Description
1.Wind speed: more than 30M/sec
2.Anti-seismic design: more than level 7
3.Mast material:ASTM A572 GR65/Q345/Q235/GR50
4.Mast structure: 8/12/16/20 sided/Round conical fo
5.Mast assembly: no welding on site/slip joint
6.Anti-corrosion protection: hot dip galvanization/hot dip galvanization and powder coating fo
7.Mounting Height: 1-16M
8.Brackets:Single or double brackets are in the shape and dimension as per customers requirement for promotional commercial street light pole
9.Welding:Welding confirms with international welding standard of CWB fo
10.Base plate mounted:Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement
11:Ground mounted:The length buried underground as per customers requirement
12:Galvanizing Or Powder Coating:Hot dip galvanization with thickness of 80-100µm average
13:customized service or design service by Offered
Height | From 10 m to 16m for street light steel lamp post support column |
Airport ,seaport,plaza,stadium ,square,highway,street way etc | |
Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
Material | Usually Q345B/A572, Q235B/A36,As well as Hot rolled coil from Q460 , ASTM573 GR65, GR50,SS400,SS490, to ST52- |
Lamp power | 200 W- 2000 W (HPS/MH) 220V (+-10%) /50Hz |
Torlance of the dimenstion | +- 2% |
Optical assembly of lighting fixture | IP 65 |
Electroshock resistant protective grade | Grade one |
The casing anti-corrosion performance | Class two |
Working atmosphere of lighting fixture | -35 °C~+45 °C |
Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
Joint of Poles | Insert mode,innerflange mode,face to face joint mode |
Design of pole | Against earthquake of 8 grade |
Wind Speed | 160 Km/Hour |
Minimum yield strength | 355 mpa |
Minimum ultimate tensile strength | 490 mpa |
Max ultimate tensile strength | 620 mpa |
Standard | ISO 9001 |
Length of per section | Within 14m once forming without slip joint |
Welding | We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1 |
Thickness | 1 mm to 30 mm |
Production Process | Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages |
Product Name | street light steel lamp post support column |
Certifications
Futao Metal is fully licensed to operate as an international supplier of steel products. Our ISO 9001 certification ensures that our company adheres to the highest manufacturing standards and is able to consistently produce high quality products that meet our customers’ needs. In addition, our company has gone through vigorous inspection conducted by SGS group to ensure our production and manufacturing process meets international standards.
Production Prcess

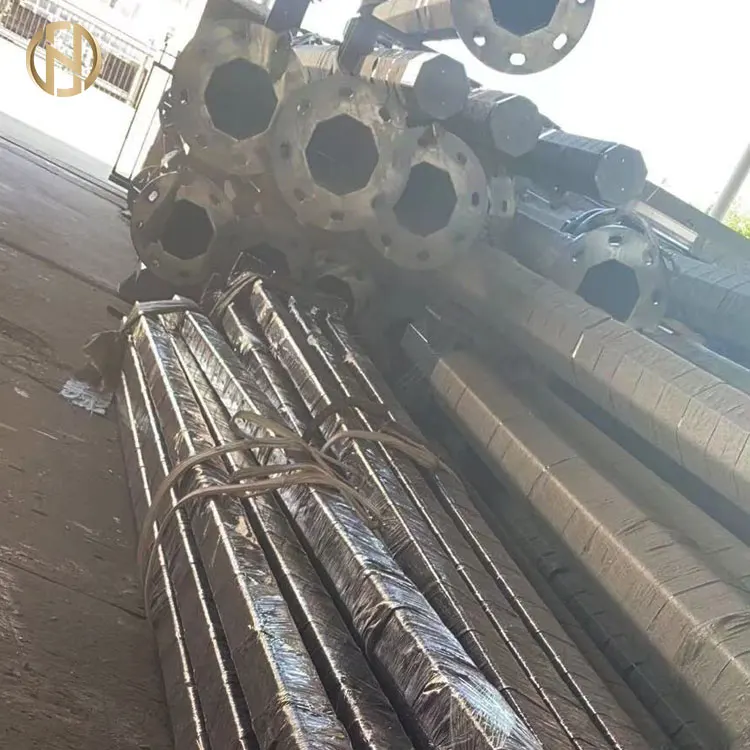

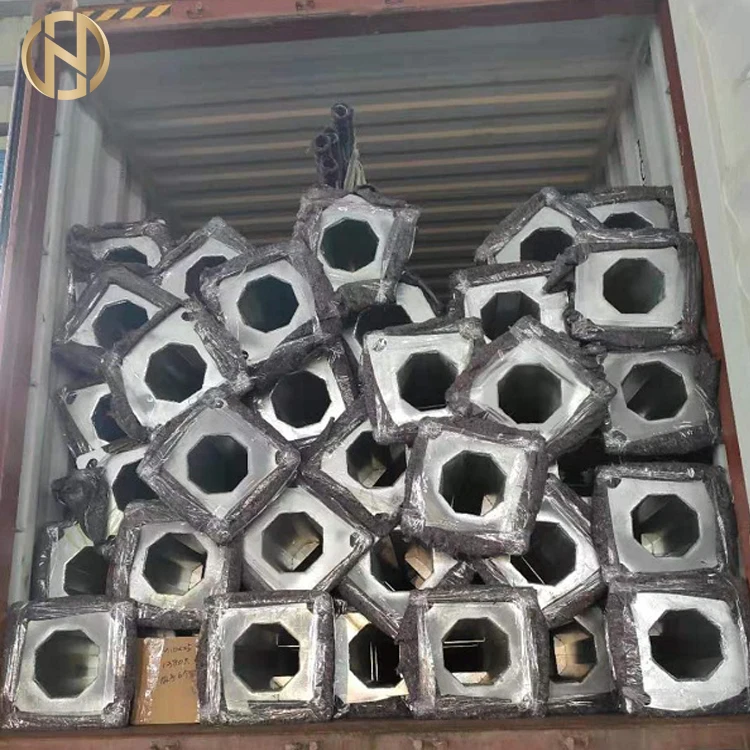

Package
