High quality durable using various granule making floating fish feed pellet machine
- Category: >>>
- Supplier: Shandong Benro Machinery Co. Ltd.
Share on (1600390769080):
Product Overview
Description
Product Description
New technology floating fish feed processing line
1) Raw materials of dog/cat/fish food:
wheat/ corn flour, fish meal, born powder, animal oil,soya meal, mustard cake,
2) Final food : different shapes and sizes of dog food,cat food,shrimp feed,fish feed,poultry feed
3) Capacity: 150kg/h, 250kg/h, 500-600kg/h,800-1500kg/h,2-3t/h,4-6t/h
4) Consumption: Low electricity and labor consumption
5) Design: With flexible design based on the client's demands, we provide turn key project.6)Flow of chart: Mixer -Screw conveyor -Twin-screw extruder -Eelevator-Dryer-Hoister -Flavoring line -cooling conveyor.
wheat/ corn flour, fish meal, born powder, animal oil,soya meal, mustard cake,
2) Final food : different shapes and sizes of dog food,cat food,shrimp feed,fish feed,poultry feed
3) Capacity: 150kg/h, 250kg/h, 500-600kg/h,800-1500kg/h,2-3t/h,4-6t/h
4) Consumption: Low electricity and labor consumption
5) Design: With flexible design based on the client's demands, we provide turn key project.6)Flow of chart: Mixer -Screw conveyor -Twin-screw extruder -Eelevator-Dryer-Hoister -Flavoring line -cooling conveyor.
Model | SLG65-III | SLG70-II | SLG85-II | SLG95 | SLG120 |
Power | 95kw | 120kw | 140kw | 180kw | 230kw |
Output | 100-150kg/h | 200-250kg/h | 500-600kg/h | 1ton/h | 2ton/h |
Dimension | 22× 2× 4 | 24× 2× 4 | 28× 2× 5 | 32× 2× 5 | 35× 2× 5 |

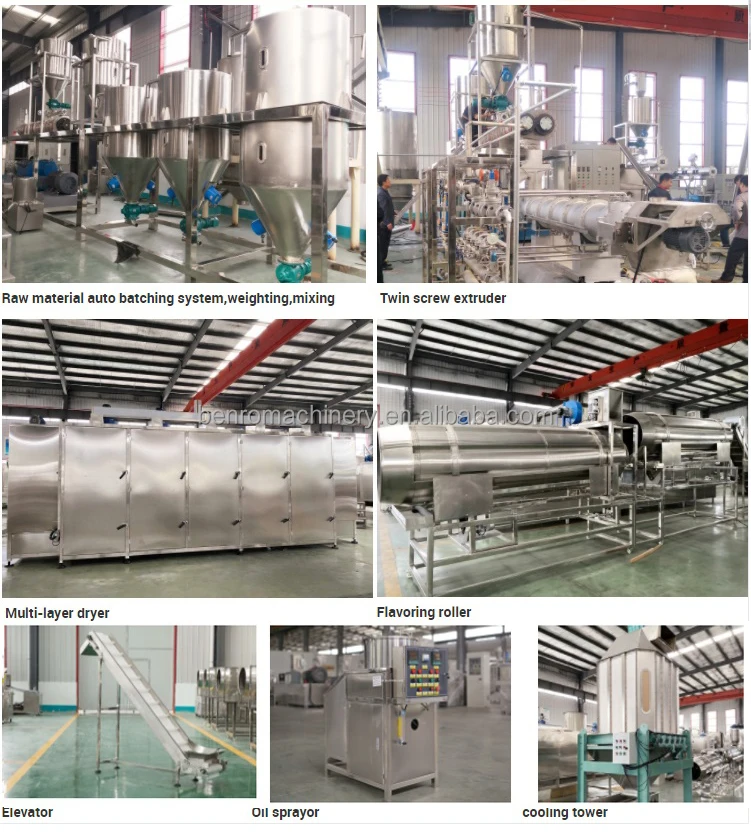

Production Process
Product Paramenters

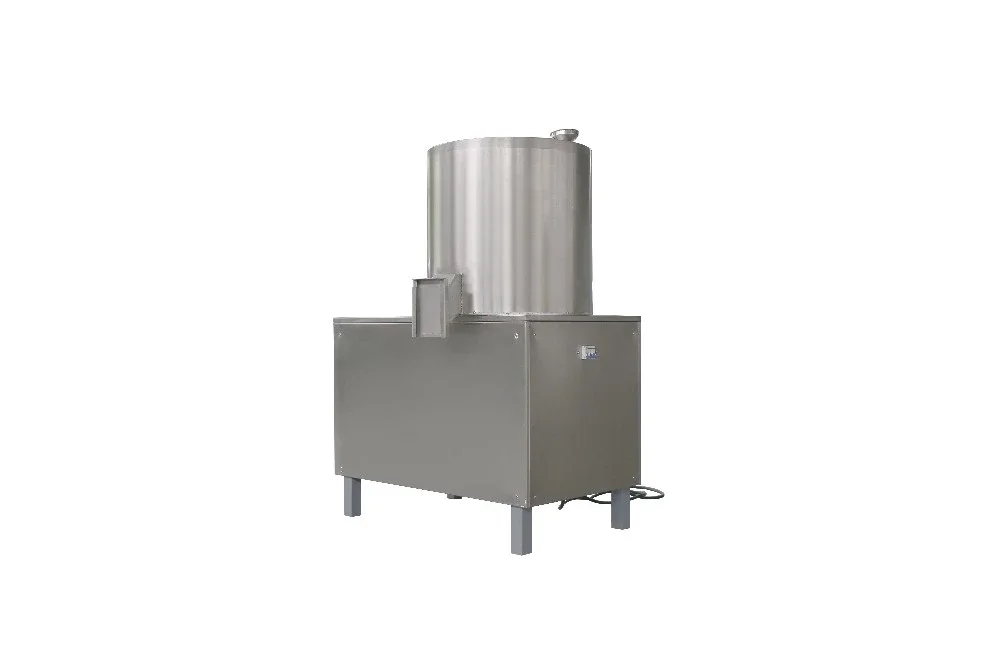

Mixer
1 This equipment can mix material,water and other additives.It is the first step of food processing.
2. The whole barrel is stainless steel
3.Concave design could prevent the leaking of dust
4.The discharge hole is add with a special module to avoid leaking

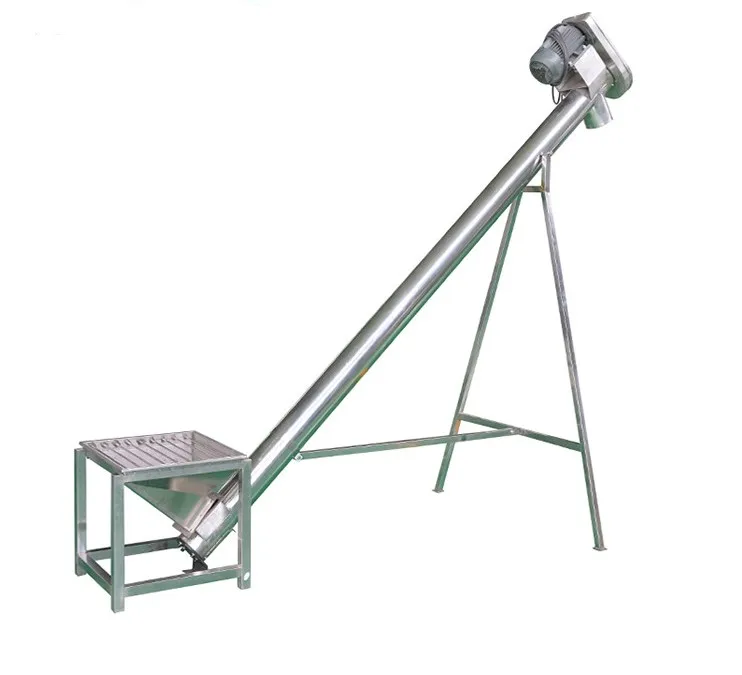

Screw conveyor
1Thematerials is conveyed in a sealed stainless steel roller to the feeding hopper of extruder without leaking and dust pollution.Its feed quantity is even and stable
2.The conveying speed can be controlled bu frequency inverter to follow the feeding speed of extruder

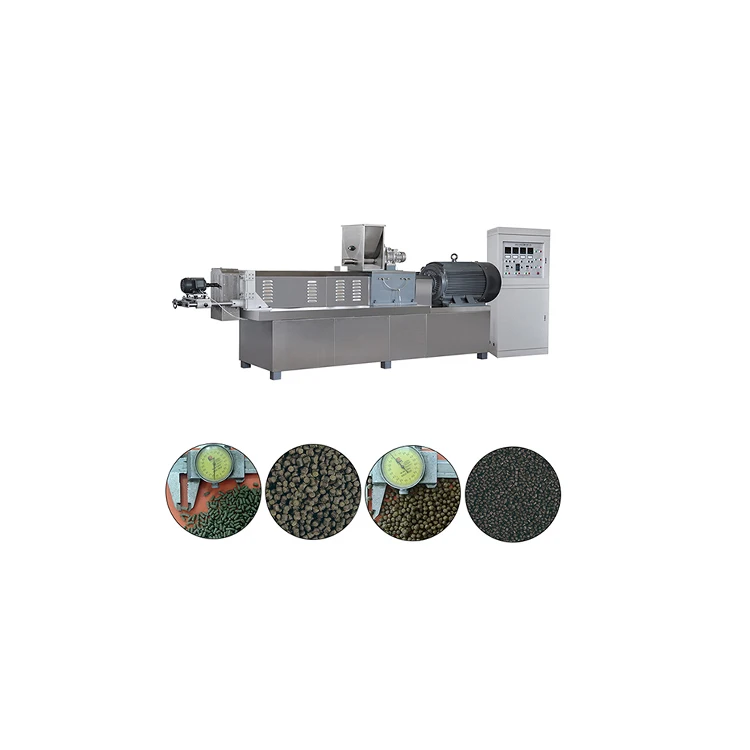

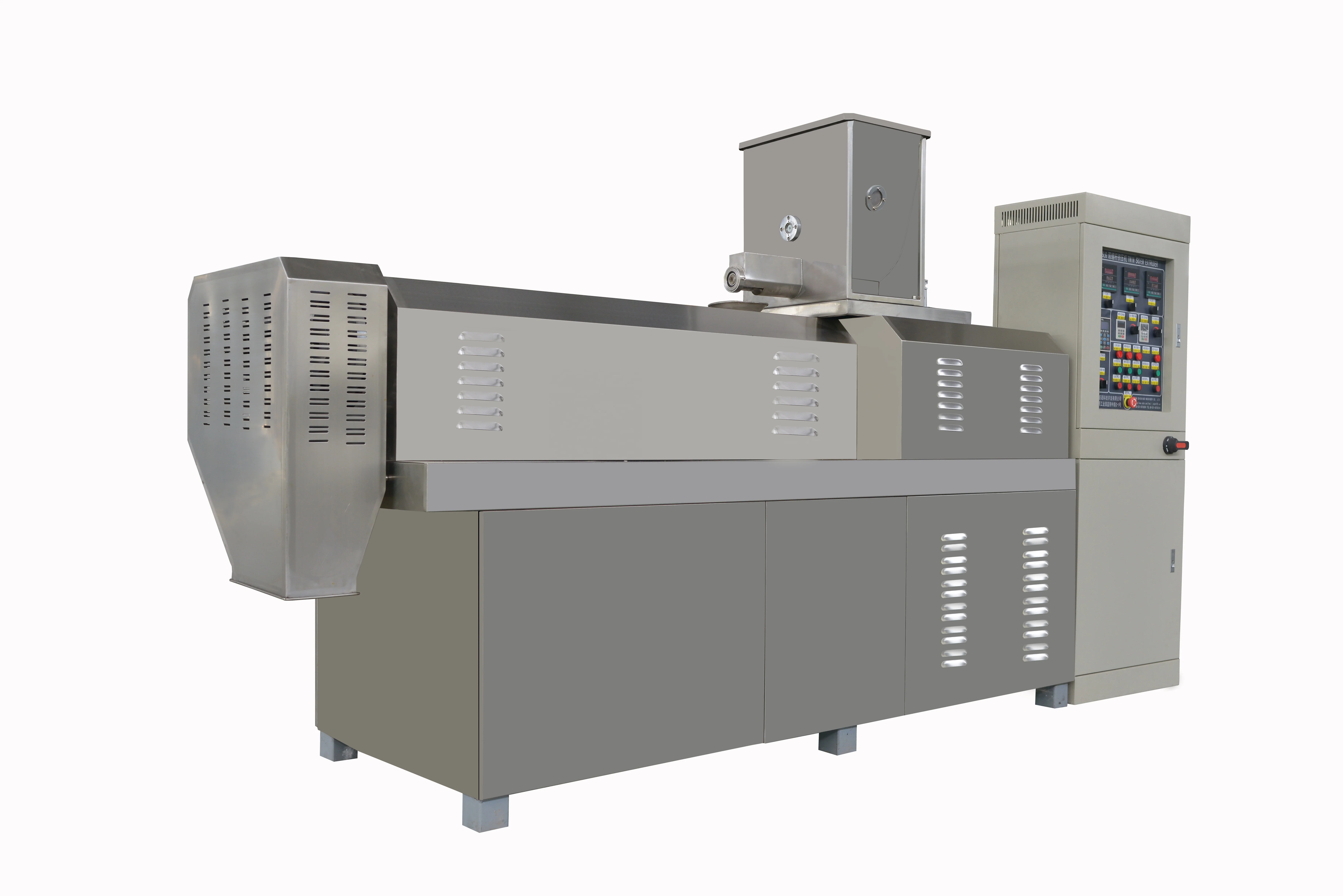

Twin-screw extruder
1.The screw is made by alloy steel and special craft-Cr12Mov
2.The barrel and screw are both designd especially for PET FOOD production
3.Controlling system,feeding system,extruding system,heating system,cutting system,lubricating system.
4. Invereter controls the speed of main motor,feeding motor,cutting motor,which can save power and protect the extruder

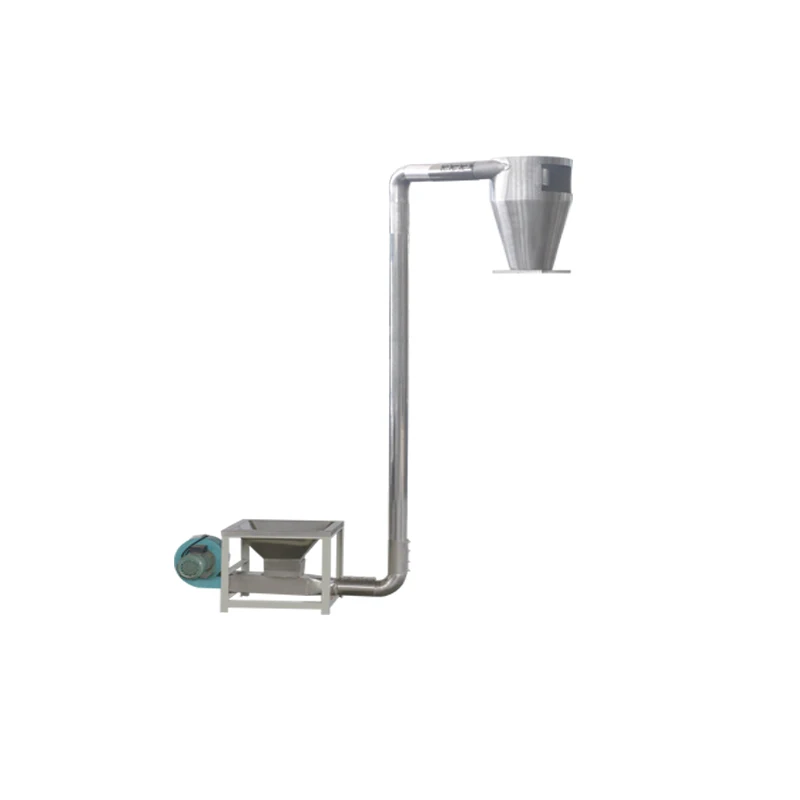

Air conveyor
The raw material can be conveyed in the stainless steel roller by the air conveyor

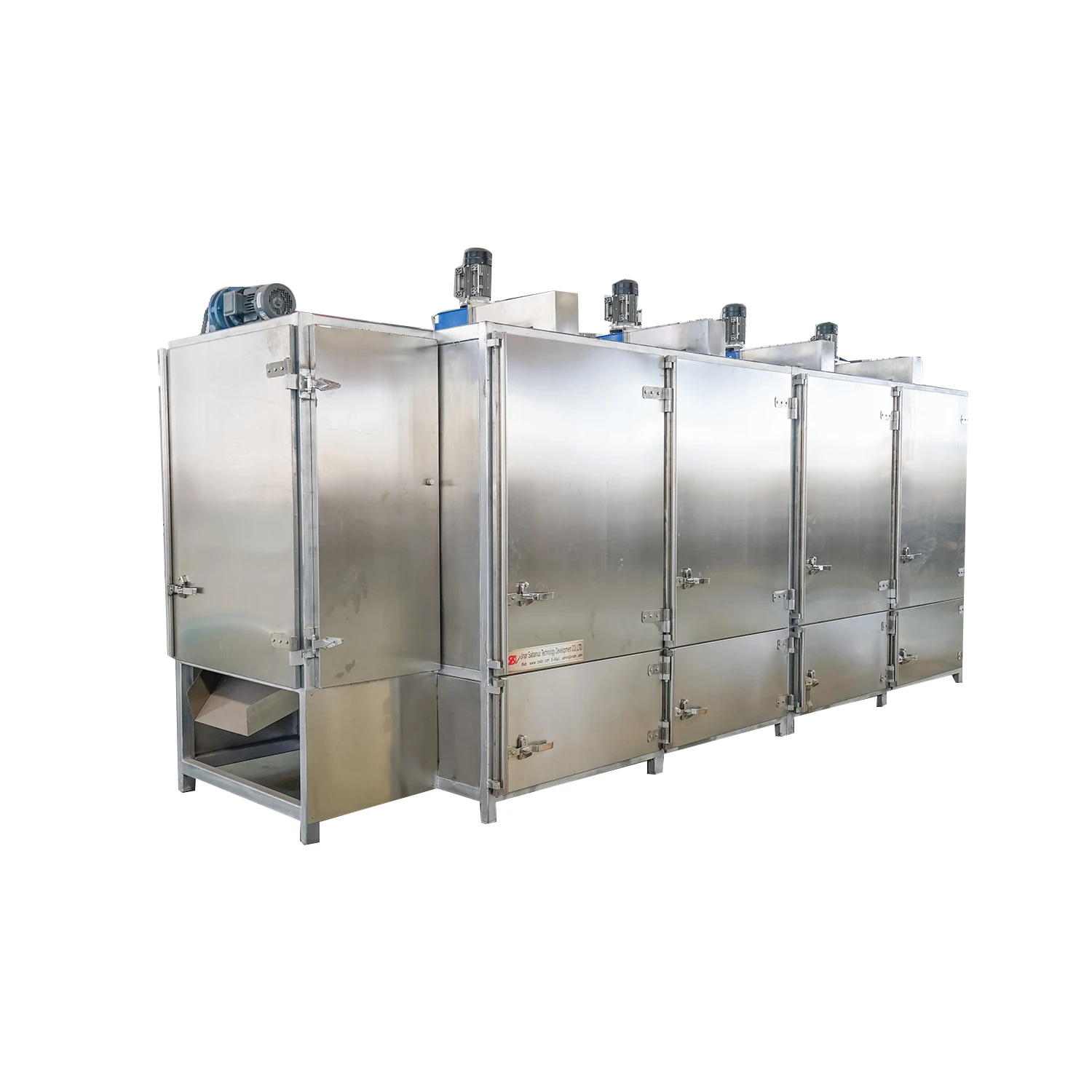

Oven
1.Support frame:carbon steel
2.Machine cover inside and outside :stainless steel
3.Heat preservation:Rock wool
4.The heating way is using electric,gas or oil
Oil sprayer
1.Metal material:Stainless steel
2.Fuel injector:Copper
3.Stainless steel cylinders to put the oil in, use the air compressor to spray the oil into the roller and flavor the product

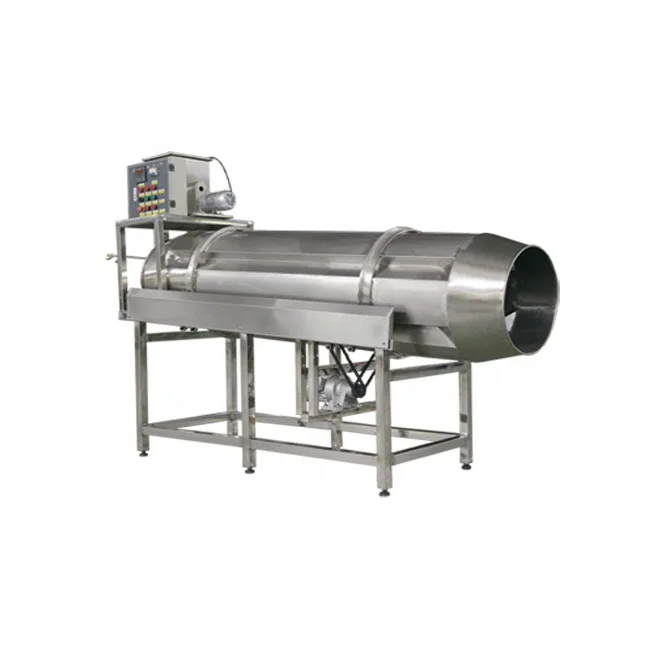

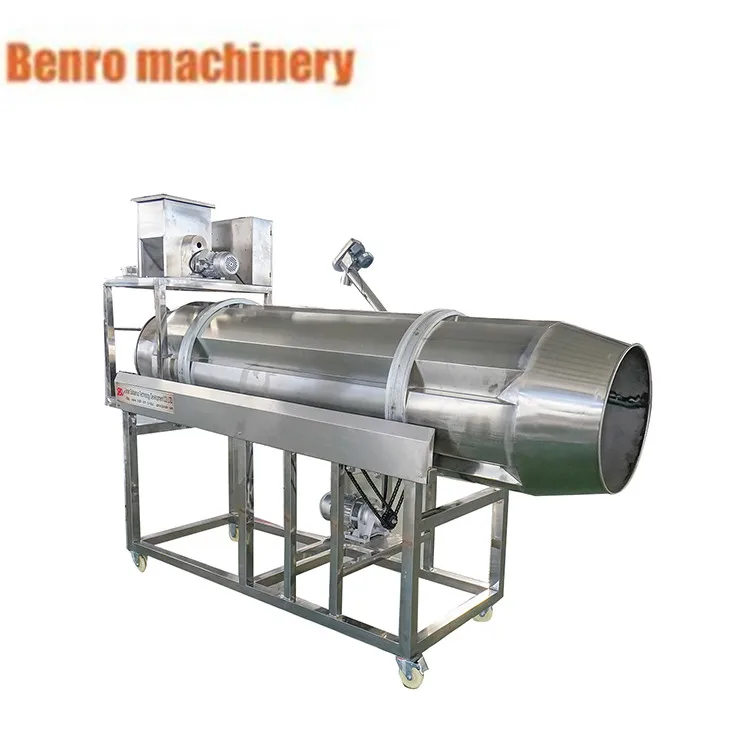

Flavoring roller
By the turning of the tumbling box, it can coat the products with even layer of the coating flour.Increase the quantityof the flour on the products surface.It causes the obvious scaly food surface.

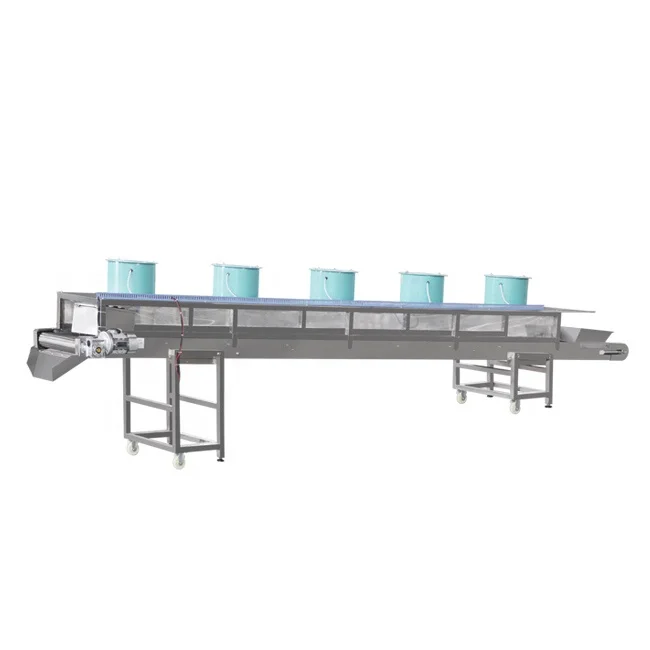

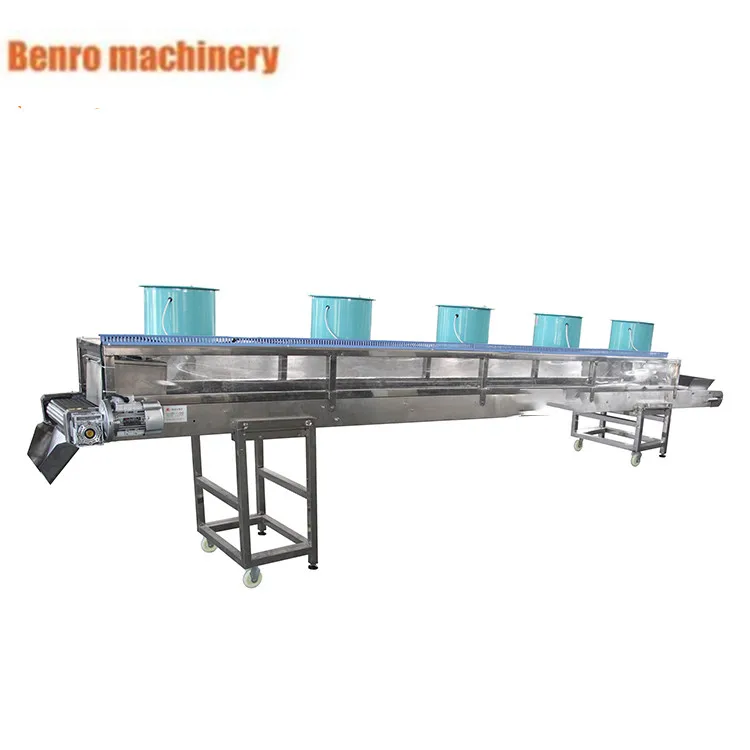

Cooling conveyor
After the product came out from the oven, the product still has some temperature, before packaging , it is better to cool it,the cooling conveyor with several cooling fans can finish this work.

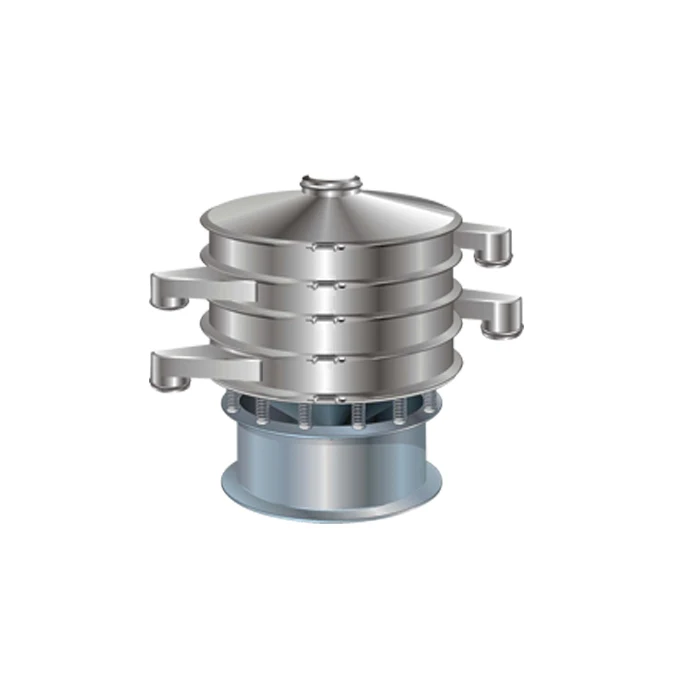

Sifter
1.It could screen out different size of fish feed for different function.
2.The size of screen could be adjusted as per your demand
3.There are two layers of screen inside to separate three different sizes of fish feed.

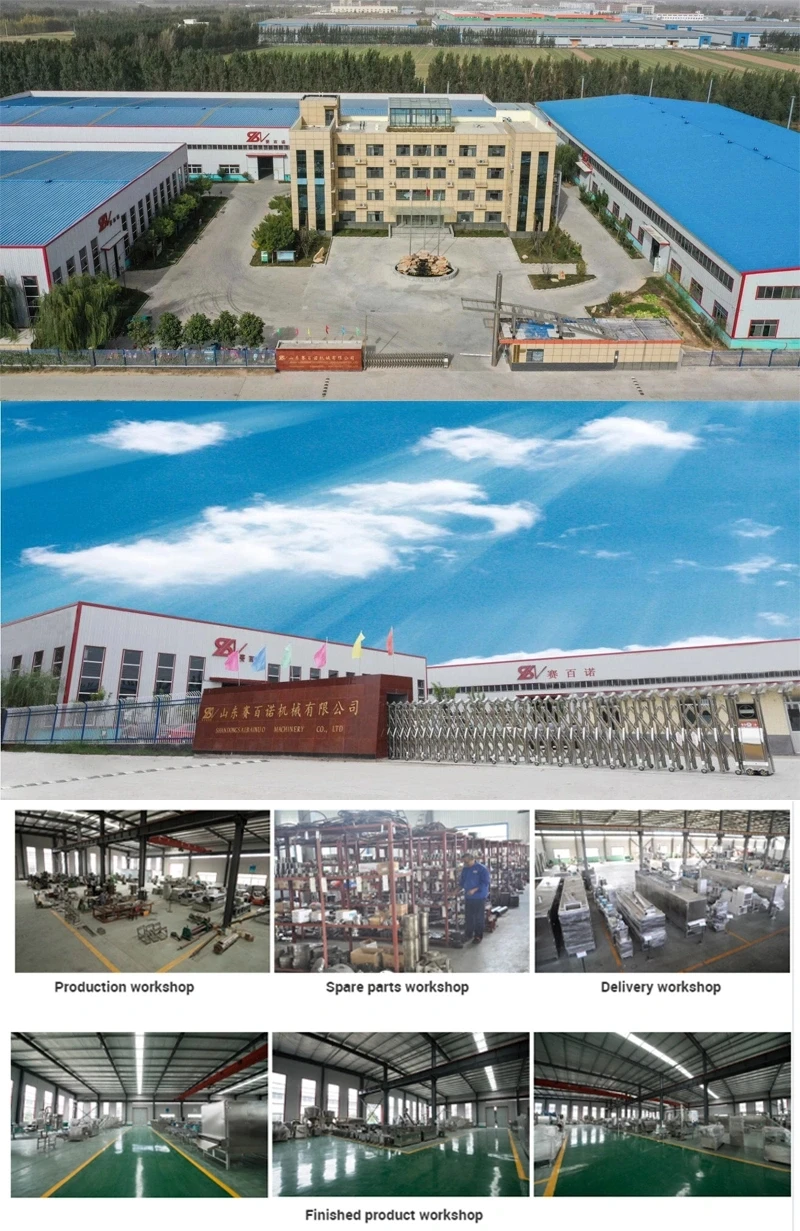

Company Profile
Shandong Benro Machinery Co., Ltd is professional manufacturer of advanced effective extrusion machinery and designer of system integration. We have a number of patent and proprietary technologies, and have special breakthrough on equipment and technological aspect,not only working hard to constantly researching extrusion technology, but also exploring food processes in order to benefit our clients producing creative food.
As a leading manufacturer of inflating food machinery, it is selling and marketing the machines to many countries in the word. We keep improving our machine and upgrade techniques to satisfy the requirement of all the clients. Depending on our rich experience and professional experts on the extruded food industry, we will offer the most suitable and complete program, which assures that your investment will get biggest profit.
Our advanced breakthrough technology sets high efficiency, low carbon emissions in one, and relying on its system solutions become a reliable partner for outstanding food enterprises,to make Saibainuo become efficient extrusion equipment manufacturing model and on the international market reputation.
Our factory contains Technical design, Production and assembly,Quality Inspection 3 department.All the machines will be made under advanced design,rigorous production and strict inspection.
This factory set experiments, demonstrations, training in one.At the same time, we welcome customers all over the world come to visit us and test the machinery. Beside, we could experiment the design,machinery, formula according to customer special requirements.
As a leading manufacturer of inflating food machinery, it is selling and marketing the machines to many countries in the word. We keep improving our machine and upgrade techniques to satisfy the requirement of all the clients. Depending on our rich experience and professional experts on the extruded food industry, we will offer the most suitable and complete program, which assures that your investment will get biggest profit.
Our advanced breakthrough technology sets high efficiency, low carbon emissions in one, and relying on its system solutions become a reliable partner for outstanding food enterprises,to make Saibainuo become efficient extrusion equipment manufacturing model and on the international market reputation.
Our factory contains Technical design, Production and assembly,Quality Inspection 3 department.All the machines will be made under advanced design,rigorous production and strict inspection.
This factory set experiments, demonstrations, training in one.At the same time, we welcome customers all over the world come to visit us and test the machinery. Beside, we could experiment the design,machinery, formula according to customer special requirements.
Exhibition
Cooperate
Packing & Delivery
FAQ
Q1:How can I get more information about your product?
A1:You can send us an email or ask our online representatives and we can send you the latest catalog and price list.
Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.please contact us directly.
Q3:What is the payment way of your company?
A3:T/T,sight L/C,Paypal,Western Union
Q4:What is the shipping way?
A4:By sea,air,Fedex,DHL,UPS,TNT etc.
Q5:How long for manufacturing once we place order?
A5:It's about 30 days after payment or disposit.
A1:You can send us an email or ask our online representatives and we can send you the latest catalog and price list.
Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.please contact us directly.
Q3:What is the payment way of your company?
A3:T/T,sight L/C,Paypal,Western Union
Q4:What is the shipping way?
A4:By sea,air,Fedex,DHL,UPS,TNT etc.
Q5:How long for manufacturing once we place order?
A5:It's about 30 days after payment or disposit.
