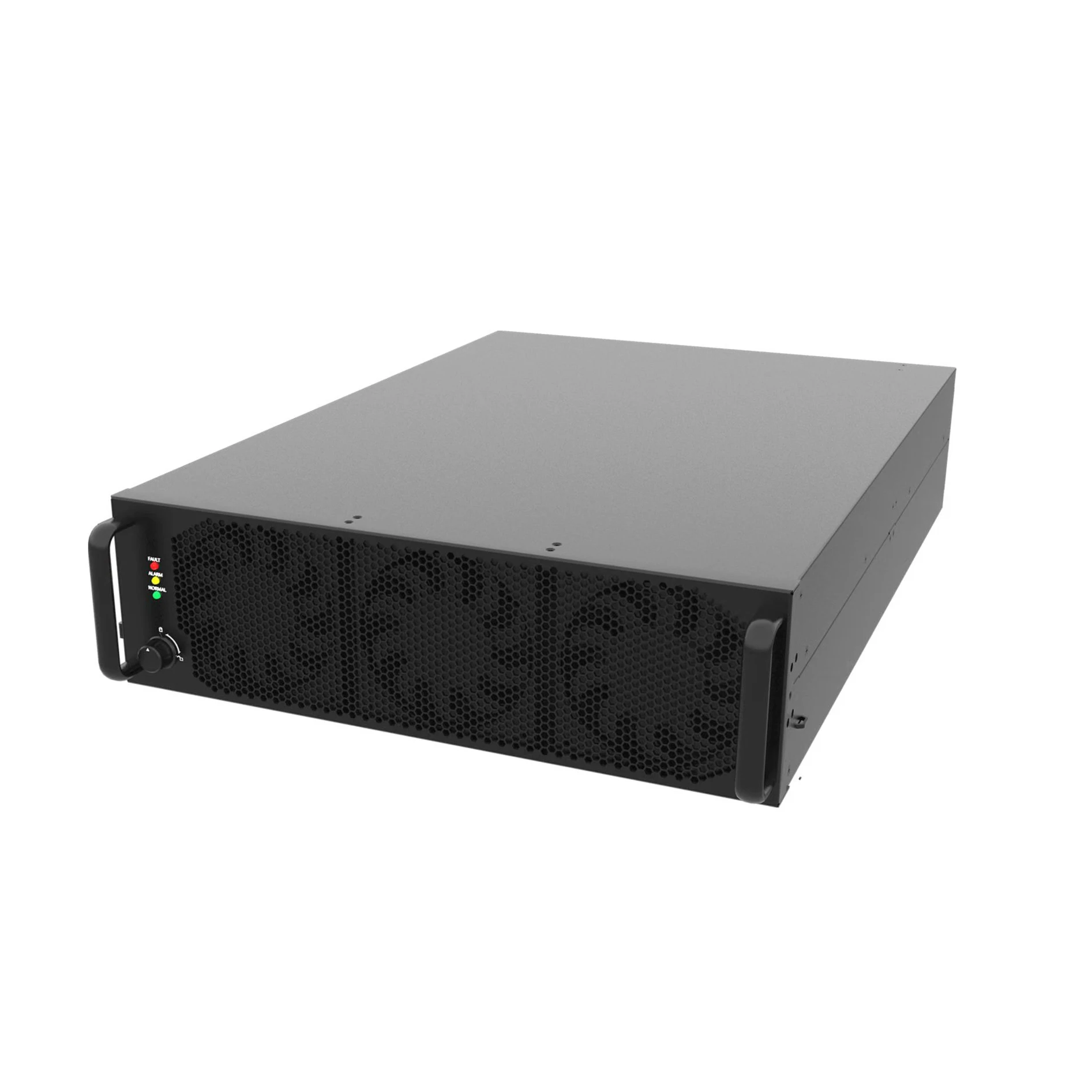

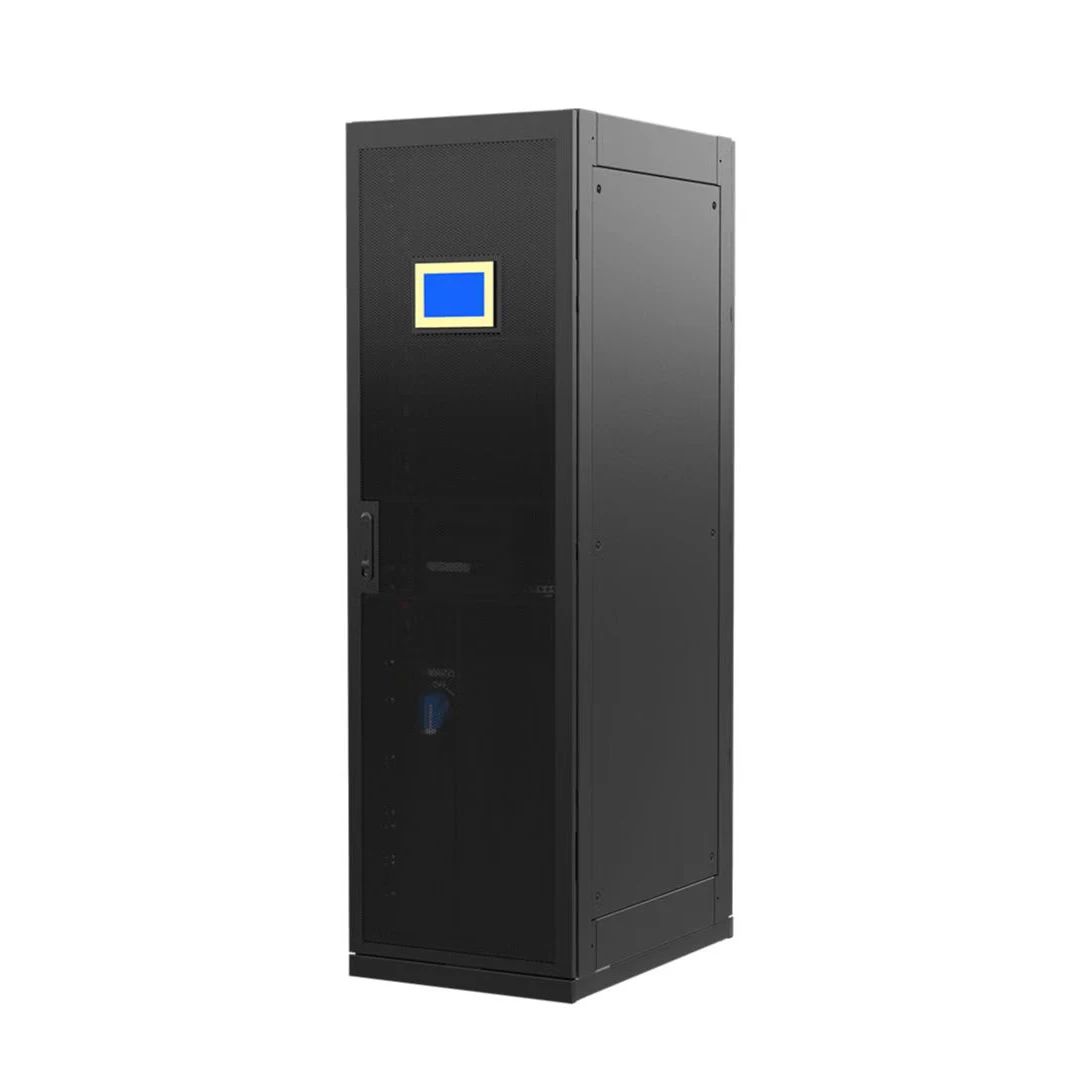

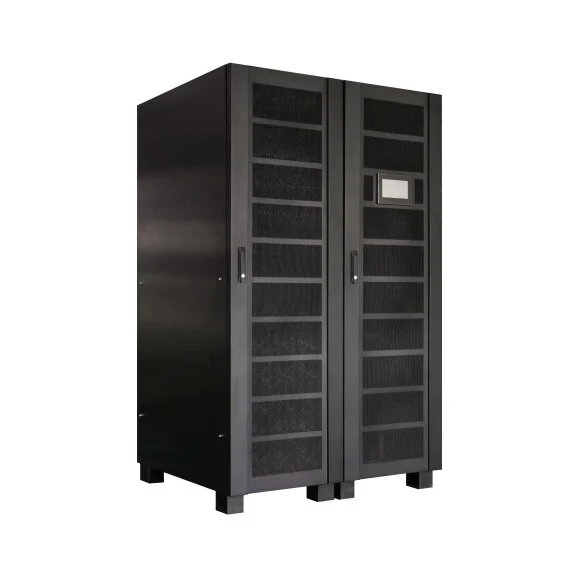

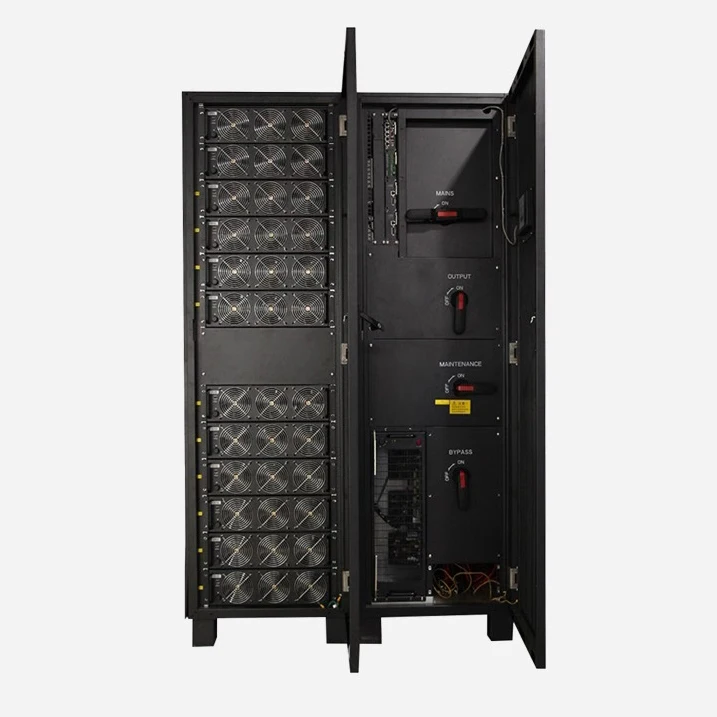

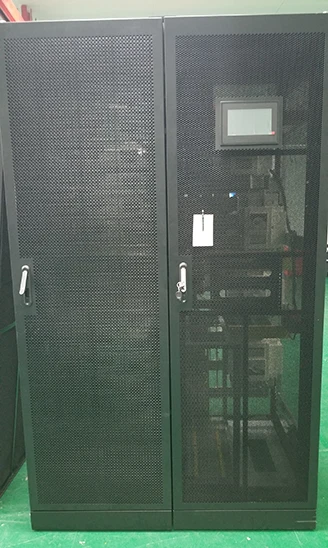

200KVA High Frequency Online Modular UPS 3 Phase 380V UPS Power Supply use Data Center
- Category: >>>
- Supplier: Shenzhen Zhongguanda Technology Co. Ltd.
Share on (1600390861544):
Product Overview
Description
Specification
Model | Power 30U-90 | +Power 42U-120 | +Power 30U-120 | +Power 30U-180 | +Power 42U-210 | |||||
TYPE | Standard Series | Extended Series | ||||||||
PHASE | 3-phase in/3-phase out | |||||||||
MAX. TOTAL CAPACITY | 90 KW | 120 KW | 120 KW | 180 KW | 210 KW | |||||
MAX. UPS POWER MODULES | 3 | 4 | 4 | 6 | 8 | |||||
TOPOLOGY | True Double-Conversion Online | |||||||||
INPUT | ||||||||||
Nominal Voltage | 3 x 400 VAC (3Ph+N) | |||||||||
Voltage Range | 305 ~ 477 VAC @Full load; 208 ~ 304VAC@ <70% Load | |||||||||
Nominal Frequency | 50/60Hz (Auto Sensing) | |||||||||
Frequency Range | 40Hz ~70Hz | |||||||||
Power Factor | > 0.99 @ 100% Load , >0.98 @ 50% Load | |||||||||
OUTPUT | ||||||||||
Nominal Voltage | 3 x 400 VAC (3Ph+N) | |||||||||
Voltage Regulation (Steady state) | ≤ ± 1% Typical (balanced load) ; ≤ ± 2% Typical (unbalanced load) | |||||||||
Nominal Frequency | 50/60Hz | |||||||||
Frequency Range (Synchronized) | 46Hz ~ 54Hz or 56Hz ~ 64Hz | |||||||||
Overload Capability | 1 hour for 110%, 10 mins for 120%,; 1 min for 150%, 200ms for >150% | |||||||||
Harmonic Distortion | ≤1.5% THD (Linear Load) ; ≤ 4% THD (Non-linear Load | |||||||||
Efficiency | Up to 94.5% | |||||||||
