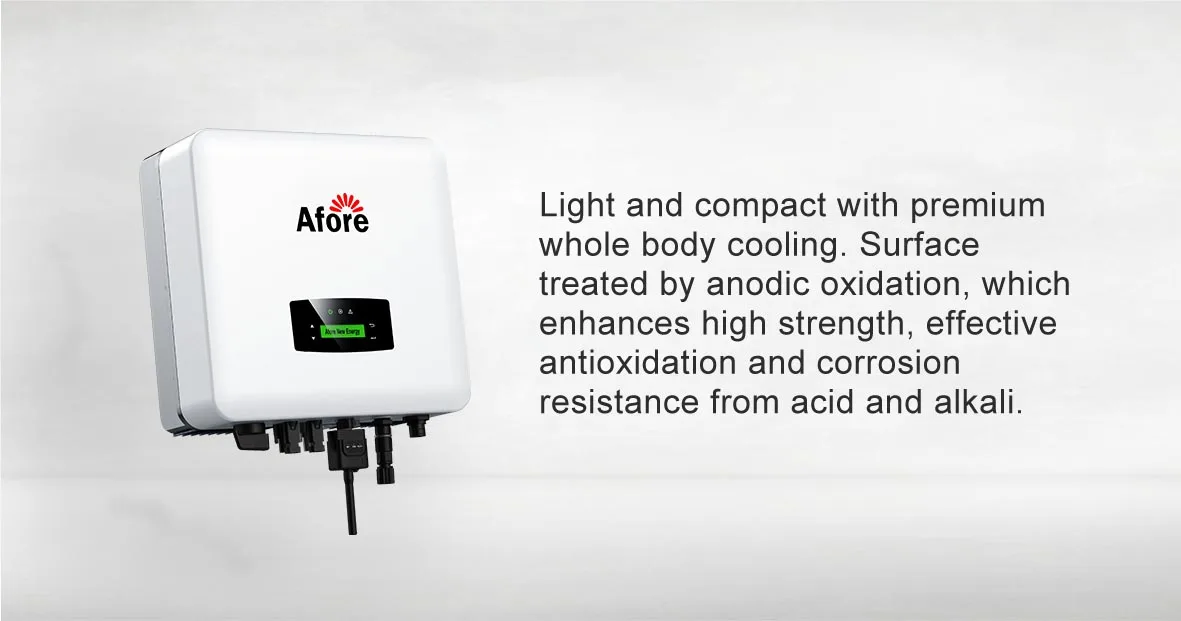

solar inverter 5kw single phase on grid back up solar power inverter for on grid solar system 5 kwatt

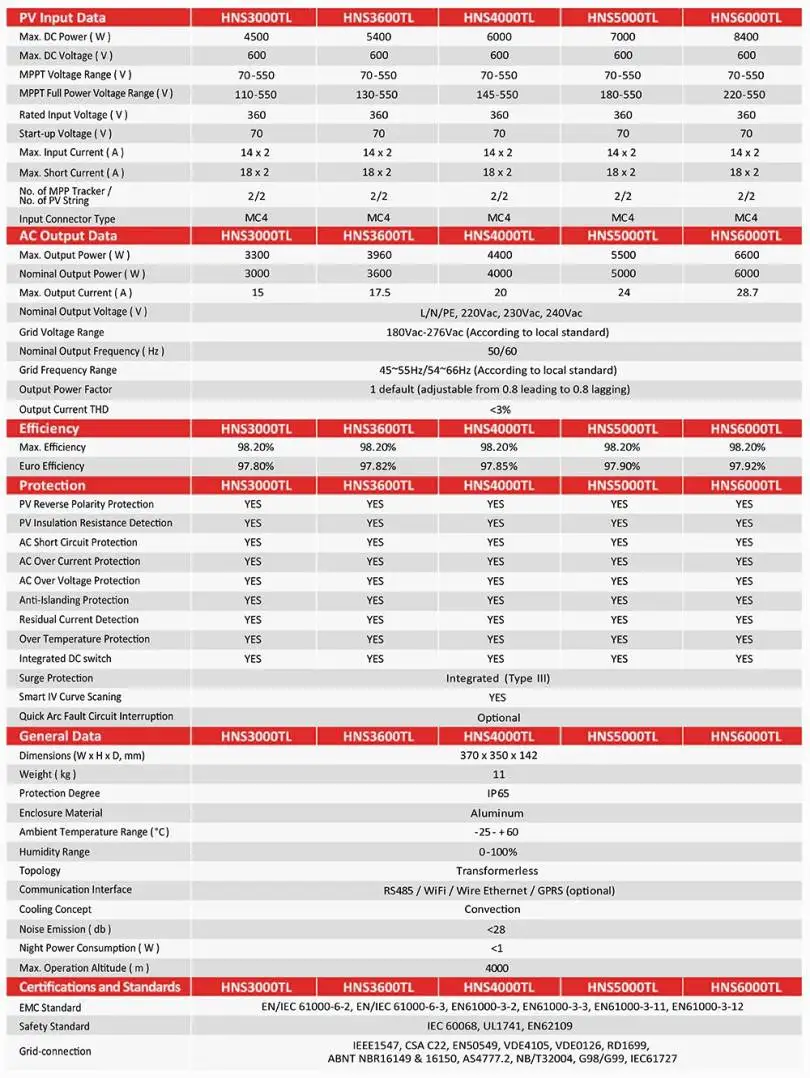

item

value

Place of Origin

China

Brand Name

Afore solar inverter 5kw on grid

Model Number

solar inverter 5kw on grid

Input Voltage

360V

Output Voltage

L/N/PE,220Vac,230Vac,240Vac

Output Current

17.5A

Output Frequency

50/60Hz

Output Type

Single

Size

370*350*142mm

Type

DC/AC Inverters

Inverter Efficiency

98.2%

Certificate

CE

Warranty

5years

Weight

11KGS

Product name

solar inverter 5kw on grid

Application

Solar Power System

Keyword

solar inverter on grid back up

Warranty

2 Years

Operate mode

Solar Panel Module Machine

Power Supply

AC380V 3 phase 1kw-60kw

Package

Standard Case

Power Battery Type

No battery

Function

on grid inverter

Item Name

inverter for grid tie solar system

(1) The installation method and location must be suitable for the weight and size of the inverter;

(2) The inverter must be installed on a solid wall, such as a brick wall or concrete wall, to avoid vibration, noise or falling during the inverter operation;

(3) The installation site should be clearly visible, and it can be safely entered without using auxiliary means such as scaffolding;

(4) In order to facilitate installation and operation, the installation height of the inverter should be flush with the eye height;

(5) The highest altitude of the installation site shall not exceed 2000m, otherwise the inverter may run at reduced power;

(6) To ensure that the inverter runs well, the ambient temperature of the installation site should be between -25°C and +60°C;

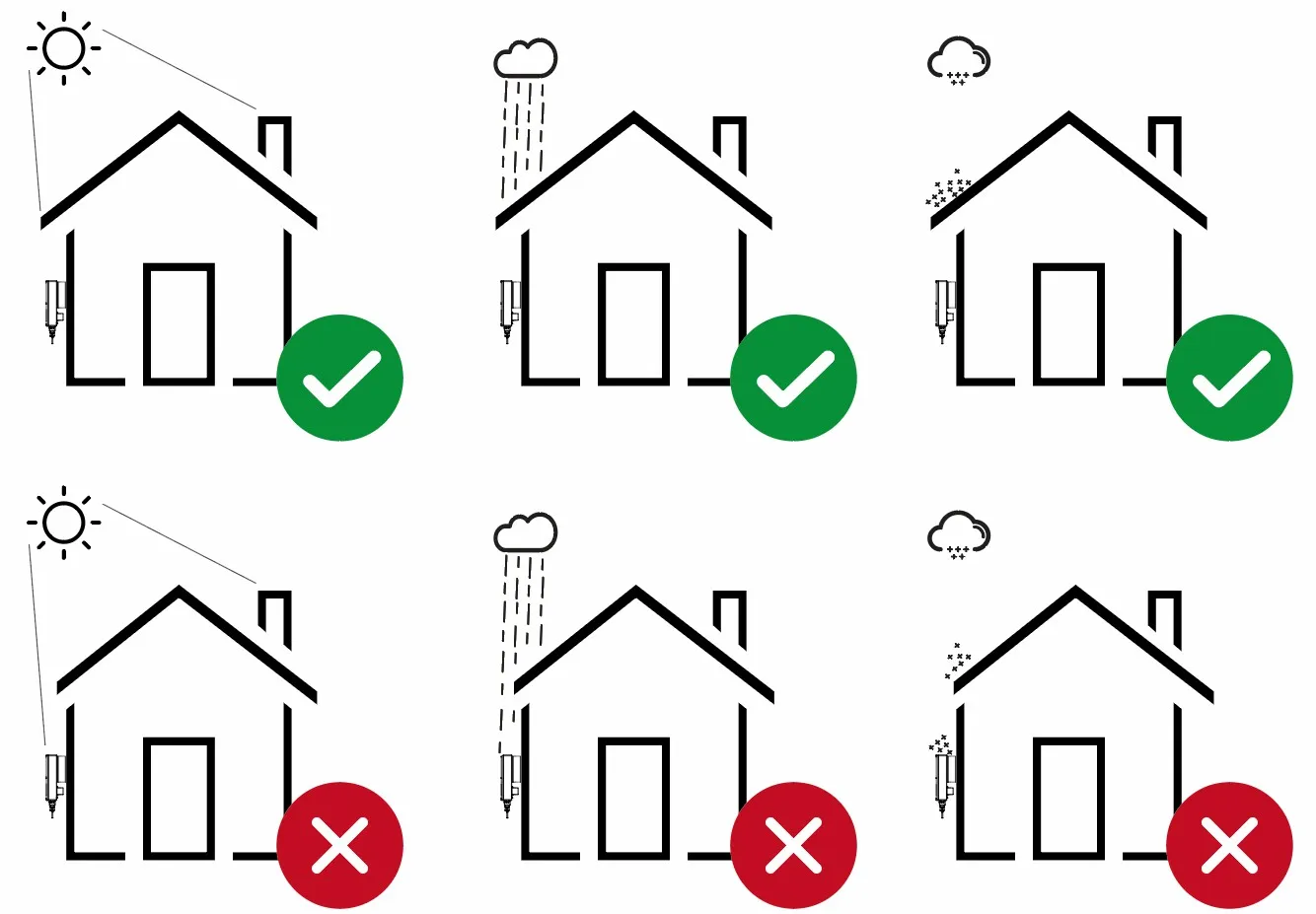

(7) Do not install the inverter in a place exposed to direct sunlight, so as to avoid the temperature is too high, causing the inverter to run at reduced power;

(8) There should be shelter above the inverter;

(9) Sufficient effective space must be left around the inverter for good heat dissipation;

(10) For vertical installation, the wiring area must be downward, and horizontal installation is not allowed; when tilting backward, the inclination angle must not exceed 30 degrees; forward tilt, horizontal and inverted installation are not allowed.
