Сверхмощный сварочный аппарат для ПВХ ткани RF 10 кВт, высокочастотный сварочный аппарат для пластиковых тентов для выставок, кемпинга (1600391316758)

Share on:


Price:5 555,00 $ - 6 222,00 $
Price in USD:Details

Quantity:


Product Overview

Description



Product Description

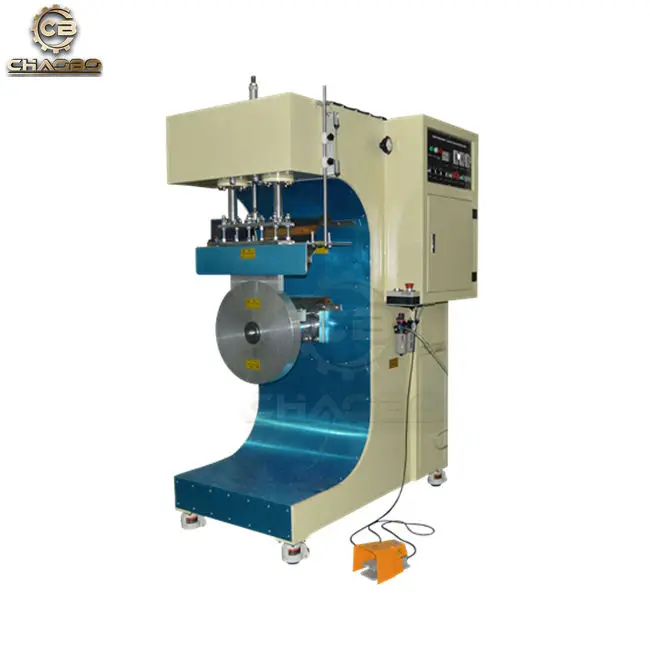

CHAOBO High Frequency PVC Tarpaulin Canvas Welding Machine
High Frequency PVC Tarpaulin Welding Machine only works with thermoplastics that have a high dielectric constant. In this process, an electric field is generated near the joint, the direction of which is alternated approximately twenty-seven million times a second. Every time the electric field changes, the dipole molecules of the polymer attempt to flip around to realign themselves to the new field orientation. Because this movement is impaired by inertia and friction, the molecules do not flip in unison. This constant relative movement of the molecules results in inter molecular friction which results in heat and, subsequently, melting.
Radio Frequency welding typically has weld cycle times from two to five seconds and can handle parts from approximately one-thousandths inches thick to fifty-thousandths inches thick.

Main Features:
1. PLC touch screen operation for easy & fast parameters input.
2. Equipped with a "Safety Hand Device".
3. Equipped with a travelling arm for more convenient operation.
4. The Welding bar Length, width can be adjusted, fast changeover.
5. European-model square high frequency vibration cavity, more reliable and stable in output
6. Single line or two lines continue welding, welding length can be ordered as special need.
7. Deep groove welded steel structure, suitable for big size material welding.
8. Customized work table dimensions, electrode holder dimensions
9. Laser Guide Projectors – projecting laser lines (easy for operator's eyes) for quick material guidance on the work table
10. High sensitive anti-spark tube to protect the welding bar and welding products.
11. PLC touch screen control, stretched table or other functions can be customized.


Model
CB-T5
CB-T10
CB-T12
CB-T15
HF Power
5KW
10KW
12KW
15KW
Power Input
8.5KVA
18KVA
20KVA
25KVA
Frequency
27.12MHz
Voltage
AC 220V/380V/400V/415V/450V(Customization offered)
Driven Mode
Pneumatic(Hydraulic optional at additional cost)
Stroke
150MM(Customization offered)
Working Pressure
0.4-0.7MPa
Welding Time
0-30S(Customization offered)
Delay Time
0-30S(Customization offered)
Holding Time
0-30S(Customization offered)
Upper Electrode Size
50*50*500mm
50*50*800mm
50*50*800mm
50*50*900mm
Worktable Size
350*700mm
450*1050mm
450*1100mm
450*1150mm
Oscillation Tube
7T85
E3069
E3130
8T85
Anti-spark Tube
NL-5557
Weight
700 KGS
920 KGS
950 KGS
1160 KGS












Welding Samples


APPLICATION OF HIGH FREQUENCY CANVAS WELDING MACHINE
Tents, awning, trucks covers, Membrane Curtains, Swimming pool covers, Temporary shelters, billboards, sunshades, oil booms, army tents, tents, structural membranes, pool-liners, water cisterns, TPU water tanks, canopy, painting canvas, sun shades canvas, film curtain, etc




Details Images



PLC touch screen(Optional);
1. A touch screen operation panel for fast & easy parameters setting, including Time and Welding Current.

2. English language setting.



Infrared Laser Positioning

Laser Guide Projectors – projecting laser lines (easy for operator's eyes) for quick material guidance on the work table



Safety Hand Device(Optional)

When there is a objected being detected, the welding head(welding mould) retreats automatically to avoid hurting the operator.
There are two safety devices on the two sides of the upper electrode.



Oscillation Tube(Power Grid Tub)

Brand: TOSHIBA
Original: JAPAN
Made in Japan Power grid tube, durable, stable and reliable in output. European-model square high frequency vibration cavity.


Certifications




Packing & Delivery


Packing material
Plywood
Packing Size
L*W*H=1600*1300*2100MM
Gross Weight
920 KGS
Description
Standard export wood cases, no solid wooden. With soft packaging material inside the box




Company Profile






Since its foundation, Dongguan Chaobo Machine Co., Ltd has been devoted to optimization and integration of developing, producing, selling, and application of technology of plastic welding and Packing Solution, our main products including: Hot AirWelding Machine(Hot Air Seam Sealing Machine), High Frequency Welding Machine, Ultrasonic PLastic Welding Machine, Ultrasonic Tube Sealing Machine, Heat Staking Machine, Blister Packing Machine, Hot Plate Welding & Spin Welding Machinery. CHAOBO High Frequency Tarpaulin Canvas Welding Machine.

* Quality is our culture
* Competitive Advantages
* Market Niche
* Trustworthy Supplier


FAQ




Question: Are you trading company or manufacturer ?
A:We are factory, all machine is made by ourselves and we can provide customize service offered.

Question: How long is your delivery time?
A: Generally it is 1-3 days for standardized machinery. 7-30 days if the goods are not in stock, it is according to quantity.

Question:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken(not including man made).

Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.

Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material

Question: How about the installation and training?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect
power and air compressor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available

Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.

Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc

Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation
and packing production in time.

Question: Is there any assurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade
assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge
to replace the new one to you . The warranty will begin after the machine send out we received the B/L .


Services


1. Overseas site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.

Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
