cheap Sunkko 737G Portable handheld Battery Spot Welder 0.35mm
- Category: >>>
- Supplier: Baoding Ncel Electrical Technology Co. Ltd.
Share on (1600391593733):
Product Overview
Description

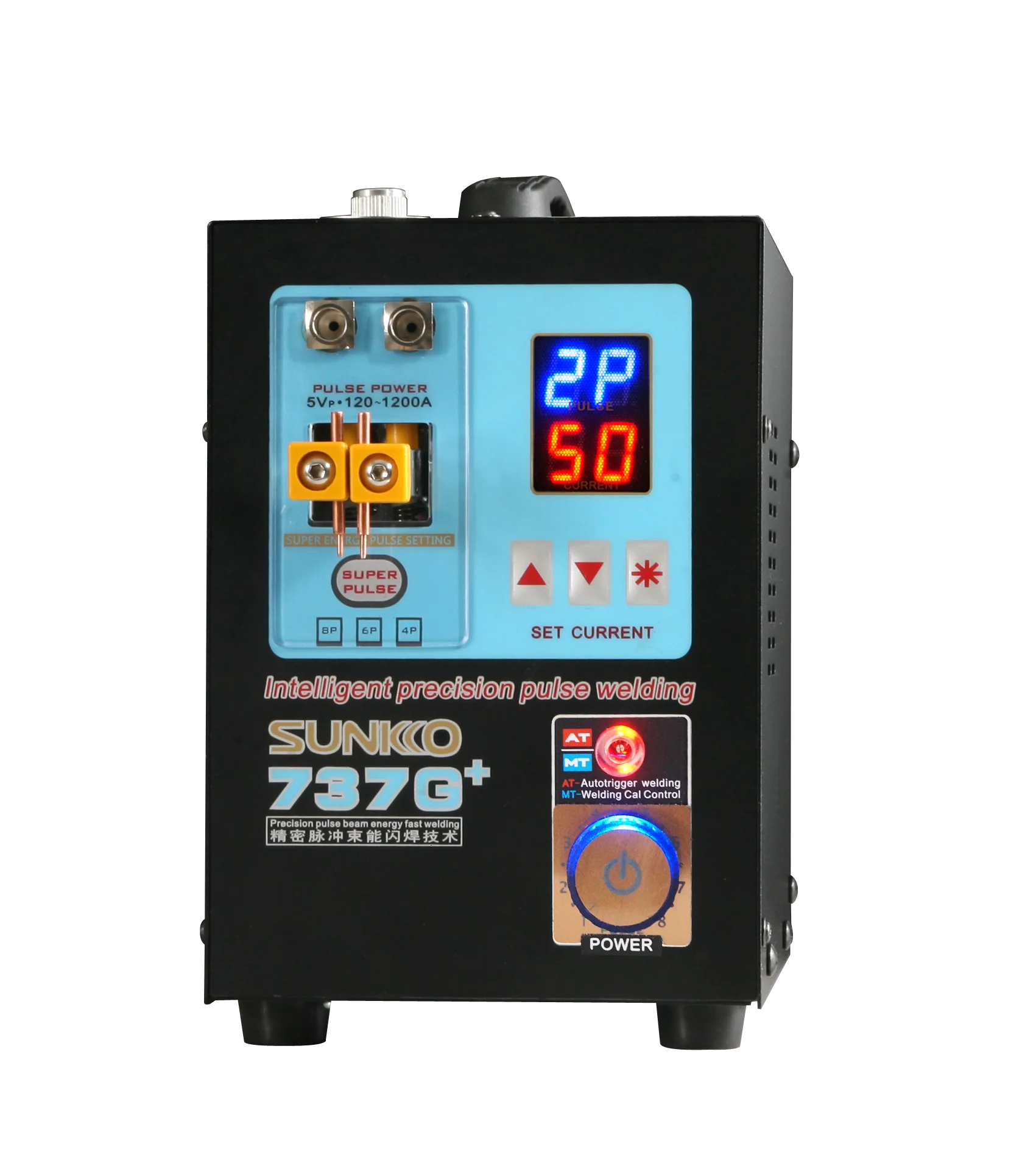

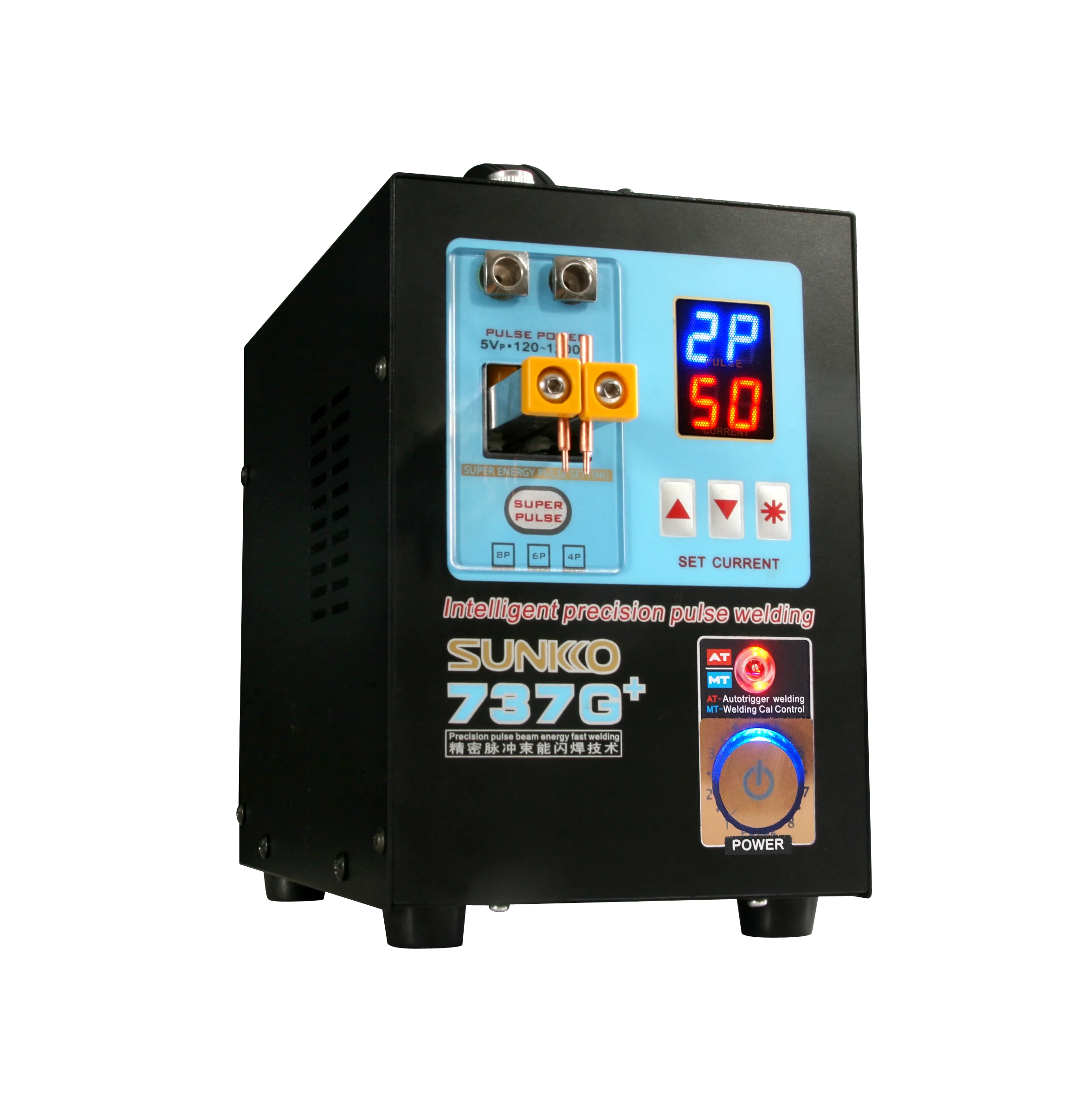

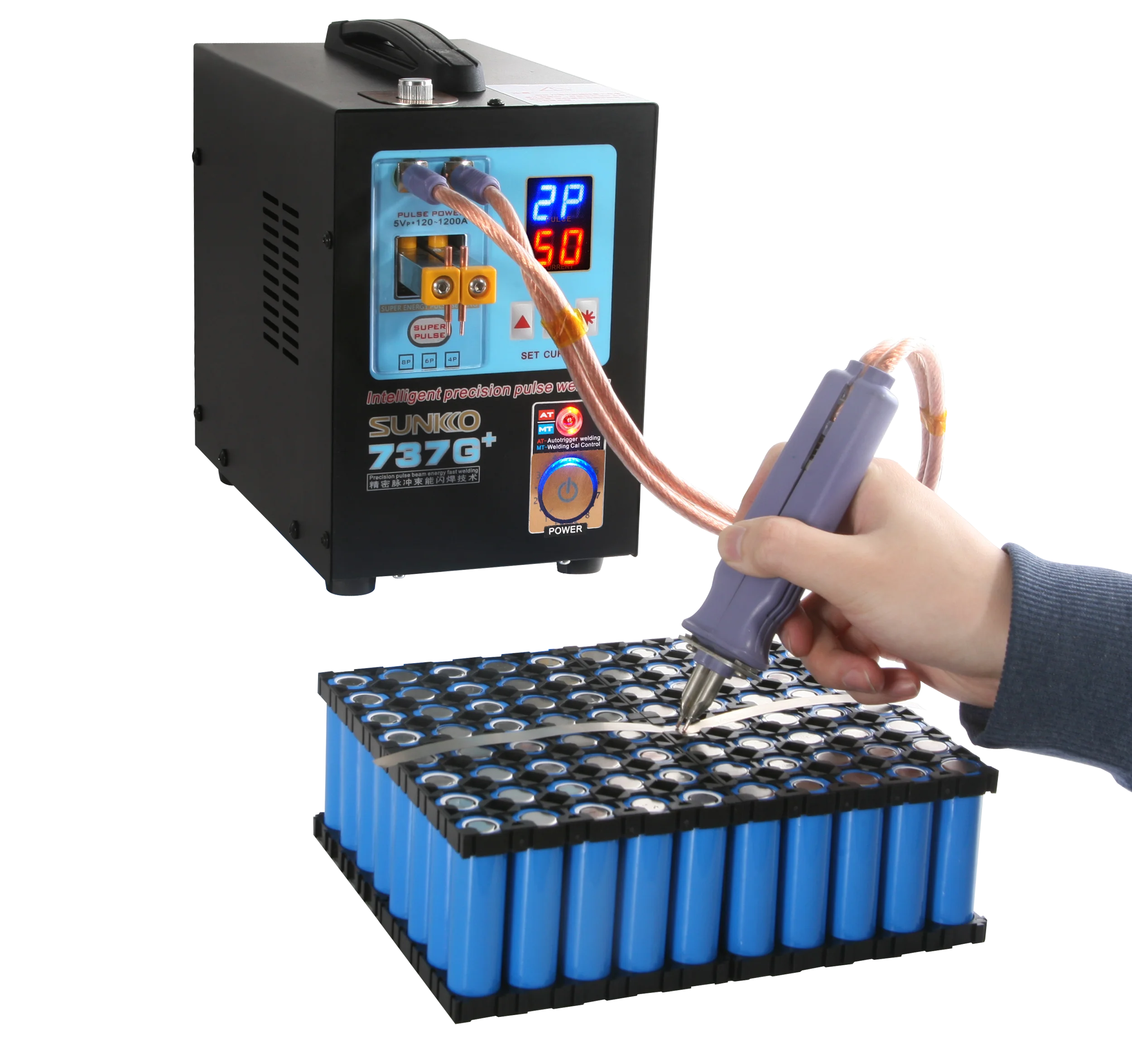

Sunkko 737G+ Portable handheld Battery Spot Welder 0.35mm
Product Description
Best choice battery spot welder 737G+ cylinder battery welding machine

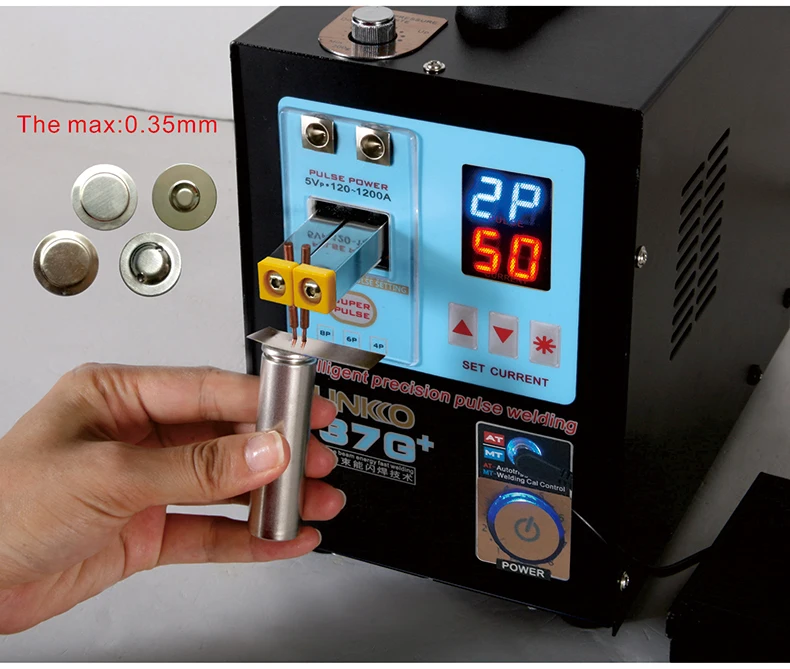

737G+ is a big improvement on the basis of 737G. It is specifically designed for battery welding (18650, 14500 and any other
lithium batteries, etc) and can be used to weld nickel strips with thickness between 0.05 and 0.35 mm for nickel plated steel or
between 0.05 and 0.25 mm for pure nickel strip.
Please read manual carefully before using it.
There are three ways of welding:

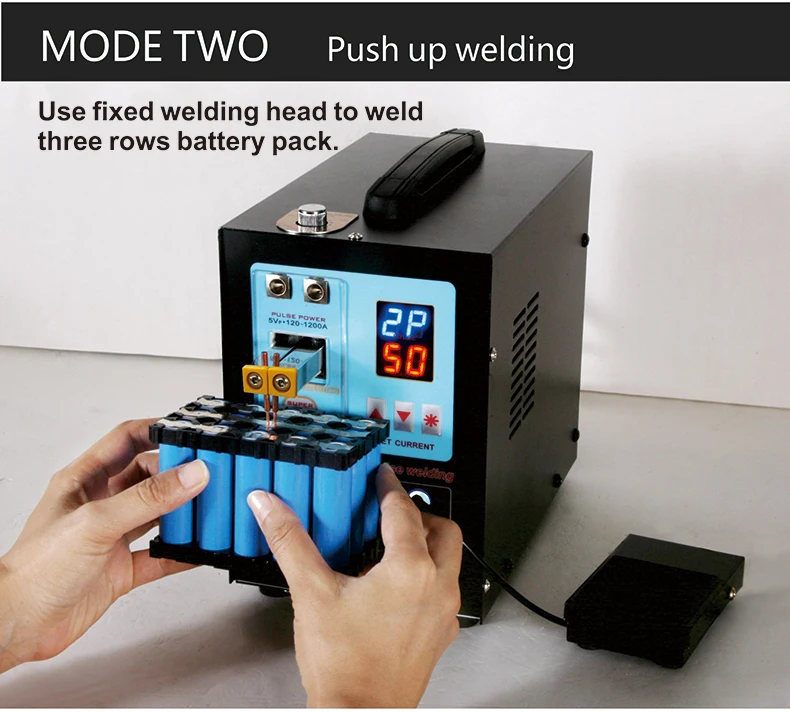

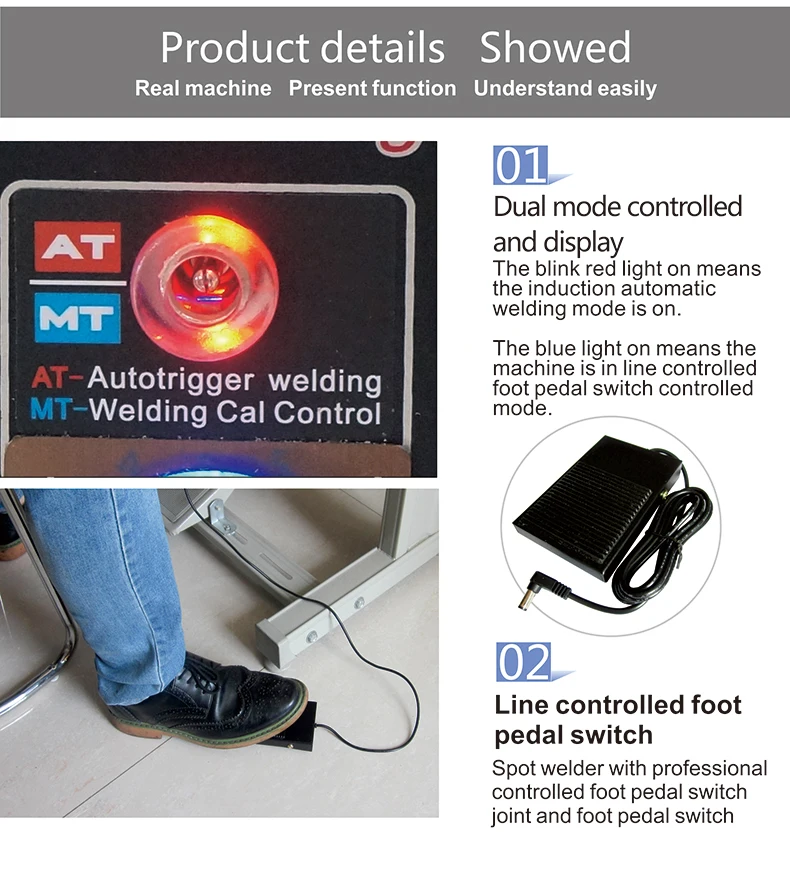

1. Fixed welding head with foot pedal: You can build your battery pack with the fixed welding head and foot pedal. Coordinating
hands and feet at the same time will make the long-term welding process not so tiring, plus the use of foot pedal during battery
welding improves the precision of spot welding. In this welding mode, you need to adjust the pressure adjustor to make the spots
more reliable and elegant.

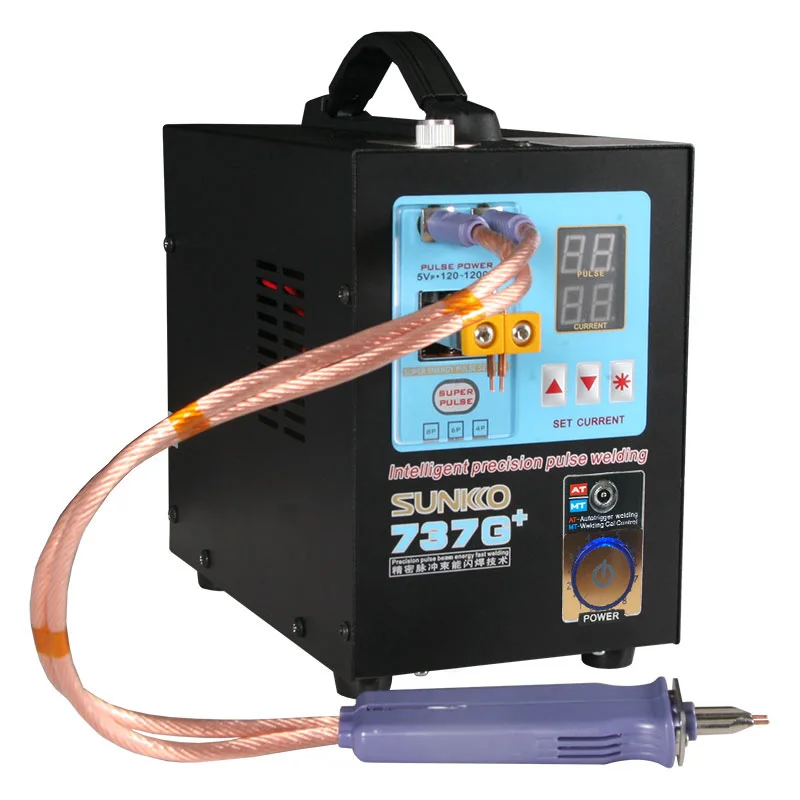

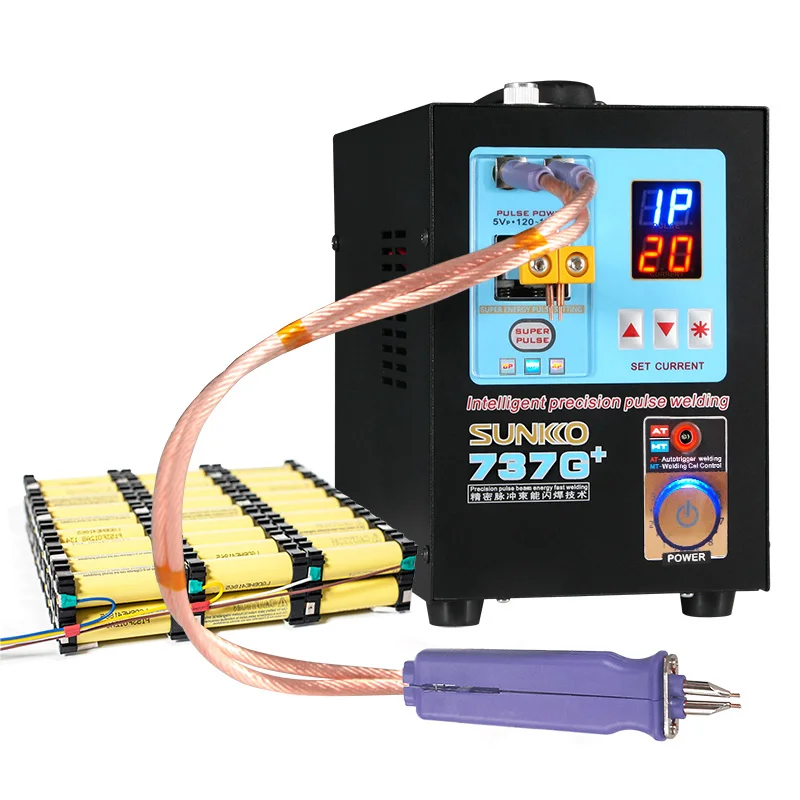

2.Mobile welding pen with foot pedal(MT): The mobile welding pen effectively extends your welding area, and this design is popular
among electric hobbyist, because they can build large lithium battery packs for their e-bikes or other projects.
3.Mobile welding pen without foot pedal(AT): In this mode, you need to unplug the foot pedal first. Once the welding pen attaches
nickel strip, the welding pen will release the energy and weld automatically, you just need to give a little pressure to the pen
just like you are writing.
In general, there are two methods to improve the output power of spot welding: adjusting welding current level through current
knob or adjusting pulse quantity. You may need to play with them a bit to get the best combination for your specific use.
Specification for welding part: Input voltage: AC 110 V/220 V±10%
Welding current: 120 ~ 1200 A Single pulse time: 5ms
Max. pulse quantity: 18
Max. power output: 4.3 KW (instantaneous)
Best choice battery spot welder 737G+ cylinder battery welding machine
737G+ is a big improvement on the basis of 737G. It is specifically designed for battery welding (18650, 14500 and any other
lithium batteries, etc) and can be used to weld nickel strips with thickness between 0.05 and 0.35 mm for nickel plated steel or
between 0.05 and 0.25 mm for pure nickel strip.
Please read manual carefully before using it.
There are three ways of welding:
1. Fixed welding head with foot pedal: You can build your battery pack with the fixed welding head and foot pedal. Coordinating
hands and feet at the same time will make the long-term welding process not so tiring, plus the use of foot pedal during battery
welding improves the precision of spot welding. In this welding mode, you need to adjust the pressure adjustor to make the spots
more reliable and elegant.
2.Mobile welding pen with foot pedal(MT): The mobile welding pen effectively extends your welding area, and this design is popular
among electric hobbyist, because they can build large lithium battery packs for their e-bikes or other projects.
3.Mobile welding pen without foot pedal(AT): In this mode, you need to unplug the foot pedal first. Once the welding pen attaches
nickel strip, the welding pen will release the energy and weld automatically, you just need to give a little pressure to the pen
just like you are writing.
In general, there are two methods to improve the output power of spot welding: adjusting welding current level through current
knob or adjusting pulse quantity. You may need to play with them a bit to get the best combination for your specific use.
Specification for welding part: Input voltage: AC 110 V/220 V±10%
Welding current: 120 ~ 1200 A Single pulse time: 5ms
Max. pulse quantity: 18
Max. power output: 4.3 KW (instantaneous)
Product Description
Specification
item | value |
Applicable Industries | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Restaurant, Energy & Mining, Other |
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Ordinary Product |
Warranty of core components | 1 Year |
Core Components | Engine, machine, electric board |
Condition | New |
Place of Origin | China |
Brand Name | SUNKKO |
4.3Rated Capacity | 4.3KVA |
Max. Welding Thickness | 0.35mm |
Dimensions | 140*245*200mm |
Usage | Spot Welding |
Voltage | 220v |
Key Selling Points | Automatic |
Power (kW) | 4.5kw |
5Weight (KG) | 7.5KG |
Product Name | spot welding Machine |
Welding current | 120 ~ 1200 A |
Skype | e-firesales |
