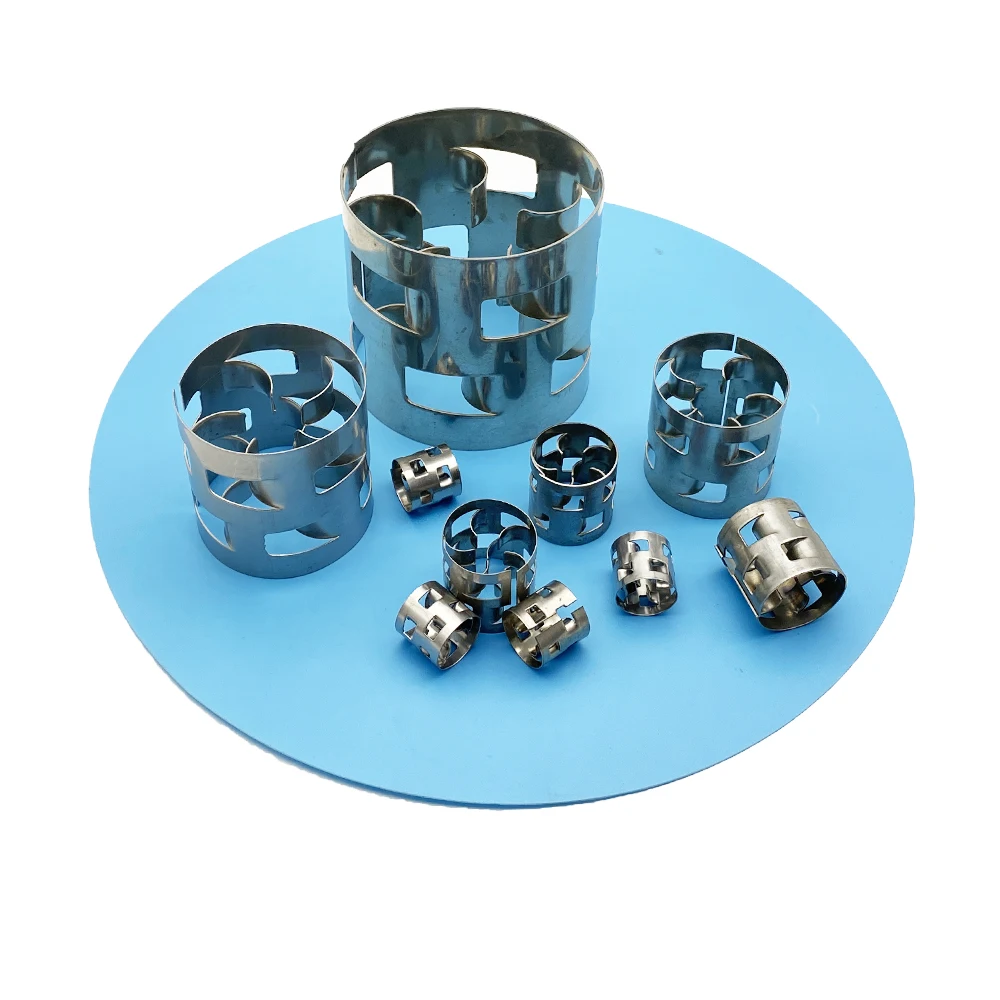

Stainless Steel SS316L SS304 Pall Ring Tower Packing
Stainless Steel SS316L SS304 Pall Ring Tower Packing
| The pall ring is the world’s most common random packing type. The design of the pall ring is an improvement of the raschig ring. The cylindrical dimensions are equal, however the metal pall ring has two rows of punched and formed fingers facilitating vapor flow. This adjustment provides a significant performance increase, resulting in an improvement of the capacity and efficiency. In addition, this adjusted design leads to reduction of the pressure drop through the column. | ||||
Size (mm) | Quantity (per m3) | Surface area (m2/m3) | Free volume (%) | F factor m-1 (%) |
| 16×16×0.5 | 180000 | 188 | 91.1 | 275 |
| 25×25×0.5 | 51940 | 175 | 90 | 239 |
| 38×38×0.7 | 15180 | 155 | 89 | 220 |
| 50×50×0.8 | 6500 | 93 | 90 | 127 |
| 76×76×1.0 | 1830 | 73.2 | 92 | 94 |
| Application | -Various Separation and Absorption Applications -Absorption and Stripping Services -Steam Stripping -Quench Towers -Direct Contact Cooling -Reaction Towers -Distillation Columns -Tower Packing | |||
| Material | Carbon steel, Stainless steel including 304, 304L, 410,316, 316L. | |||
