New Version V1.5 HH Elm327 Interface BT4.0 OBD2 OBDII Diagnostic Auto Scanner Work on iOS Android
- Category: >>>
- Supplier: Shenzhen,Jfind,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
New Version V1.5 HH Elm327 Interface BT4.0 OBD2 OBDII Diagnostic Auto Scanner Work on iOS Android
Mini OBD2 Wireless BT 4.0 Scanner for Multi-brands CAN-BUS as same as ELM327 Wireless BT 4.0, Supports All OBD2 Protocol works on iOS Android Symbian, used to read diagnostic trouble codes, both generic and manufacturer-specific, and display your meaning (over 3000 generic code definitions in the database).

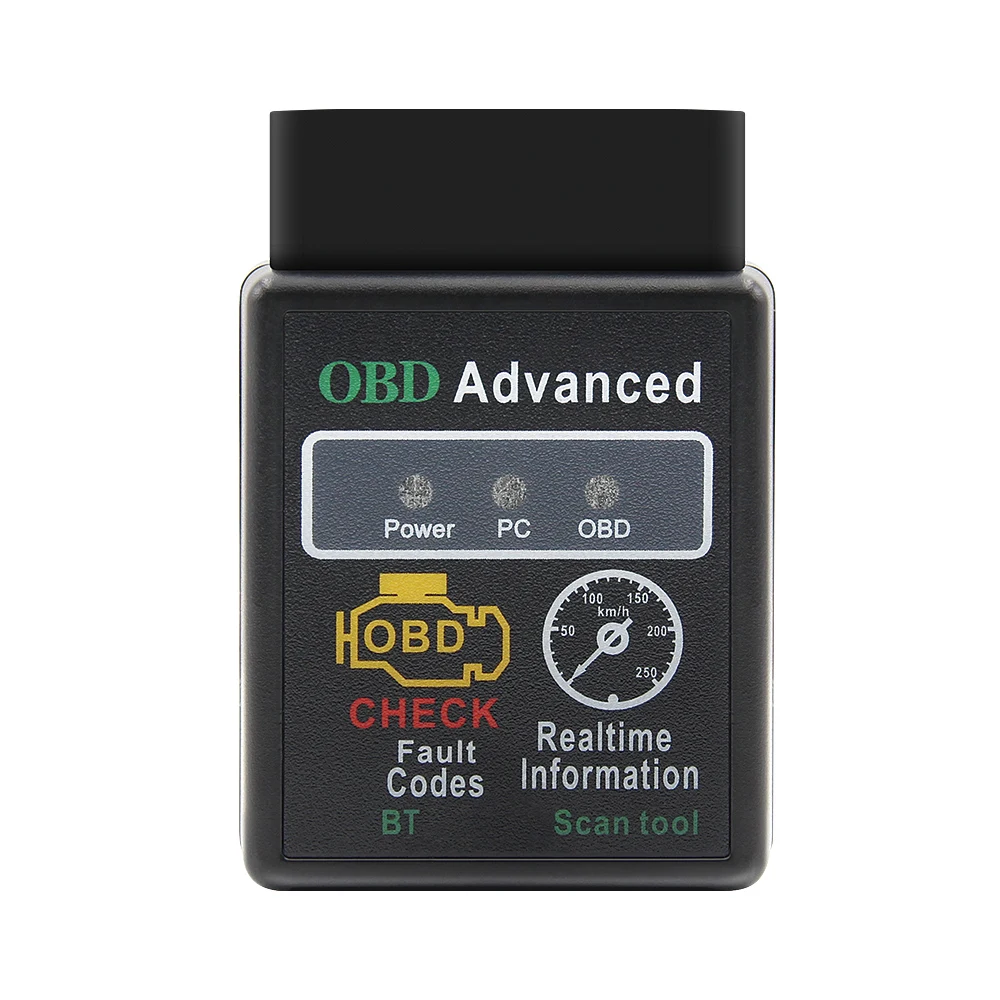

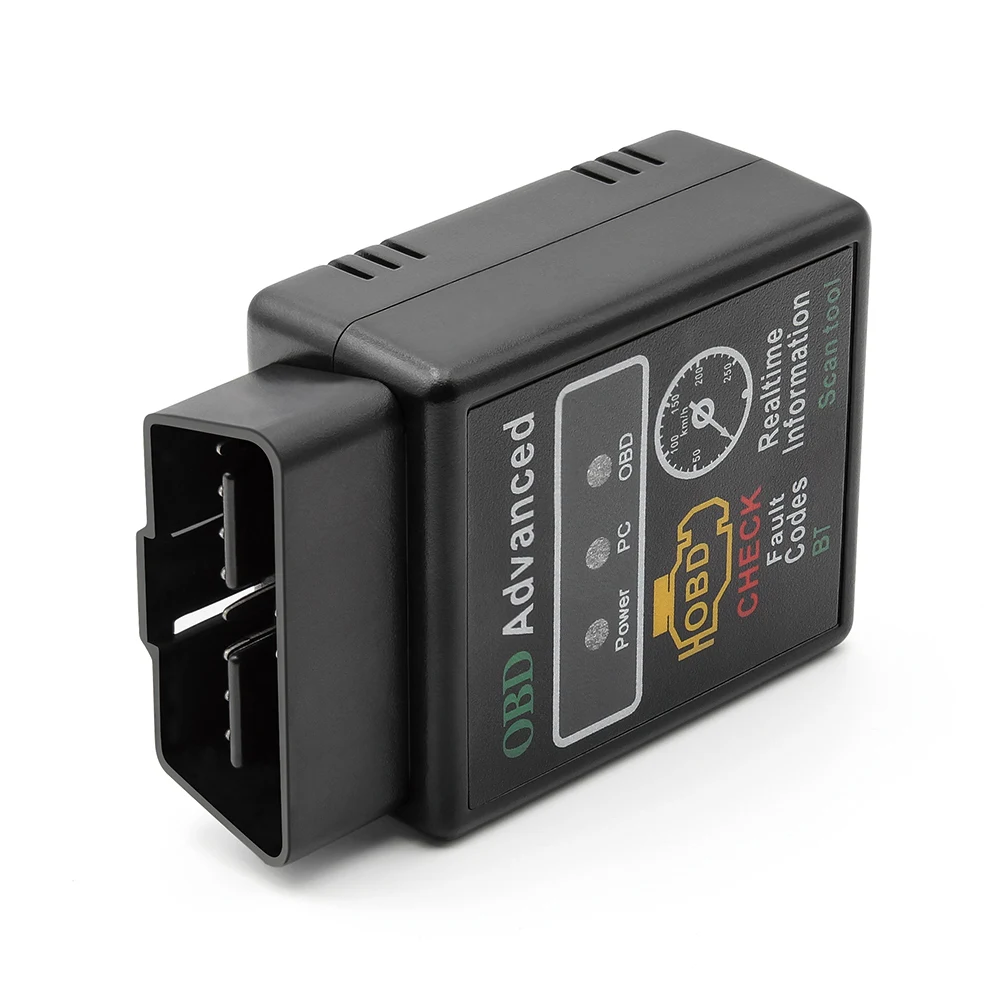

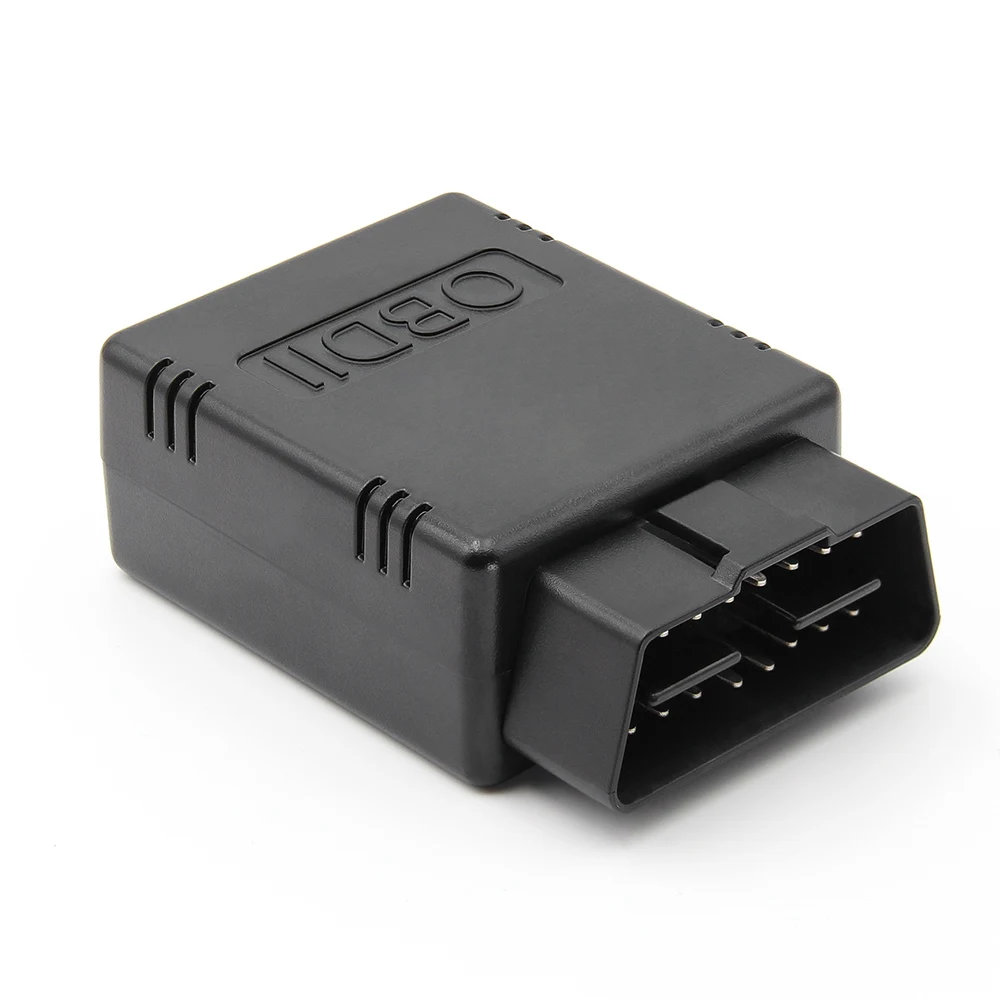

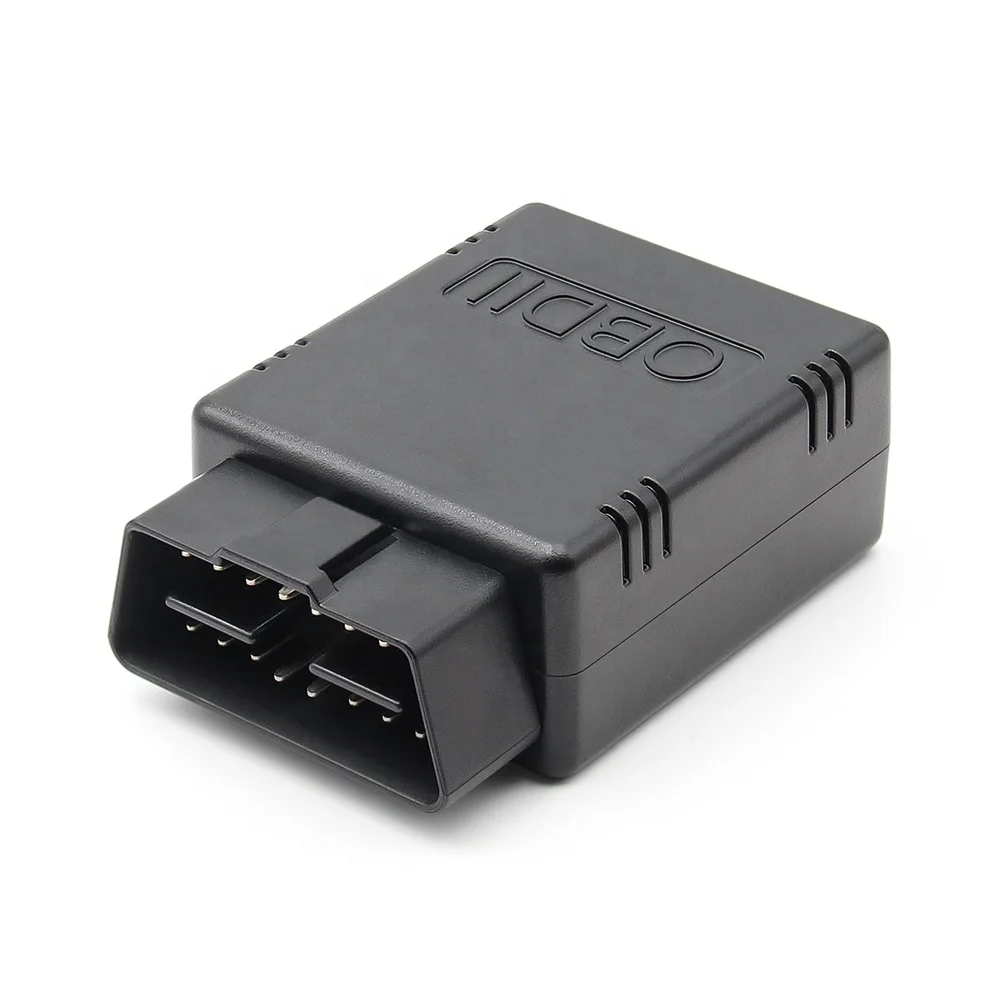

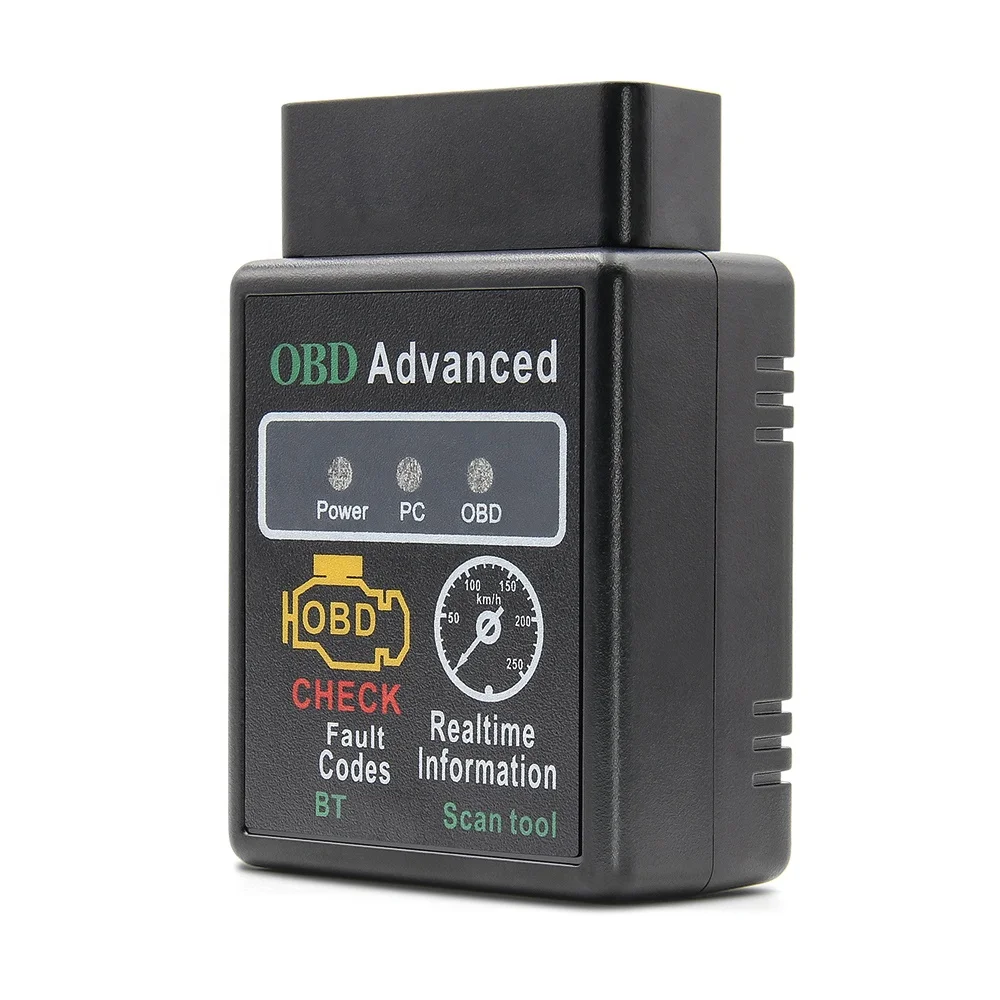

Detailed Images
New Version V1.5 HH Elm327 Interface BT4.0 OBD2 OBDII Diagnostic Auto Scanner
Top 4 Reasons to get V1.5 HH Elm327 Interface
1. Software Version: V2.1 (depending on software)
2. Hardare Version: V1.5
3. Works with all OBD-II compliant vehicles
4. Wireless BT4.0 work on iOS Android
V1.5 HH Elm327 Interface Specification
Communication | Wireless BT4.0 |
Master Chip | Integrated |
Support System | iOS Android and Windows |
Working Voltage | 9v ~ 16v |
Working Current | 35mA |
Standby Current | 25mA |
Operating temperature | -40 ℃ ~ 85 ℃ |
Working Humidity | less than 60% |
Size | 5.3*4.5*2.5 cm |
V1.5 HH Elm327 Interface Support Protocols
1.SAE J1850 PWM (41.6Kbaud)
2.SAE J1850 VPW (10.4Kbaud)
3.ISO9141-2 (5 baud init, 10.4 Kbaud)
4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5.ISO14230-4 KWP (fast init, 10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
8.ISO15765-4 CAN (11bit ID, 250 Kbaud)
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)
V1.5 HH Elm327 Interface Fuctions
1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2: Clear trouble codes and turn off the MIL ("Check Engine" light)
3: Display current sensor data, including:
4: Engine RPM
5: Calculated Load Value
6: Coolant Temperature
7: Fuel System Status
8: Vehicle Speed
9: Short Term Fuel Trim
10: Long Term Fuel Trim
11: Intake Manifold Pressure
12: Timing Advance
13: Intake Air Temperature
14: Air Flow Rate
15: Absolute Throttle Position
16: Oxygen sensor voltages / associated short term fuel trims
17: Fuel System status
18: Fuel Pressure
19: Many others
Compatible software
For Window : ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.
For Android : Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.
For Symbian : OBDScope
Please scan the QR code for the free software download
For Android : Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.
For Symbian : OBDScope
Please scan the QR code for the free software download

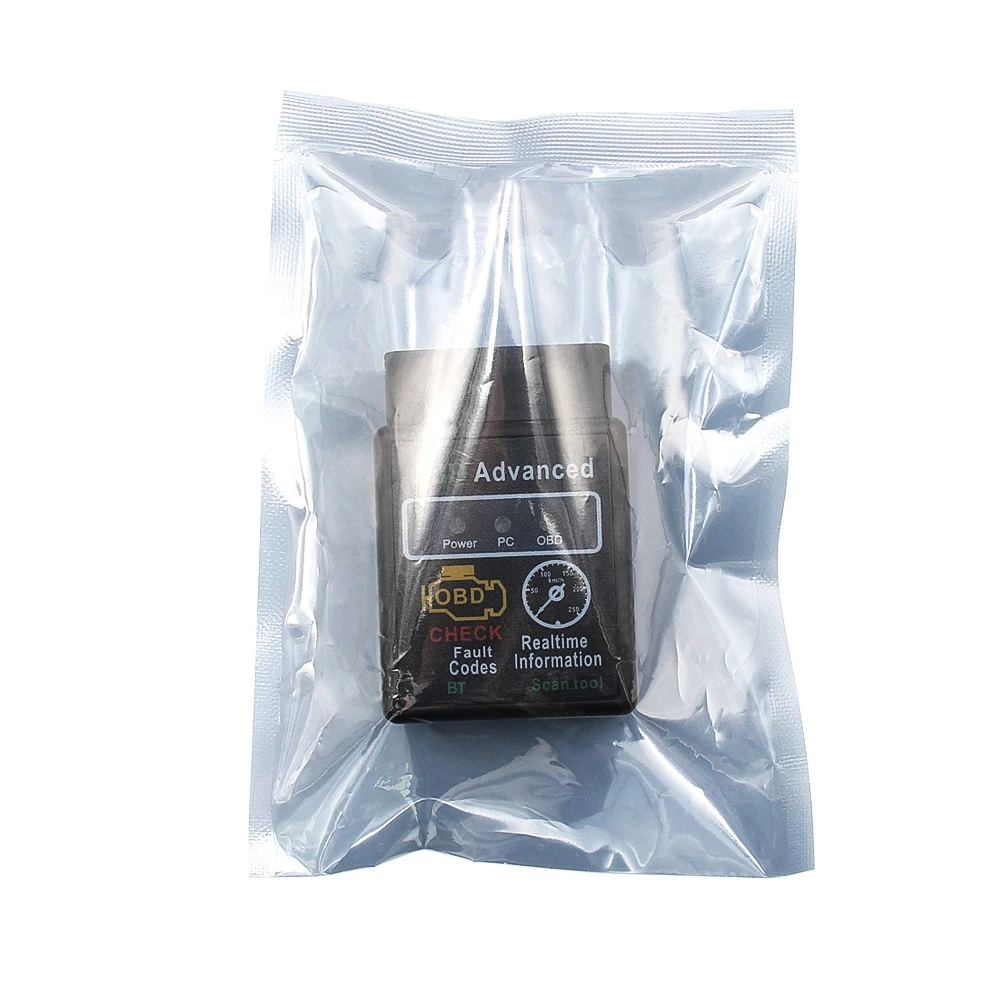

Packing List
New Version V1.5 HH Elm327 Interface BT4.0 OBD2 OBDII Diagnostic Auto Scanner
1pc x Mini OBD2 Scanner
Related Products
New Apperance Mini ELM327 V1.5
Super Mini OBD2 ELM327 With 25K80 Chip
Icar2 OBDII Interface
FAQ

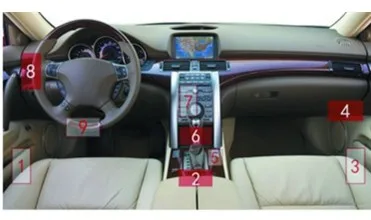

Where can I find the OBD2 connector in my car?
For reference, please check the picture on the right side. Generally, it will among the 9 positions.
