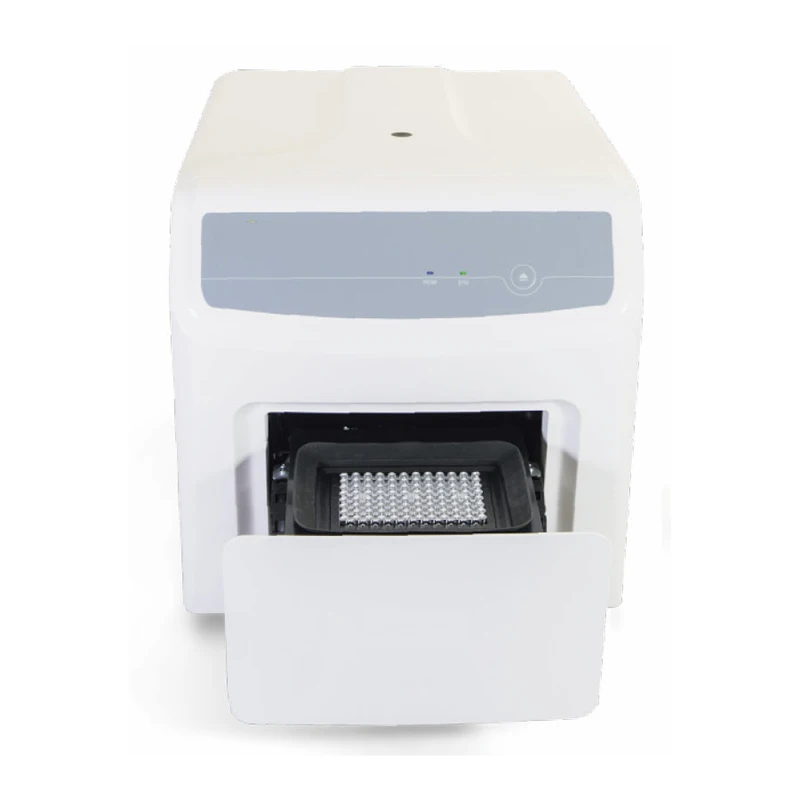

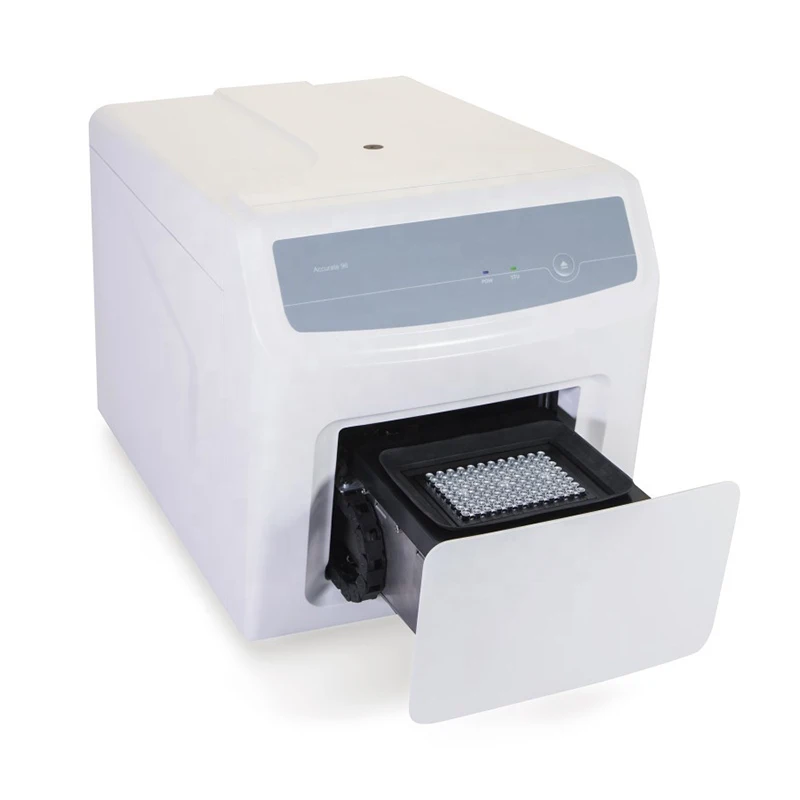

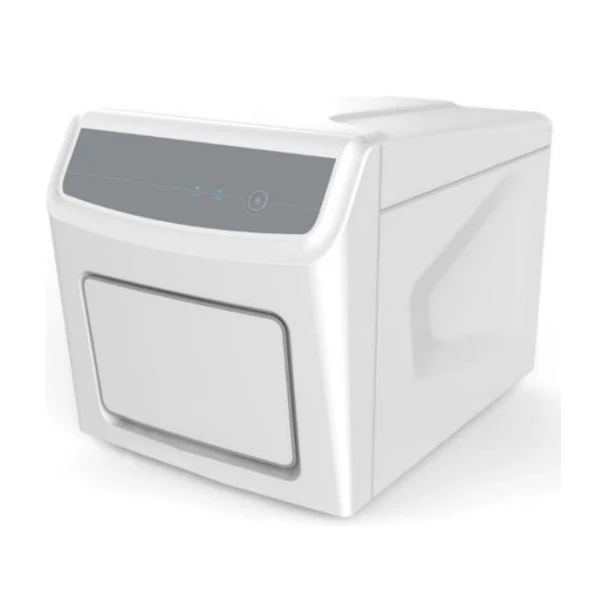

YSPCR Q96 Fast RT PCR Analyzer 96 Well DNA Test Machine Real Time Thermal Cycler
- Category: >>>
- Supplier: Guangzhou Ysenmed Equipment Co. Ltd.
Share on (1600392711850):
Product Overview
Description
YSPCR-Q96 Fast RT PCR Analyzer 96 Well DNA Test Machine Real Time Thermal Cycler
Product Description
| Details of Laboratory Real-Time PCR Thermal Cycler |
As a necessary choice for quantitative analysis of molecular biology, real-time PCR system has been widely used in various fields such as scientific research, clinical detection and diagnosis, quality and safety testing, and forensic applications.
· Up to 6 fluorescence detection channels allowing multiplex PCR.
· Effectively reduce multi-color crosstalk and edge effect, no ROX correction required.
· New optical scanning detection system
· Innovative scanning method and time-resolved signal separation technology
· Unique edge temperature compensation technology
· User-friendly software
Temperature control system | |
Sample capacity | 96 |
Reaction volume | 10-50 μl |
Thermal cycle technology | Peltier |
Max. Heating/Cooling rate | 6.0° C/s |
Heating temperature range | 4 – 100 °C |
Temperature accuracy | ± 0.2°C |
Temperature uniformity | ±0.2℃ @60℃ , ±0.3℃ @95℃ |
Temperature gradient setting range | 30–100°C |
Temperature gradient difference setting range | 1 – 36°C |
Detection system | |
Excitation light source | 4/6 monochrome high efficiency LEDs |
Detection device | PMT |
Detection mode | Time-resolved signal separating technology |
Excitation/detection wavelength range | 455-650nm/510-715nm |
Fluorescent channels | |
Supported dye | FAM/SYBR Green, VIC/JOE/HEX/TET, ABY/NED/TAMRA/Cy3, JUN, ROX/Texas Red, Mustang Purple, Cy5/LIZ |
Sensitivity | Single copy gene |
Resolution | 1.33 folds copy number difference can be distinguished in single-plex qPCR |
Dynamic range | 10 orders of magnitude copies |
