ASTM A 53 Pipe Mill ERW Making Machine ZTZG High Quality Fast Speed Yield 25000 Ton Per Year Tube Mill
- Category: >>>
- Supplier: Shijiazhuang Zhongtai Pipe Technology Development Co. Ltd.
Share on (1600393707172):
Product Overview
Description
Machine Description
Product Parameter | ||||
Product&yield | Round Pipe | 32mm-76mm Thickness:1.5mm-4.0mm | ||
Square & rectangle tube | 25mm×25mm -60mm×60mm Thickness:1.5mm-3.0mm | |||
Length | 6m-12m Length Tolerance: ±3mm | |||
Production Speed | 20-80 m/min | |||
Production capacity | 25,000ton/year | |||
Consumption | Mill installed capacity | 220 kw | ||
Line Area | 85m(length) ×5m (width) | |||
worker | 6-8 workers | |||
Raw Material | Carbon Steel coil | Carbon steel coil Q235B(ASTM GR·D,σs 230) | ||
Width | 25mm-2200mm Thickness: 1.5mm-4.0mm | |||
Coil ID | 580-700mm | |||
Coil OD | Max 1800mm | |||
Coil Weight | 3.0t | |||
Details Images

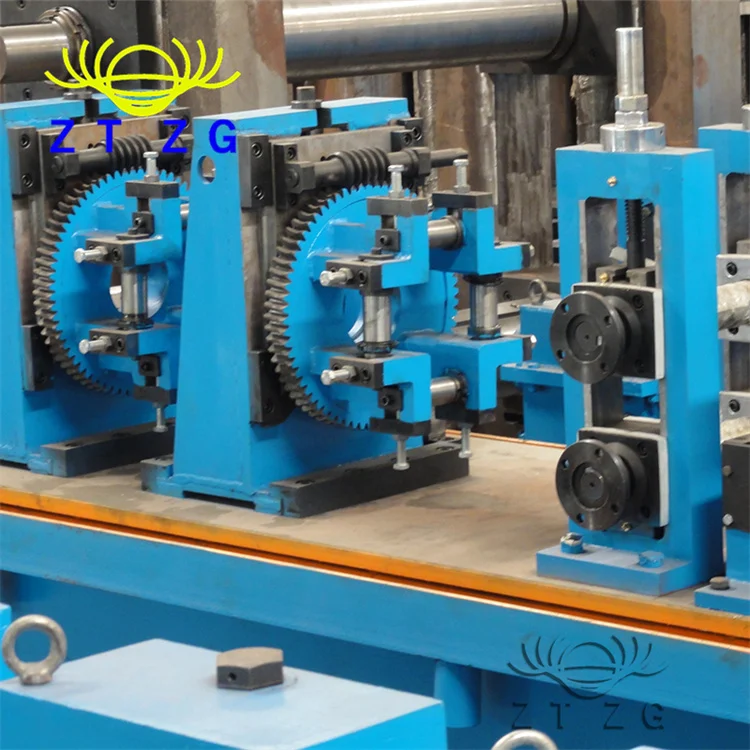

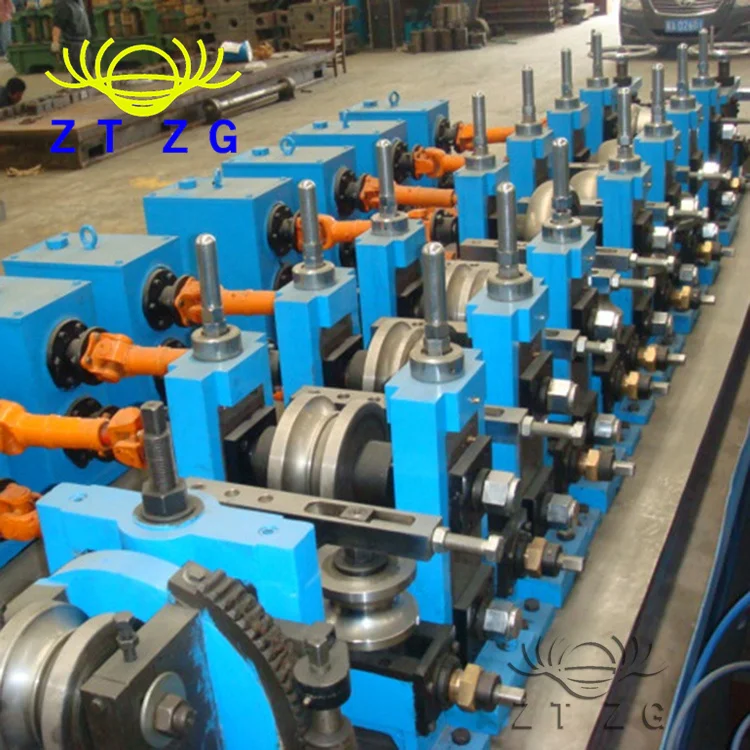

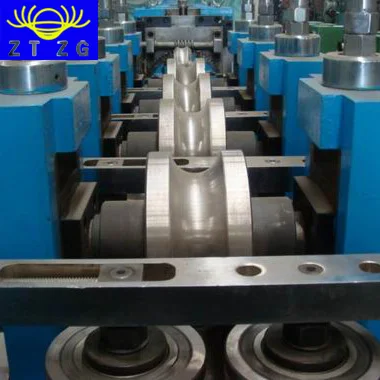

Forming Section
Function: to form the steel strips into a round shape and ready to be welded.
Advantage:
>Advanced forming technical
>One-stage molding platform
>Reliable quality gearbox
>Siemens Beide motor
Advantage:
>Advanced forming technical
>One-stage molding platform
>Reliable quality gearbox
>Siemens Beide motor
Welding Section

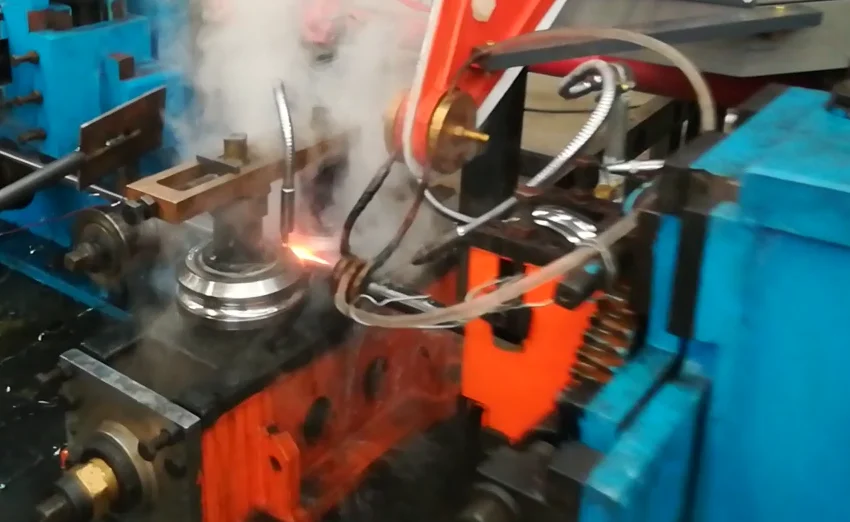

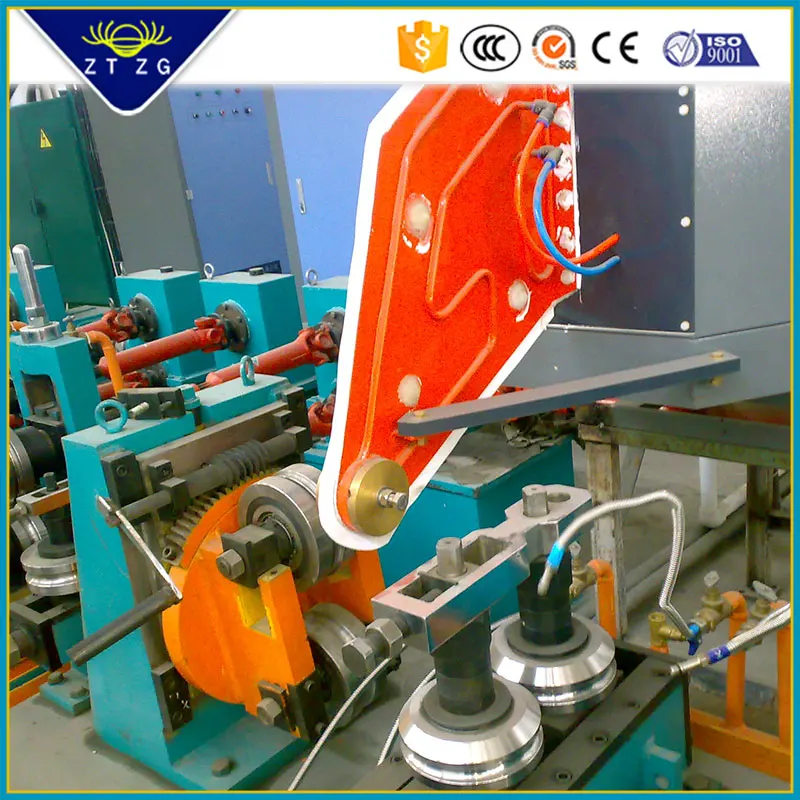

Function: To weld the edges of the steel strips together by H.F. Welder (the H.F. Welder is not included).

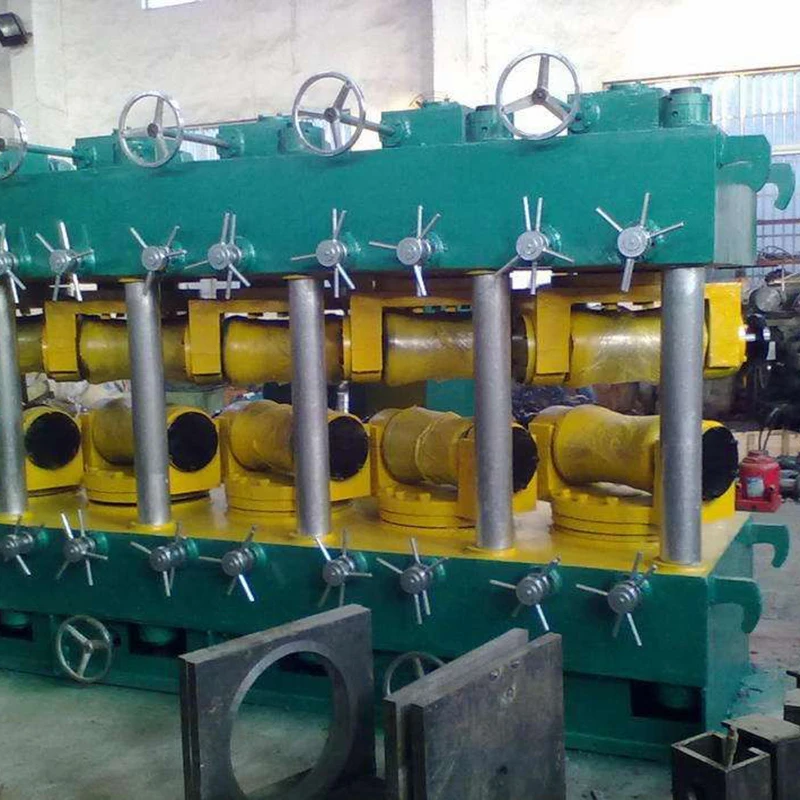

Forming & Sizing Mill
Function: After welding, the pipes are almost the round shape, but it still needs to be modified into a regular round shape.
Initial Straightening Machine
Function: Another name is Turks head. It is used to rough-straighten the welded steel tube. It consists of two four-roller straightening machines, with its head able to revolve and move horizontally. It utilizes three-point method to straighten steel tube.
The Following Is Auxiliary Machines of the Pipe Mill
Customers can trust us to buy the auxiliary machines. Our choice of suppliers for the auxiliary parts is made after 21 years of experience.

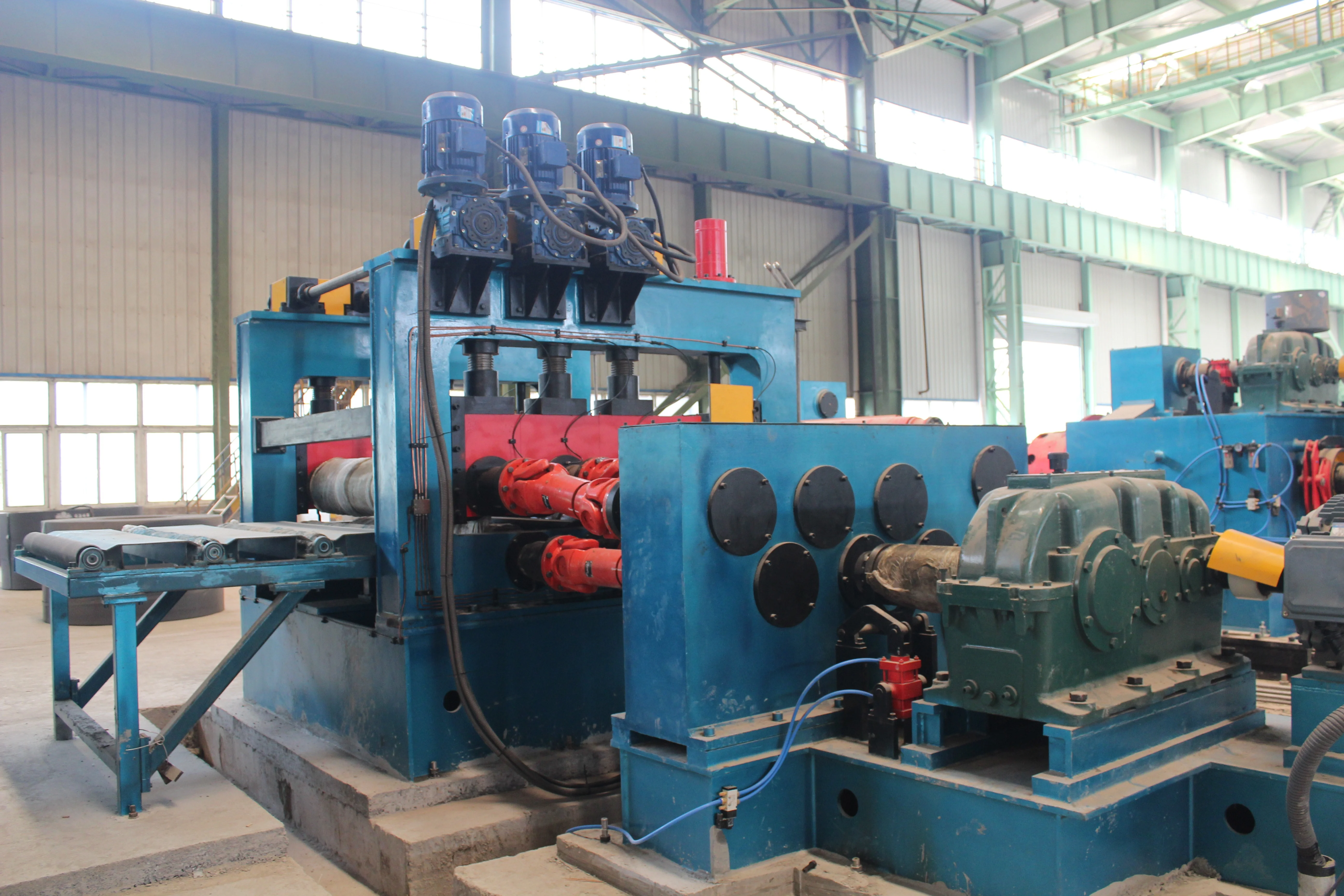

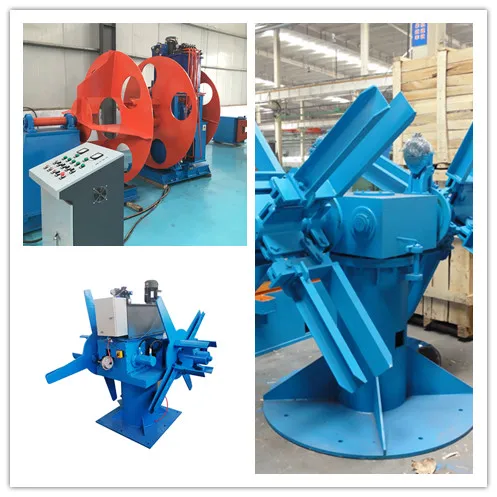

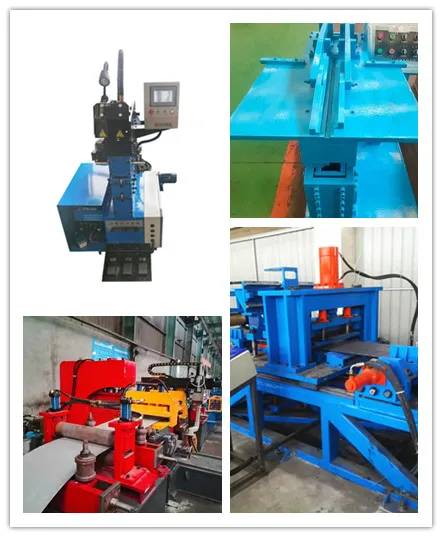

Un-coiler
Function: Used for supporting strip steel coil and open it as strip steel so as to make preparation for the pipe forming process
Five-roll Flattener
Function: Flattener is for the flattening procedure of the strip steel cut from steel coil, ensuring a steady dimension of strip steel with minimum deficiency
Shearing butt welding
2 Types: Automatic & Manual
Function: Shear & end welder parallel cuts the head of the strip coming out of uncoiler and the tail of the strip steel going into the accumulator, and weld them together to form a smooth and continuous line of strip steel
Function: Shear & end welder parallel cuts the head of the strip coming out of uncoiler and the tail of the strip steel going into the accumulator, and weld them together to form a smooth and continuous line of strip steel
Strip Accumulator
Function: Accumulator is used to accumulate strip steel from uncoiler and provide strip steel to forming unit. It leaves time for the shear & end welder for strip welding and stores certain amount of strip for continuous forming
Solid State High Frequency Welder
Function: The welder is used for welding edge heating with high-frequency heating device. The whole set of solid-state H.F welder comprises of rectifying cabinet, inverter, output cabinet, connecting optical fiber, closed loop water cooling system, central operator console, and mechanical adjustment device.
Zinc Spraying Machine
Function: It is used to spray zinc on the welding seam after scraping external burr.
Saw Cutting System
Function: Flying saw is used to cut tube during static and motion status in continuously production into desired length.
Straighting Machine
Function:

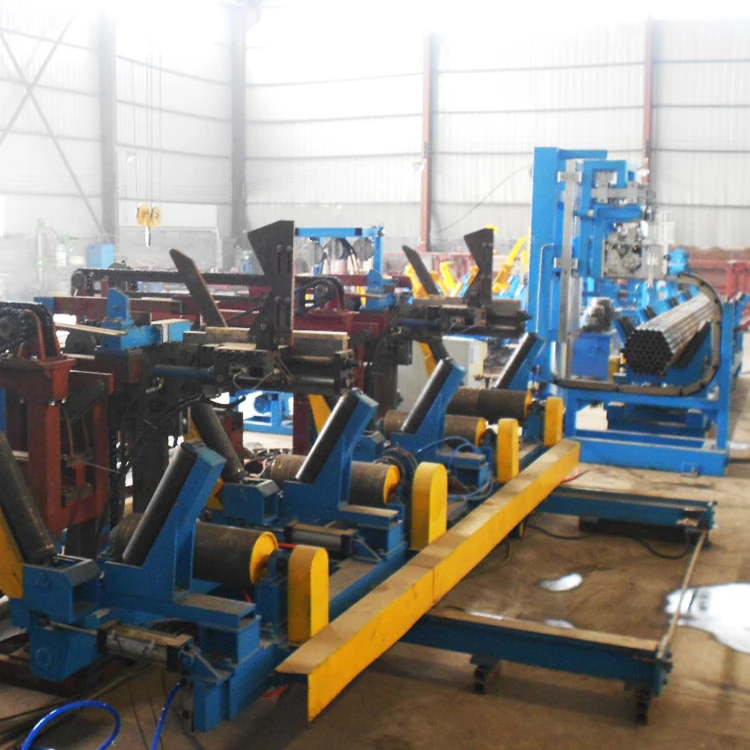

Step 16: Automatic Stacking and Packing Machine
Function: Electrical control using PLC control, touch screen, to achieve human-computer dialogue, manual, automatic between the free conversion.
