256 канал 10A зарядки и разрядки заряда и разряда батареи машина старения емкость батарейного блока машина для испытания тестер

256 канал 10A зарядки и разрядки заряда и разряда батареи машина старения емкость батарейного блока машина для испытания тестер

Category: Battery Testers >>>
Supplier: Guangzhou,Minder-Hightech,Co.,Ltd.

Price:

Price in USD:Details

Quantity:

Product Overview

Description

Product Description

1, Energy saving: comprehensive energy saving of more than 70%, high-power inverter technology

2, High efficiency: labor efficiency increased by 50%

3, High quality: accuracy deviation <0.5% after 500 consecutive charging and discharging, high precision and stable detection technology

Application

8/40/64/80/256/512 Channel Battery Cell/Pack Testing System Battery Tester

Feature

1, Product stability: Single-point independent constant current and constant voltage power supply, complete protection functions, stable operation, selected materials, fine craftsmanship, higher service life than peers, and fast inspection speed.

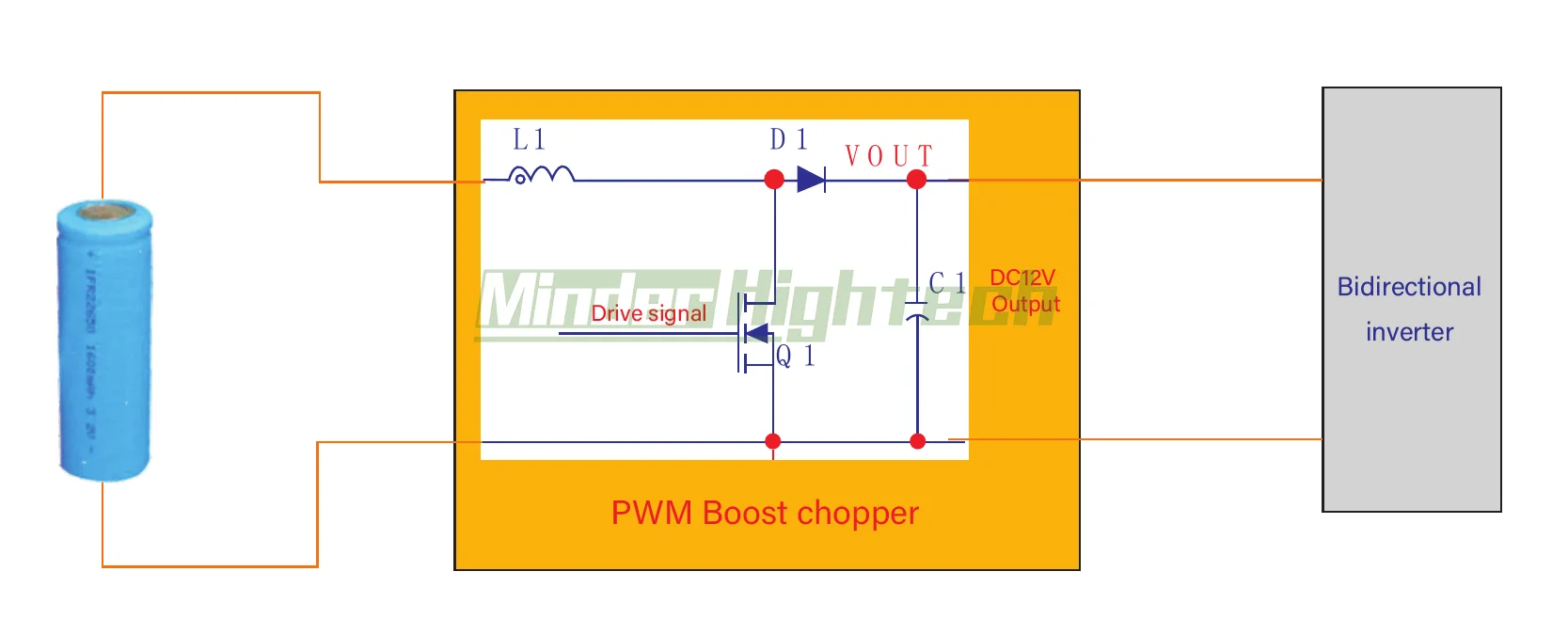

2, Technical excellence: The feeder-type energy-saving mode design is adopted, which has high energy-saving efficiency, flexibility, and humanized intelligent operation. The product linearity, accuracy and speed have reached high standards, and the maintenance and upgrades are good for expansion.

3, Accuracy: Each battery fixture is designed with the internationally popular four-wire principle, which avoids the superimposition of the internal resistance of the tester on the internal resistance of the battery and makes the test results more accurate.

4, Flexible: When the battery under test has low voltage, undercurrent, overvoltage, or overcurrent, the control system will close this channel and separate the battery from the device.

5, Cost-effective: rich experience, strong technology, professional management team, wide range of product use and praise from customers, the performance indicators and product quality of similar products have the most cost-effective advantages.

6, 7*24 hours after-sales service: The product is guaranteed for one year, free of charge and careful technology.

Machine Parameters

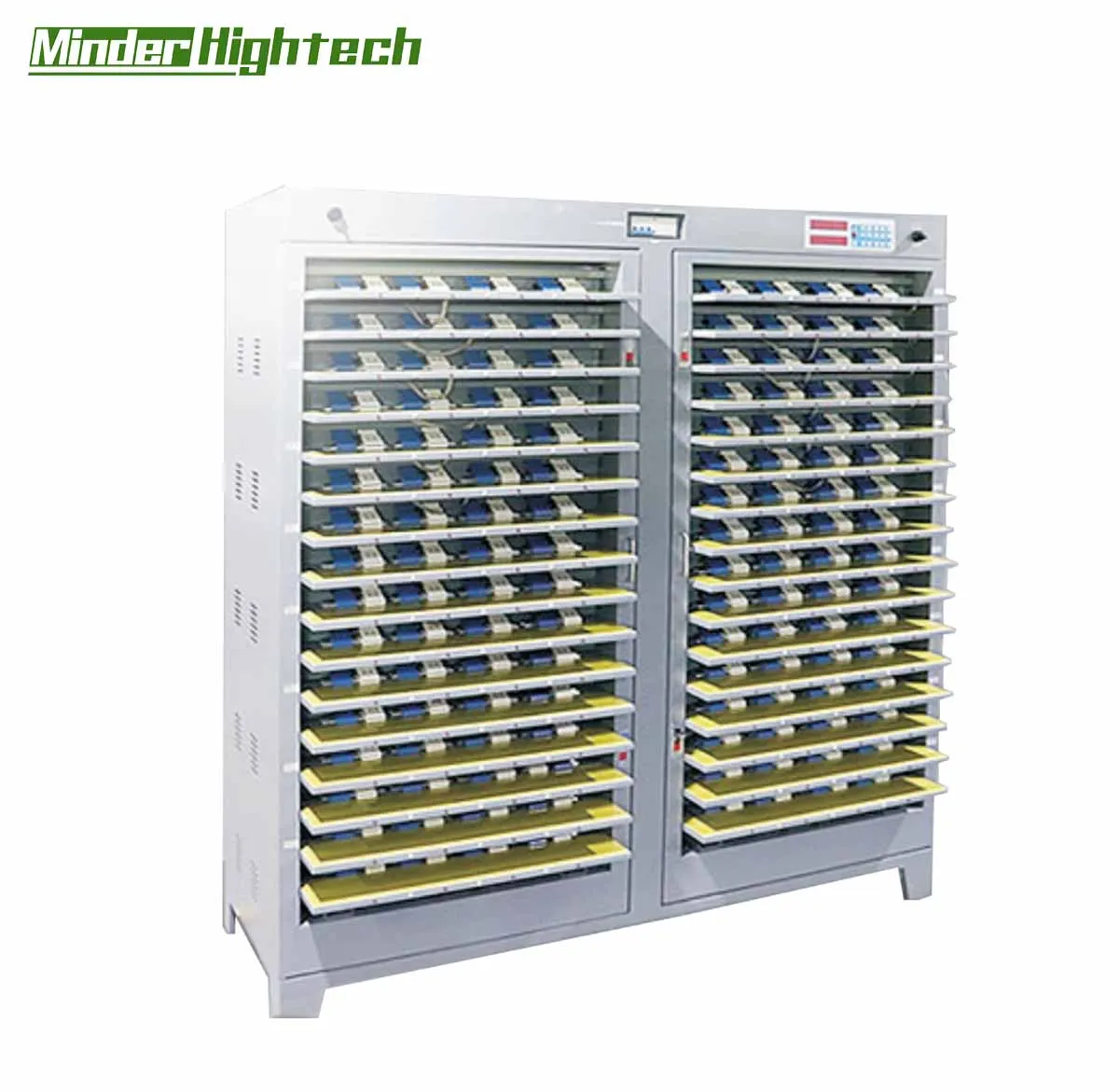

model	MDSC-S11-128-10A	MHSC-S12-512-3A

Device channel number	The whole machine has a total of 128 channels	The whole machine has a total of 512 channels
Dimensions	950mm wide × 580mm deep × 1900mm high	Length 1684MM, width 756MM, height 1840MM, chassis width 500MM
Chassis color	Bright gray (customizable)	Standard blue and black (customizable)
Fixture form	Flat head fixture	65 blue and white buckle
Fixture spacing	50mm-180mm	85CM
Support battery specifications	Cylindrical battery	Polymer battery
Power supply	Three-phase five-wire system AC380V±10%, 50HZ
Working power consumption	≤8KW
working environment	Temperature 0~40℃, relative humidity≤80%
Cooling method	Natural intake, upward exhaust

Product Details

1688 (4).jpg

FAQ

Q: How to buy your products ?
A: We have some products in stock , you can take away the products after you arrange the payment ;

If we don’t have the products in stock you want, we will start production once getting the payment.
Q: What’s the warranty for the products ?
A: The free warranty is one year from the date of commissioning qualified.
Q: Can we visit your factory ?
A: Of course, welcome to visit our factory if you come to China.
Q: How long is the validity of quotation ?
A: Generally, our price is valid within one month from the date of quotation. The price will be adjusted appropriately as the
price fluctuation of raw material in the market.
Q: What’s the production date after we confirm the order ?
A: This depends on the quantity. Normally, for the mass production, we need about one week to finish the production
