Product Overview

Description


Product name

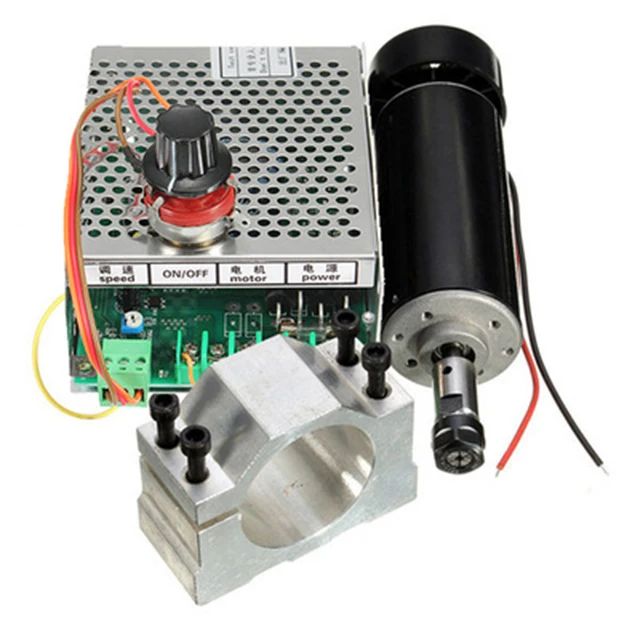

500W air-cooled spindle motor + governor + fixture PCB engraving machine spindle ER11 12000 rpm





Product parameters

















































Working voltage12-100VDC
Idle speed2000-12000 rpm

Power


500W

Torque


0.5NM

Insulation resistance


>2MΩ

Insulation dielectric strength


400V

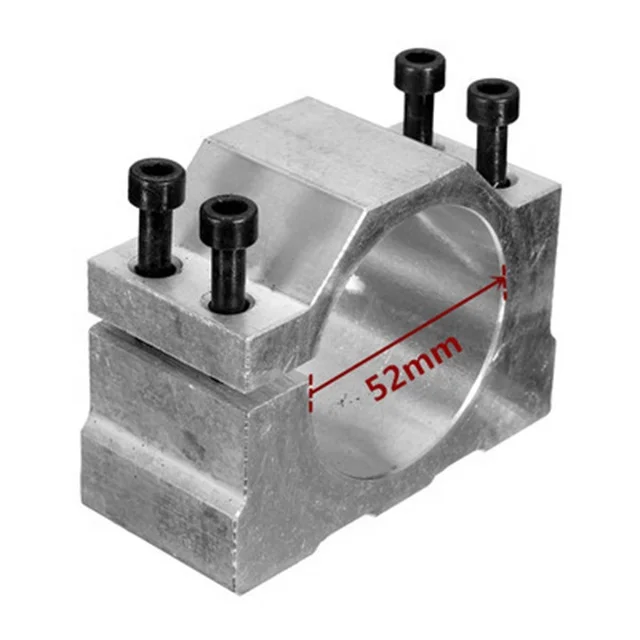

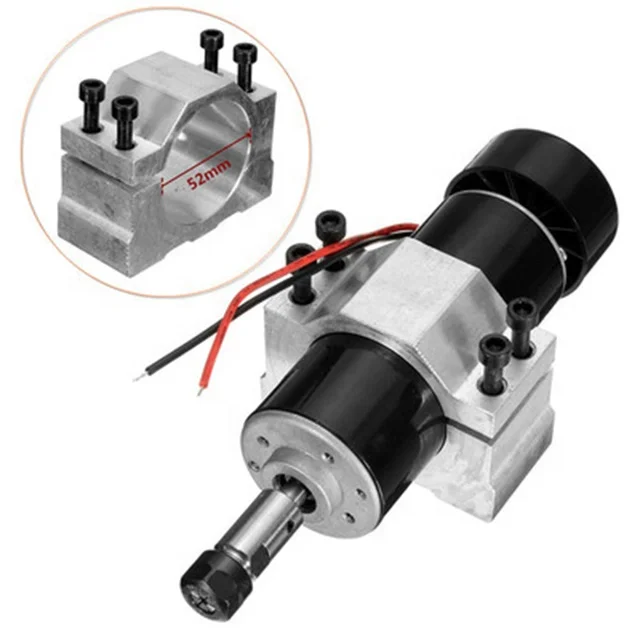

Diameter52mm
Collet length45MM
Chuck diameter16mm
Total length of motorAbout 190mm
Radial runout accuracy0.01-0.03




Product pictures
