PP PE CPVC PVDF Plastic Polyhedral Hollow Ball For Desulfurization and Denitrification Industry
- Category: Other Plastic Products >>>
- Supplier: Jiangxi,Eloong,Environmental,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview
PP PE CPVC PVDF Plastic Polyhedral Hollow Ball For Desulfurization and Denitrification Industry

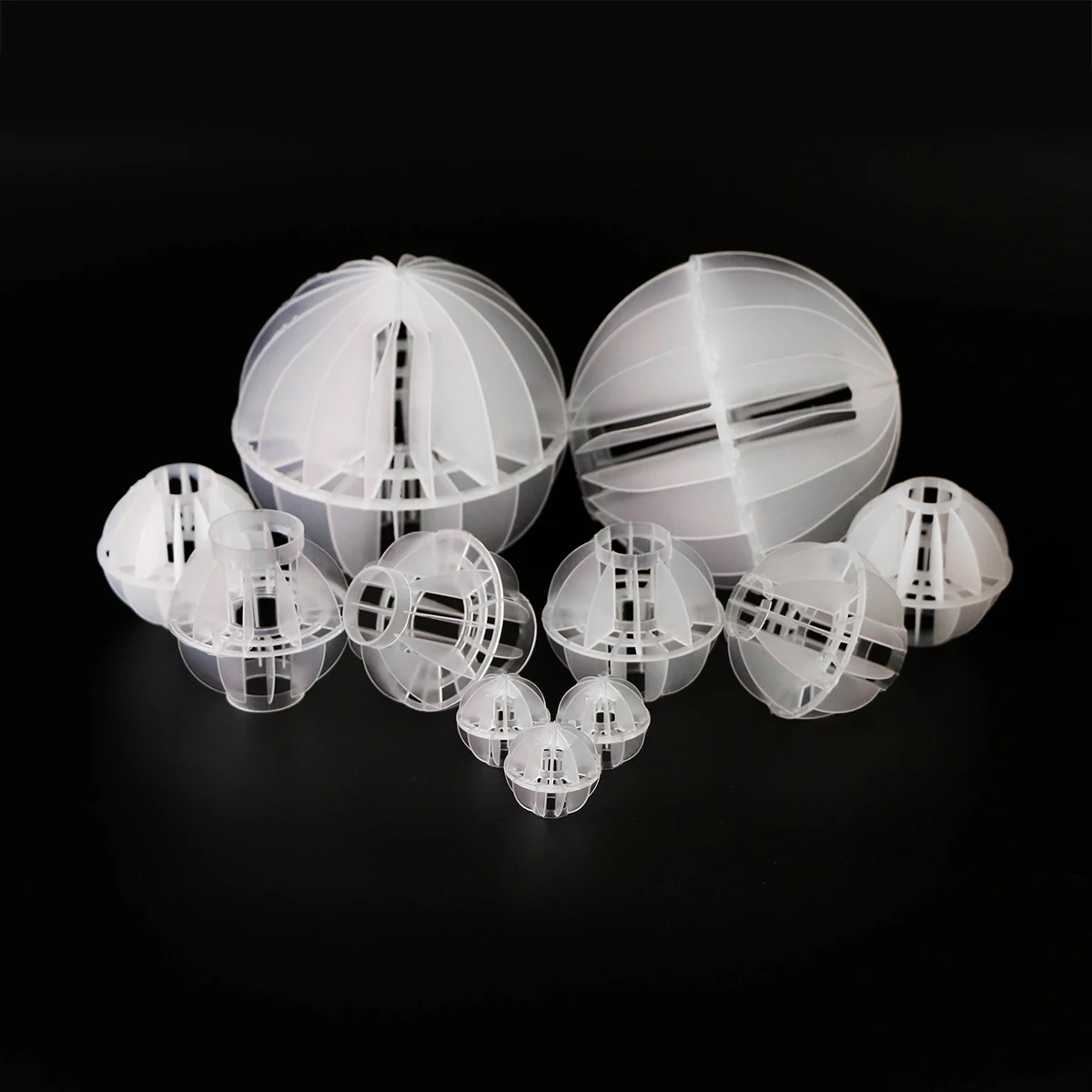

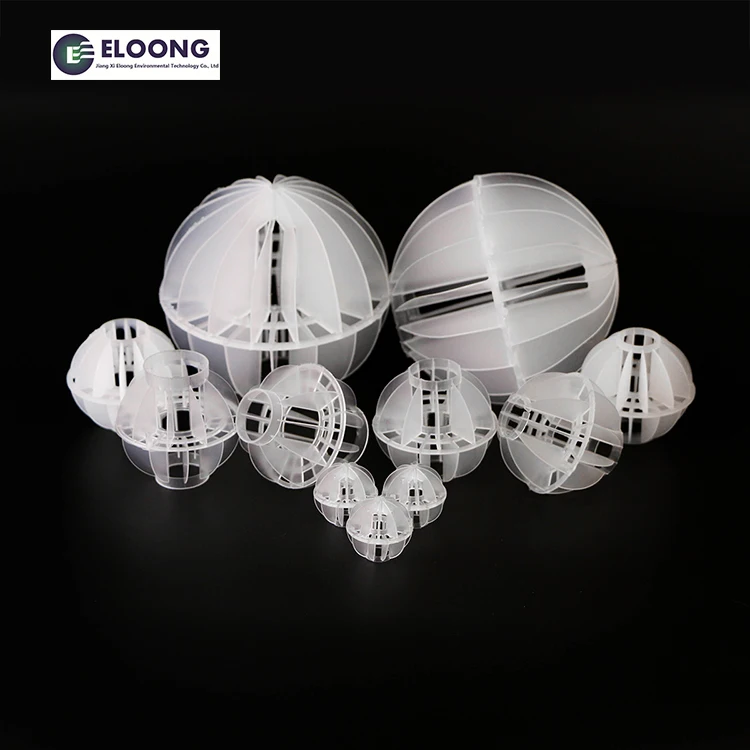

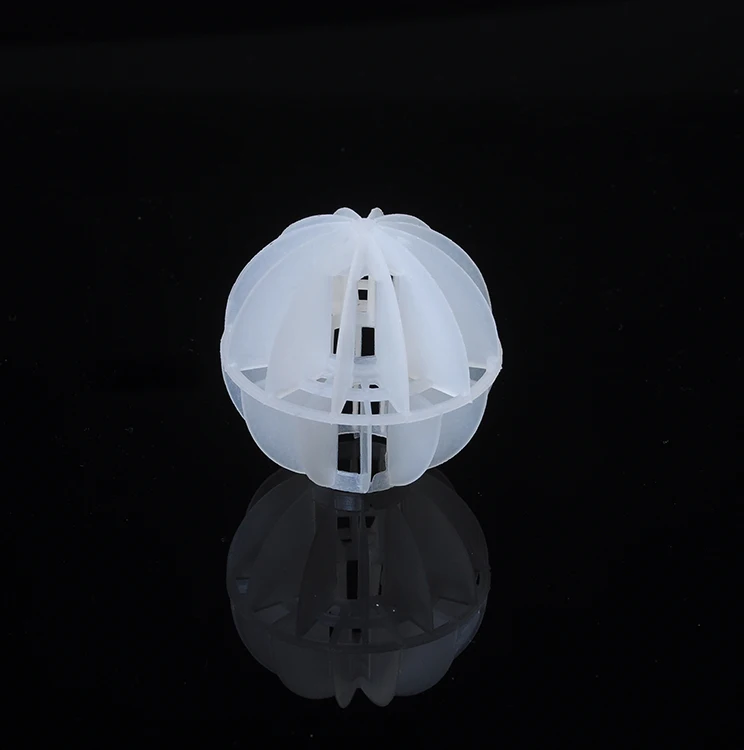

Plastic polyhedral hollow ball also called multiaspect hollow ball or polyhedral hollow ball packing, is a new type of high efficient random packing. It is made from heat resistant and chemical stable plastic material, such as PP, PE, PVC, CPVC and RPP.

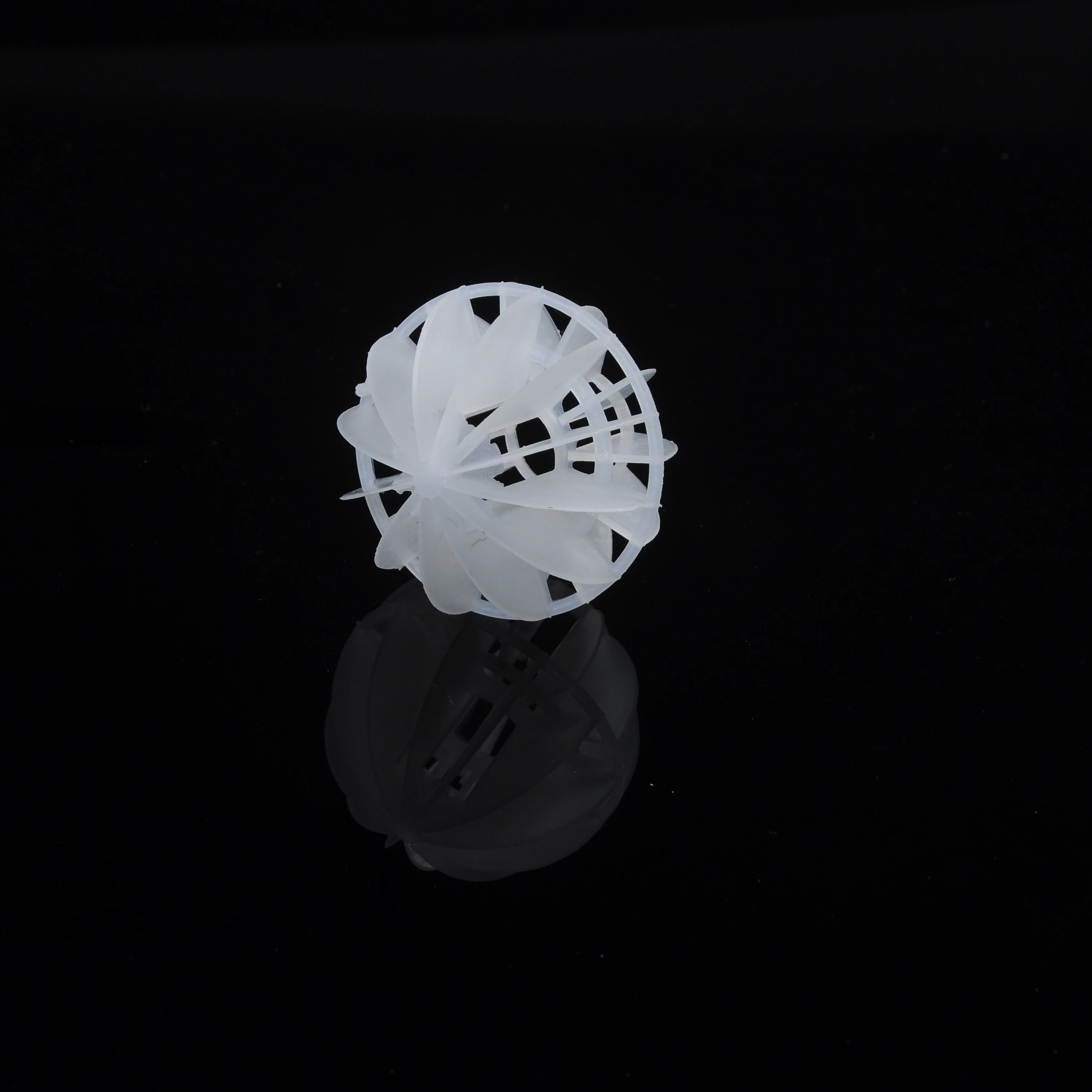

It is composed of two hemispheres to form a whole ball shape. Each hemisphere surface has several half fan-shape leaves, the upper and lower leaves are staggered arranged. This design makes the polyhedral hollow ball lighter weight, smaller wind and flowing resistance and good hydrophilic surface.
Material
PP, PE, PVC, CPVC and RPP.

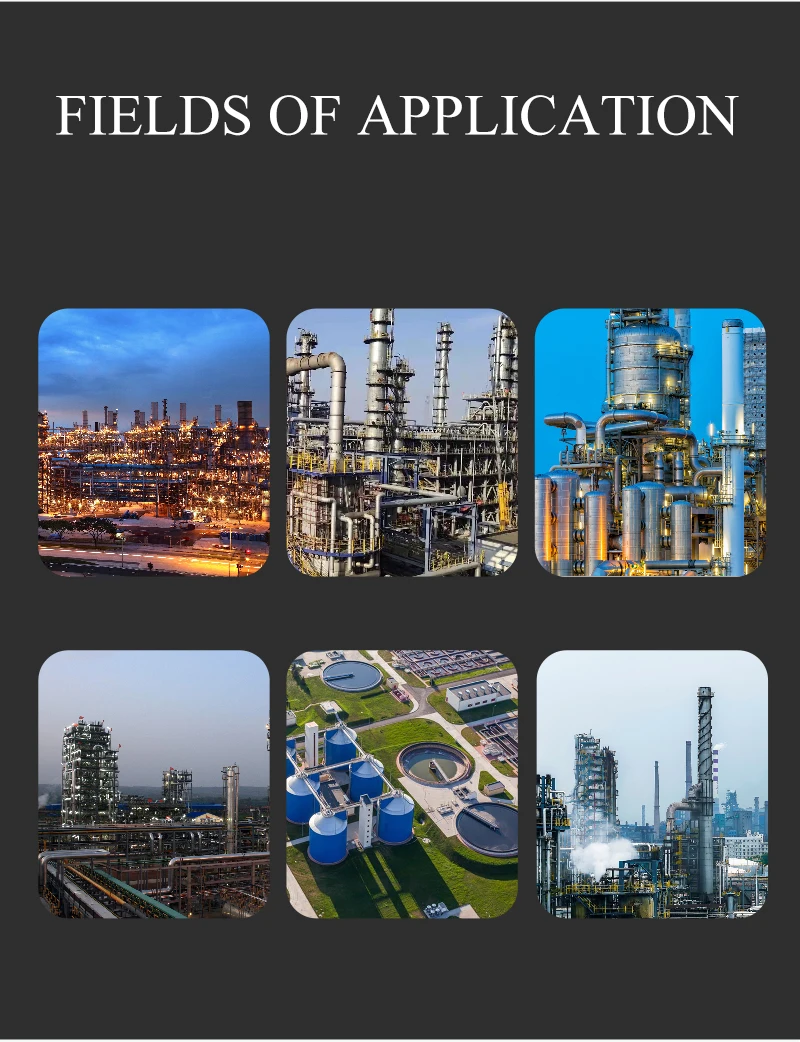

Application
It is widely used in the sewage treatment, vacuum distillation and desulfuration of CO2 in power plant and other applications.
Feature
● High gas velocity and low resistance.
● Large surface area for fully contact of gas and liquid.
● Large operating elasticity.
● Large surface area for fully contact of gas and liquid.
● Large operating elasticity.
Material
PP, PE, PVC, CPVC and RPP.
Physical & chemical properties | ||||||||||||
Performace/Material | PE | PP | RPP | PVC | CPVC | PVDF | ||||||
Density(g/cm3)(after injection molding) | 0.98 | 0.96 | 1.2 | 1.7 | 1.8 | 1.8 | ||||||
Operation Temp.(℃) | 90 | >100 | >120 | >60 | >90 | >150 | ||||||
Chemical Corrosion resistance | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | ||||||
Compression Strength(Mpa) | >6.0 | >6.0 | >6.0 | >6.0 | >6.0 | >6.0 | ||||||
Technical data | ||||||||
Specification (mm) | Surface area (m²/m³) | Free volume (%) | Bulk density (kg/m³) | Number per m³ | ||||
ø 25*1.0 | 200 | 40 | 125 | 41500 | ||||
ø 38*1.2 | 150 | 40 | 121 | 22000 | ||||
ø 50*1.5 | 120 | 40 | 73 | 10480 | ||||
Product packaging

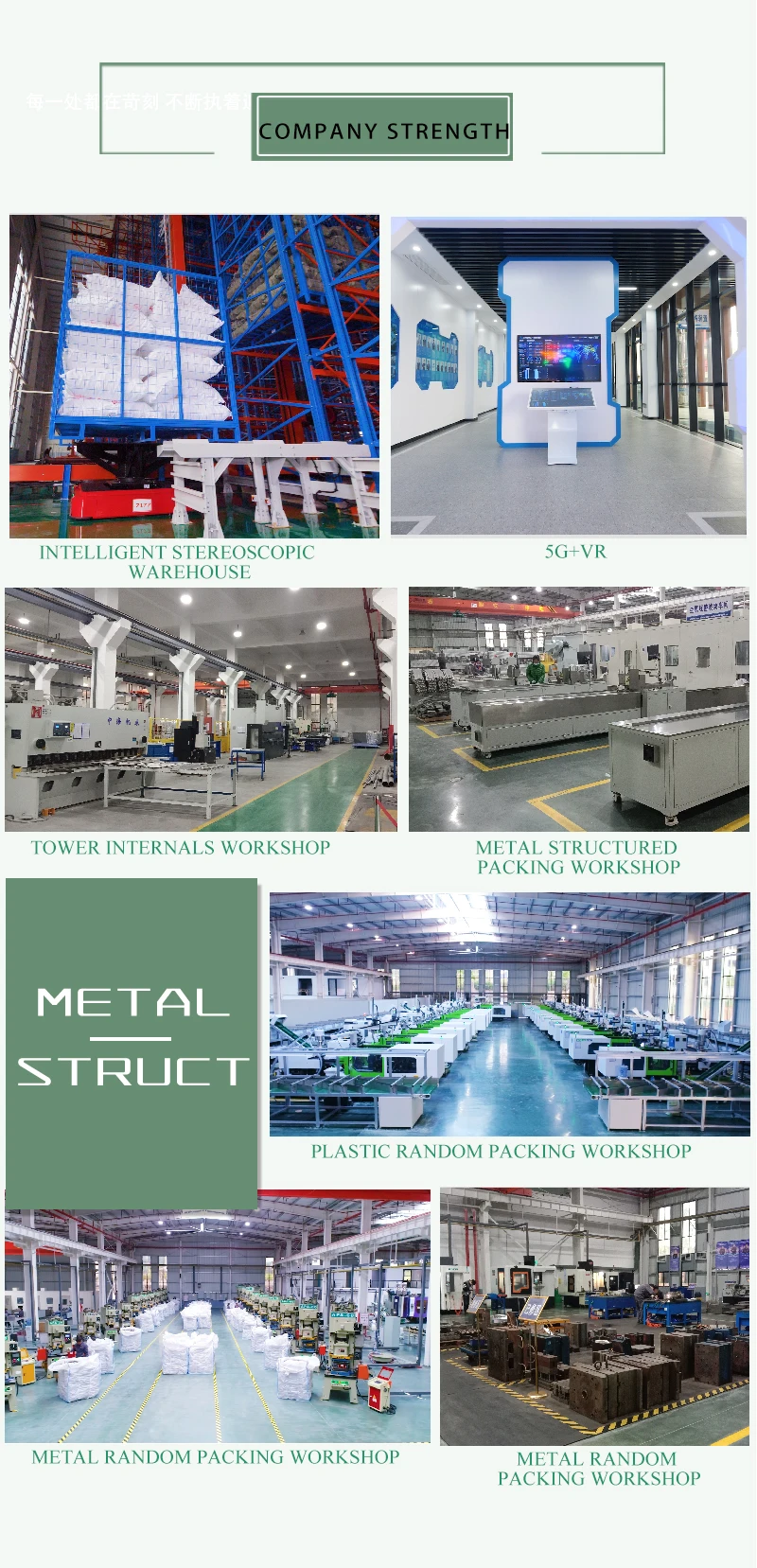

Our workshop
Customer Photos
Certifications
SIMILAR PRODUCTS
FAQ
Q1：What's the MOQ?
A1 : The MOQ is 1 cubic meter or 1 ton, The price will be higher if the quantity is less than 1 cubic meter or 1 ton.
Q2 : What are the terms of payment?
A2 : T/T , L/C at sight, Papal , Alibaba Trade Assurance and etc.
Q3 : What's the delivery time?
A3 : About 3-7 days .after received the fund.
Q4 : Can you provide free samples?
A4 : Yes , Sample will be free within 0.5 kg.
