High Speed Filling Line Toner Hair Care Conditioner Liquid Soap Multi head Automatic Cosmetic Tracking Filling Machine for Sales
High Speed Filling Line Toner Hair Care Conditioner Liquid Soap Multi-head Automatic Cosmetic Tracking Filling Machine for Sales
High Speed Filling Line Toner Hair Care Conditioner Liquid Soap Multi-head Automatic Cosmetic Tracking Filling Machine for Sales
High Speed Filling Line Toner Hair Care Conditioner Liquid Soap Multi-head Automatic Cosmetic Tracking Filling Machine for Sales
High Speed Filling Line Toner Hair Care Conditioner Liquid Soap Multi-head Automatic Cosmetic Tracking Filling Machine for Sales
High Speed Filling Line Toner Hair Care Conditioner Liquid Soap Multi-head Automatic Cosmetic Tracking Filling Machine for Sales
High Speed Filling Line Toner Hair Care Conditioner Liquid Soap Multi-head Automatic Cosmetic Tracking Filling Machine for Sales

High Speed Filling Line Toner Hair Care Conditioner Liquid Soap Multi head Automatic Cosmetic Tracking Filling Machine for Sales

Share on (1600395209673):


Price:

Quantity:


Product Overview

Description



Product Description

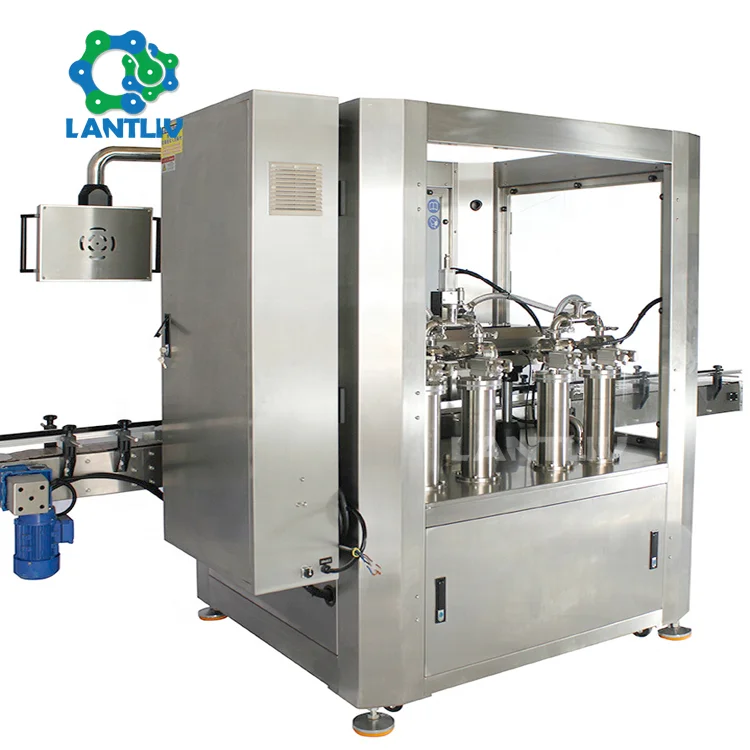

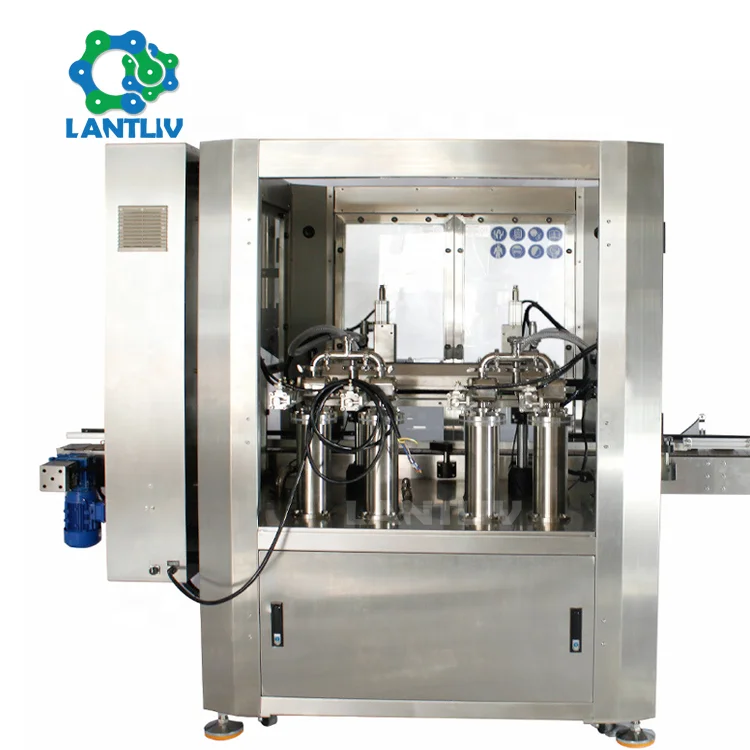

Automatic cosmetic tracking filling machine, can automatically track the bottle mouth, and synchronous fill products into bottles, with high speed and high precision filling. This machine can work with automatic bottles unscrambler, automatic capping machine, automatic labeling machines, ink-jet printer, carton packing machines, to be automatic production lines. They can be widely used for filling various liquid products, in industries like pharmaceuticals, chemicals, food, cosmetics, etc.


Technical Parameters


Filling method
Automatic cosmetic tracking filling machine
Filling system
Servo motor + Piston pump
Piston pump amount
4 pistons pump alternate
Filling nozzle amount
2/4/6/8 pcs optional
Filling volume
50ml--500ml, 200ml--1000ml, 1000ml--5000ml (Can be customized)
Filling dosage
50-500ml : 45-60 bottles/min; 500-1000ml: 40-50 bottles/min
Filling accuracy
≤1.0% (on the base of 1000ml)
Bottles applicable
Body: 30-110mm, Height: 80-310mm, Mouth diameter: 20-60mm
Material
Parts contact with products are SUS 316, bracket is SUS 304.
Control system
PLC & Touch screen
Power supply
AC220V 50Hz 1phase (Can be customized)
Air consumption
0.4-0 .8 Mpa, 9L/min
Noise
≤85dB
G.W.
450kg

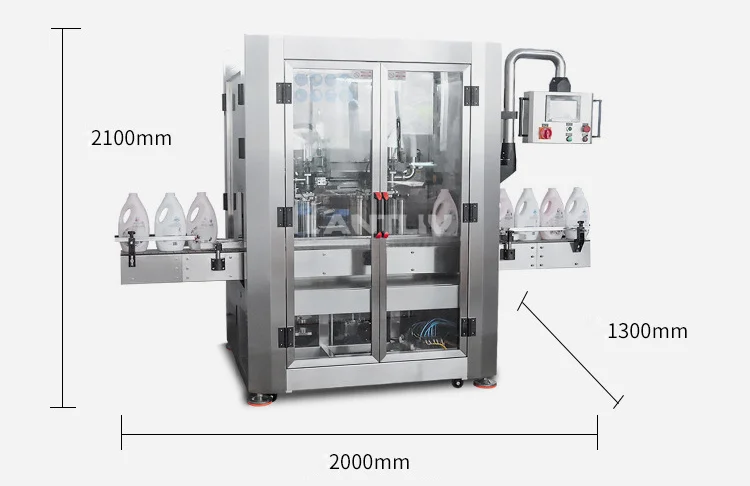

Dimension
With conveyor belt, L2200*W1100*H1650cm (Conveyor belt length can be customized)

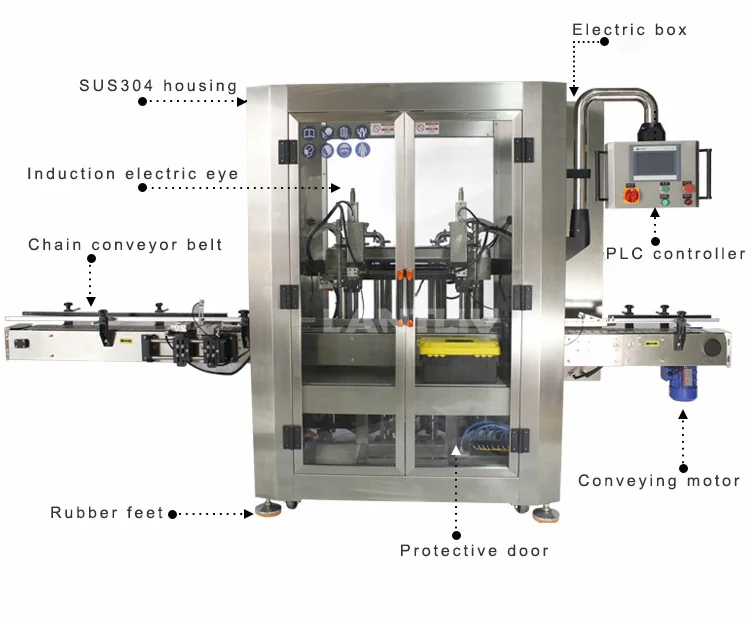

Product Details

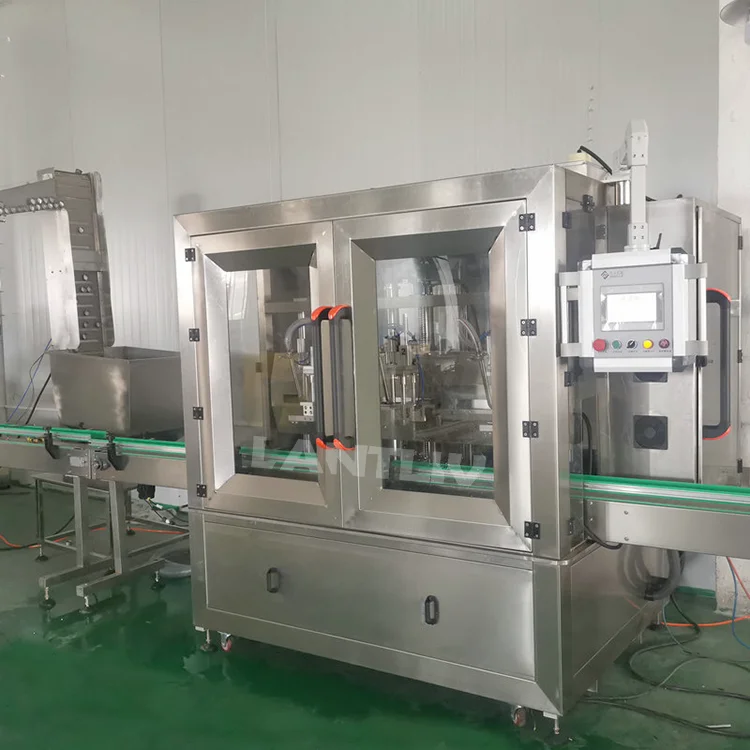

With PLC control panel, it is easy to set working parameters like filling speed. It is with an emergency stop button, ensuring a safe working environment. The language of control panel can be customized as needed, please contact us if you need.

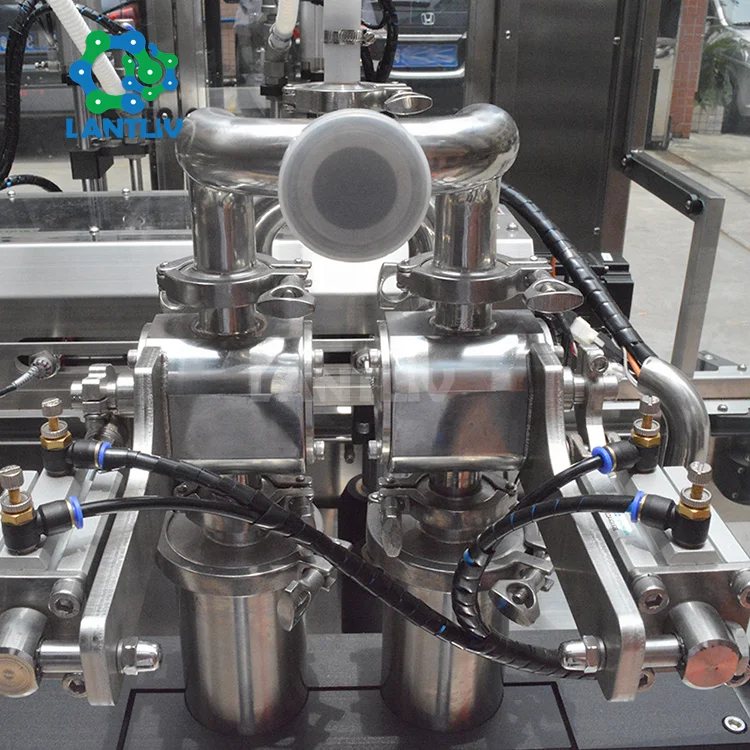

Made of high quality stainless steel 304 and 316 materials, the piston cylinder will measure precisely, which helps to realize quantitative filling. The food grade material makes it possible to fill food materials, ensuring production quality.
With chain conveyor belt, it can transport large volume products steadily and smoothly. Improve work efficiency. The width of feed inlet can be adjusted as needed, making it suitable for products of different sizes.

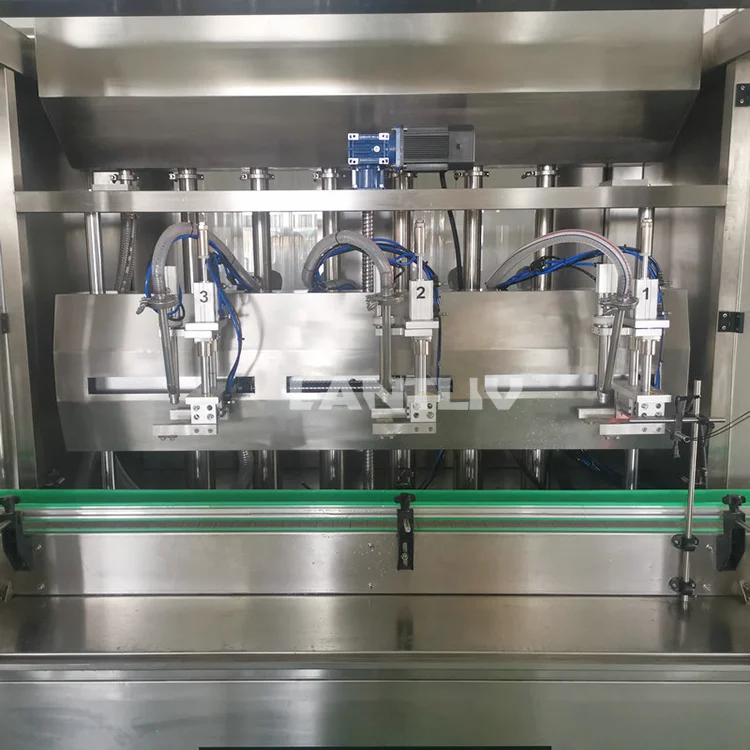

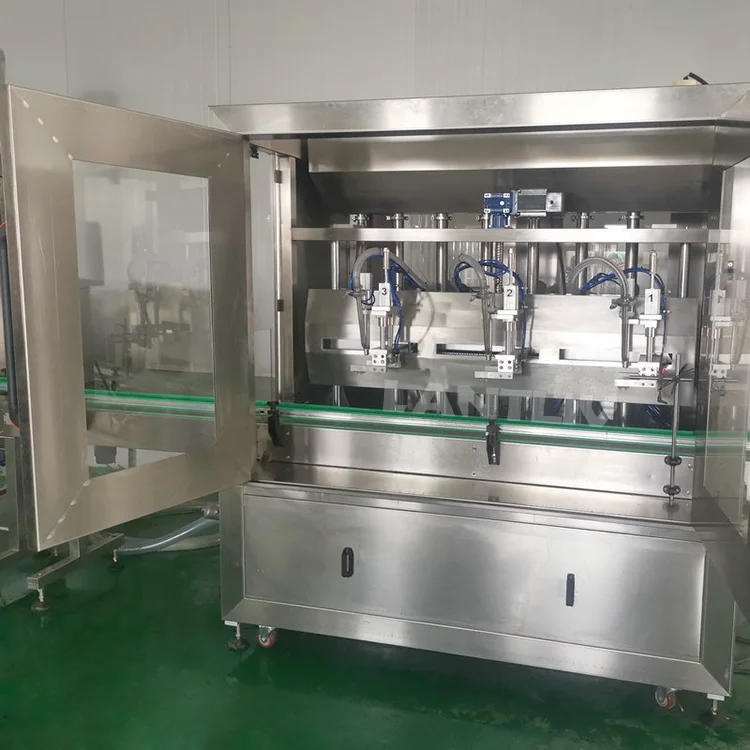

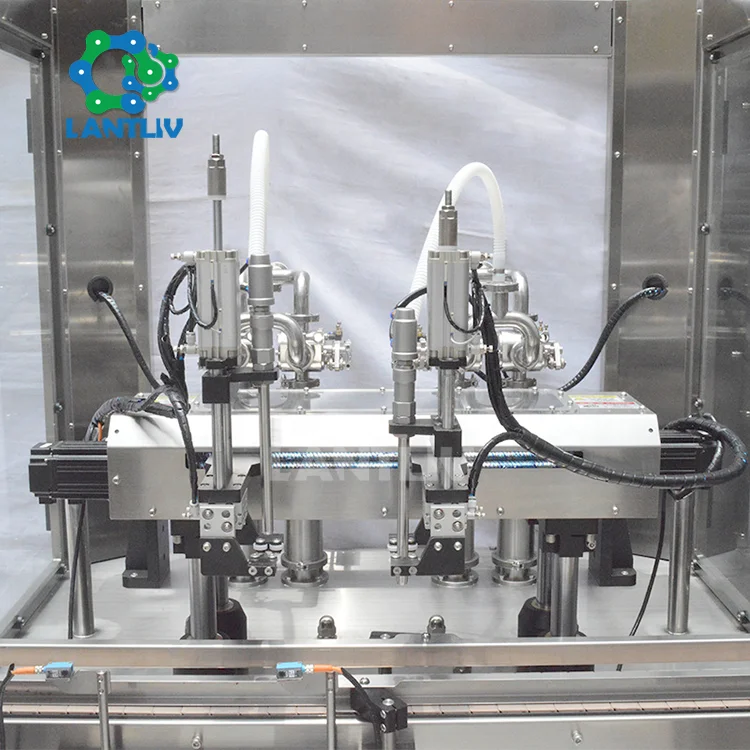

Different from other filling machines, the filling heads of this machine will automatically move with the bottles during filling, rather than stopping to fill. Greatly improve efficiency. With anti-dripping filling nozzles, servo motor control filling volume, it will fill liquid accurately. Different numbers of filling heads can be designed according to production needs. Commonly used are 2 heads, 3 heads, 4 heads, 6 heads, etc.

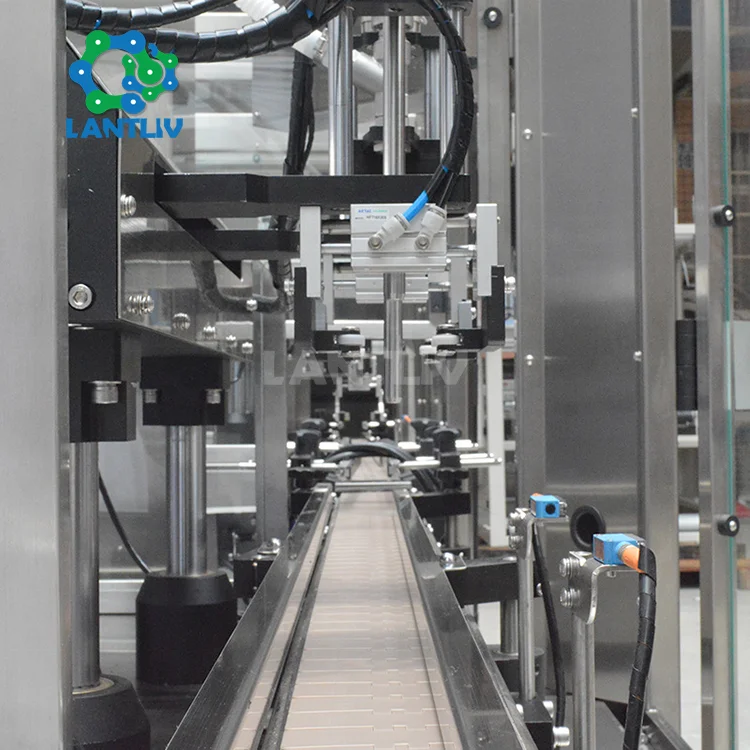

lt is designed for detecting bottles, ensuring they can be filled accurately, realizing automated production. The position and sensitivity of electric eye can be adjusted according to production need. Easy to operate.

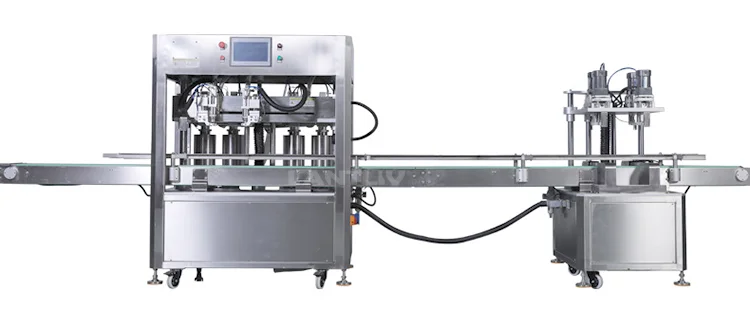

It can be used as a stand-alone machine or connected with other machinery and equipment such as bottle unscrambler, capping machine, labeling machine, aluminum foil sealing machine, packaging machine, etc. to form a production line.


Details Images




Product Advantages






Packing & Delivery


(1) PE film wrapping for inner.
(2) Separate PE bag for fittings .
(3) Synthetic fiber paper for corners to avoid possible scratch.
(4) Fumigation free plywood case outer packing.
(5) or as customers request.
(6) Shipment within 20 days after receiving the deposit.




FAQ


Q1: Are you a machine manufacturer or trading company?

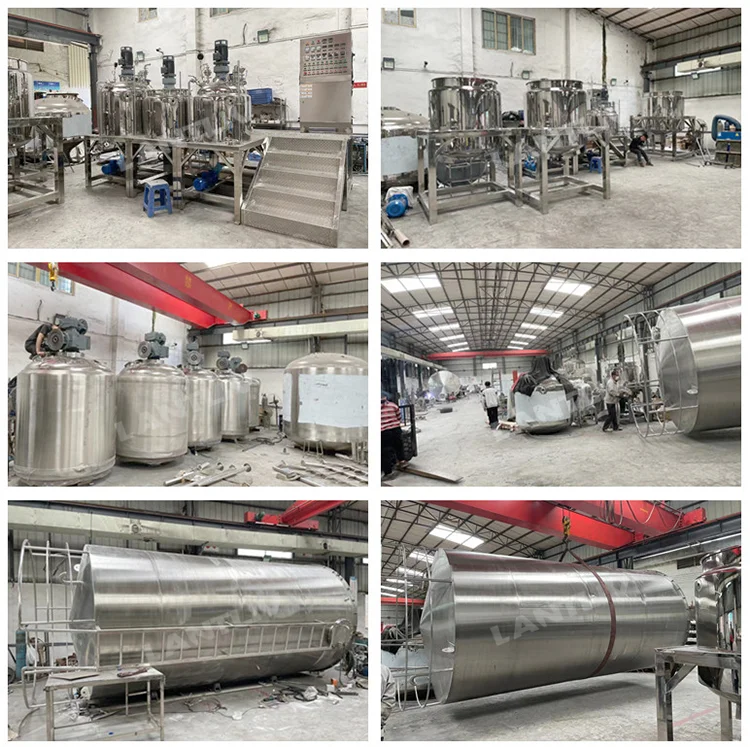

A1: We are a reliable machine manufacturer that could gives u best service. And our machine can be customized by client's requirement. Welcome to visit our factory!

Q2: How do you guarantee this machine normally operating?
A2: Every machine is tested by our factory and other client before shipping, We will adjust the machine to optimal effect before delivery. And spare is always available and free for you in warranty year.

Q3: Could I choose the language on touch screen?
A3: It's no problem. You can choose Spanish, French, Italian, Arabic, Korean, etc,.

Q4: What should I do to choose the best machine for us?
A4: 1) Tell me the material you want to fill, we'll choose the suitable type of machine for you to consider.
2) After choose the suitable type of machine, then tell me the filling capacity you need for the machine.
3) At last tell me the inner diameter of your container to help us choose the best diameter of the filling head for you.

Q5: Do you have manual or operation video for us to know more about the machine?
A5: Yes, we will send you the manual and operation video after you ask for us.

Q6: If there's some spare parts that broke, how to solve the problem?
A6: First of all, please take the pic or make a video to show the problem parts.
After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side.
