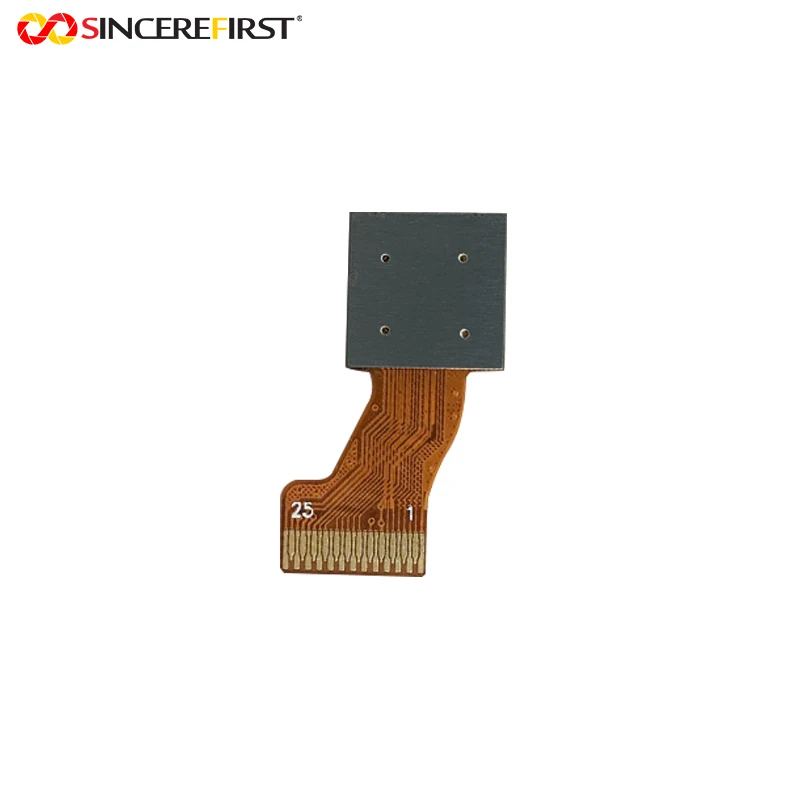

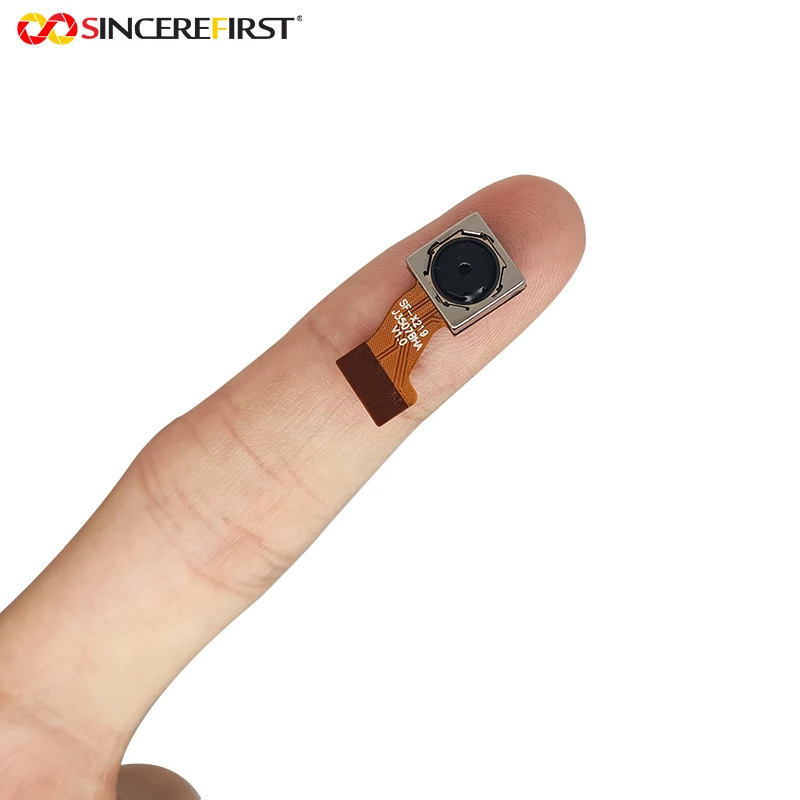

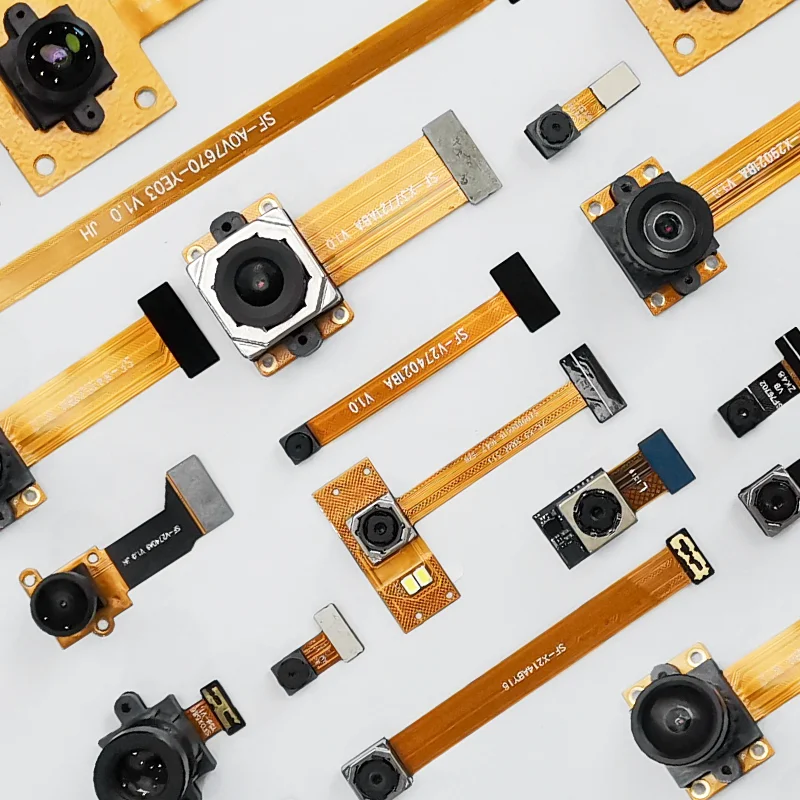

sincere first camera imx219 sensor mipi 8mp arducam imx219 auto focus camera module
- Category: >>>
- Supplier: Guangzhou Sincere Information Technology Ltd.
Share on (1600396189684):
Product Overview
Description
The IMX219PQH5-C is a diagonal 4.60 mm (Type 1/4.0) CMOS active pixel type image sensor with a square pixel
array and 8.08M effective pixels. This chip operates with three power supplies, analogue 2.8 V, digital 1.2 V, and IF
1.8 V, and has low power consumption. High sensitivity, low dark current, and no smear are achieved through the
adoption of R, G, and B primary color pigment mosaic filters. This chip features an electronic shutter with variable
charge-storage time.
array and 8.08M effective pixels. This chip operates with three power supplies, analogue 2.8 V, digital 1.2 V, and IF
1.8 V, and has low power consumption. High sensitivity, low dark current, and no smear are achieved through the
adoption of R, G, and B primary color pigment mosaic filters. This chip features an electronic shutter with variable
charge-storage time.
Features
◆Back-illuminated CMOS image sensor Exmor RTM
◆2-wire serial communication circuit on chip
◆CSI2 serial data output (selection of 4lane/2lane)
◆Timing generator, H and V driver circuits on chip
◆CDS/PGA on chip
◆10-bit A/D converter on chip
◆Automatic optical black (OB) clamp circuit on chip
◆PLL on chip (rectangular wave)
◆High sensitivity, low dark current, no smear
◆Excellent anti-blooming characteristics
◆Variable-speed shutter function (1 H units)
◆R, G, B primary color pigment mosaic filters on chip
◆Max. 30 frame/s in all-pixel scan mode
◆Pixel rate: 280 MHz (All-pixels mode)
◆720p/120 frame/s, 1080p (crop)/30 frame/s
◆Data rate: Max. 755 Mbps/lane
◆2-wire serial communication circuit on chip
◆CSI2 serial data output (selection of 4lane/2lane)
◆Timing generator, H and V driver circuits on chip
◆CDS/PGA on chip
◆10-bit A/D converter on chip
◆Automatic optical black (OB) clamp circuit on chip
◆PLL on chip (rectangular wave)
◆High sensitivity, low dark current, no smear
◆Excellent anti-blooming characteristics
◆Variable-speed shutter function (1 H units)
◆R, G, B primary color pigment mosaic filters on chip
◆Max. 30 frame/s in all-pixel scan mode
◆Pixel rate: 280 MHz (All-pixels mode)
◆720p/120 frame/s, 1080p (crop)/30 frame/s
◆Data rate: Max. 755 Mbps/lane
Device Structure
◆CMOS image sensor
◆Image size
: Diagonal 4.60 mm (Type 1/4.0)
◆Total number of pixels
: 3296 (H) × 2512 (V) approx. 8.28 M pixels
◆Number of effective pixels
: 3296 (H) × 2480 (V) approx. 8.17 M pixels
◆Number of active pixels
: 3280 (H) × 2464 (V) approx. 8.08 M pixels
◆Chip size
: 5.095 mm (H) × 4.930 mm (V) (w/ Scribe)
◆Unit cell size
: 1.12 µm (H) × 1.12 µm (V)
◆Substrate material
: Silicon
◆Image size
: Diagonal 4.60 mm (Type 1/4.0)
◆Total number of pixels
: 3296 (H) × 2512 (V) approx. 8.28 M pixels
◆Number of effective pixels
: 3296 (H) × 2480 (V) approx. 8.17 M pixels
◆Number of active pixels
: 3280 (H) × 2464 (V) approx. 8.08 M pixels
◆Chip size
: 5.095 mm (H) × 4.930 mm (V) (w/ Scribe)
◆Unit cell size
: 1.12 µm (H) × 1.12 µm (V)
◆Substrate material
: Silicon

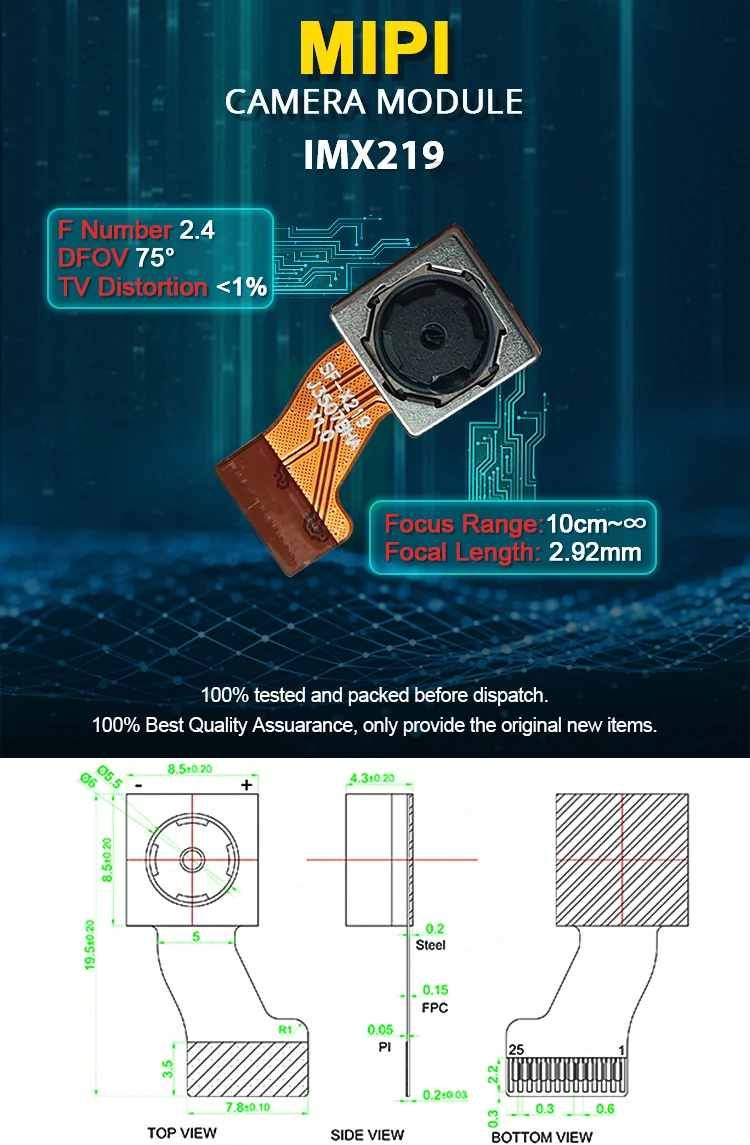

Place of Origin: | Guangdong, China | Sensor type: | IMX219PQH5-C | ||
Pixel: | 8MP | Focus Range： | 10cm- infinite | ||
Angle: | DFOV72, F.NO2.4 | Distortion： | <1.0% | ||
Focal Length: | 2.92mm | Customized support： | Online technical support, Customized logo, Software engineering, OEM, ODM | ||
Recommend Products
Main Features & Advantage
1. Top Quality & advanced technology:
Our Factory is a good and professional manufacturer of CMOS Camera Module and endoscope camera module products. We provide high quality and compatible CMOS endoscopic Camera Module products and for different requests
and wishes from clients.
2). Professional producing different pixel camera module:
CIF, VGA, 2 million,3 million, 5 million, 8 million, 12 million, 16 million, 21 million,22 million, 23 million,24 million 48
million, 54 million, 64 million, 1 billion pixel camera module. We also could do according to customer's specific requirements.
3. Widely Application :
Mobile phone, Artificial Intelligence,uav drone,smart home,Iris reorganization,Gesture Recognition,Machine Vision,3D printer camera solution,2D Barcode Recognition,Optical Imaging System,Infrared Image for Industry,Digital Still Camera,
DV, PDA/Handheld, smart toy, PC Camera, Security Camera, Automotive Camera, etc.
4.Different Sensor: OVT sensor, Aptina sensor, Samsung sensor, Panasonic sensor, SONY sensor and some sensors which are made in China. Also we have SMT lines, CSP lines and COB lines.
and wishes from clients.
2). Professional producing different pixel camera module:
CIF, VGA, 2 million,3 million, 5 million, 8 million, 12 million, 16 million, 21 million,22 million, 23 million,24 million 48
million, 54 million, 64 million, 1 billion pixel camera module. We also could do according to customer's specific requirements.
3. Widely Application :
Mobile phone, Artificial Intelligence,uav drone,smart home,Iris reorganization,Gesture Recognition,Machine Vision,3D printer camera solution,2D Barcode Recognition,Optical Imaging System,Infrared Image for Industry,Digital Still Camera,
DV, PDA/Handheld, smart toy, PC Camera, Security Camera, Automotive Camera, etc.
4.Different Sensor: OVT sensor, Aptina sensor, Samsung sensor, Panasonic sensor, SONY sensor and some sensors which are made in China. Also we have SMT lines, CSP lines and COB lines.
Application Areas
Why Choose Us
Company Profile
Certification
FAQ
Q:Are you factory or trade company?
A: We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers.
Q: Could you offer OEM&ODM service?
A: Yes: we are able to provide OEM&ODM service. The number of customization starts at 5.
Q:Do you guarantee the quality of products?
A: We offer 10 years warranty service and introduced complete quality management system as well as rigorous technical standards.
Q: How long is the production cycle?
A:Sample order is 4-5days. Bulk orders take 9-10 days.
Q:What shipping ways do you have?
A: We could ship the goods by DHL, UPS, Fedex, Air Mail
Q: Whats is the payment terms?
A: T/T, Ablibaba trade assurance.
A: We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers.
Q: Could you offer OEM&ODM service?
A: Yes: we are able to provide OEM&ODM service. The number of customization starts at 5.
Q:Do you guarantee the quality of products?
A: We offer 10 years warranty service and introduced complete quality management system as well as rigorous technical standards.
Q: How long is the production cycle?
A:Sample order is 4-5days. Bulk orders take 9-10 days.
Q:What shipping ways do you have?
A: We could ship the goods by DHL, UPS, Fedex, Air Mail
Q: Whats is the payment terms?
A: T/T, Ablibaba trade assurance.
