Product Overview

Description

PLANAR

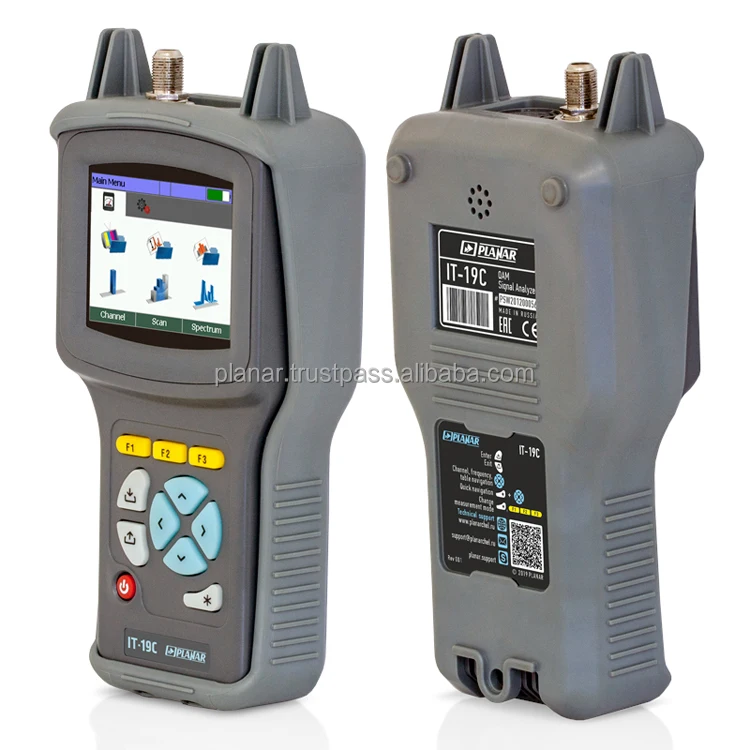

IT-19C DVB-C Signal Analyzer

The IT19C is a compact handheld affordable instrument and it's working with DVB-S/S2 signal. It's ergonomic plastic housing in rubber case made instrument highly rugged and shock resistant. The built-in litium-ion battery insures interrupted operation of your instrument in the fieldwork.

- 2.8" color TFT, 320x240 pixels

- Ergonomic plastic housing in a rubber boot

- New user friendly interface

- Long-lasting time of battery operation

- Fast battery charging

- Built-in spectrum analyzer

- Fast channel synchronization

- Extended frequency range from 5 to 1006 MHz

- Auto detection of digital channel parameters

- Simultaneous measurement of channel power and MER/BER

- Firmware update by user

- Operation with PC via USB

Measurement of TV signal parameters::

• Analog channel: Level, Video/Audio, Carrier/Noise


• Digital channel: Power
  ITU-T J.83 Annex A/B/C cable TV: MER, PreBER, PostBER


• Measurement of RF signal spectrum


• Measurement of network remote powering DC and AC voltage


• Measurement modes: CHANNEL, SPECTRUM, FULL SCAN (Tilt and Ripple measurement)

Software features for PC:

• Virtual mode with channel parameters measurement as histograms, spectrum analyzer, constellation diagram with ITU-T J.83 Annex A/B/C channel parameters


• Reading, creating new, editing, uploading into meter and saving channel plans and log channel pages


• Analyzer measurement results are saved in graphical and table view with possibility to print out


• Firmware updating

Delivery set:

• IT-19C analyzer with battery
  1 pc


• "F"-"F" female adapter
  1 pc


• Quick start
  1 pc


• Power supply
  1 pc


• Rubber boot
  1 pc



Operating frequency range: 5...1006 MHz

Frequency resolution: 0.125 MHz

Level measurement range: 30...120 dBuV

Level measurement accuracy: +/-1.5 dB

Modulation types for DVB-C channels: QAM64, 128, 256

Symbol rate for DVB-C channels: 5 to 7.2 Msps

MER measurement range: 28 to 40 dB

MER measurement accuracy: +/-2.0 dB

BER measurement range: 4.0x10-3...1.0x10-9

Operating temperature range: -10 to +50 degrees C

Battery life: More than 5 hours

Log book:  Up to 15 limit plans
                    Up to 64 channel plans



                    Up to 250 logs of measurements

Input AC and DC voltage measurement: 10 to 100V

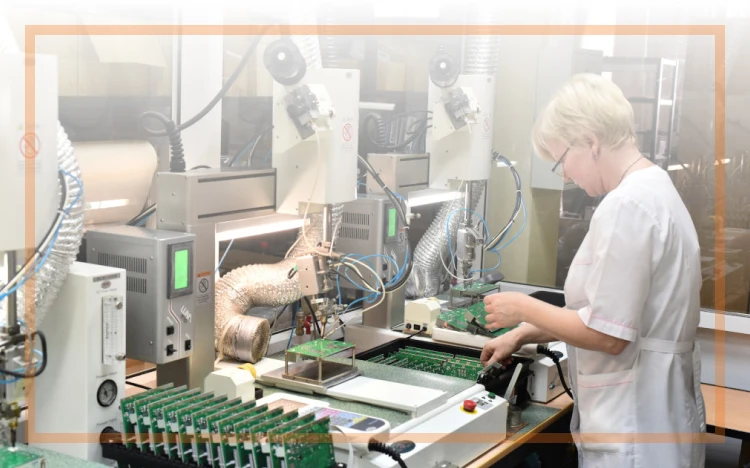

PLANAR LLC is one of the leading Russian companies specializing in R&D and manufacture of high-quality and price-competitive electronics. The company was founded in 1992 and currently is fast progressing in the fields of telecommunications and test and measurement technologies. Presently PLANAR LLC has a base of thousands of regular customers in Russia and worldwide.

Processing time:	1 day
Port:	Yekaterinburg
Packaging details:	Carton Box

Where are warehouses based?	Singapore (Asia) and Germany (for EU)
How many devices are in stock usually?	10-15 pcs
Can we pay later?	We use post-payment method with regular customers.
