Kecheng factory DR3C Table Low Speed Centrifuge Vehicle Mounted Type

Product Overview

Description

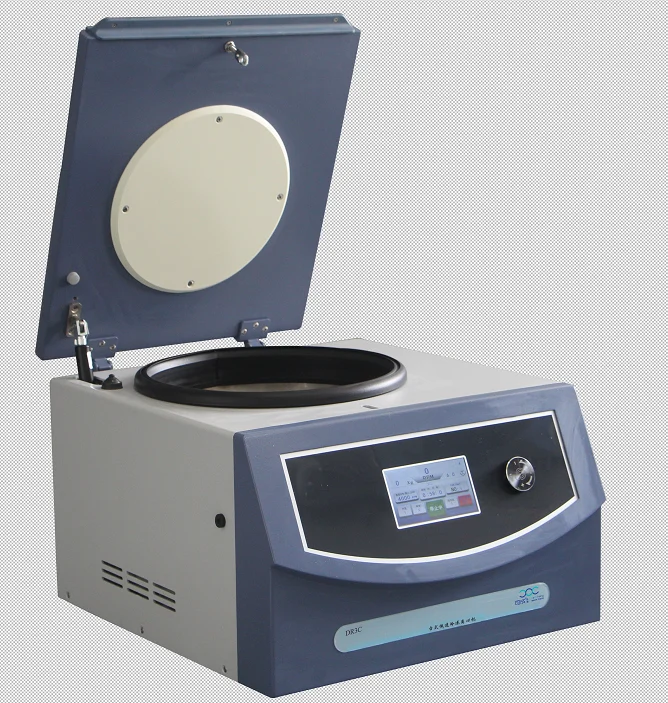

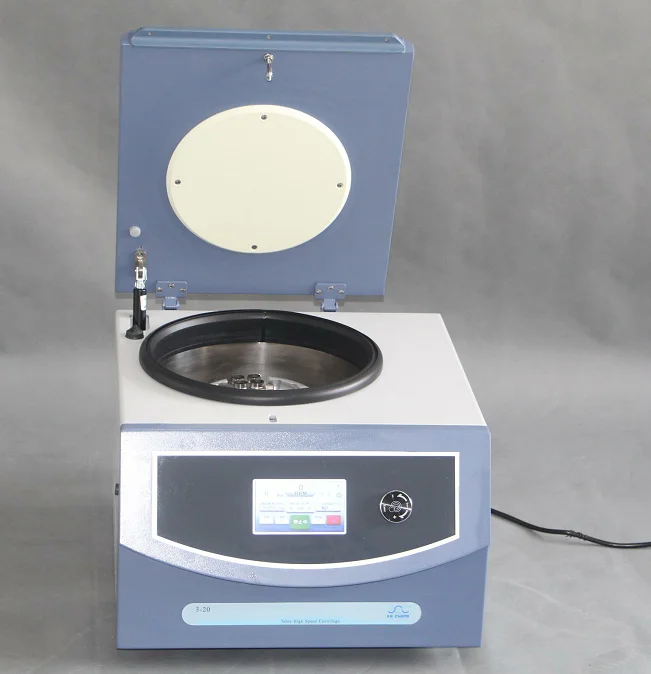

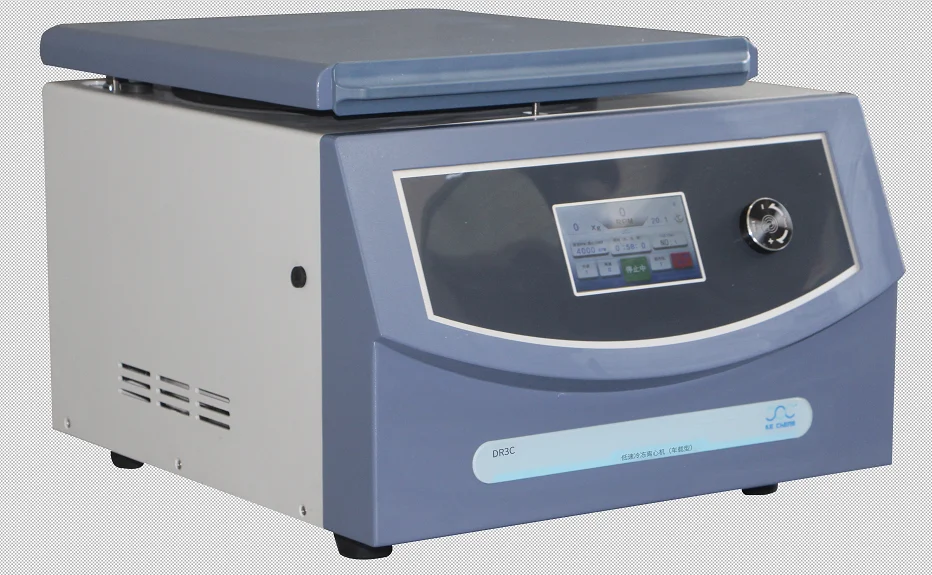

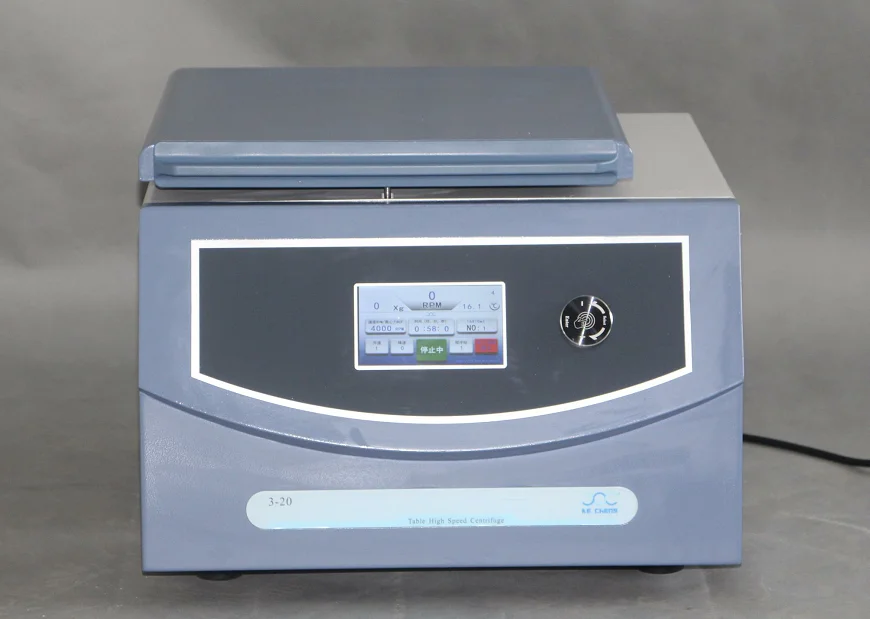

DR3C Table Low Speed Centrifuge(Vehicle Mounted Type)













Product features:



 Microcomputer control with 5-inch high-definition LCD touch-screen operation,parameters can be changed at any time during operation without stop.

  Multiple protection functions such as over-speed, imbalance, over- temperature, cover opening and shutdown.



 RCF and speed separately and switching free,automatically calculate RCF.



 Up to 10 level accelerate and decelerate control.



 Electronic locks with full steel inner cavity protective cover.



 One key pre-cooling function,and with environmental protection refrigeration system.



 Equipped with special suction cups, there is needn’t to worry about the movement of the equipment during the journey.



Technical parameters:



Model	DR3C
Max Speed	6000rpm	Voltage	AC 220±22V 50Hz 10A
Max RCF	4430×g	Power	400W
Max Capacity	16×15ml	Noise Level	≤ 60dB(A)
Timer	1min~99min	Chamber Diameter	Φ300mm
Revolutions/min	±10r/min	Dimensions	515×460×350 (mm)
Temp Range	-20℃~40℃	Packing Size	580×730×420(mm)
Temp Accuracy	±1.0℃	Net Weight	50kg



Application scope:



DR3C low-speed refrigerated centrifuge (vehicle mounted type) can be equipped with 12 tubes angle rotors and 16 tubes swing-out rotor. It can centrifuge 2m, 4ml, 5ml, 8ml and 10ml vacuum tubes, or 15ml sharp bottom tubes. When an adapter is added, it can also process 1.5ml, 2ml and 5ml centrifugal tubes.

It can be used for blood sample separation, body fluid sample separation and virus sample separation. This model is specially developed for outdoor blood collection vehicles and mobile nucleic acid detection vehicles. The utility model has the advantages of small size and complete functions. The equipment has reserved installation holes, which can be arranged in cooperation with blood collection vehicles and mobile nucleic acid detection vehicles.



Rotor parameters::

Rotor Type	NO.	Capacity	Max Speed(r/min)	Max RCF(×g)
Angle rotor	1	12×10ml	6000rpm	4430×g
Swing-out rotor	2	16×10/15ml	4200rpm	3910×g
