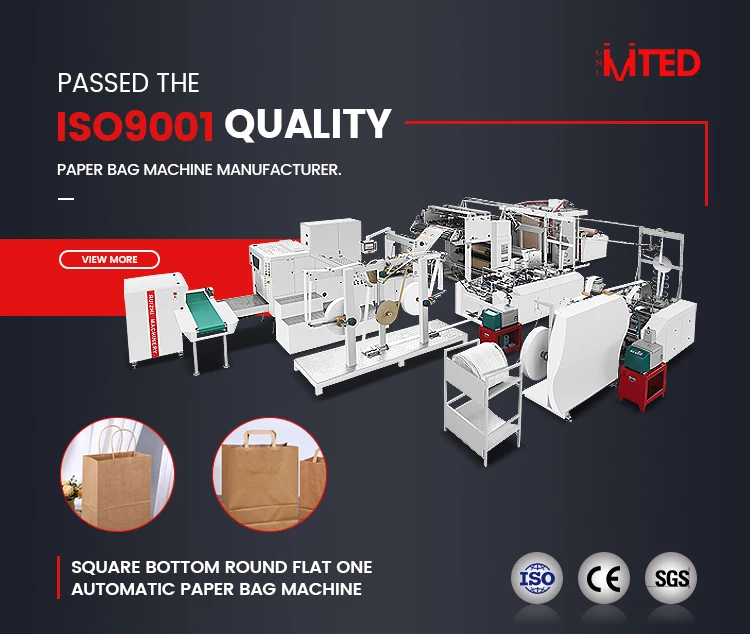

RZJD G350J 2 Making Kraft Dual Function Drying System Produce Paper Bag Machine With 2 Colour Printing Online
RZJD-G350J-2 Making Kraft Dual Function Drying System Produce Paper Bag Machine With 2 Colour Printing Online

RZJD G350J 2 Making Kraft Dual Function Drying System Produce Paper Bag Machine With 2 Colour Printing Online

Share on (1600396754646):


Price:$97,800.00

Quantity:


Product Overview

Description









Model
RZJD-G350J
Length of cutting bag
165-715mm
Bag length
160-710mm
Bag width
70-320mm
Insert size
20-120mm
Bag mouth height
15/20mm
Bag speed
50-650pcs/min
Paper feed width
200-920mm
Paper material diameter
Φ1000mm
Inner diameter of paper
Φ76mm
Paper material thickness
35-80g/m²
Film width
50-240mm
（opp/cpp）
Rolling Film thickness
0.020-0.037mm
Rolling film diameter
Φ500mm
Printing area
Printing width
100-760mm
Printing length
100-600mm
Printing speed
10-120m/min
Color accuracy
≤±0.20mm
Plate thickness （Including the thickness of the double-sided tape）
2.28mm+0.38
Working Air Current
More than 0.36m³/ minutes, 0.5-0.8 MPa
Machine power
380V 3(phase)4(wire)
2 colors /40.3KW
4 colors /43.5KW
Total weight
10000kg
Machine Dimesion
12000x2200x2800mm
